DT Research · Tablet

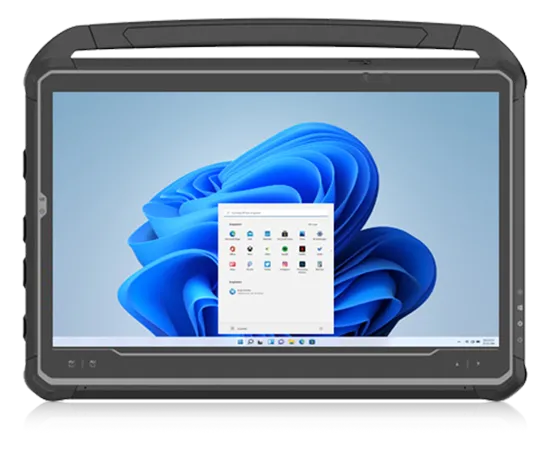

DT Research DT323RP Rugged Tablet
The DT323RP Rugged Tablets feature the integration of high-brightness 13.3” touchscreens and high-performance, energy-efficient Intel ® Core™ processor within slim, lightweight, durable packages. With a built-in Wi-Fi module as well as options for front/ back cameras, smart card/CAC reader, barcode scanner and GNSS data capture modules, these robust tablets offer seamless information capture and transmission for improved workflow. Rated IP65, MIL-STD- 810H certified with a wide temperature range, the DT323RP Rugged Tablets provide reliable operation in harsh, missioncritical environments.
- Operating systemMicrosoft ® Windows ® 11 IoT Enterprise Windows Compatibility: Windows 10 or later
- Display13.3” LED-backlit, sunlight-readable 1000 nits touchscreen
- Scanning2D barcode scanner (reads 1D and 2D)
- Battery43W Hot-swappable battery (11.4V, 3800mAh) (Optional) 60W Hot-swappable battery (11.4V, 5400mAh) (Optional)…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Microsoft ® Windows ® 11 IoT Enterprise Windows Compatibility: Windows 10 or later
- Processor
- Intel ® Core™ i5-1335U, 10-core, up to 4.6 GHz Intel ® Core™ i7-1355U, 10-core, up to 5.0 GHz
- RAM / storage options
- 8GB 512GB to 2TB flash *Support quick access SSD function to easily replace the SSD without opening the back cover temperature -30°C ～ 70°C Ultra 5: 16GB LPDDR5 512GB to 2TB 512GB to 2TB flash
Display
- Display size
- 13.3” LED-backlit, sunlight-readable 1000 nits touchscreen
- Display resolution
- 1920 x 1200
- Keyboard / keys
- 1 x power button; 2 x brightness buttons; 5 x programmable buttons
Data capture
- Scan engines / capture options
- 2D barcode scanner (reads 1D and 2D)
- Cameras
- 5 MP front camera and 8 MP back camera
Power
- Battery / runtime
- 43W Hot-swappable battery (11.4V, 3800mAh) (Optional) 60W Hot-swappable battery (11.4V, 5400mAh) (Optional) 90W Hot-swappable battery (11.4V, 8000mAh) 43W Hot-swappable battery (11.4V, 3800mAh)
Connectivity
- Wi-Fi / WLAN
- Wi-Fi 802.11ax, 2.4/5/6 GHz three band
- Location / GPS
- GPS
- Ports / interfaces
- USB Ports 1 x USB 3.0, 1 x latest USB/charging USB Port 1 x latest USB/charging WLAN Wi-Fi 802.11ax, 2.4/5/6 GHz three band Wi-Fi 802.11ax, 2.4/5/6 GHz three band USB Port 1 x USB 3.2 Gen 1 Type A, 1 x latest USB/charging 1 x USB 3.0, 2 x USB 2.0 1 x USB3.2 (Type-A), 2 x USB2.0 (Type-A), 1 x USB3.2 latest USB Port 1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging 1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging 1 x USB 3.0, 1 x latest USB/charging USB Port 1 x USB 3.0, 1 x latest USB/charging 1 x USB 3.0, 1 x latest USB/charging 1 x USB 3.0, 1 x latest USB/charging USB Port 1 x USB 3.0, 1 x latest USB/charging
Rugged
- Storage temperature
- Humidity 0% to 100% non-condensing
- Humidity
- 0% to 90% non-condensing
Size
- Weight
- 3.81 lbs/1.72 kg
- Dimensions
- 12.8 x 10.7 x 0.8 in/325 x 273.5 x 20 mm
