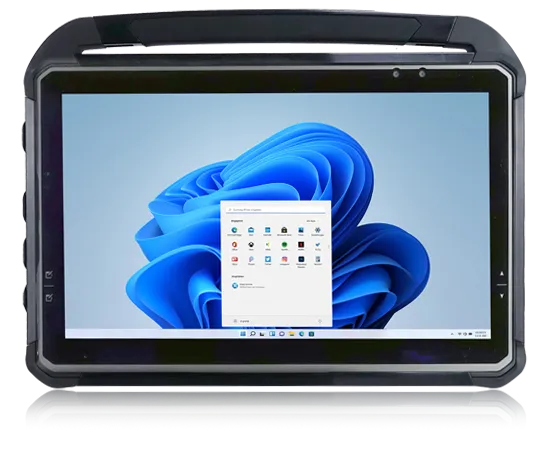

DT Research DT312PA Rugged Tablet
The DT312PA AI-capable rugged tablet integrates a high-brightness 11.6” touchscreen and a high-performance, energy-efficient Intel ® Core™ Ultra 12-core processor delivering up to 24 TOPS (INT8) of peak AI performance within a slim, lightweight, durable casing. Featuring a built-in NPU for dedicated AI acceleration, it meets the rigorous requirements of modern data management and supports demanding applications in graphics, video, voice processing, and predictive analytics. With built-in Wi-Fi and optional front and back cameras, smart card/CAC reader, NFC/RFID reader, barcode scanner, and GNS
- Operating systemMicrosoft ® Windows ® 11 IoT Enterprise Windows Compatibility: Windows 10 or later
- Display11.6” sunlight-readable touchscreen, digital pen support Resolution 1920 x 1080
- Scanning2D barcode scanner (reads 1D and 2D)
- Battery43W Hot-swappable battery (11.4V, 3800mAh) (Optional) 60W Hot-swappable battery (11.4V, 5400mAh) (Optional)…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Microsoft ® Windows ® 11 IoT Enterprise Windows Compatibility: Windows 10 or later
- Processor
- Intel ® Core™ Ultra 5 processor 225U, 12 core (up to 4.80 GHz) Intel ® Core™ Ultra 7 processor 255U, 12 core (up to 5.20 GHz)
- RAM / storage options
- Ultra 5: 16GB LPDDR5 Ultra 7: 32GB to 64GB LPDDR5 * The memory is embedded. Alternative configurations are available by special order with MOQ 512GB to 2TB *Support quick access SSD function to easily replace the SSD without opening the back cover temperature -30°C ～ 70°C Ultra 5: 16GB LPDDR5 512GB to 2TB 512GB to 2TB flash
Display
- Display size
- 11.6” sunlight-readable touchscreen, digital pen support Resolution 1920 x 1080
- Display resolution
- 1920 x 1080
- Keyboard / keys
- 1 x power button, 2 x brightness buttons, 5 x programmable buttons
Data capture
- Scan engines / capture options
- 2D barcode scanner (reads 1D and 2D)
- Cameras
- 5 MP front camera and 13 MP back camera
Power
- Battery / runtime
- 43W Hot-swappable battery (11.4V, 3800mAh) (Optional) 60W Hot-swappable battery (11.4V, 5400mAh) (Optional) 90W Hot-swappable battery, (11.4V, 8000mAh) 43W Hot-swappable battery (11.4V, 3800mAh)
Connectivity
- Wi-Fi / WLAN
- Wi-Fi 802.11ax, 2.4/5/6 GHz three band
- Location / GPS
- GPS
- Ports / interfaces
- USB Ports 1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging USB Port 1 x latest USB/charging WLAN Wi-Fi 802.11ax, 2.4/5/6 GHz three band Wi-Fi 802.11ax, 2.4/5/6 GHz three band USB Ports 1 x USB 3.0, 1 x latest USB/charging USB Port 1 x USB 3.2 Gen 1 Type A, 1 x latest USB/charging 1 x USB 3.0, 2 x USB 2.0 1 x USB3.2 (Type-A), 2 x USB2.0 (Type-A), 1 x USB3.2 latest USB Port 1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging 1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging 1 x USB 3.0, 1 x latest USB/charging USB Port 1 x USB 3.0, 1 x latest USB/charging 1 x USB 3.0, 1 x latest USB/charging 1 x USB 3.0, 1 x latest USB/charging USB Port 1 x USB 3.0, 1 x latest USB/charging
Rugged
- Storage temperature
- Humidity 0% to 100% non-condensing
- Humidity
- 0% to 90% non-condensing
Size
- Weight
- 3.43 lbs/1.55 kg
- Dimensions
- 8.3 x 12.4 x 0.78 in/212 x 316 x 20 mm (H x W x D) 8.3 x 12.4 x 0.78 in/212 x 316 x 20 mm Length: 5.5 in/ 140 mm
