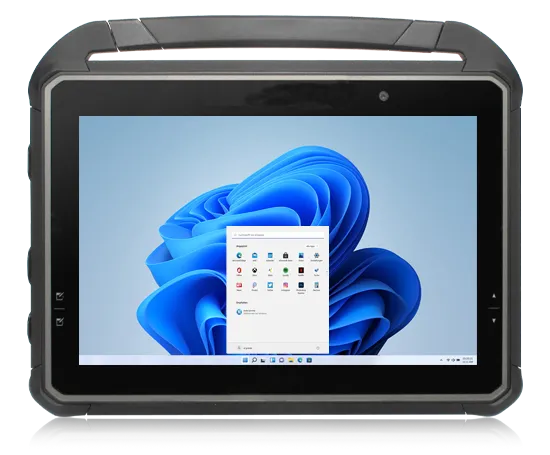

DT Research DT302RP Rugged Tablet
The DT302RP Rugged Tablet features the integration of a sunlight-readable 10.1” capacitive touchscreen and a high-performance, energy-efficient Intel ® Core™ i processor within a slim, lightweight, durable casing. With built-in Wi-Fi and optional front and back cameras, barcode scanner, smart card/CAC reader, NFC/RFID reader, and GNSS data capture modules, this robust tablet offers seamless information capture and transmission for optimal workflow. IP65 rated, MIL-STD-810H and MIL-STD-461G certified with a wide temperature range, the DT302RP Rugged Tablet provides reliable operation in harsh,
- Operating systemMicrosoft ® Windows ® 10/11 IoT Enterprise Windows Compatibility: Windows 10 or later
- Display10.1" LED-backlit, sunlight-readable 800 nits touchscreen
- Scanning2D barcode scanner (reads 1D and 2D)
- Battery43W Hot-swappable battery (11.4V, 3800mAh) (Optional) 60W Hot-swappable battery (11.4V, 5400mAh) (Optional)…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Microsoft ® Windows ® 10/11 IoT Enterprise Windows Compatibility: Windows 10 or later
- Processor
- Intel ® Core™ i7-1355U, 10-core, up to 5.0 GHz Intel ® Core™ i5-1335U, 10-core, up to 4.6 GHz
- RAM / storage options
- 8GB to 32GB 512GB to 2TB flash *Support quick access SSD function to easily replace the SSD without opening the back cover temperature -30°C ～ 70°C 512GB to 2TB flash Ultra 5: 16GB LPDDR5 512GB to 2TB
Display
- Display size
- 10.1" LED-backlit, sunlight-readable 800 nits touchscreen
- Display resolution
- 1920 x 1200
- Keyboard / keys
- 1 x power button, 2 x brightness buttons, 5 x programmable buttons
Data capture
- Scan engines / capture options
- 2D barcode scanner (reads 1D and 2D)
- Cameras
- 5 MP front camera and 8 MP back camera
Power
- Battery / runtime
- 43W Hot-swappable battery (11.4V, 3800mAh) (Optional) 60W Hot-swappable battery (11.4V, 5400mAh) (Optional) 90W Hot-swappable battery (11.4V, 8000mAh) 43W Hot-swappable battery (11.4V, 3800mAh)
Connectivity
- Wi-Fi / WLAN
- Wi-Fi 802.11ax, 2.4/5/6 GHz dual band
- Location / GPS
- GPS 2D Barcode × ✓ — ✓
- Ports / interfaces
- USB Ports 1 x USB 3.0, 1 x latest USB/charging USB Port 1 x latest USB/charging WLAN Wi-Fi 802.11ax, 2.4/5/6 GHz three band Wi-Fi 802.11ax, 2.4/5/6 GHz three band USB Port 1 x USB 3.2 Gen 1 Type A, 1 x latest USB/charging 1 x USB 3.0, 2 x USB 2.0 1 x USB3.2 (Type-A), 2 x USB2.0 (Type-A), 1 x USB3.2 latest USB Port 1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging 1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging 1 x USB 3.0, 1 x latest USB/charging USB Port 1 x USB 3.0, 1 x latest USB/charging 1 x USB 3.0, 1 x latest USB/charging 1 x USB 3.0, 1 x latest USB/charging USB Port 1 x USB 3.0, 1 x latest USB/charging
Rugged
- Storage temperature
- Humidity 0% to 100% non-condensing
- Humidity
- 0% to 90% non-condensing
Size
- Weight
- 3 lbs/1.32 kg
- Dimensions
- 7.7 x 10.71 x 0.79 in/195.6 x 272 x 20 mm Length: 5.5 in/140 mm
