DT Research · Tablet

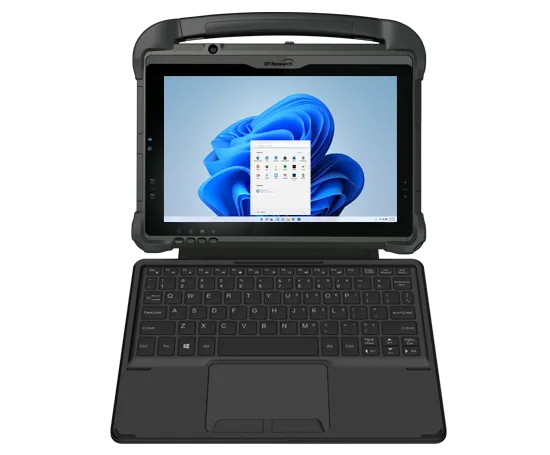

DT Research DT301YR RUGGED 2-IN-1 TABLET
The DT301YR Rugged Tablet features the integration of a high-brightness 10.1” touchscreen and a high-performance, energy-efficient Intel ® Core™ processor within a slim, lightweight, durable package. With a built-in smart card/CAC reader and Wi-Fi, as well as optional data capture modules, this robust tablet offers seamless information capture and transmission for improved workflow. Rated IP65, MIL-STD-810H/461G, and HERO certified with a wide temperature range, the DT301YR Rugged Tablet provides reliable operation in harsh, mission-critical environments.
- Operating systemMicrosoft ® Windows ® 10/11 IoT Enterprise Windows Compatibility: Windows 10 or later
- Display10.1” LED-backlit, sunlight-readable 1000 nits touchscreen Resolution 1920 x 1200
- Scanning2D barcode scanner (reads 1D and 2D)
- Battery60W Hot-swappable battery (11.4V, 5400mAh) (Optional) 90W Hot-swappable battery (11.4V, 8000mAh) 43W…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Microsoft ® Windows ® 10/11 IoT Enterprise Windows Compatibility: Windows 10 or later
- Processor
- Intel ® Core™ i7-1355U, 10-core, up to 5.0 GHz Intel ® Core™ i5-1335U, 10-core, up to 4.6 GHz
- RAM / storage options
- 8GB to 32GB 512GB to 2TB flash temperature -30°C ～ 70°C Ultra 5: 16GB LPDDR5 512GB to 2TB
Display
- Display size
- 10.1” LED-backlit, sunlight-readable 1000 nits touchscreen Resolution 1920 x 1200
- Display resolution
- 1920 x 1200
- Keyboard / keys
- 1 x power button, 2 x brightness buttons, 5 x programmable buttons
Data capture
- Scan engines / capture options
- 2D barcode scanner (reads 1D and 2D)
- Cameras
- 5MP front camera and 8MP back camera
Power
- Battery / runtime
- 60W Hot-swappable battery (11.4V, 5400mAh) (Optional) 90W Hot-swappable battery (11.4V, 8000mAh) 43W Hot-swappable battery (11.4V, 3800mAh)
Connectivity
- Wi-Fi / WLAN
- Wi-Fi 802.11ax, 2.4/5/6 GHz dual band
- Location / GPS
- GPS
- Ports / interfaces
- USB Ports 1 x USB 3.0, 1 x latest USB/charging USB Port 1 x latest USB/charging WLAN Wi-Fi 802.11ax, 2.4/5/6 GHz three band Wi-Fi 802.11ax, 2.4/5/6 GHz three band USB Port 1 x USB 3.2 Gen 1 Type A, 1 x latest USB/charging 1 x USB 3.0, 2 x USB 2.0 1 x USB3.2 (Type-A), 2 x USB2.0 (Type-A), 1 x USB3.2 latest USB Port 1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging 1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging 1 x USB 3.0, 1 x latest USB/charging USB Port 1 x USB 3.0, 1 x latest USB/charging 1 x USB 3.0, 1 x latest USB/charging 1 x USB 3.0, 1 x latest USB/charging USB Port 1 x USB 3.0, 1 x latest USB/charging
Rugged
- Storage temperature
- Humidity 0% to 100% non-condensing
- Humidity
- 0% to 90% non-condensing
Size
- Weight
- 2.86 lbs/1.3 kg
- Dimensions
- 7.8 x 11 x 0.86 in/198 x 280 x 21.9 mm (H x W x D) 7.8 x 11 x 0.86 in/198 x 280 x 21.9 mm Length: 5.5 in/ 140 mm
