DT Research · Tablet

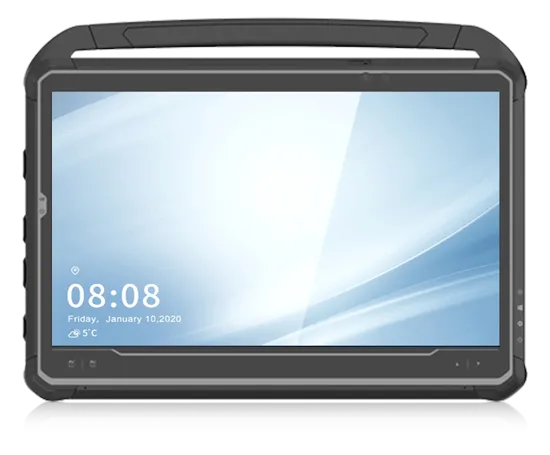

DT Research DA323EP Android Rugged Tablet
The DA323EP Rugged Tablet features the integration of a sunlight-readable 13.3” capacitive touchscreen and a high-performance, energy-efficient Qualcomm ® processor within a slim, lightweight, durable casing. With built-in Wi- Fi, front/ back cameras, as well as options for barcode scanner, GPS, and 4G LTE, this robust tablet offers seamless information capture and transmission for optimal workflow. IP65 rated and MIL-STD-810H certified with a wide temperature range, the DA323EP Rugged Tablet provides reliable operation in harsh, mission-critical environments.
- Operating systemAndroid 13 Windows Compatibility: Windows 10 or later
- Display13.3" LED-backlit, sunlight-readable 1000 nits touchscreen LCD
- Scanning2D barcode scanner (reads 1D and 2D) • 4G LTE/AWS
- BatteryHot-swappable battery (11.4V, 3800mAh) (Optional) Hot-swappable battery (11.4V, 5400mAh) (Optional)…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 13 Windows Compatibility: Windows 10 or later
- Processor
- Qualcomm ® 8-core ( 1.8 GHz to 2.0 GHz )
- RAM / storage options
- 8GB 128GB flash temperature -30°C ～ 70°C
Display
- Display size
- 13.3" LED-backlit, sunlight-readable 1000 nits touchscreen LCD
- Display resolution
- 1920 x 1080
- Keyboard / keys
- 1 x power button, 2 x brightness buttons, 5 x programmable buttons
Data capture
- Scan engines / capture options
- 2D barcode scanner (reads 1D and 2D) • 4G LTE/AWS
- Cameras
- 8 MP front camera and 13 MP back camera
Power
- Battery / runtime
- Hot-swappable battery (11.4V, 3800mAh) (Optional) Hot-swappable battery (11.4V, 5400mAh) (Optional) Hot-swappable battery (11.4V, 8000mAh) 43W Hot-swappable battery (11.4V, 3800mAh)
Connectivity
- Wi-Fi / WLAN
- Wi-Fi 802.11ac, 2.4/5 GHz dual band
- Location / GPS
- GPS
- Ports / interfaces
- USB Ports 1 x USB3.2 (type-A), 1 x USB3.2 latest USB/charging (data and charging) USB Port 1 x latest USB/charging 1 x latest USB/charging USB Port 1 x latest USB/charging 1 x USB, 1 x latest USB/charging USB Port 1 x USB 3.0, 1 x latest USB/charging 1 x USB3.2 (type-A), 1 x USB3.2 latest USB/charging (data
Rugged
- Storage temperature
- Humidity 0% to 100% non-condensing
- Humidity
- 0% to 90% non-condensing
Size
- Weight
- 3.74 lbs/1.7 kg
- Dimensions
- 7.7 x 10.71 x 0.79 in/195.6 x 272 x 20 mm Length: 5.5 in/140 mm
