Citizen · Receipt printer

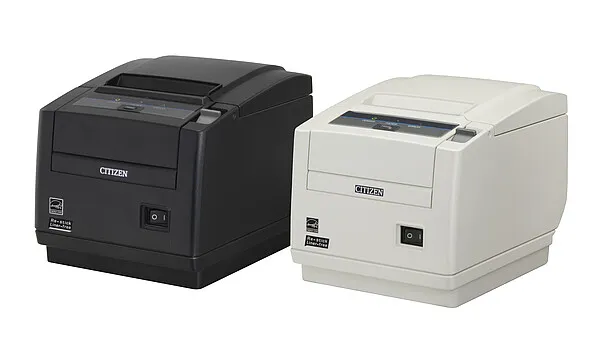

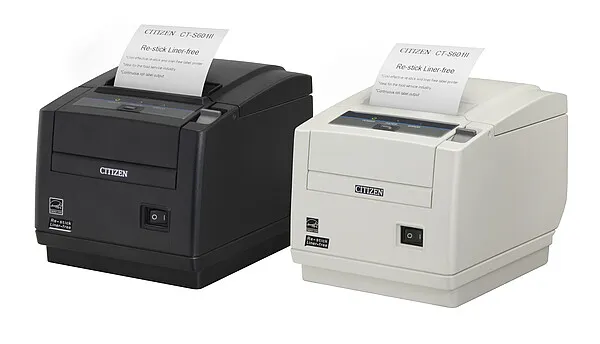

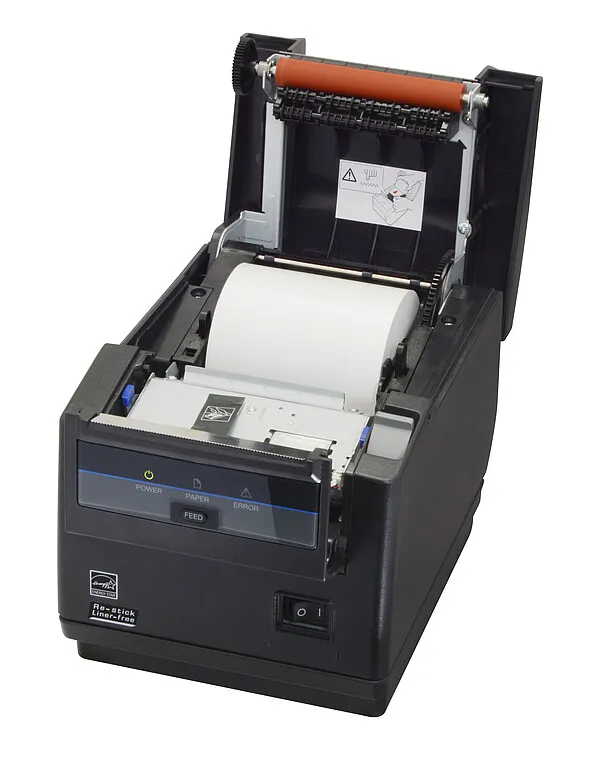

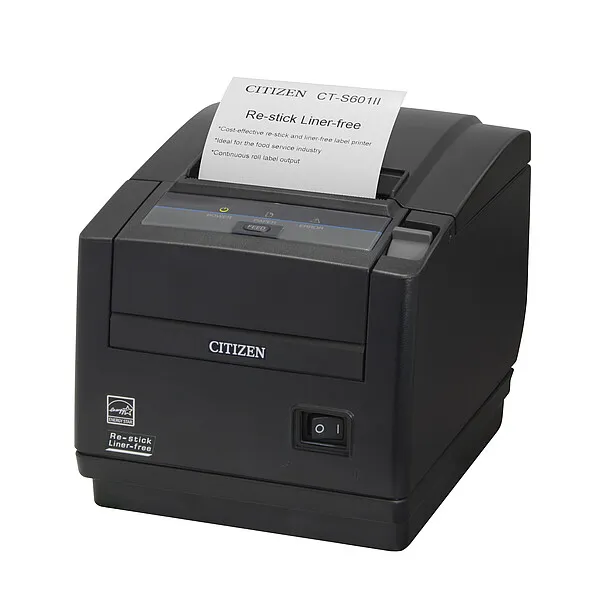

Citizen CT-S601IIR
The CT-S601IIR is our Re-stick, Liner-free Point-of-Sale printer. Capable of print speeds of up to 175mm/sec, with high resolution from a tough, long-life thermal printhead and specialty platen roller, the CT-S601IIR makes printing self-adhesive labels easy.
- Operating systemMac OS X OPOS JavaPOS ESC/POS® emulation Windows 7 & 10 Linux CUPS iOS Android Windows 11 Windows Server 2022
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Printing Technology
- Direct Thermal
- Resolution
- 203 dpi
- Print Speed (maximum)
- 175mm/sec
- Media type
- Thermal receipt paper
- Media Thickness (min to max)
- 65 - 90 μm
- Roll Size (max), Core Size
- 83 mm outside diameter
- Paper
- MAXStick (Premium, 2GO and X2) Nakagawa (Liner less label)
- Media Sensor
- Paper end
- Number of columns
- On 82.5mm paper up to 53 digits (12 x 24 font A) Maximum 40 digits (8×16: Kanji Font C) Maximum 26 digits (24×24: Kanji Font A) Maximum 80 digits (8×16: Font C) Maximum 71 digits (9×24: Font B) Maximum 53 digits (12×24: Font A)
- Character table / Code page
- Alphanumeric International characters
- Line spacing
- 4.23mm (1/6 inch); adjustable by user comand
- Main Interface
- None: interface card slot for optional card
- Optional interfaces
- Parallel (IEEE 1284 compliant) Serial (RS-232C compliant) USB Premium Wireless LAN Ethernet (SEH) Bluetooth with Apple™ MFi compatibility Compact Wireless LAN Ethernet Ethernet + USB host USB 2.0 Powered USB

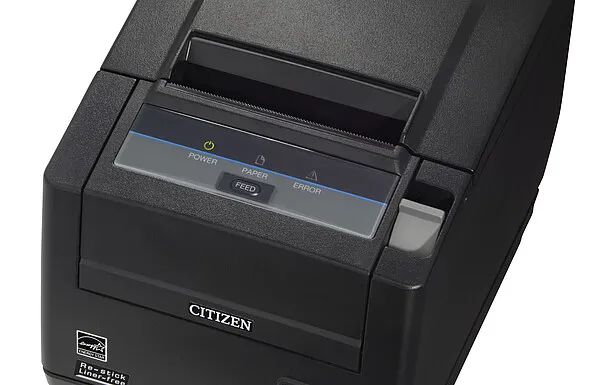

- Control panel
- Feed button, 3 LEDs
- Drivers and software
- Free-of-charge from website, including support for various platforms
- Emulations (Languages)
- ESC/POS™
- Barcodes
- UPC-A UPC-E EAN-13 (JAN-13) EAN-8(JAN-8), CODE39 CODE93 CODE128 CODABAR(NW-7) PDF 417 QR Code
- Size (W x D x H) and Weight
- 145x192x148 mm, 2 Kg, DC version 145x192x120, 1.6 Kg
- Cutter
- Guillotine type, partial
- Drawer kick-out
- CDK / DK connector, RJ12, 2 drawer control
- Charging / power
- 100 – 240V, 50-60 Hz, external power supply (supplied) or 24V DC
- Power consumption
- Average: Approx. 1.8A (Monochrome, 24V, Normal temperature), Peek: Approx. TBD (Full-dot printing), At standby mode: Approx. 0.1 A, Note: When using cache drawer, maximum drive current is 1A
- Reliability
- 100 million pulses, 75km
- Operation environment
- +5 to +45˚C, 10% - 80% RH, non condensing
- Storage environment
- -20 to +60°C, 10% - 90% RH, non condensing
- EMC and safety standards
- CE UL TUV C-UL FCC class A VCCI
- Code pages
- 128 characters, 16 pages
- Accessories And Options
- Cutter (full / partial)
- Operating system
- Mac OS X OPOS JavaPOS ESC/POS® emulation Windows 7 & 10 Linux CUPS iOS Android Windows 11 Windows Server 2022
- Applications
- Applications: Ticketing Retail Pharmacy Kitchen Hospitality
