Citizen · Receipt printer

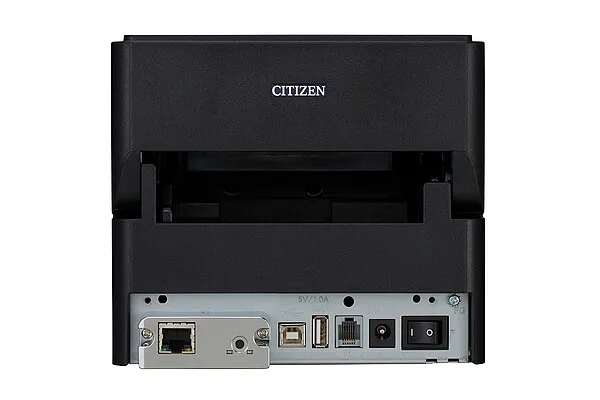

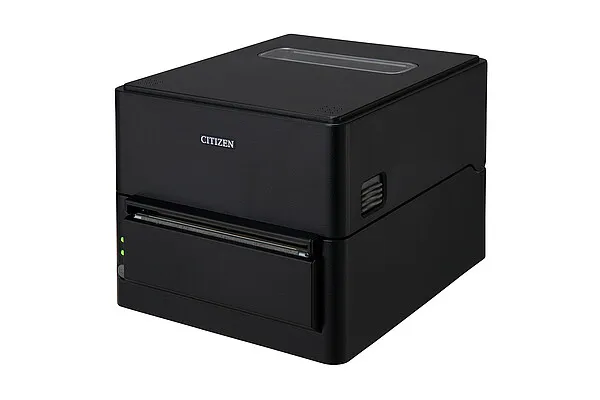

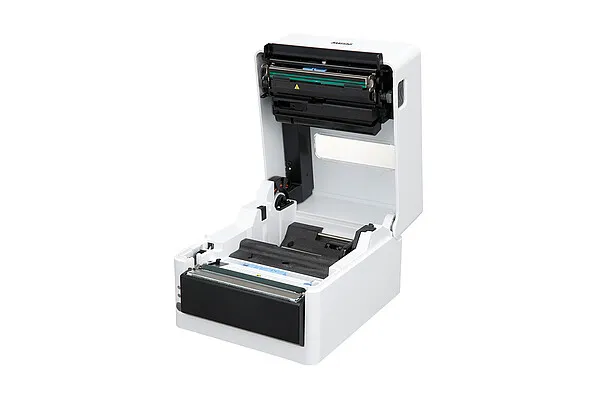

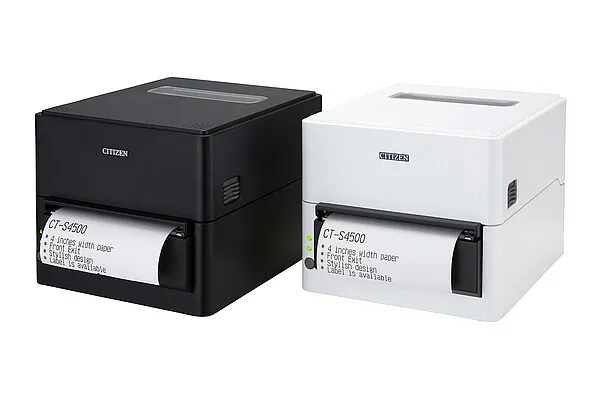

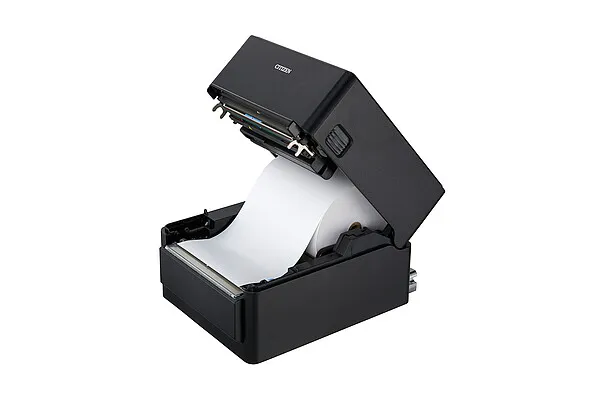

Citizen CT-S4500
The CT-S4500 is the newest 4 inch addition the Citizen Point-of-Sale family line that features wide format printing to suit all your wide printing needs. Encompassing the Citizen design language with its unique and contemporary design, it fits seamlessly into retail and hospitality environments for the most stylish user.
- Operating systemDevelopment kits for Windows Mobile, Android, Blackberry, Symbian, etc. Mac OS X OPOS JavaPOS ESC/POS®…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Printing Technology
- Direct Thermal
- Resolution
- 203 dpi
- Print Speed (maximum)
- 200 mm /sec.
- Print Width (maximum)
- 104 mm
- Media type
- Thermal labels + receipt paper
- Media Width (min to max)
- 58 - 112 mm
- Media Thickness (min to max)
- 65 to 75 μm
- Roll Size (max), Core Size
- 102 mm outside diameter
- Media Sensor
- Gap, reflective black mark and paper end
- Blackmark sensor
- Black mark sensor (Photo interrupter)
- Number of columns
- On 112mm paper up to 69 digits (12 x 24 font A) On 112mm paper up to 104 digits (8 x 16 font C) On 112mm paper up to 92 digits (9 x 17 font B)
- Character table / Code page
- Alphanumeric International characters Kana Kanji (JIS level 1, level 2) Katakana Thai code18 WPC1252 437 850 852 857 858 860 863 864 865 866
- Main Interface
- USB 2.0 full speed
- Optional interfaces
- Bluetooth with Apple™ MFi compatibility
- Control panel
- 1 button, 2 LEDs
- Flash (Non-Volatile Memory)
- 384K bytes
- Input buffer
- 4K bytes / 45 bytes
- Drivers and software
- Free-of-charge from website, including support for various platforms
- Emulations (Languages)
- ESC/POS™
- Barcodes
- UPC-A UPC-E EAN-13 (JAN-13) EAN-8(JAN-8), Codabar, ITF CODE39 CODE128 CODABAR(NW-7) CODE93 PDF 417 QR Code GS1-Databar Composit Symb Code3of9
- Size (W x D x H) and Weight
- 170 x 216 x 151 mm, 2.5 Kg
- Warranty
- 3 years
- Cutter
- Guillotine type, full and partial
- Drawer kick-out
- 2 Drawers
- Charging / power
- 100 – 240V, 50-60 Hz, external power supply (supplied) or 24V DC
- Operation environment
- +5 to +40°C, 35% - 90% RH, non condensing
- Storage environment
- -20 to +60°C, 10% - 90% RH, non condensing
- EMC and safety standards
- CE UL C-UL FCC VCCI
- Code pages
- 15 codepages, 17 country tables
- Accessories And Options
- Cutter (full / partial)
- Naturally Citizen Green Concept
- ENERGY STAR® compliant Small footprint
- Easy maintenance
- Tool-free maintenance
- Operating system
- Development kits for Windows Mobile, Android, Blackberry, Symbian, etc. Mac OS X OPOS JavaPOS ESC/POS® emulation Windows 7 & 10 Linux CUPS iOS Android Windows 11 Windows Server 2022
- Applications
- Applications: Hospitality Kiosk Retail Betting Rental / Hiring
