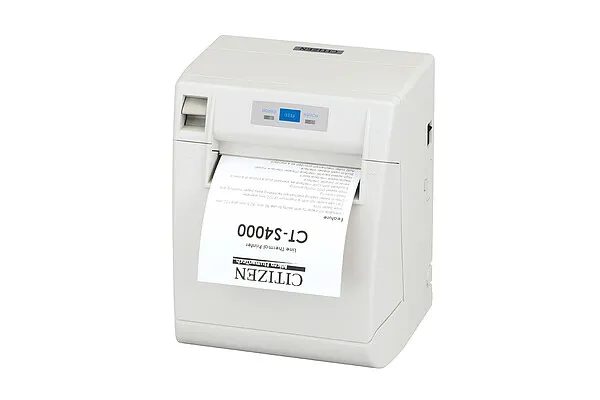

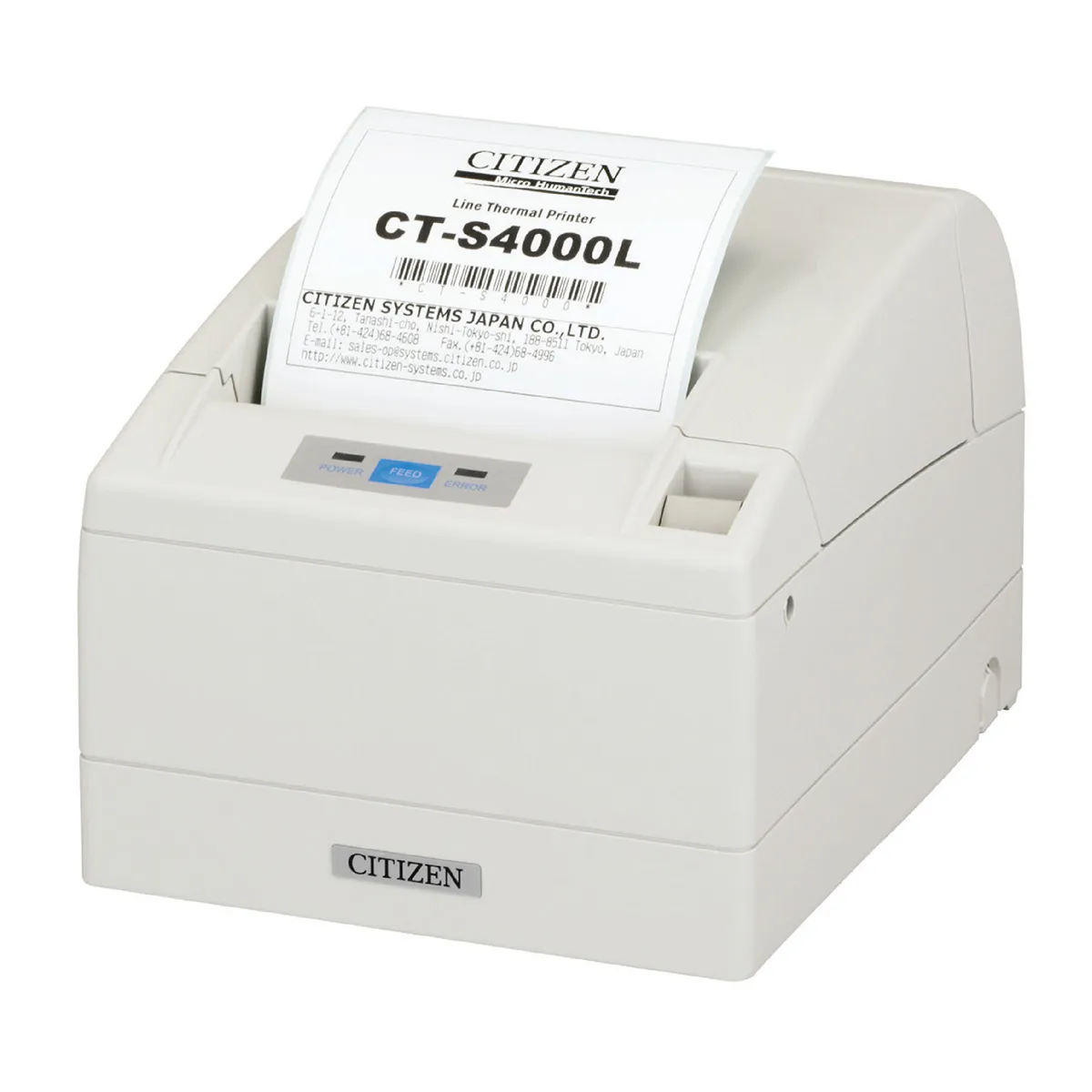

Citizen CT-S4000
The compact CT-S4000 thermal printer produces high quality 3 and 4 inch width labels, at speeds of 100mm/sec. This robust machine is easy to use, with simple and reliable media loading mechanisms.
- Operating systemOPOS JavaPOS ESC/POS® emulation Windows 7 & 10 Linux CUPS Windows 11 Windows Server 2022
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Printing Technology
- Direct Thermal
- Resolution
- 203 dpi
- Print Speed (maximum)
- 150 mm /sec.
- Print Width (maximum)
- 104 mm
- Media type
- Thermal labels + receipt paper
- Media Width (min to max)
- 111.5 mm
- Media Thickness (min to max)
- 65 to 150 μm
- Media Length (min to max)
- 25 mm/label (min.)
- Number of columns
- On 80mm paper up to 48 digits (12 x 24 font A) On 80mm paper up to 64 digits (9 x 17 font B) On 80mm paper up to 72 digits (8 x 16 font C) On 82.5mm paper up to 55 digits (12 x 24 font A) On 82.5mm paper up to 73 digits (9 x 17 font B) On 82.5mm paper up to 82 digits (8 x 16 font C) On 112mm paper up to 69 digits (12 x 24 font A) On 112mm paper up to 92 digits (9 x 17 font B) On 112mm paper up to 104 digits (8 x 16 font C)
- Character table / Code page
- Katakana Thai code18 WPC1252 437 850 852 857 858 860 863 864 865 866
- Line spacing
- 4.23mm (1/6 inch); adjustable by user comand
- Main Interface
- Dual interface USB built-in plus optional interface card slot
- Optional interfaces
- Ethernet (SEH) Serial (RS-232C compliant) Parallel (IEEE 1284 compliant)
- Input buffer
- 4K bytes / 45 bytes
- Drivers and software
- Free-of-charge from website, including support for various platforms
- Emulations (Languages)
- ESC/POS™
- Barcodes
- UPC-A UPC-E EAN-13 (JAN-13) EAN-8(JAN-8), CODE39 CODE93 CODE128 CODABAR(NW-7) PDF 417
- Size (W x D x H) and Weight
- 177x213x147 mm, 2.1 Kg (AC type) / 1.9 Kgs (DC type)
- Warranty
- 2 years including head and cutter
- Drawer kick-out
- 2 Drawers
- Charging / power
- 100 – 240V, 50-60 Hz, 150 VA or 24V DC
- Reliability
- 100 Million pulses or 100 Km, 1 million cuts
- Operation environment
- +5 to +40°C, 35% - 90% RH, non condensing
- Storage environment
- -20 to +60°C (10% to 90% RH non condensing)
- EMC and safety standards
- CE UL C-UL FCC class A
- Accessories And Options
- Cutter (full / partial)
- Operating system
- OPOS JavaPOS ESC/POS® emulation Windows 7 & 10 Linux CUPS Windows 11 Windows Server 2022
- Applications
- Applications: Healthcare Hospitality Journal Kiosk Ticketing Retail
