CAEN RFID · Accessory
CAEN RFID WANT020IP

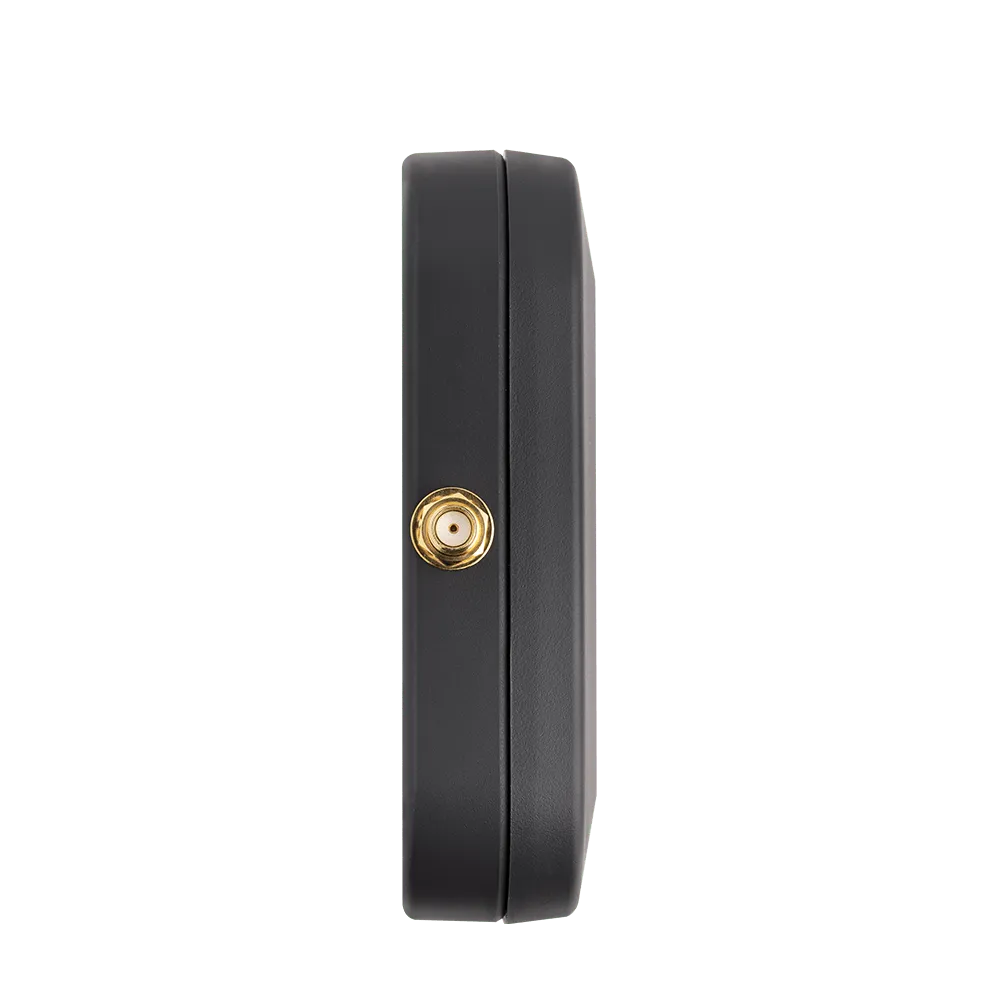

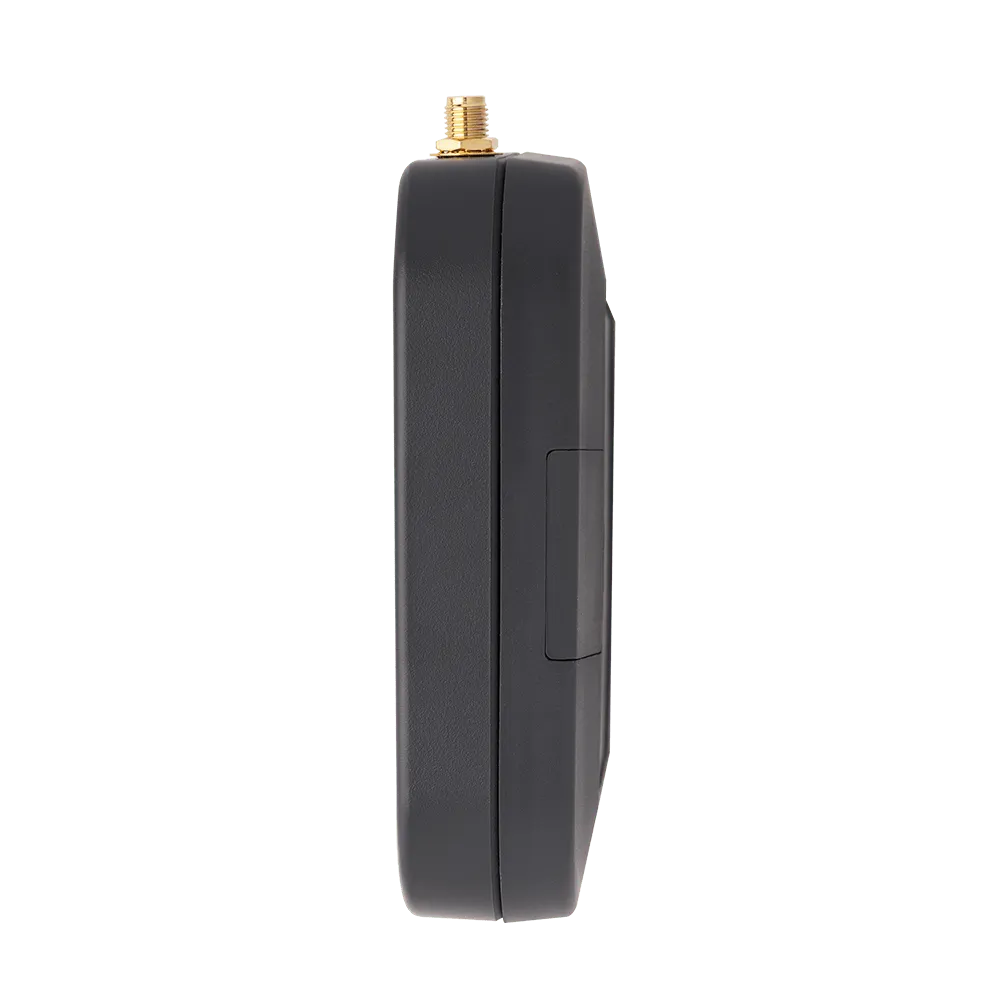

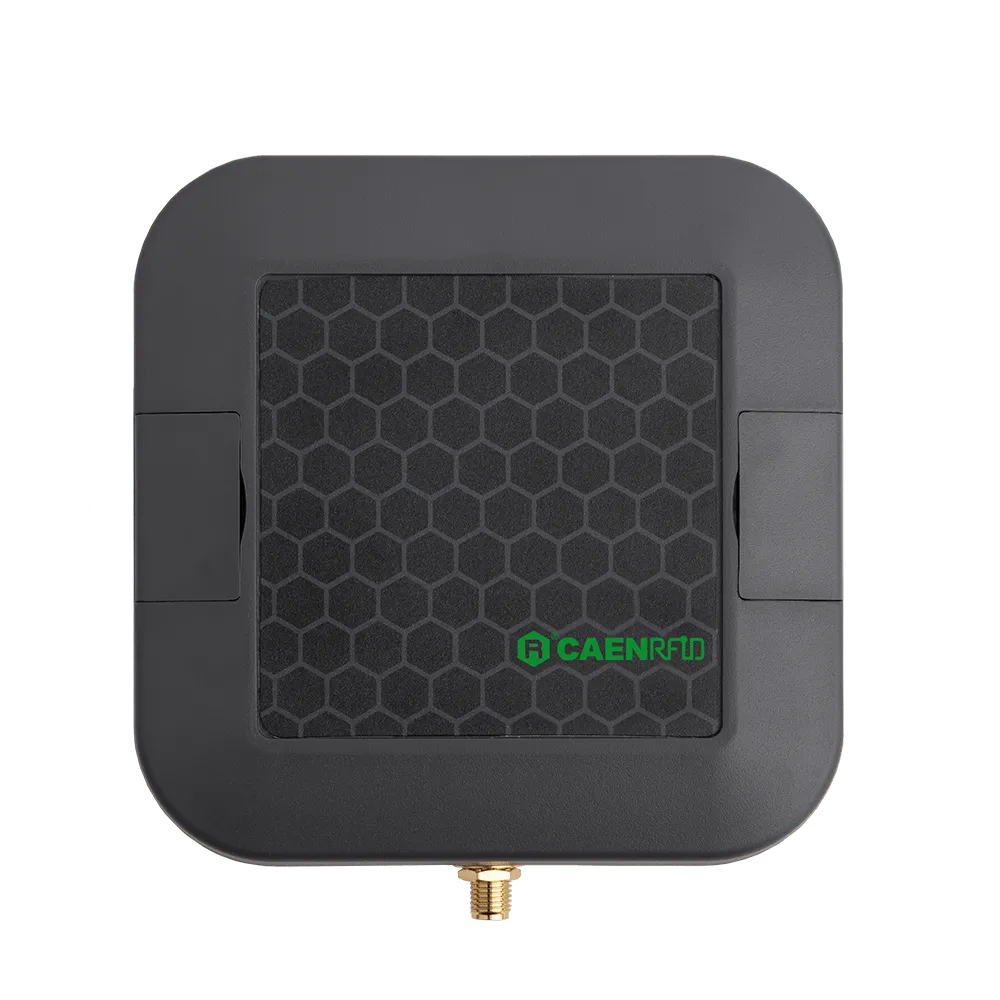

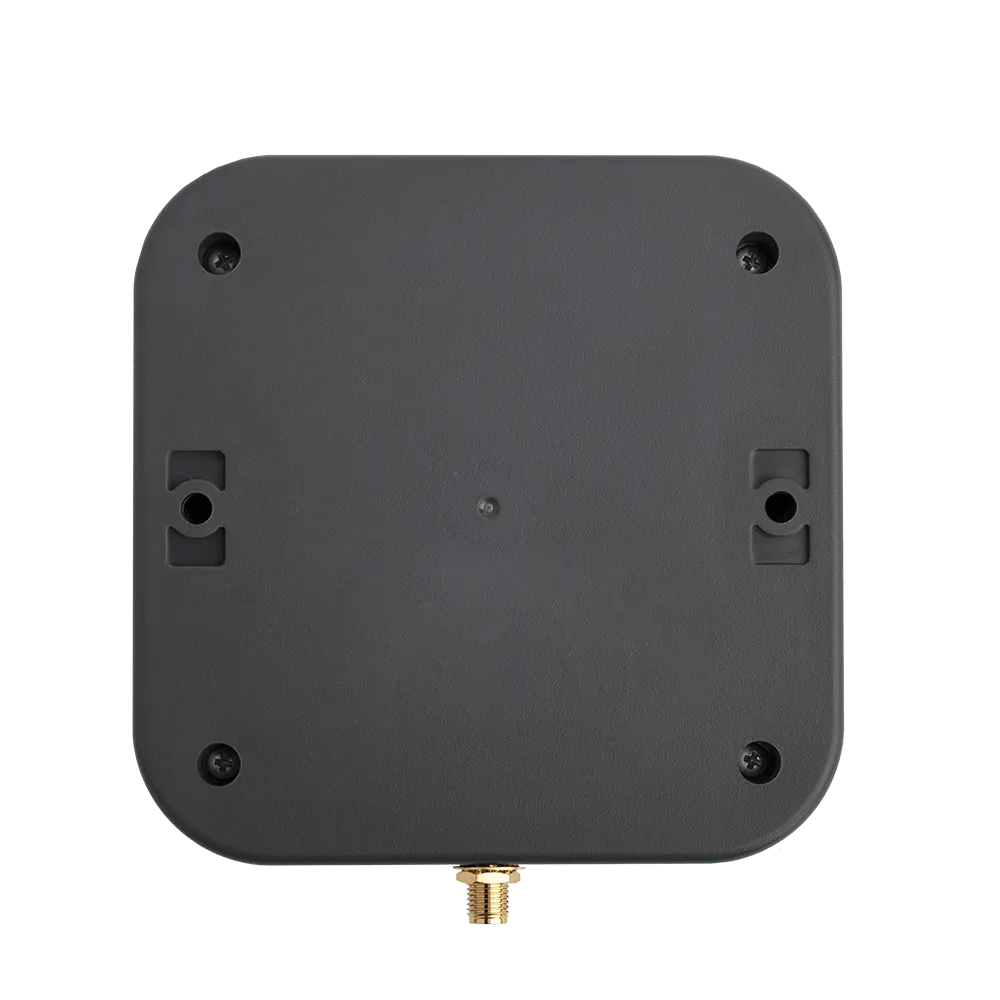

The QuadIP is a medium-short range RAIN RFID antenna in a compact and robust form factor. The QuadIP antenna is well suited for building small RFID gates, read point for access control or to be installed on conveyors in industrial environments.
- SealingIP67
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Frequency Range
- 865.6 ÷ 867.6 MHz (ETSI EN 302-208 v3.1.1)
- Antenna polarization
- Circular (RHCP)
- Antenna gain
- 0.2dBi typ.
- Axial Ratio
- 1dB typ.
- Dimensions
- – (L) 100 x (W) 100 x (D) 25 mm 3 – 3.94 x 3.94 x 0.98 inch 3
- Impedance
- 50 Ohm
- VSWR
- < 1.5:1
- RF Connector
- SMA jack female, straight
- IP / sealing
- IP67
Send a request
Get a quote for the WANT020IP
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
