CAEN RFID RHML37XEVB

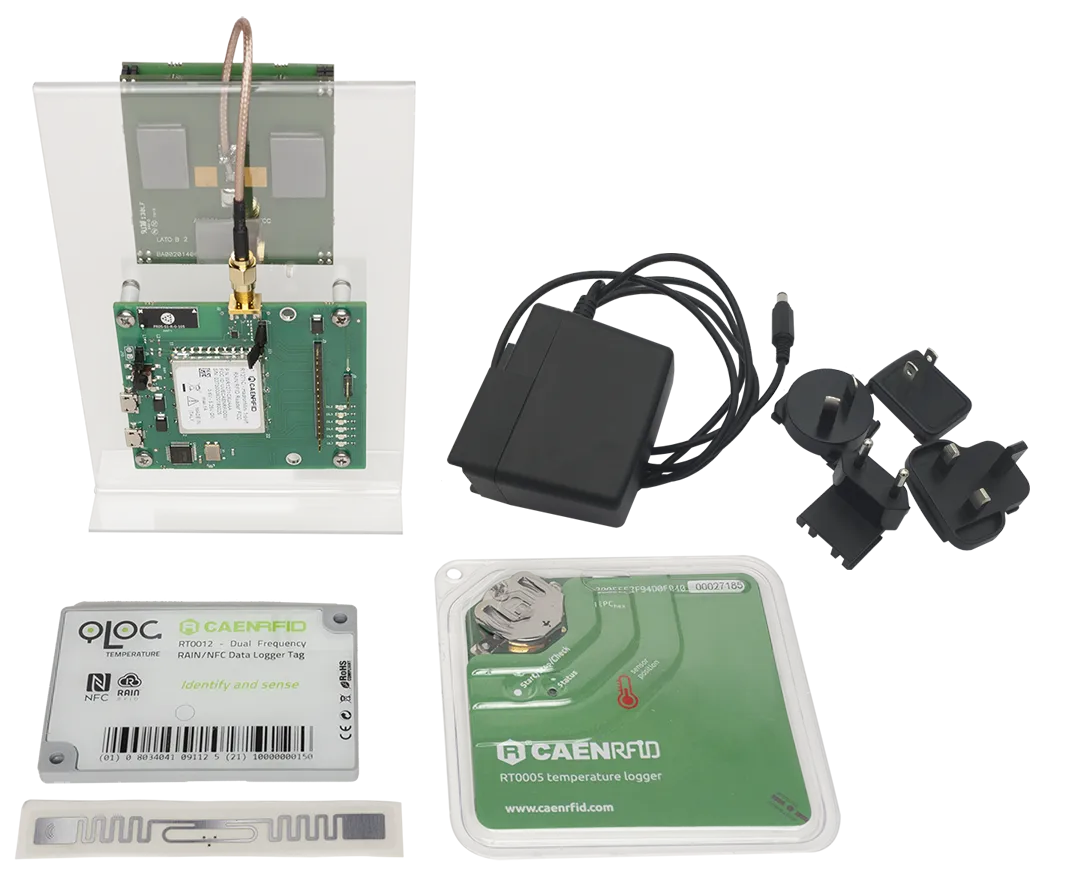

The RHML37XEVBX Evaluation Board enables quick evaluation and development with Hadron mini R1271C, Lepton 3 R3100C and Lepton 7 R7100C. It provides an easy way to communicate with the readers via USB-UART or an arbitrary UART host and provides easy access to the inputs and outputs of the device.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Digital I/O
- Four I/O lines 5V out @ 3mA, 5V input
- USB Port
- USB micro female connector USB 2.0 device It appears as dual Virtual COM Port device; drivers for all Windows OS
- DC power port via USB Port
- USB micro female connector
- External antenna connector
- SMA jack
- Embedded antenna
- Ignion NN01-105
- Raspberry PI interface
- HAT connector
- Electrical Power
- DC Voltage 5V +/-5%
- Current consumption
- 1.5A max. (with reader module)
- LED display
- GREEN: power from AC/DC adapter and/or USB port GREEN: reader module’s HEALTH YELLOW: reader module’s STATUS GREEN: GPIO[0..3]
- Dimensions
- (W)79 x (L)78 x (H)23 mm 3 (3.1 x 3.1 x 0.9 inch 3 )
- Operating temperature
- -20 °C to +70 °C
