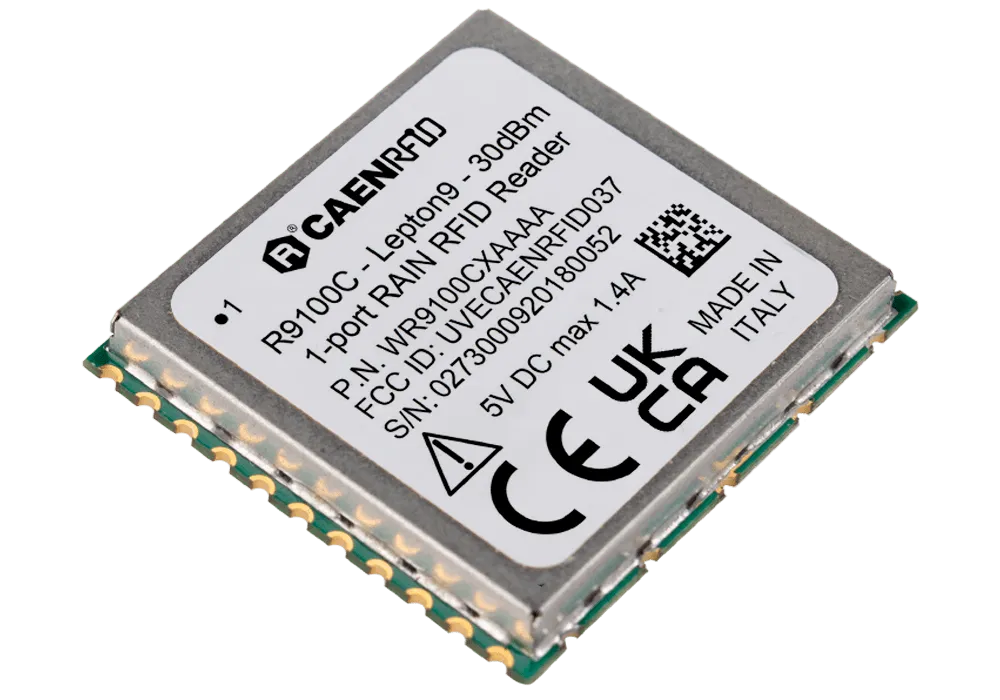

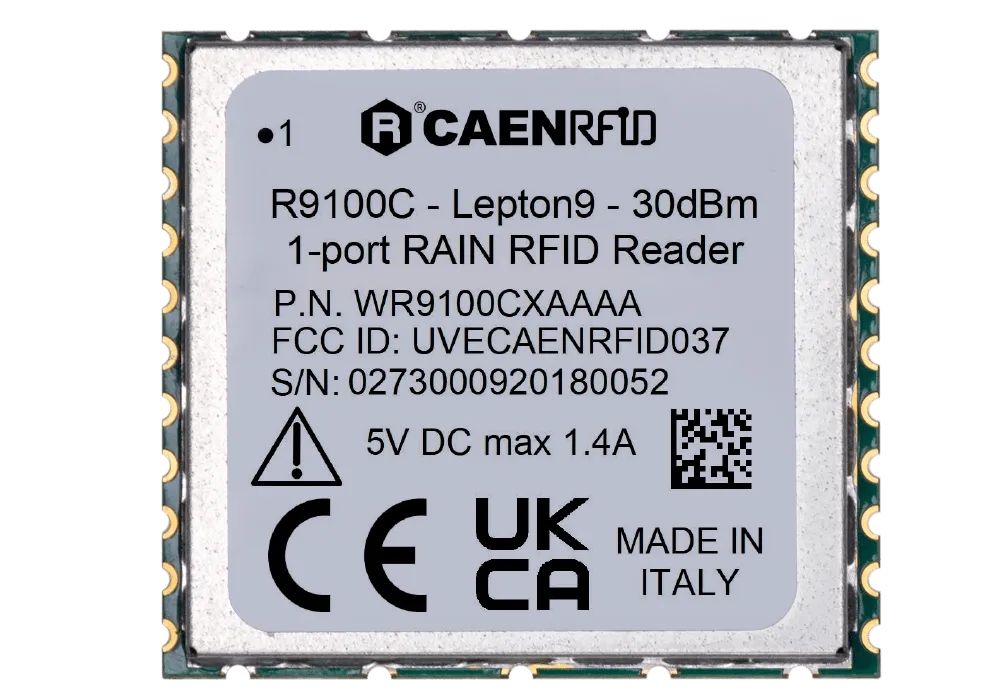

CAEN RFID Lepton 9
The Lepton 9 (Model R9100C), an embedded reader of the easy2read © product line, is an ultra compact reader for low power, high performance RAIN RFID applications. With programmable output power from 10dBm to 30dBm, the reader can detect tags at more than 5 mt of distance (depending on antenna and tag dimensions).
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Frequency Range
- 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.4.1) 902÷928 MHz (FCC part 15.247)
- RF Power
- Configurable from 0 dBm to 30 dBm (from 1 mW to 1 W) conducted power
- RX Sensitivity
- -90dBm – 10%PER, assuming 20 dB antenna RL @ 30 dBm output
- Antenna VSWR Requirement
- < 2:1 for optimal performance
- Antenna Connectors
- 50 Ohm mono-static RF port on a single pin
- Frequency Tolerance
- ± 10 ppm over the entire temperature range
- Number of Channels
- 4 channels (compliant to ETSI EN 302 208 v. 3.4.1) 50 hopping channels (compliant to FCC part 15.247)
- Standard Compliance
- EPC Class 1 Gen 2 – ISO18000-63
- Connectivity
- UART Serial Port: Baudrate: from 9.6 to 921.6 kbps, default 921.6 kbps Databits: 8 Stopbit: 1 Parity: none Flow control: none 3.3 V I/O voltage level
- I/O Interface
- 4 I/O lines 3.3 V level I out = 8 mA max.
- Charging / power
- 4.75 ÷ 5.25 V DC
- Power Consumption
- 1.4 A @ 5 V – RF out = 30 dBm 5 mA in idle mode – Ready to receive commands
- Dimensions
- (L) 32 x (W) 29 x (H) 4.1 mm 3 1.26 x 1.14 x 0.16 inches 3
- Package Type
- 32 pin surface mount module (SMT compatible)
- Operating temperature
- -20°C to +70°C
- Weight
- 5.4 g
