CAEN RFID Lepton 3 x4-USB
The Lepton3x 4 -USB (Model R3104CU), an embedded reader of the easy2read© product line, is an ultra compact reader for low power, high performance RAIN RFID applications.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Frequency Range
- 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.4.1) 902÷928 MHz (FCC part 15.247)
- RF Power
- Configurable from 0 dBm to 25 dBm (from 1 mW to 316 mW) conducted power
- RX Sensitivity
- -72 dBm – 10%PER, assuming 20 dB antenna RL @ 25 dBm output
- Antenna VSWR Requir
- < 2:1 for optimal performance

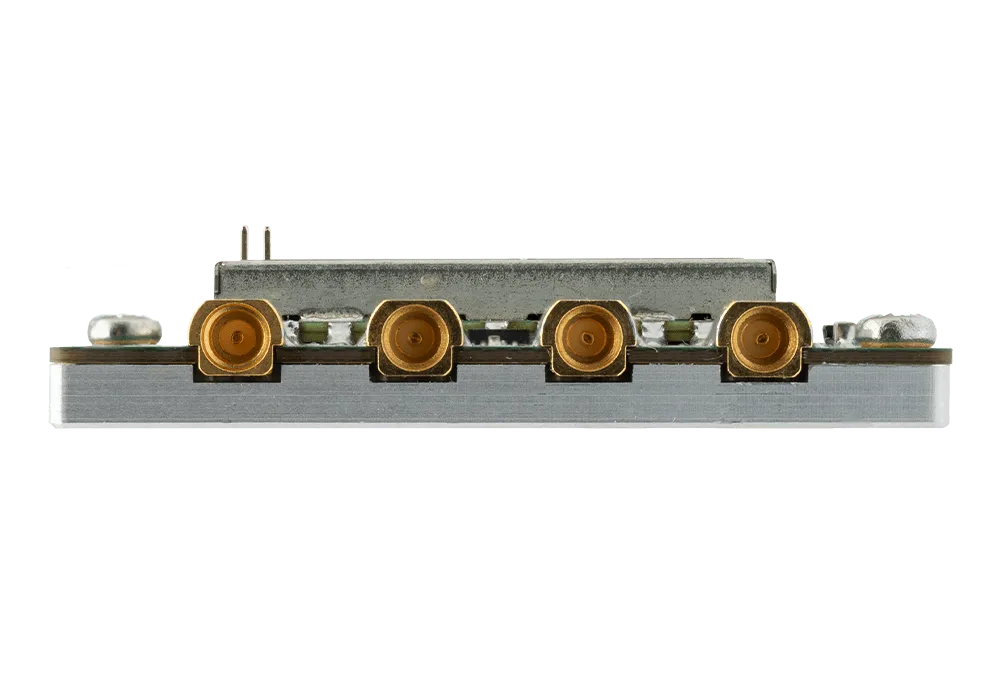

- Antenna connector
- 4 MMCX jacks
- Frequency Tolerance
- ± 10 ppm over the entire temperature range
- Number of Channels
- 4 channels (compliant to ETSI EN 302 208 v. 3.4.1) 50 hopping channels (compliant to FCC part 15.247)
- Standard Compliance
- EPC Class 1 Gen 2 – ISO18000-63

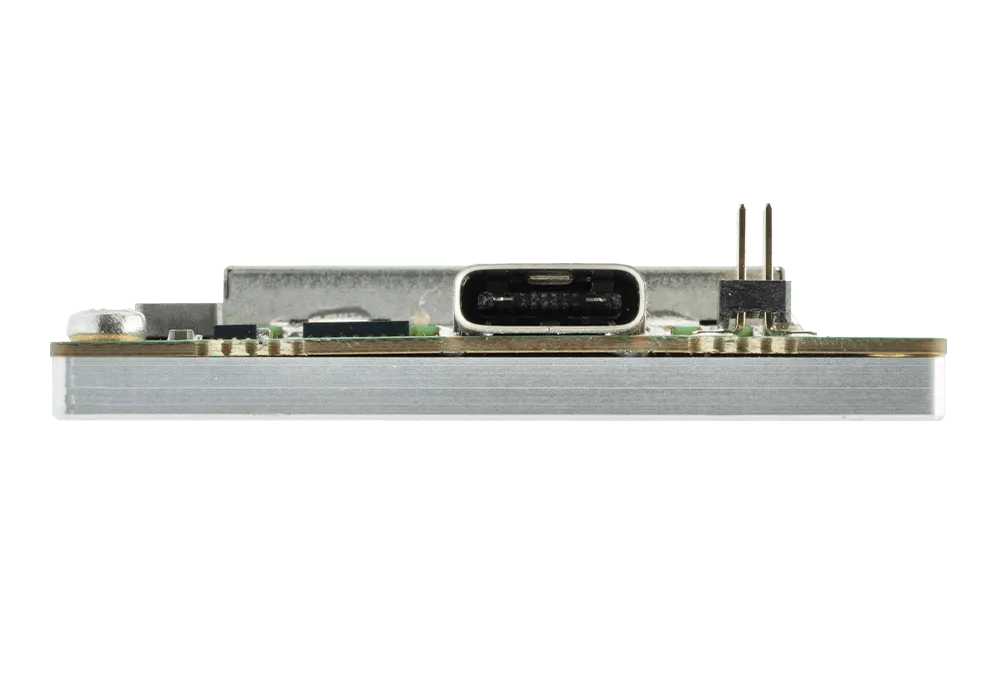

- Connectivity
- USB Type-C Virtual COM Port Communication parameters: Baudrate from 9.6 to 921.6 kbps, default 921.6 kbps Databits: 8 Stopbit: 1 Parity: none Flow control: none 3.3 V I/O voltage level
- I/O Interface
- 4 I/O lines 3.3 V level I out = 8 mA max.
- Charging / power
- 4.75 ÷ 5.25 V DC
- Power Consumption
- 800 mA @ 5 V – RF out = 25 dBm 5 mA in idle mode – Ready to receive commands
- Dimensions
- (L)61 x (W)42 x (H)9.1 mm 3 2.40 x 1.65 x 0.36 inches 3
- Operating temperature
- -20 °C to +70 °C
- Weight
- 34 g
