Overview

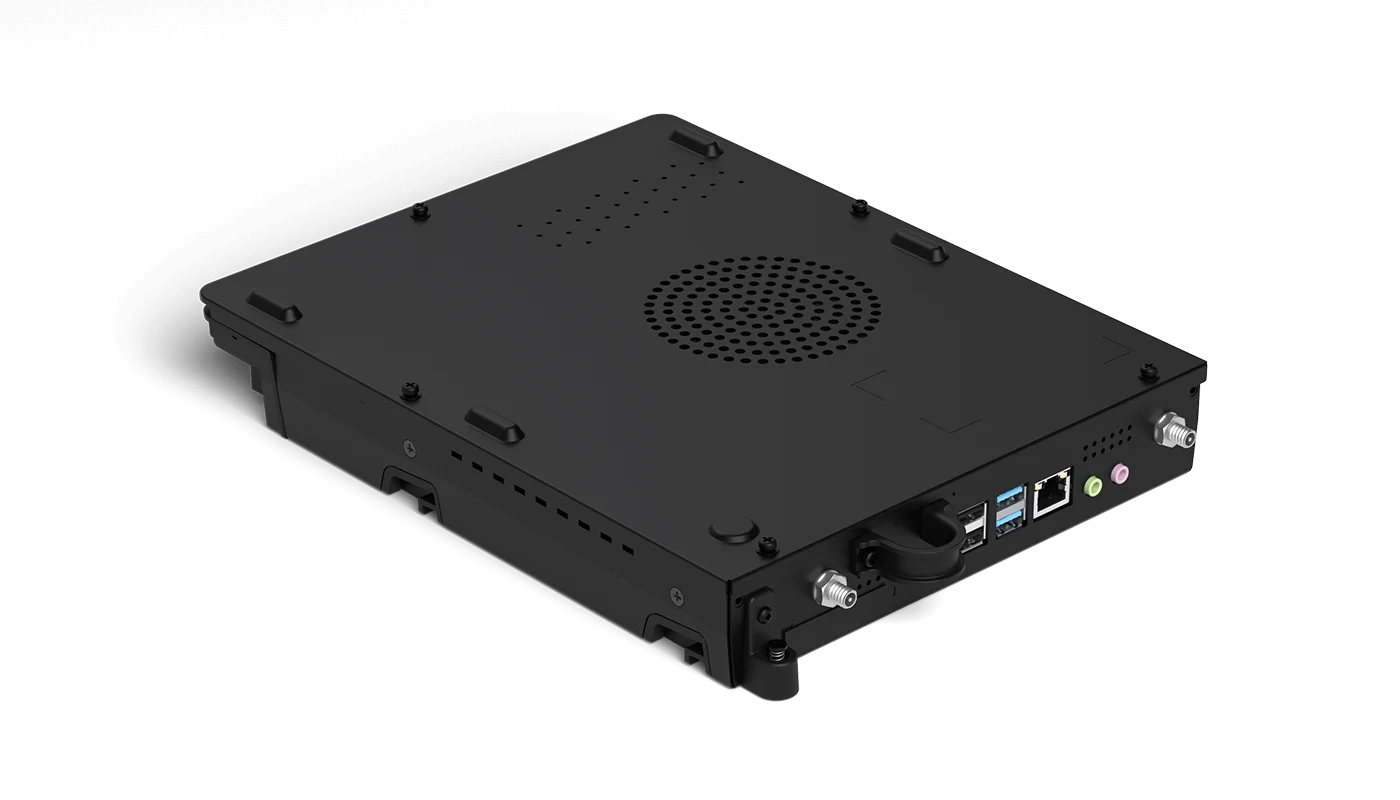

The Elo ECMG4 Computer Modules feature Intel Core® 7th Generation CPUs with enhanced graphics performance. Available with Intel i5 processors for Microsoft Windows® 10 or no operating system, the commercial grade computer modules transform Elo's Large Format Interactive Displays into powerful all-in-one platforms. By adding touch to digital signage installations, you can create immersive brand experiences and self-service solutions to help increase customer engagement and satisfaction.

*14 Day Free Trial of AirServer Windows 10 Desktop Edition. The all new AirServer for Windows 10 is a powerful universal mirroring receiver, $40 per year.
With dimensions of 11.07x8.2x1.7 the new ECMG4 form factor is 47% smaller than the previous model, delivering a lower cost, lower energy consumption mini pc that's easier to install and maintain.
Windows 10 Enterprise 2019 LTSC 64-bit, Windows 10 Enterprise 2019 SAC 64-bit or no OS
The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.
Pair the flexibility of Elo’s 03/53-Series Interactive Boards with an intuitive dashboard, seamless bring-your-own-device content sharing and robust annotation and whiteboarding software – delivering employees and corporations countless benefits. From increased efficiency to controlled costs – start connecting teams and information in real time to empower better, faster, more reliable decision making and improving the way collaboration works.

Specifications

Technical

Part Number(s): i5-7500 ECMG4 - No OS - Elo P/N: E227895; i5-7500 ECMG4 - Windows 10 (LTSC) - Elo P/N: E228087; Compatible with; 3203L TouchPro; 4303L TouchPro and IR; 5053L TouchPro and IR; 5503L TouchPro and IR; 5553L TouchPro and IR; 6553L TouchPro and IR
Enclosure Color: Black
Processor: Intel Core i5-7500T Processor; (6M Cache, up to 3.30 GHz); 6 MB Intel Smart Cache; 8 GT/s Direct Media; Interface 3 (DMI3)
Chipset: Intel H110 Chipset
Graphics: Intel HD Graphics 630
BIOS: AMI
Memory (RAM): 8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots; 16 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (E405488 only); *Maximum memory using 2 slots. Expandable to 64 GB maximum on 2 slots. DDR4-2133/2400 @ 1.2V
Storage: 256GB m.2 Solid State Drive (SSD); GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
Wireless: IEEE 802.11 a/b/g/n/ac (downlink MU-MIMO)
Bluetooth: Bluetooth 5

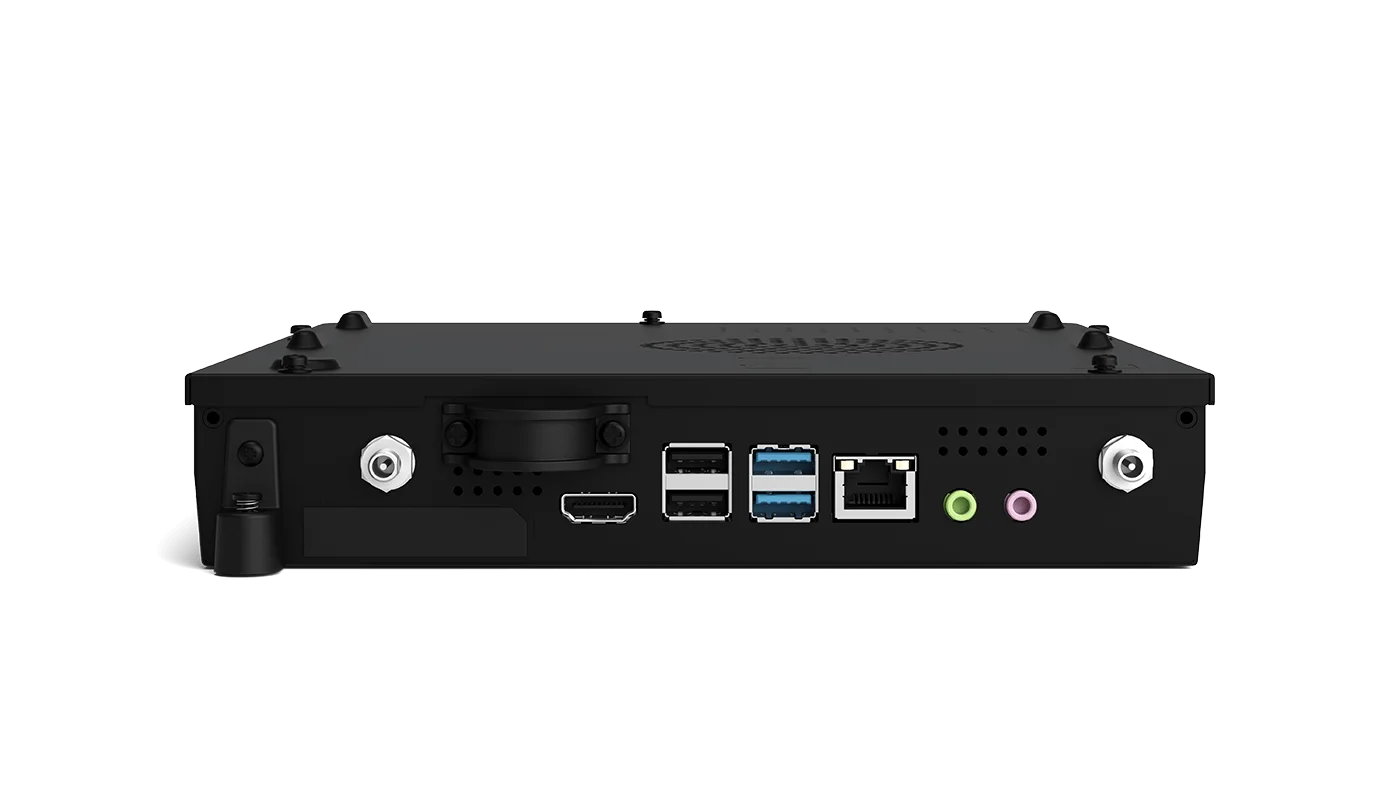

USB Ports: 2 x USB 2.0 Type A; 2 x USB 3.0 Type A
Ethernet Port: 1 x LAN RJ45
Audio Ports: 1 x 3.5 mm Line out; 1 x 3.5 mm MIC in
Video Out: 1 x HDMI (UHD capable)
OS: No OS; Windows 10 Enterprise 2019 LTSC 64-bit
Power Supply: Power provided by IDS display
Dimensions: 11.07” x 8.2” x 1.7” / 281.1 mm x 208.2 mm x 43 mm
Shipping Box Dimensions: 28.74” x 20.47” x 13.78” / 730 mm x 520 mm x 350 mm
Weight (Unpackaged): 4.6 lbs / 2.1 kg
Weight (Packaged): 7.3 lbs / 3.3 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -30°C to 60°C / -22°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Real-Time Clock: lithium-ion battery
MTBF: 50,000 hours demonstrated
Regulatory approvals and declarations: UL/cUL, CB, FCC, CE, AS, NZS, VCCI
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E896120; 5 year warranty coverage - Elo P/N: E896322; 3 year warranty coverage + AUR - Elo P/N: E896699; 4 year warranty coverage + AUR - Elo P/N: E896903; 5 year warranty coverage + AUR - Elo P/N: E897104
What's in the Box: QIG; 2x WiFi/BT Antenna; 4x M6x50 screws; 4x M8x50 screws; 4x Spacers

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
