Overview

The Elo Computer Modules (ECM) featuring the Intel Core™ 6th Generation CPUs and enhanced graphics engine are available with both Intel i3, i5 & i7 processors for Microsoft® Windows® 10, Windows 7 or no operating system. The commercial grade computer modules transform Elo's 3202L, 4202L, 4602L, 5502L, 5551L and 7001LT touchscreens into powerful touchcomputer platforms with compatibility to most content management servers, enabling customer engagement and immersive brand experiences by adding a new exciting dimension to traditional broadcast digital signage - the power of touch.

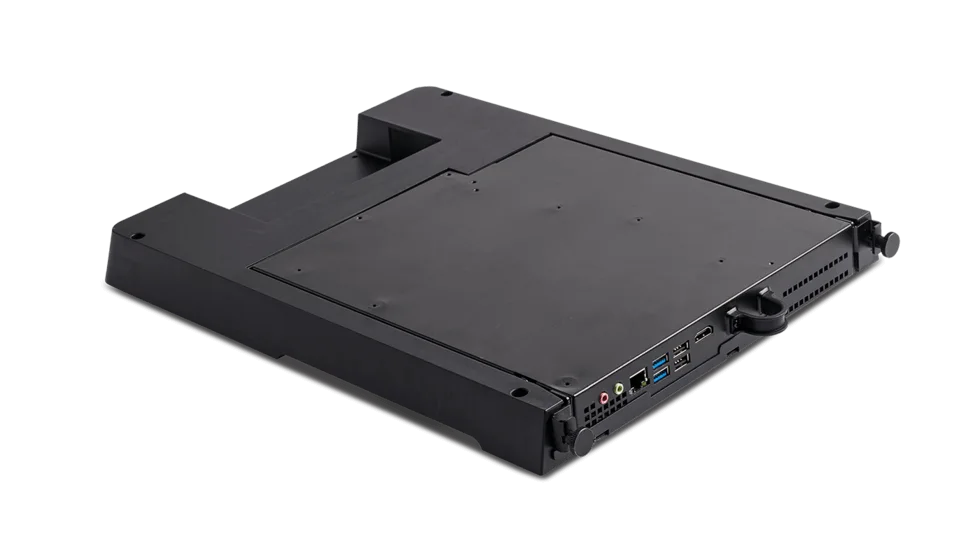

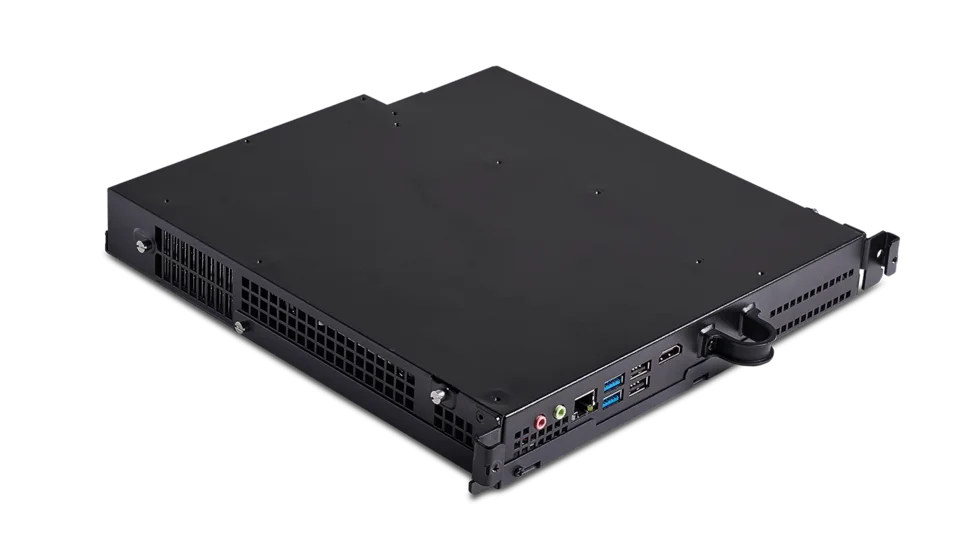

The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.
Using Elo's computer modules instead of a separate external device can reduce complexity, provide added reliability, minimize mounting profile and reduce installation/maintenance costs.
Elo offers customized solutions with everything from slight modifications to ground up designs. If you need something customized, Elo is here to help you create it.
Elo products are distributed and available across the globe. Every 21 seconds, an Elo touchscreen is installed somewhere in the world.
We do everything in our power to minimize design changes and we've kept some monitors available to order for over seven years.

Specifications

Technical

Part Number(s): i3-6100 ECMG3 - No OS - Elo P/N: E400587; i3-6100 ECMG3 - Windows 10 - Elo P/N: E400965; i5-6500 ECMG3 - No OS - Elo P/N: E401168; i5-6500 ECMG3 - Windows 10 - Elo P/N: E401558; i5-6500 ECMG3 - Windows 10 with DisplayNote Montage Software - Elo P/N: E343989; i5-6500 ECMG3 - Windows 10 (with 256 GB SSD & 8GB RAM) - Elo P/N: E458919; i7-6700 ECMG3 - No OS (with vPro) - Elo P/N: E401764; i7-6700 ECMG3 - Windows 10 (with vPro) - Elo P/N: E402161; i7-6700 ECMG3 - Windows 10 (with vPro and 256 GB SSD) - Elo P/N: E459109; Compatible with; 3202L TouchPro and IR; 4202L TouchPro and IR; 4602L TouchPro and IR; 5502L TouchPro and IR; 5551L IR; 7001LT IR
Enclosure Color: Black
Processor: Intel Core i3-6100 Processor:; (3M Cache, 3.70 GHz); 3 MB Intel Smart Cache; 8 GT/s Direct Media; Interface 3 (DMI3); Intel Core i5-6500 Processor:; (6M Cache, up to 3.60 GHz); 6 MB Intel Smart Cache; 8 GT/s Direct Media; Interface 3 (DMI3); Intel Core i7-6700 Processor (vPro):; (8M Cache, up to 4.00 GHz); 8 MB Intel Smart Cache; 8 GT/s Direct Media; Interface 3 (DMI3)
Chipset: i3 & i5: Intel H110 Chipset; i7: Intel Q170 Chipset
Graphics: Intel HD Graphics 530
BIOS: AMI
Memory (RAM): i3 & i5: 4 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum* on 2 slots); i5 Model (E458919): 8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum* on 2 slots); i7: 8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum* on 2 slots); *Maximum memory using 2 slots.
Storage: 128 GB 2.5” SATA Solid State Drive (SSD); i5 Model (E458919) / i7 Model (E459109) - 256 GB 2.5” SATA Solid State Drive (SSD); GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
Max/Slot: Expandable up to 16GB maximum, SO-DIMM DDR4-2400 per slot

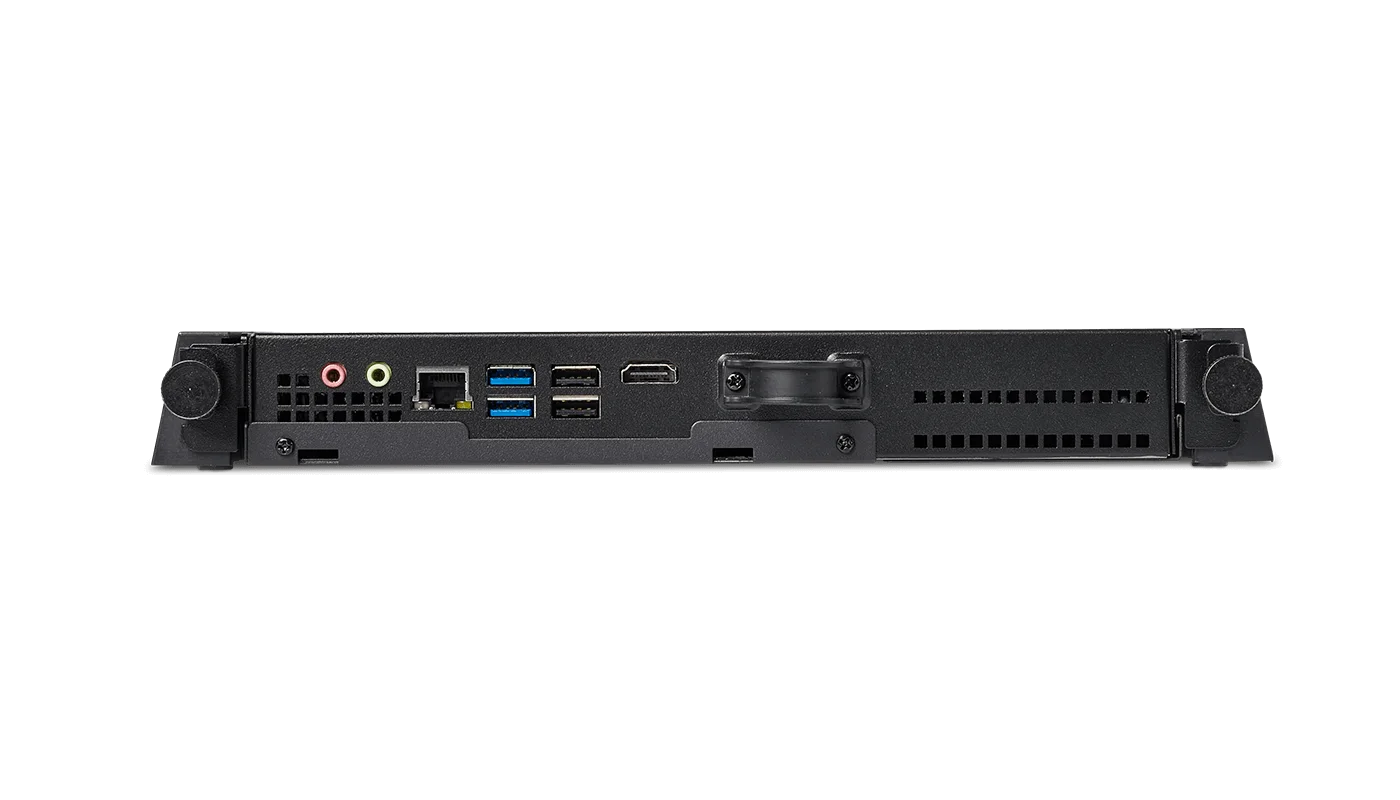

USB Ports: i3 & i5: 2 x USB 2.0 Type A, 2 x USB 3.0 Type A; i7: 4 x USB 3.0 Type A
Ethernet Port: 1 x LAN RJ45
Audio Ports: 1 x 3.5 mm Line out; 1 x 3.5 mm MIC in
Video Out: 1 x HDMI (UHD capable)
OS: No OS; Windows 10
Power Supply: Internal power supply module included
Dimensions: power module + computer module: 11.81” x 16.85” x 1.46” / 300mm x 428mm x 37mm
Shipping Box Dimensions: power module + computer module: 16.5” x 21.0” x 5.12” / 419 mm x 535mm x 130mm
Weight (Unpackaged): 6.88 lbs / 3.12kg
Weight (Packaged): 10.47 lbs / 4.75 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 5% to 90%
Real-Time Clock: lithium-ion battery
MTBF: 50,000 hours demonstrated
Regulatory approvals and declarations: UL/cUL, CB, FCC, CE, AS, NZS, VCCI
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E896120; 5 year warranty coverage - Elo P/N: E896322; 3 year warranty coverage + AUR - Elo P/N: E896699; 4 year warranty coverage + AUR - Elo P/N: E896903; 5 year warranty coverage + AUR - Elo P/N: E897104
What's in the Box: Computer Module; QIG; Screws; VESA Spacer for IDS02
Optional Product Coverage: On Site Exchange included in Continental US only

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
End of sale / last shipment: March 2021
Replacement: ECMG4
Status basis: elotouch.com lists it as replaced by ECMG4
