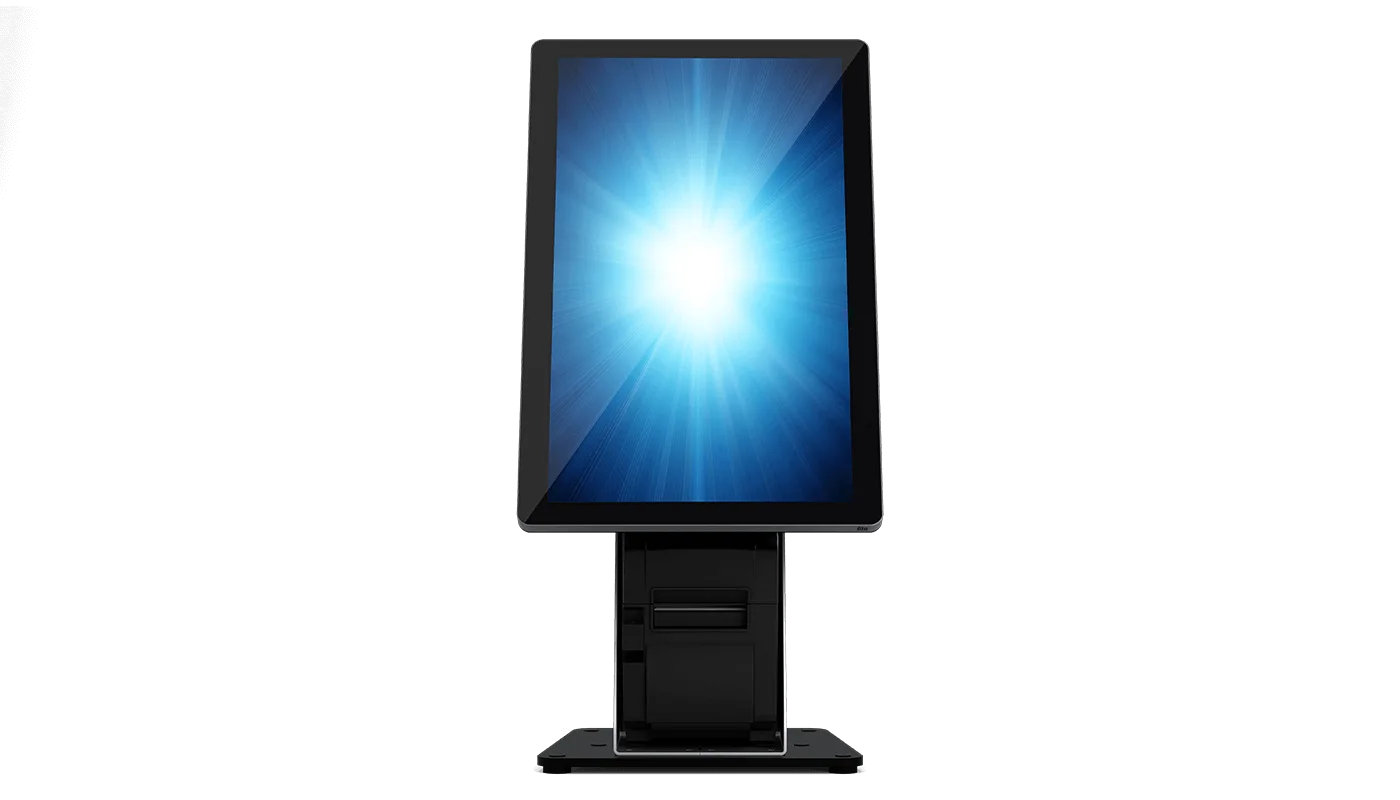

Elo Touch Wallaby Self-Service Stands (Gen 2) (previous model)
The Wallaby line of self-service stands can streamline installation of interactive experiences in high-traffic public environments.
Datasheet at Elo Touch Product page at Elo Touch
Works alongside Raptool apps running in the Raptool Client on Android, iOS, Windows and Mac. Scanner apps
Overview
The Wallaby line of self-service stands can streamline installation of interactive experiences in high-traffic public environments.
- Create a unified approach to any customer experience in point of sale and self-service applications including self-order, endless aisle, price verification, loyalty programs, brand experience, patient check-in and more.
- With the Wallaby stands, you can “stand up” a 15-inch or 22-inch self-service touchscreen solution with ease – complete with payment and printing capabilities.
- Increases average check size and earn higher margins with high-profit add-on items and order modifiers.
- Customers control their transactions, increasing order accuracy while providing a consistent experience every visit.
- Reallocate labor to optimize costs, increase operational efficiency and enhance the total customer experience.
Specifications
Technical
- Part Number(s)
- Wallaby Self-Service Countertop Stand (for I-Series 2/3 for Android, I-Series 2 for Windows) - E796783; Wallaby Self-Service Floor Stand (for I-Series 2/3 for Android, I-Series 2 for Windows) - E796965 + E797162
- Enclosure Color
- Black/Silver
- Compatibility
- Display Compatibility; 15" I-Series Android/Windows in Portrait and Landscape; 22" I-Series Android/Windows in Portrait and Landscape; EMV Cradle Compatibility for E796783/E796965 + E797162:; Verifone MX915 - E798125; Ingenico iSC250 - E798125; Ingenico RP757 - E920661; Ingenico iPP320/350/315 - E699053; Ingenico ICMP - E200465; Verifone E355 - E201088; MagTek eDynamo - E375343; Ingenico RP457C (Bluetooth) - E710930; Ingenico RP457C (Audio Jack) - E586981; Verifone MX925 - E352169; Verifone P400 - E906829; Ingenico LANE3000 - E410697; Printer Compatibility:; Epson TM-T88; Epson M30 (requires E797921 printer tray); Star TSP100; Star TSP654; Bixolon SRP-350
- Optional Accessories
- Display mounting bracket for Android I-Series - E351978; Display mounting bracket for Windows I-Series - E244791; Epson M30 printer tray bracket - E797921
- Dimensions

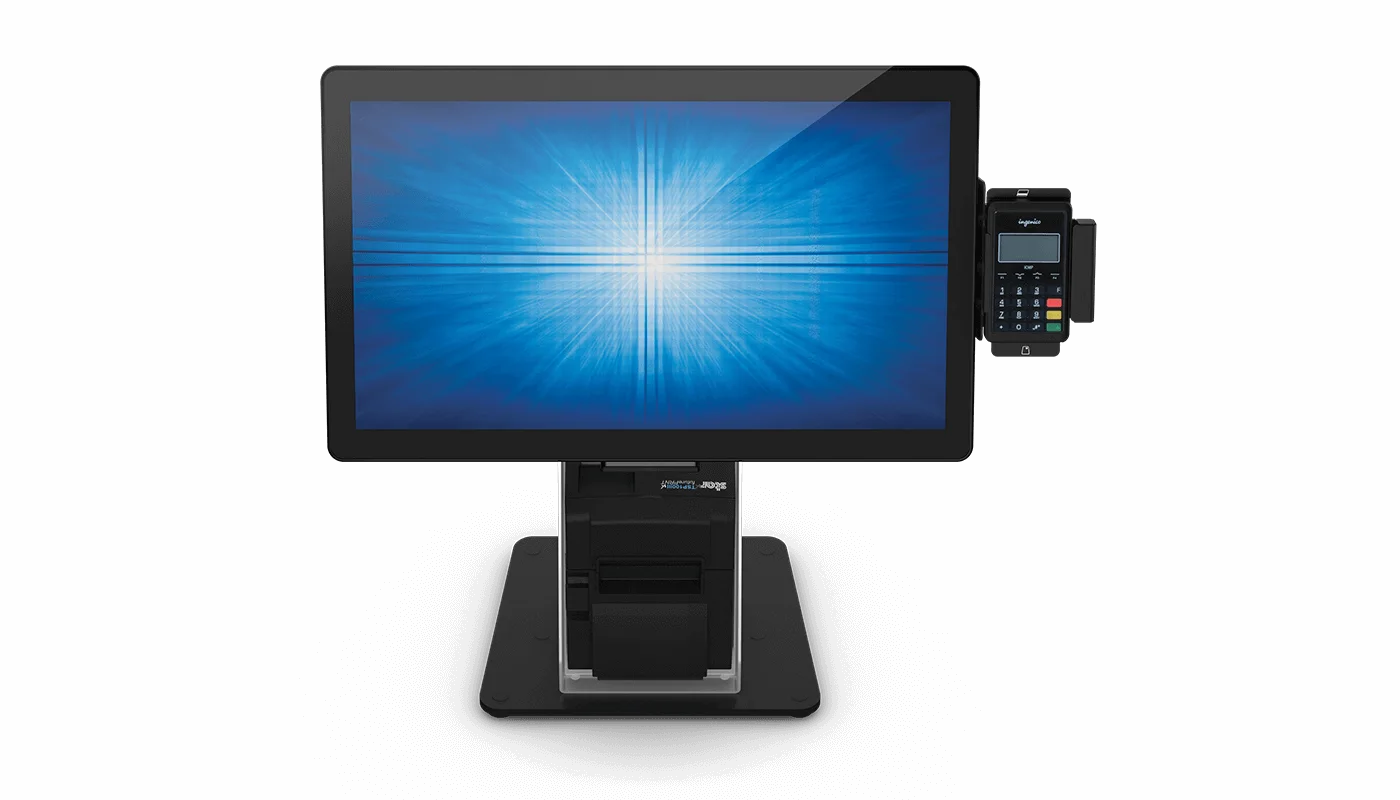

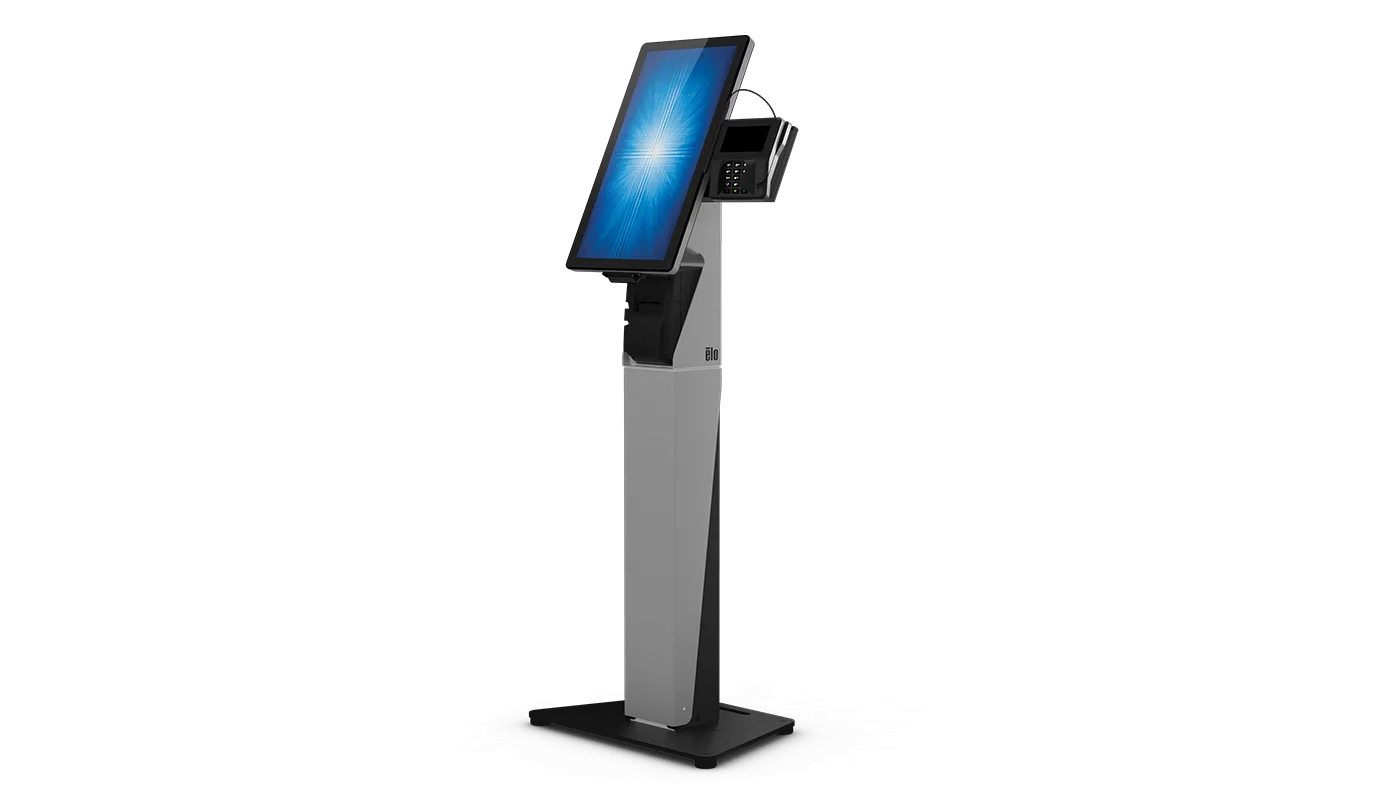

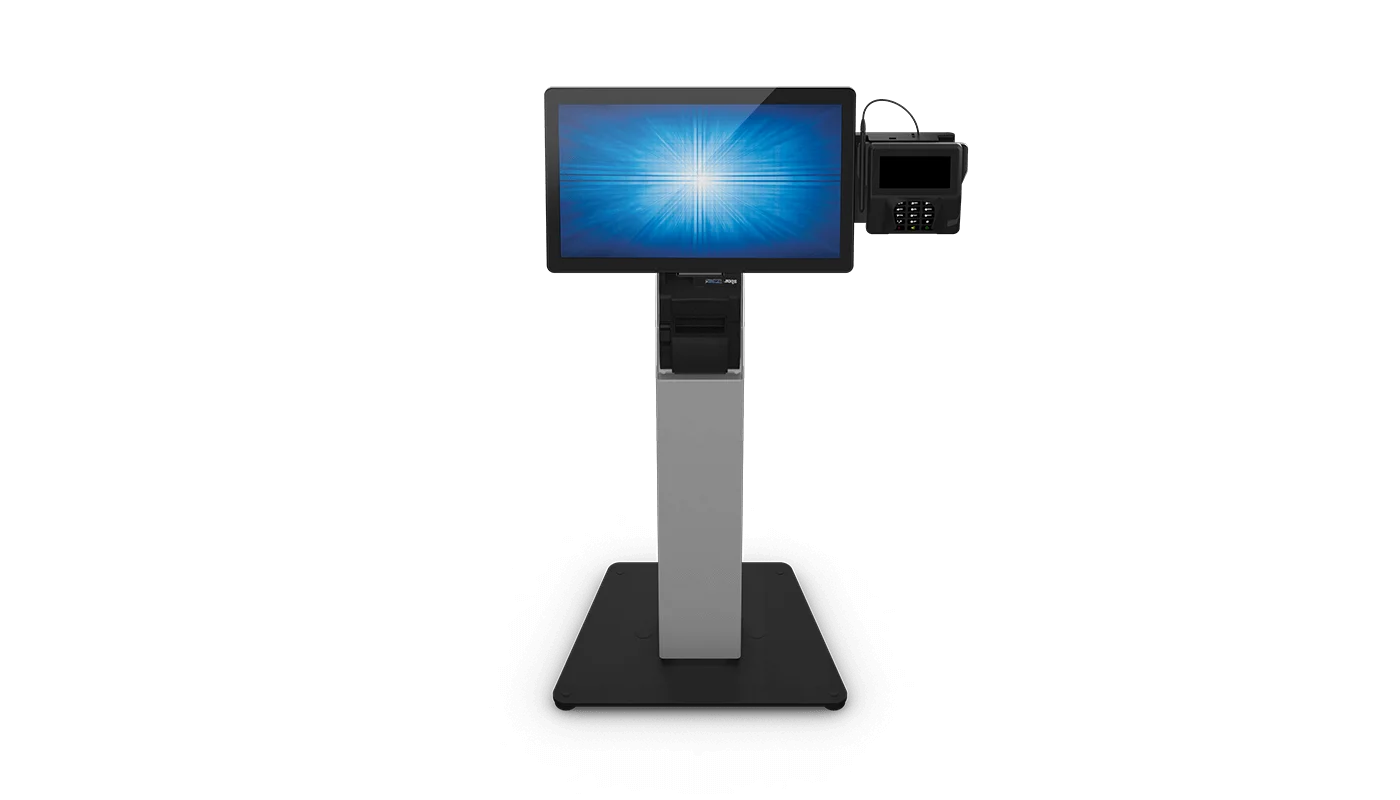

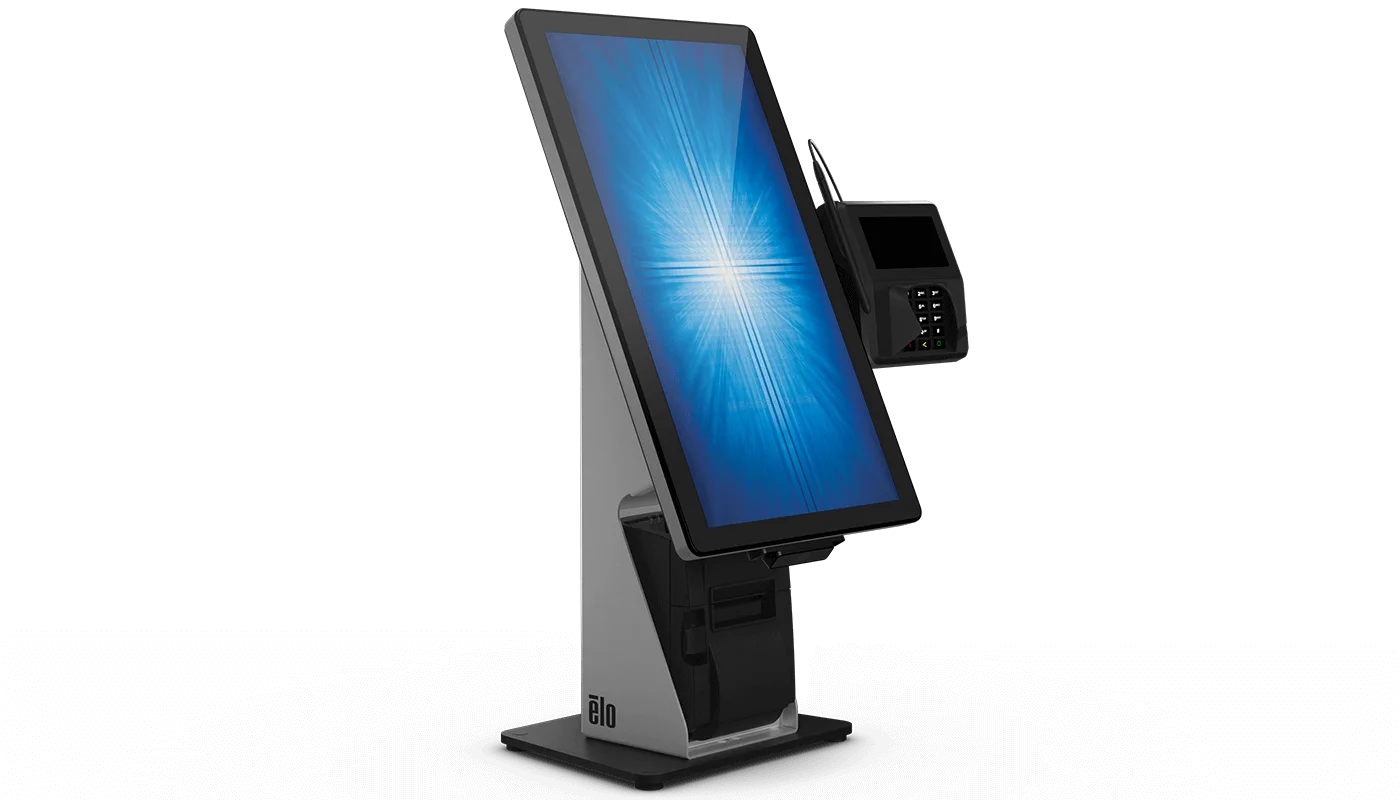

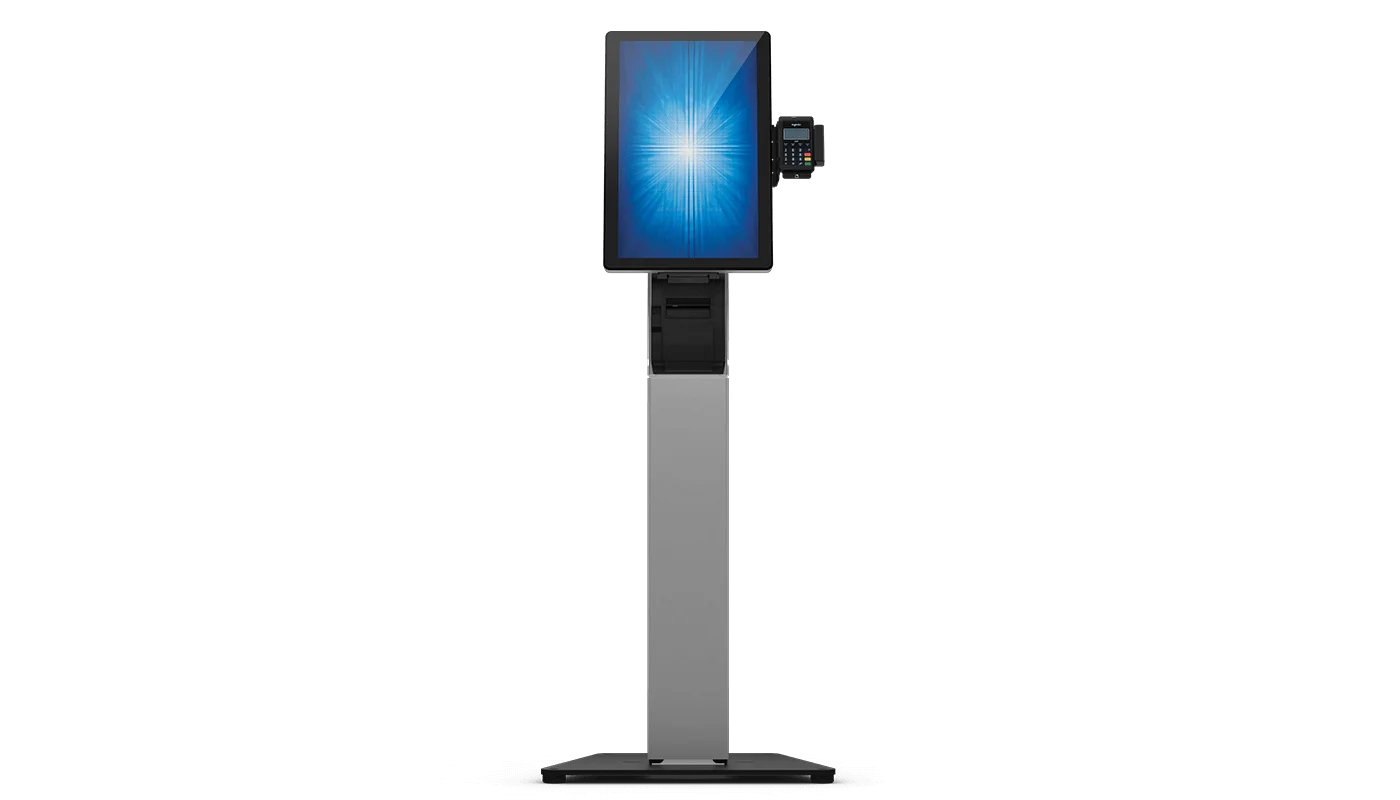

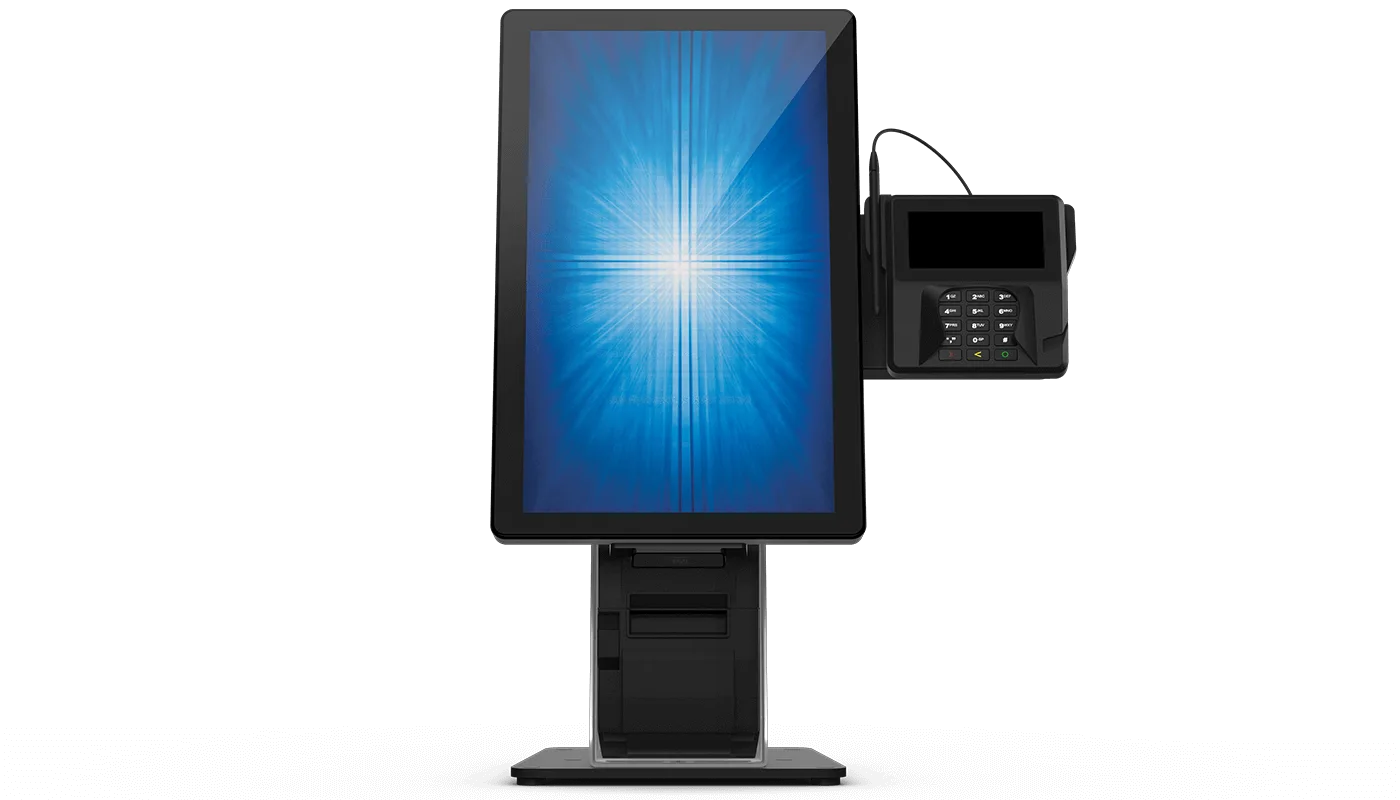

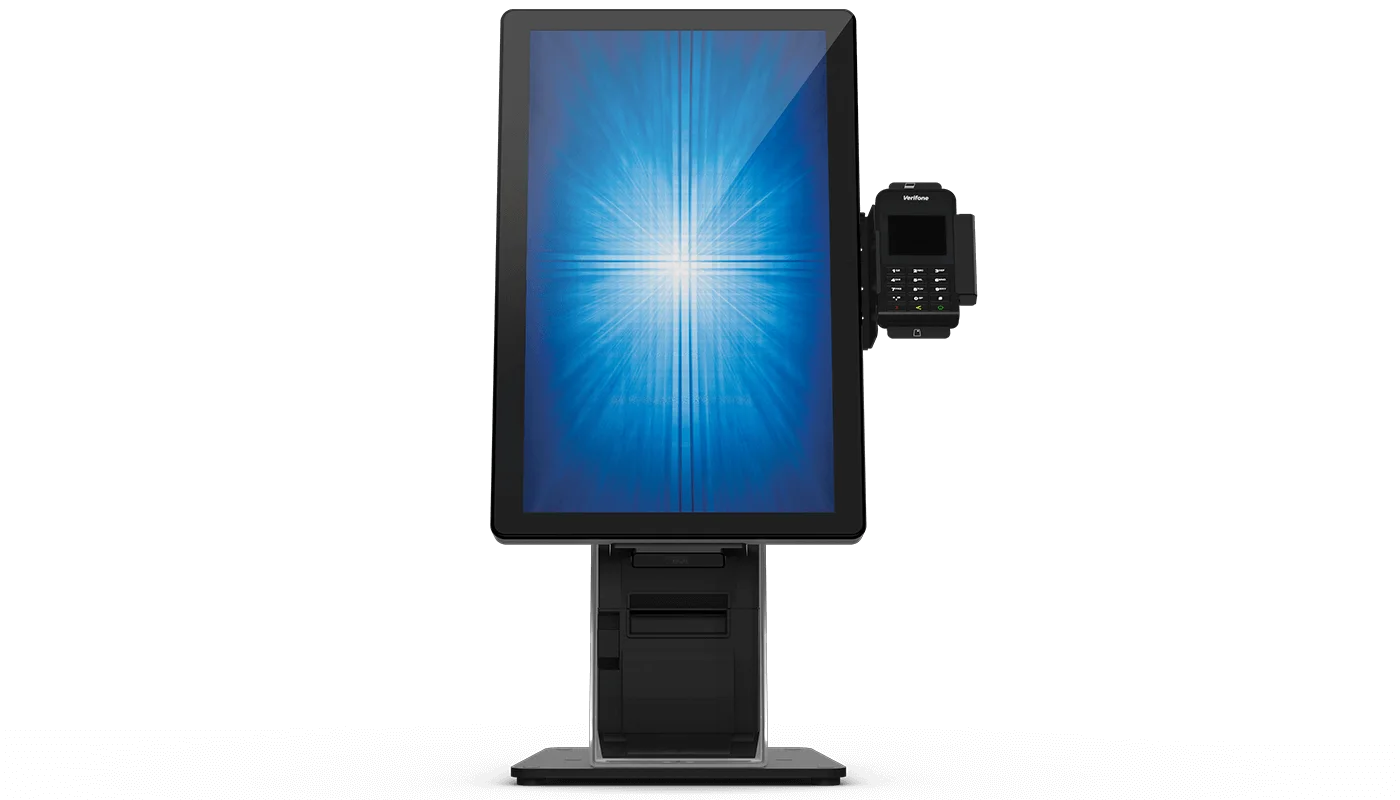

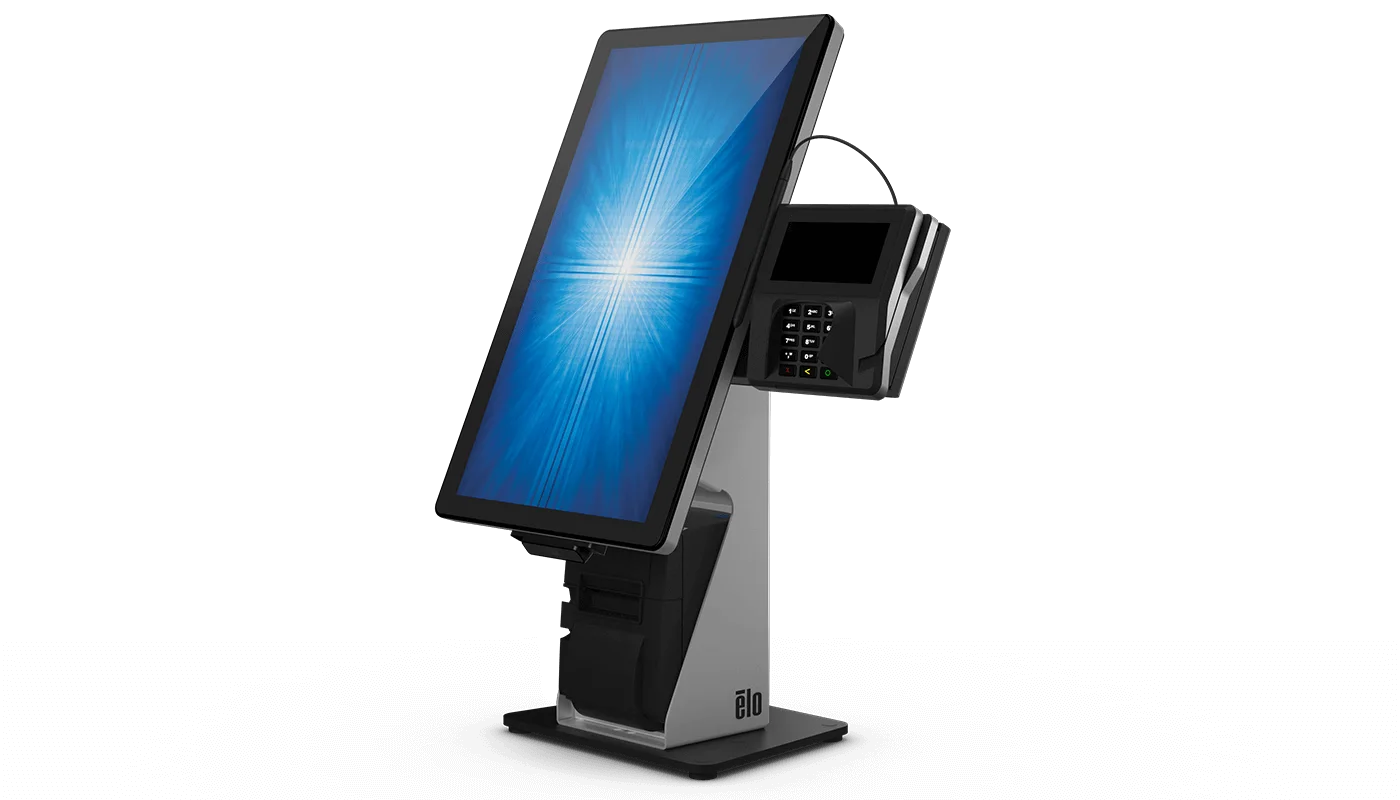

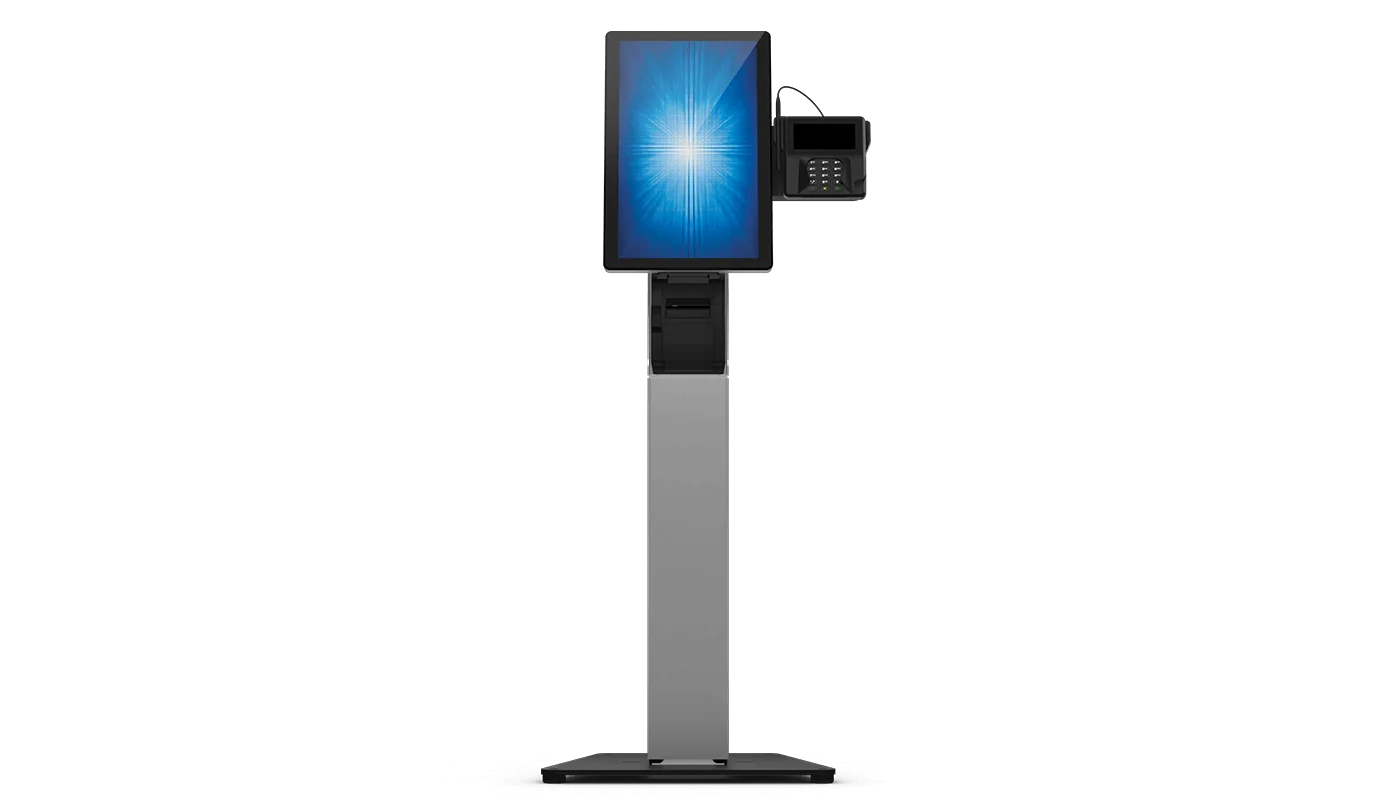

- Countertop Stand (E796783): 11.6" x 9.1" x 17" / 295 mm x 230 mm x 431.96 mm; Floor Stand (E796965+ E797162): 22.1" x 14.6" x 47" / 562.43 mm x 370 mm x 1192.8 mm
- Shipping Box Dimensions
- Countertop Stand (E796783): 27.2” x 12.0” x 12.2” / 690 mm x 305 mm x 310 mm; Floor Stand Top (E796965): 50.55” x 12.44” x 12.44” / 1284 mm x 316 mm x 316 mm; Floor Stand Base (E797162): 28.58” x 19.13” x 4.56” / 726 mm x 486 mm x 116 mm
- Weight (Unpackaged)
- Countertop Stand (E796783): 24.69 lbs / 11.2 kg; Floor Stand Top (E796965): 40.78 lbs / 18.5 kg; Floor Stand Base (E797162): 27.34 lbs / 12.4 kg
- Weight (Packaged)
- Countertop Stand (E796783): 28.17 lbs / 12.78 kg; Floor Stand Top (E796965): 49.44 lbs / 20.61 kg; Floor Stand Base (E797162): 30.64 lbs / 13.9 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 90%
- Availability
- US, Canada, EMEA, Japan, China
- Warranty
- 2-year
- ADA Compliant
- Yes
- What's in the Box
- Countertop Stand (E796783):; QIG; Small black tie-wrap, x3; Screws for Countertop Stand (refer to MS drawing for details); 4-Port USB-A 3.0 Hub; Head Assembly; Countertop base; Mounting display bracket for Android I-Series; Mounting display bracket for Windows I-Series; Floor Stand (E796965+ E797162):; QIG; Small black tie-wrap, x3; Hook and Loop Cable Tie with Buckle, x3; Screws for Floor Stand (refer to MS drawing for details); 4-Port USB-A 3.0 Hub; Floor-Head Assembly; Floor base; Mounting display bracket for Android I-Series; Mounting display bracket for Windows I-Series
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Discontinued
- Replacement
- new model
- Status basis
- elotouch.com lists it as replaced by new model
