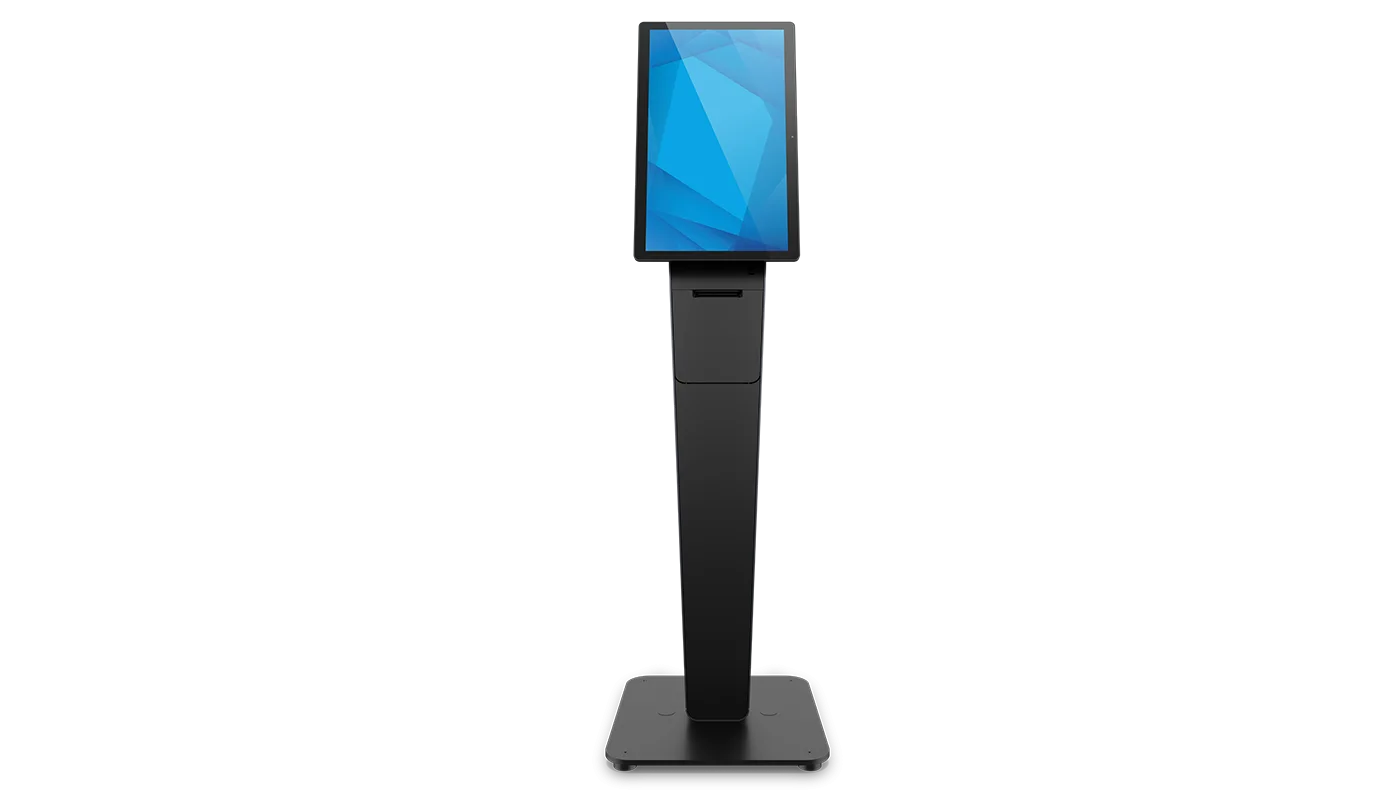

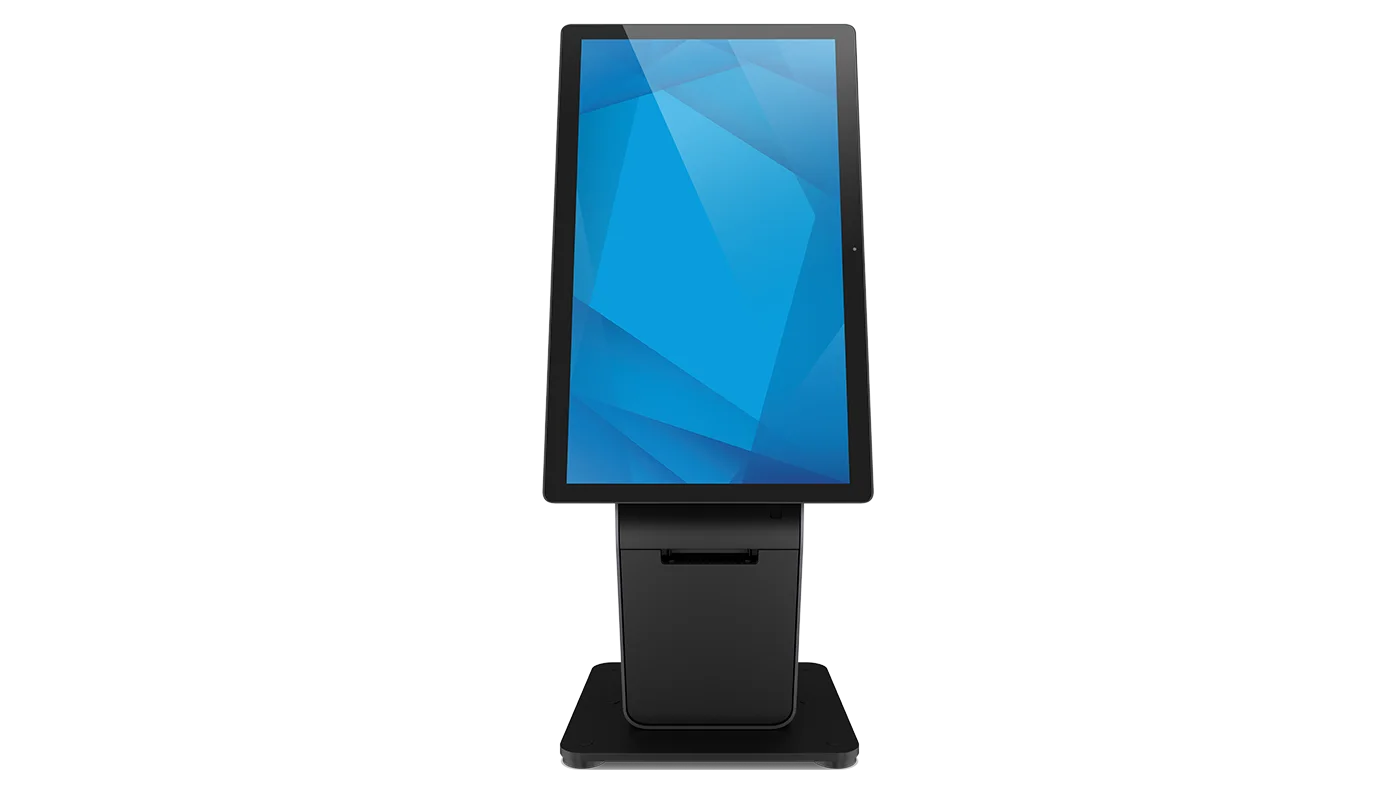

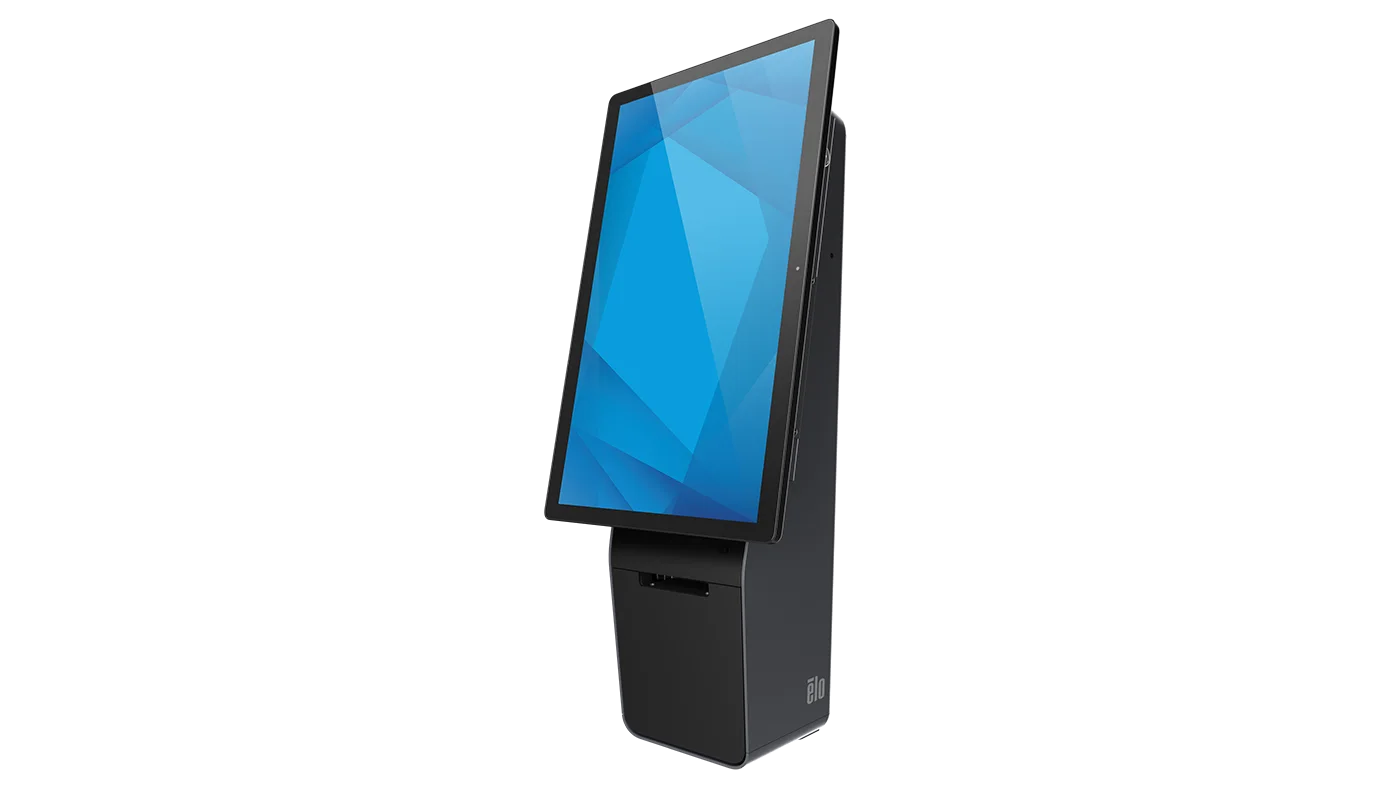

Elo Touch Wallaby Pro Self-Service Stands
The Wallaby™ Pro is changing the industry by making it easier than ever to configure interactive self service solutions.
Overview
The Wallaby™ Pro is changing the industry by making it easier than ever to configure interactive self service solutions.
- Engineered with configurations to fit any space, the modular design is perfect for retail, restaurants, hospitality, healthcare and corporate environments.
- Power your self service kiosk with the I-Series all-in-one or pair your choice of touchscreen monitor with a compute device.
- Elevate your self serve solution by adding a custom branded backer board that easily connects to the back of the stand or ceiling pole.
- Elevate your self serve solution by adding a custom branded backer board that easily connects to the back of the stand or ceiling pole.
- Route cabling upwards using the ceiling pole to minimize the impact on your current footprint.
Best for: Restaurant Kiosks
Specifications
Technical
- Part Number(s)
- Wallaby Pro Countertop Stand - E989127; Wallaby Pro Floor Stand - E989314 + E989512; Wallaby Pro Double-sided Floor Stand - E989314 + E989314 + E989705; Wallaby Pro Wall-mounted Stand - E989127 + E990079
- Enclosure Color
- Black/Silver
- Compatibility
- Display Compatibility (portrait only); 22" Android I-Series 4; 22" Windows I-Series 2; 2402L; 2403LM; 2702L; 2703LM; Compute Compatibility; Backpack 4 (Android); ECMG4 (Windows 10); Intel NUC (max dimensions of 127 x 127 x 51mm with 94mm mounting hole pattern); 3rd Party PC’s (max dimensions of 127 x 127 x 51mm with 75mm or 100mm VESA pattern); EMV Cradle Compatibility:; Verifone MX915 and M400 - E458992*; Verifone MX925 - E352169*; Verifone P400 - E990282; Ingenico RP457C (Bluetooth) – E710930 (Edge Connect - no bracket required); Ingenico RP457C (Audio Jack) – E586981 (Edge Connect - no bracket required); Ingenico LANE3000 - E990468; Ingenico LANE5000 - E996512; Ingenico LANE7000 - E990654; Ingenico iSC250 - E458992*; Ingenico RP757 – E920661*; Ingenico iPP350/iPP320/iPP315 - E458797*; MagTek eDynamo – E375343 (Edge Connect - no bracket required); Square Terminal - E458992*; *Note: not compatible with the ECMG4; Printer Compatibility:; Epson TM-T88; Epson M30; Epson EU-m30; Epson L90; Star TSP654; Star TSP100; Star mC-Print3; Bixolon SRP-350; Bixolon SRP-350 Plus III
- Optional Accessories
- Wall mount kit for countertop stand - E990079; Assist button kit - E284334; Signage kit for floor stand with ceiling pole - E991255; Backer board kit for floor stand or countertop stand - E990854; Backer board kit for double-sided floor stand - E990151; Ceiling pole kit for floor stand - E989893; Android Expansion Module - E809509; Double-sided base for floor stand - E989705
- Dimensions

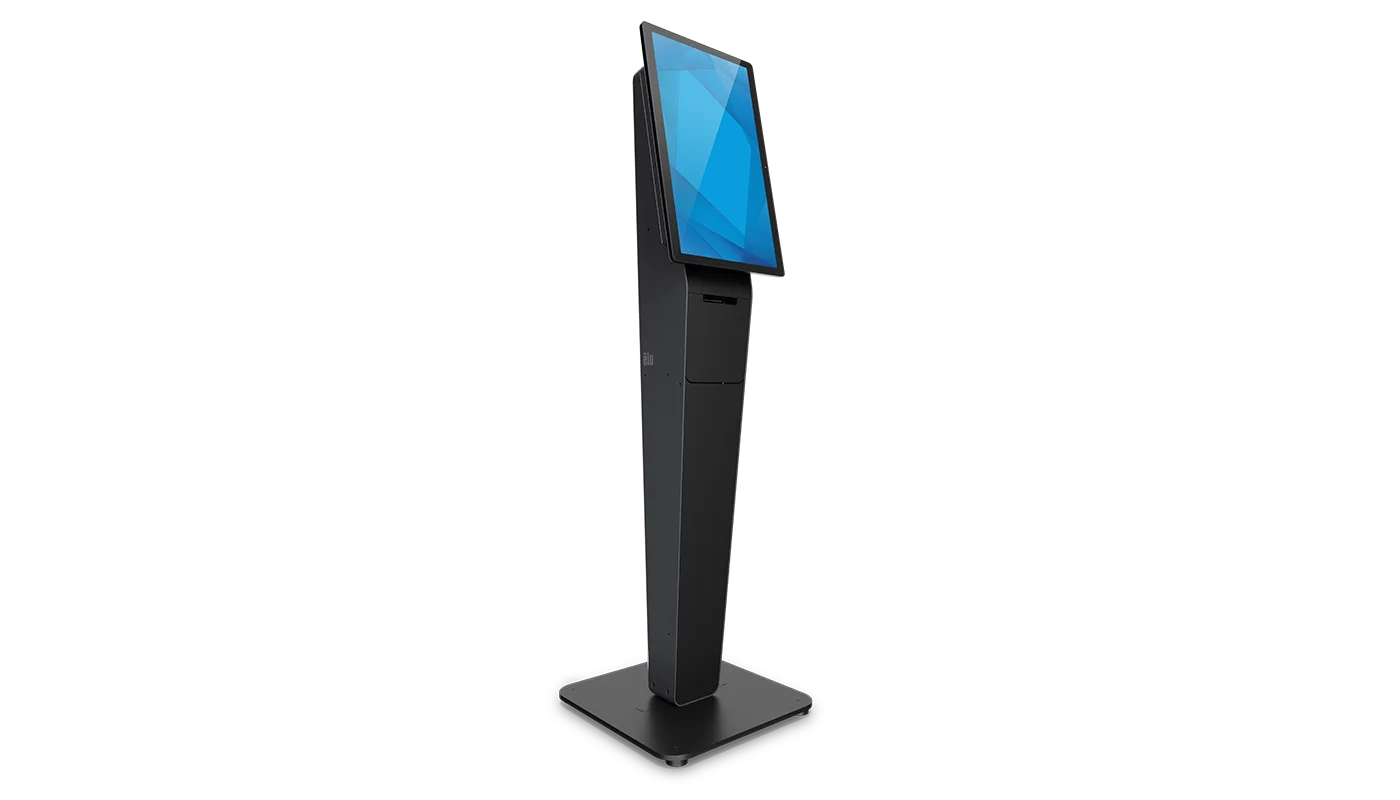

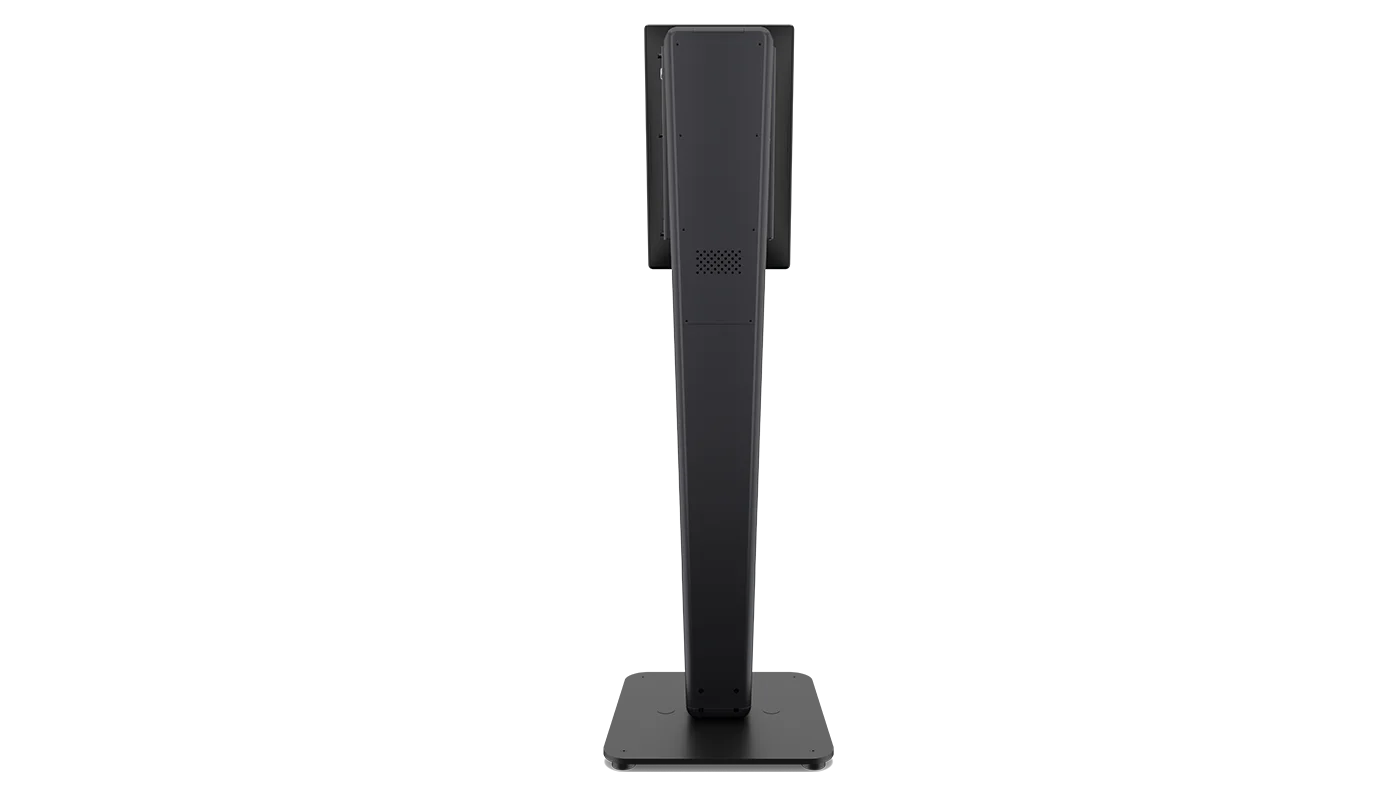

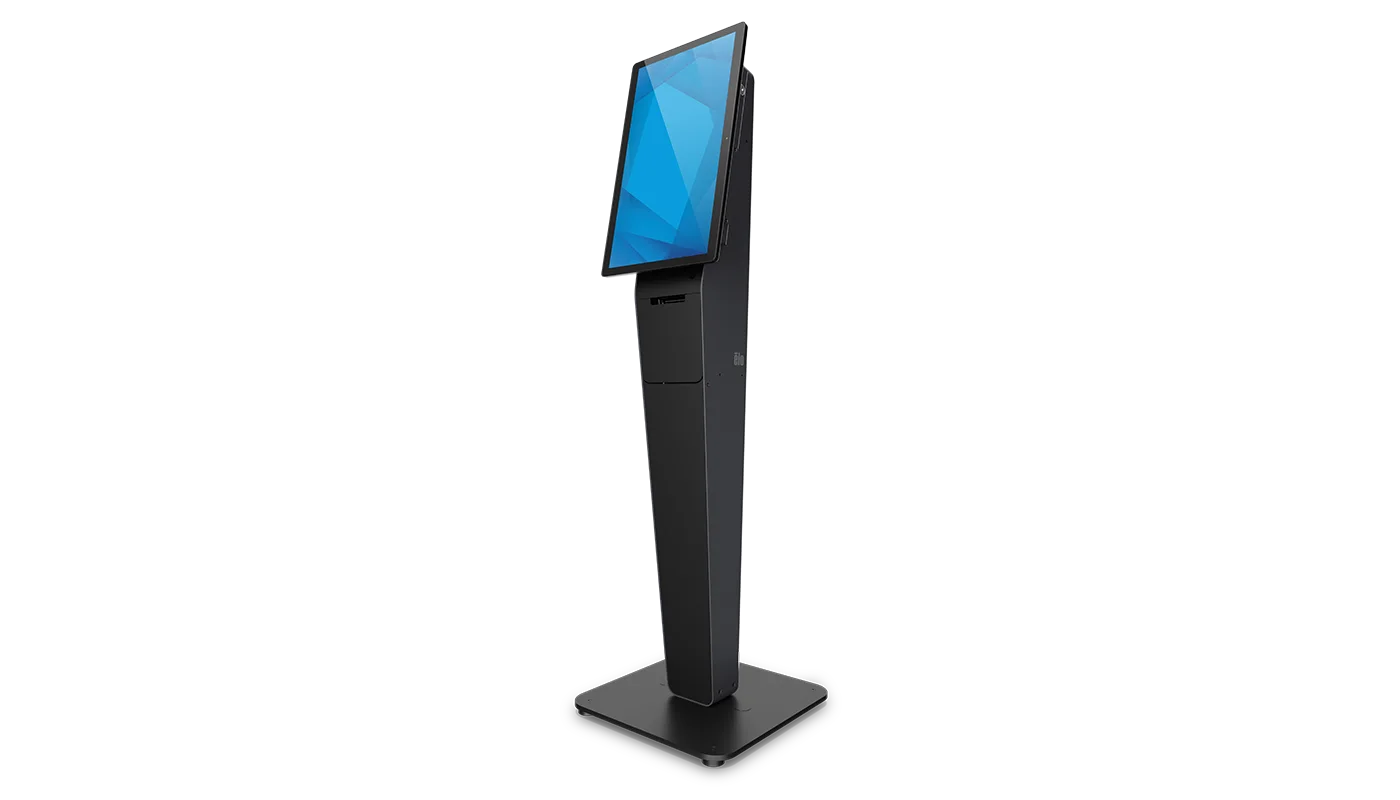

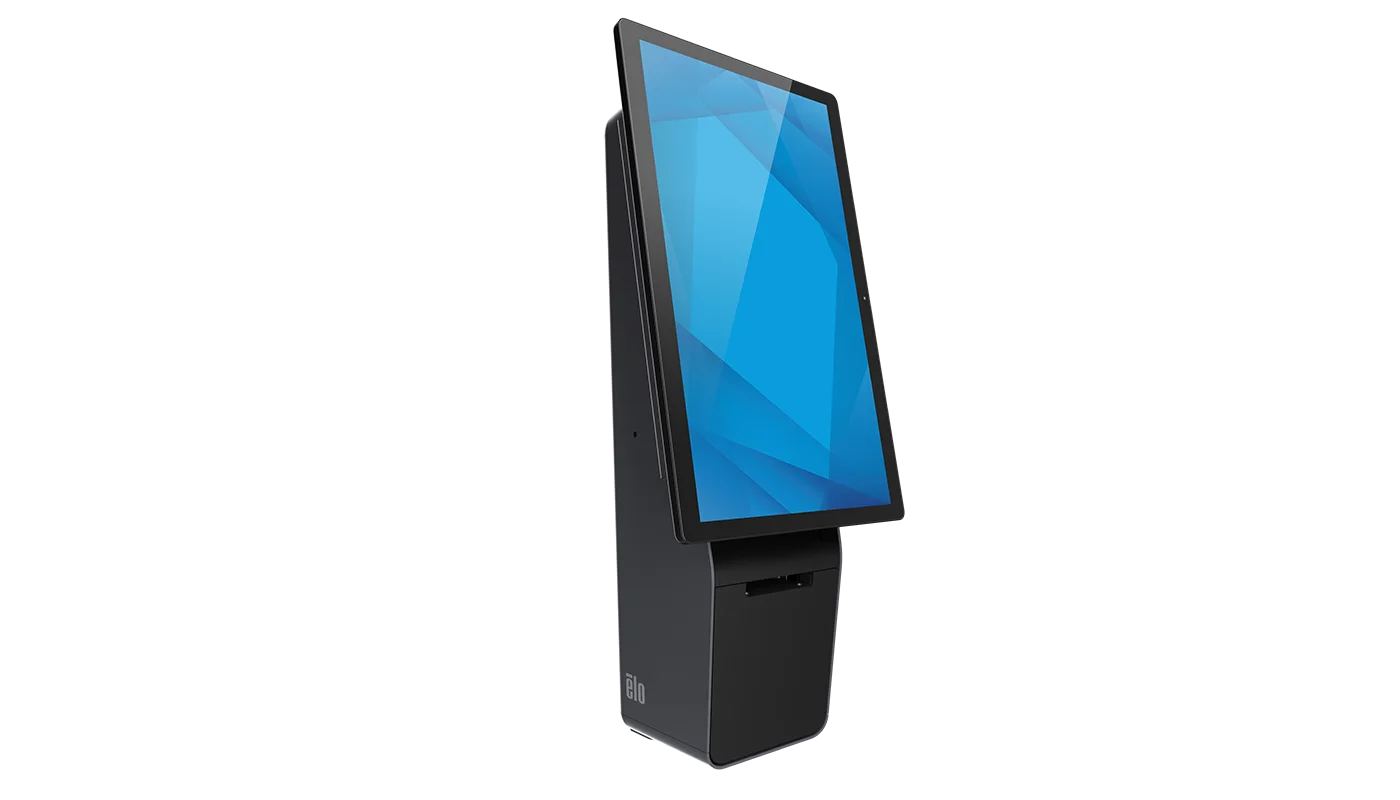

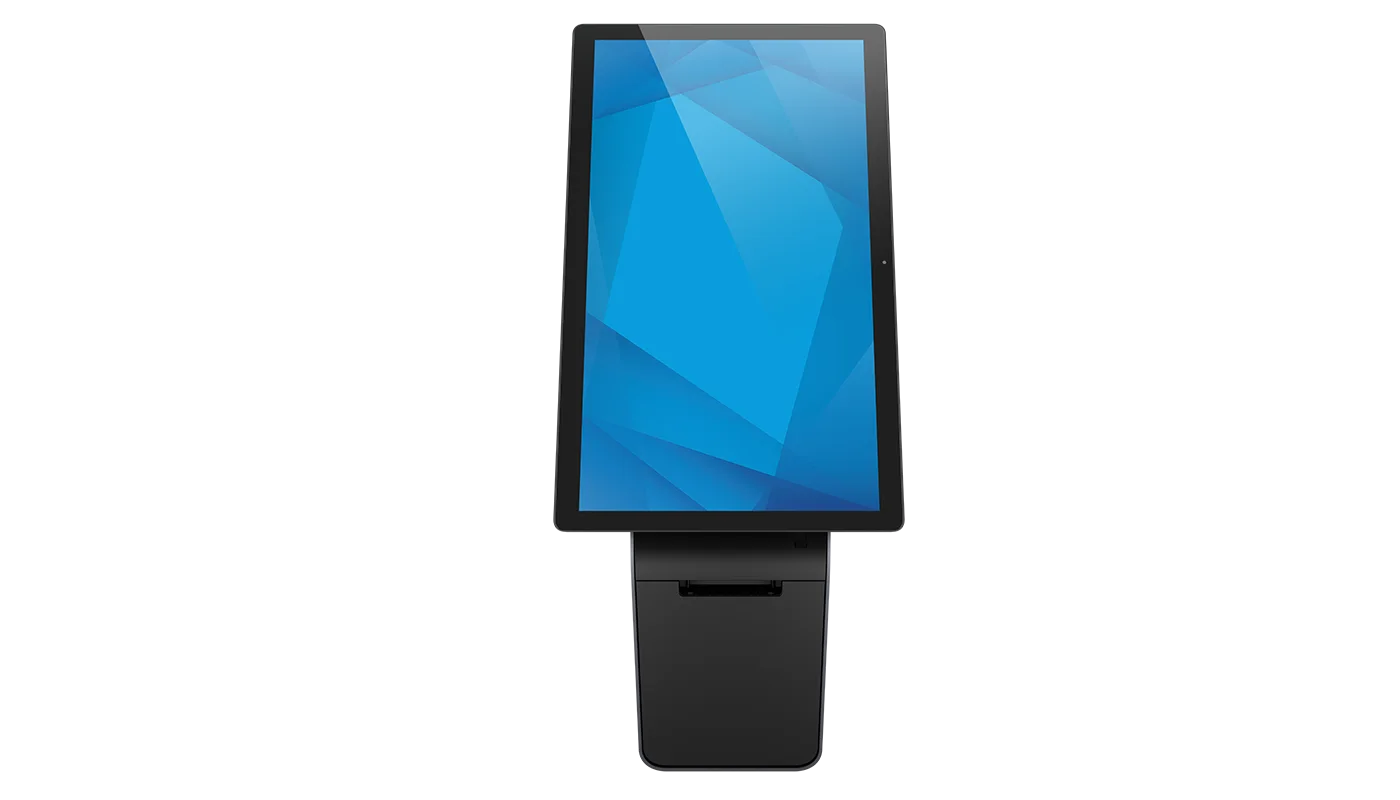

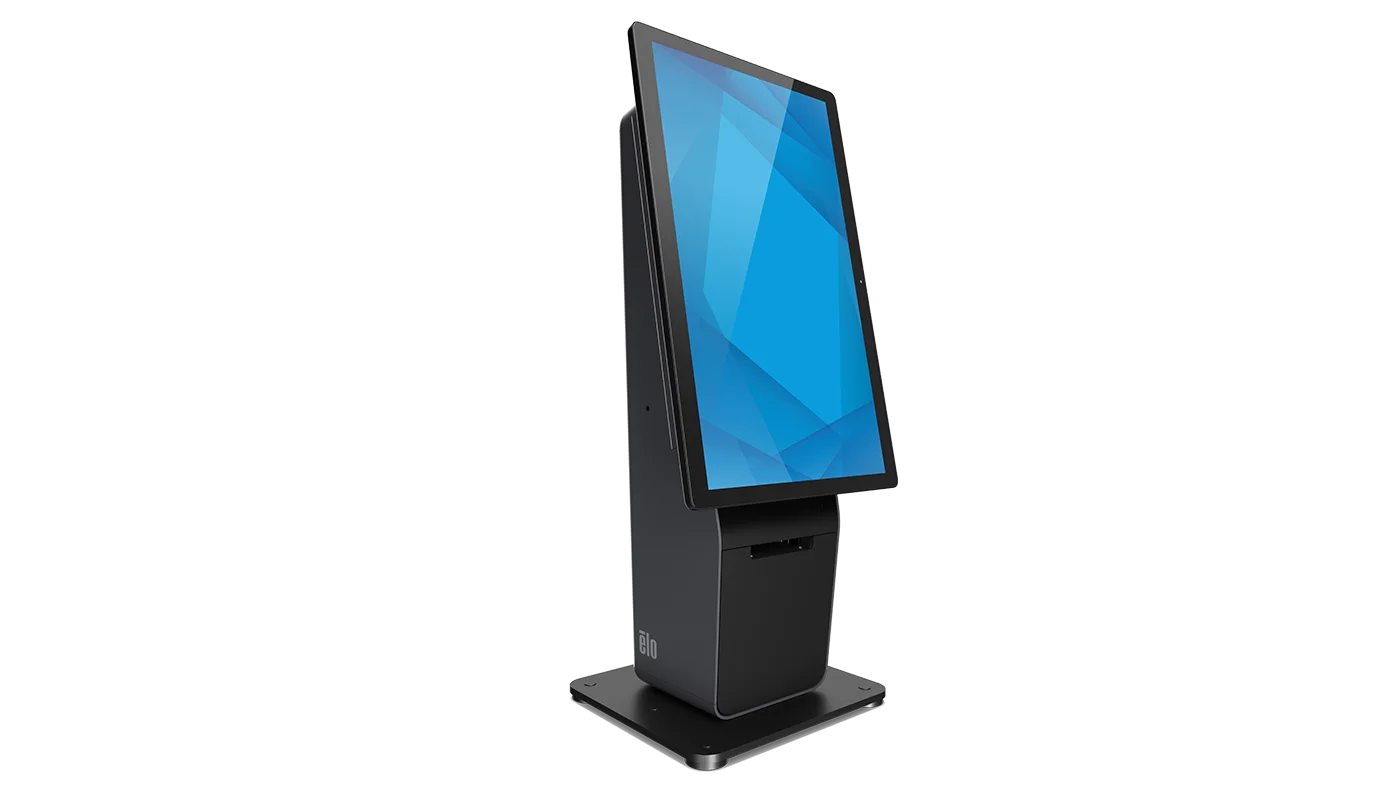

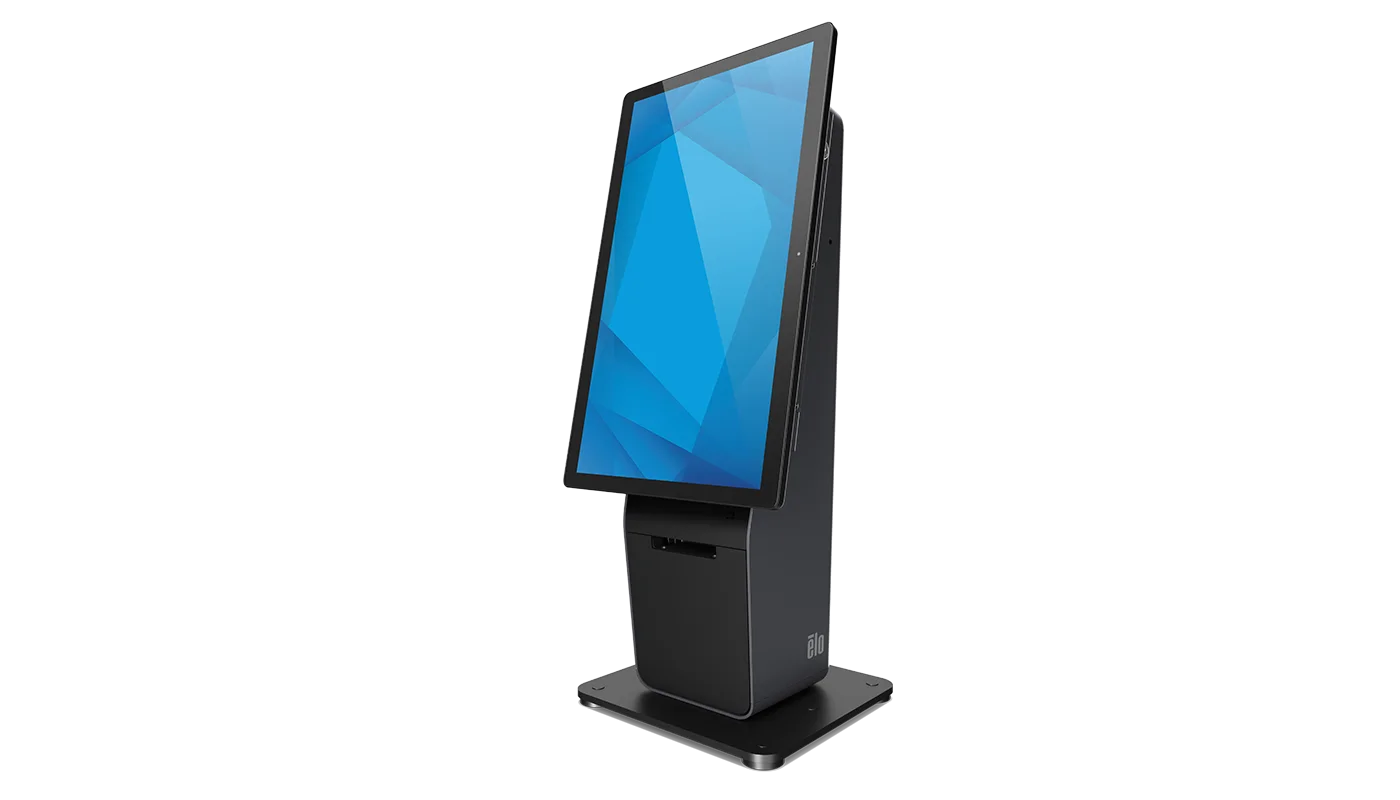

- Countertop stand (E989127): 29.06" x 11.81" x 10.91" / 738 mm x 300 mm x 277 mm; Floor stand (E989314 + E989512): 57.01" x 18.90" x 17.72" / 1448 mm x 480 mm x 450 mm; Double-sided floor stand (E989314 + E989314 + E989705): 57.01" x 20.08" x 22.52" / 1448 mm x 510 mm x 572 mm; Floor stand base (E989512): 18.90" x 17.72" x 3.86" / 480 mm x 450 mm x 98 mm; Floor stand top (E989314): 55.98" x 9.80" x 7.24" / 1422 mm x 249 mm x 184 mm; Double-sided base for floor stand (E989705): 22.52" x 20.08" x 3.86" / 572 mm x 510 mm x 98 mm; Ceiling pole kit for floor stand (E989893): 130.04" x 5.39" x 4.80" / 3303 mm x 137 mm x 122 mm; Signage kit for floor stand with ceiling pole (E991255): 47.24" x 15.75" x 0.24" / 1200 mm x 400 mm x 6 mm; Backer board kit for floor stand or countertop stand (E990854): 49.21" x 11.81" x 0.24" / 1250 mm x 300 mm x 6 mm; Backer board kit for double-sided floor stand (E990151): 49.21" x 11.81" x 0.24" / 1250 mm x 300 mm x 6 mm; Wall mount stand (E989127 + E990079): 28.46" x 9.80" x 8.34" / 723 mm x 249 mm x 212 mm; Assist button kit (E284334): 7.28" x 7.16" x 1.81" / 185 mm x 182 mm x 46 mm
- Shipping Box Dimensions
- Countertop stand (E989127): 32.87" x 16.34" x 16.14" / 835 mm x 415 mm x 410 mm; Floor stand base (E989512): 22.84" x 22.24" x 7.48" / 580 mm x 565 mm x 190 mm; Floor stand top (E989314): 59.65" x 12.80" x 14.57" / 1515 mm x 325 mm x 370 mm; Double-sided base for floor stand (E989705): 27.76" x 23.43" x 7.87" / 705 mm x 595 mm x 200 mm; Ceiling pole kit for floor stand (E989893): 65.55" x 8.46" x 8.86" / 1665 mm x 215 mm x 225 mm; Signage kit for floor stand with ceiling pole (E991255): 53.74" x 19.09" x 4.92" / 1365 mm x 485 mm x 125 mm; Backer board kit for floor stand or countertop stand (E990854): 53.74" x 19.09" x 4.92" / 1365 mm x 485 mm x 125 mm; Backer board kit for double-sided floor stand (E990151): 53.74" x 19.09" x 4.92" / 1365 mm x 485 mm x 125 mm; Wall mount kit for countertop stand (E990079): 28.54" x 8.46" x 5.71" / 725 mm x 215 mm x 145 mm; Assist button kit (E284334): 10.43" x 10.04" x 5.31" / 265 mm x 255 mm x 135 mm
- Weight (Unpackaged)
- Countertop stand (E989127): 40.79 lbs / 18.50 kg; Floor stand (E989314 + E989512): 94.58 lbs / 42.90 kg; Floor stand base (E989512): 32.85 lbs / 14.90 kg; Floor stand top (E989314): 61.73 lbs / 28.00 kg; Double-sided base for floor stand (E989705): 42.99 lbs / 19.50 kg; Ceiling pole kit for floor stand (E989893): 11.90 lbs / 5.40 kg; Signage kit for floor stand with ceiling pole (E991255): 11.46 lbs / 5.20 kg; Backer board kit for floor stand or countertop stand (E990854): 9.26 lbs / 4.20 kg; Backer board kit for double-sided floor stand (E990151): 7.28 lbs / 3.30kg; Wall mount kit for countertop stand (E990079): 4.63 lbs / 2.10 kg; Assist button kit (E284334): 0.41 lbs / 0.19 kg
- Weight (Packaged)
- Countertop stand (E989127): 47.40 lbs / 21.50 kg; Floor stand base (E989512): 35.71 lbs / 16.20 kg; Floor stand top (E989314): 69.45 lbs / 31.50 kg; Double-sided base for floor stand (E989705): 46.05 lbs / 20.89 kg; Ceiling pole kit for floor stand (E989893): 14.64 lbs / 6.64 kg; Signage kit for floor stand with ceiling pole (E991255): 13.36 lbs / 6.06 kg; Backer board kit for floor stand or countertop stand (E990854): 11.02 lbs / 5.00 kg; Backer board kit for double-sided floor stand (E990151): 9.61 lbs / 4.36 kg; Wall mount kit for countertop stand (E990079): 5.95 lbs / 2.70 kg; Assist button kit (E284334): 1.07 lbs / 0.49 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F; When using the Elo Computer Module (ECMG4) - Operating: 0°C to 35°C OR 32°F to 95°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 90%
- Warranty
- 2-year
- ADA Compliant
- Yes
- What's in the Box
- Countertop stand (E989127):; 1x countertop stand; 1x assembly instructions; power cables; - 1x 4.5M, C13 to NEMA 5-15P (NA); - 1x 5M, C13 to CEE 7/7 (EU); - 1x 5M, C13 to BS1363A (UK); - 3x 0.3m, C13 to C14; - 3x 0.3m, C5 to C14; - 1x 0.35m, IEC C14 for ECMG4; 2x Wi-Fi extension cables; 4x printer paper chutes; 1x filler plate; 1x ADA plate (ADA keypad sold separately); (refer to MS drawing for full details); Floor stand top (E989314); 1x floor stand top; 1x assembly instructions; power cables; - 1x 4.5M, C13 to NEMA 5-15P (NA); - 1x 5M, C13 to CEE 7/7 (EU); - 1x 5M, C13 to BS1363A (UK); - 3x 0.3m, C13 to C14; - 3x 0.3m, C5 to C14; - 1x 0.35m, IEC C14 for ECMG4; 2x Wi-Fi extension cables; 4x printer paper chutes; 1x filler plate; 1x ADA plate (ADA keypad sold separately); (refer to MS drawing for full details); Floor stand base (E989512); 1x base plate; 2x wheel assemblies; 6x M5x6 wheel mounting screws; 8x M5x10 socket head mounting screws; 4x M5x10 flat head mounting screws; (refer to MS drawing for full details)
- Stands, Mounts & Kits
- Power Strip 4 Plug - Elo P/N: E765397; North America 4.5M Power Cable C13 - Elo P/N: E765604; Europe 5M Power Cable C13 - Elo P/N: E765812; United Kingdom 5M Power Cable C13 - Elo P/N: E766006; Australia 4.5M Power Cable C13 - Elo P/N: E766208; 0.3M Adapter Cable C13 C14 - Elo P/N: E766391; 0.3M Adapter Cable C5 C14 - Elo P/N: E766592; 0.35M Adapter Cable C14 for Elo Computer Modules - Elo P/N: E766781; Wallaby Pro Merchant-facing Display Kit – Elo P/N: E801367
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
