Elo Touch Wallaby Pro Merchant-facing Display Kit
Specifications
Technical
- Part Number(s)
- E801367
- Enclosure Color
- Dark Gray Metallic
- Compatibility
- For Wallaby Pro countertop and floor models; Display Compatibility (Landscape or Portrait); 1002L; 1302L; 1502L; 1502LM; Compute Compatibility; ECMG4 (Windows 10)*; Intel NUC; 22" Android I-Series 4; 22" Windows I-Series 2; *Requires USB3 to HDMI Adapter
- Tilt Angle
- ±25° or 50° total
- Mounting Options
- 75mm VESA
- Dimensions
- 7.0" x 22.4" x 2.8" / 178.1 mm x 570 mm x 71 mm
- Shipping Box Dimensions
- 28.5" x 9.7" x 6.3" / 725 mm x 245 mm x 160 mm
- Weight (Unpackaged)
- 3.09 lbs / 1.4 kg
- Weight (Packaged)
- 5.16 lbs / 2.34 kg
- Warranty
- 2-year
- What's in the Box

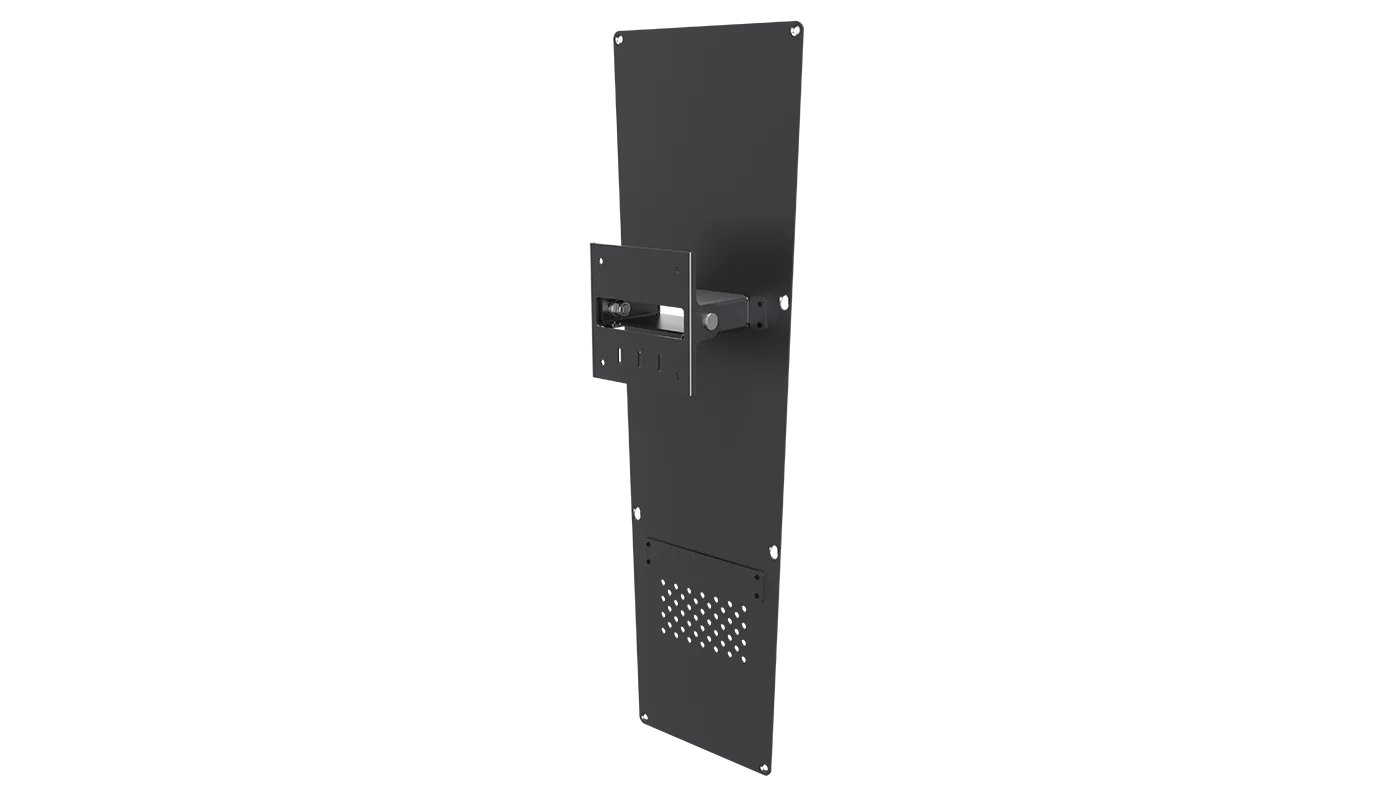

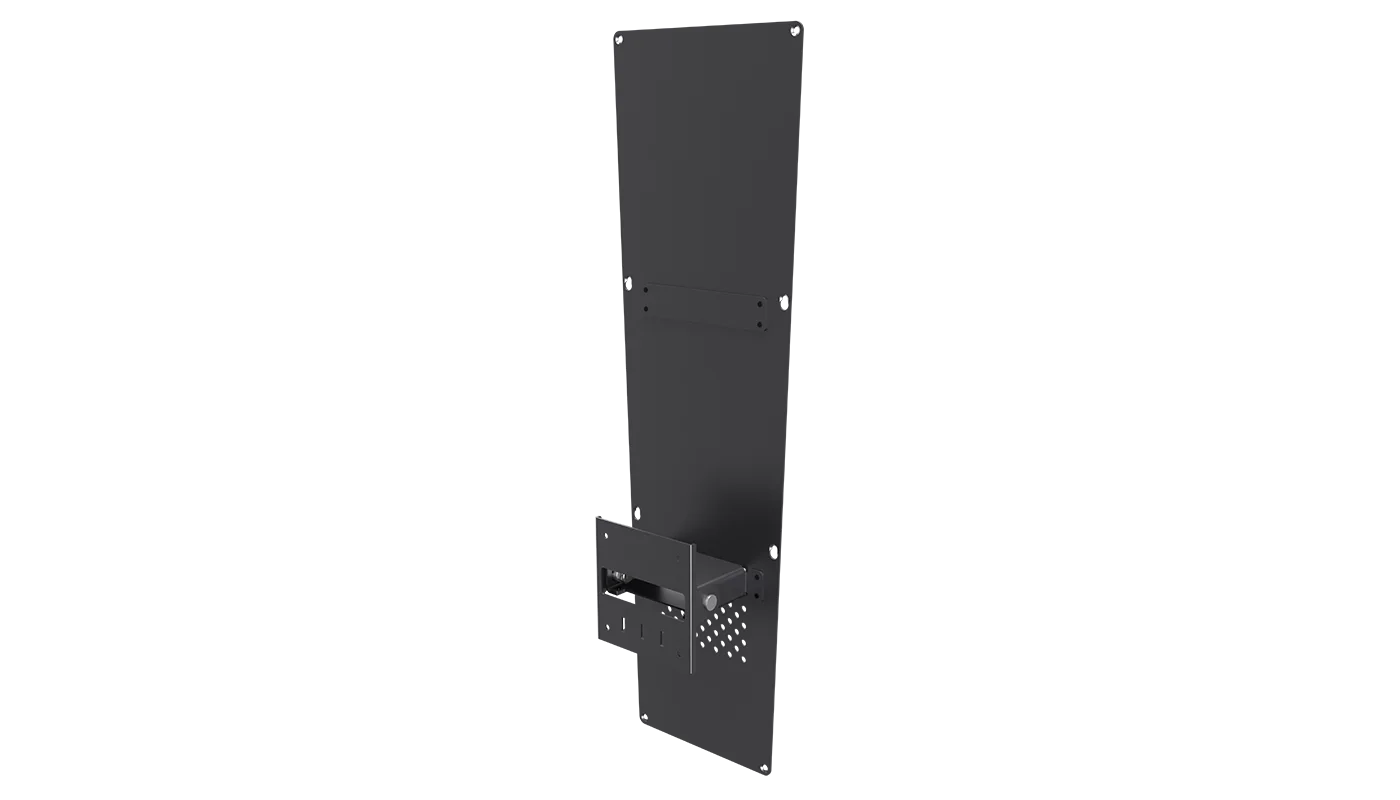

- 1 x Mounting Plate; 1 x Arm Assembly; 1 x Cover Plate; 8 x M4x3.5, Flat head screws in a plastic bag; 8 x M4x6, Flat head screws in a plastic bag; 4 x M4x8, Pan head screws in a plastic bag; 4 x Cable Ties; 1 x QR card
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
