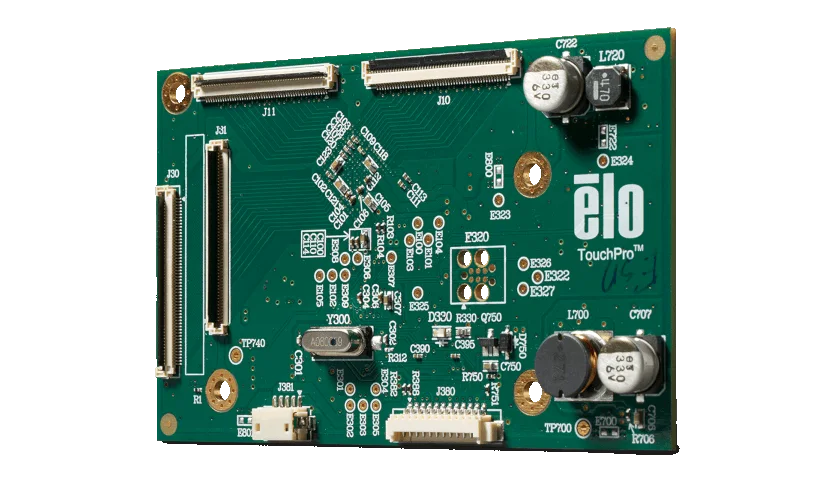

Elo Touch TouchPro 9300 Series Advanced Large Format Controller
The Elo Touch Solutions 9300-series advanced PCAP controllers are designed for the most demanding industrial and commercial applications and are powered by the COACh Pro touch IC – Elo’s new advanced
Overview
The Elo Touch Solutions 9300-series advanced PCAP controllers are designed for the most demanding industrial and commercial applications and are powered by the COACh Pro touch IC – Elo’s new advanced ASIC. In combination with our Pro-G and Pro-F touch screens from 22 inches to 32 inches, it delivers industry leading performance.
- Elo’s 9300-series controllers are designed and manufactured to work specifically with large format PCAP touchscreens for optimal performance. The 9300 series offers fast response times to deliver the same seamless capacitive touch experience as today’s consumer devices. Designed with a built-in palm-rejection feature, the controller senses unintended touches to help ensure touch accuracy.
- With in-house developed hardware, firmware and software for our new COACh Pro advanced touch IC, Elo can customize its features and performance to your unique application, creating an ideal partnership and opportunity for mutual success and growth in targeted markets with unique touch requirements and features.
- Screen Size Range Form Factor* Flextail Configuration Interface Touch Screen Family Controller IC Make/ Model Fluid Rejection Saline/ Salt Water Operation 10V RMS CS Touch Through Glass Glove Stylus # of touches 7200 series CoF ≤15.6" CoF Single USB Pro-F Multiple Good - Yes Good Good Passive Multi 8200 series Core 7"- 22" PCB Single/Multi USB/Serial Pro-F / Pro-G Multiple Good Good Yes Good Good Passive Multi 9200 series Advanced 7"- 22" PCB Single/Multi USB/Serial Pro-F / Pro-G Elo Best Best Yes Best Best Passive Multi 8300 series Large ≥32" PCB Single/Multi USB Pro-M / Pro-F Multiple Good - Yes Good Good Active Multi 9300 series Advanced 22"- 32" PCB Single/Multi USB/Serial Pro-F Elo Best Best Yes Best Best Passive Multi * PCB (Controller IC mounted on a stand alone printed circuit board), CoF (Chip on Flex - Controller IC mounted on a flex tail)
Specifications
Technical
- Technology
- PCAP (TouchPro® Projected Capacitive)
- Number of Touches
- Multi Touch (12)
- Input Methods
- Finger; Gloved hand; Passive stylus
- Dimensions
- Elo’s 9300-series controllers have multiple form factors to choose from. Contact Elo for more details.
- Surface Treatment
- Clear
- Interface
- USB, Serial
- Positional Accuracy
- ± 2.0mm
- Report Rate
- Up to 200Hz
- Operating Temperature
- -20°C to 70°C; max 90% RH (non-condensing)
- Controller Cables
- Serial cable: P/N D16890-000; USB cable: P/N D38640-000; Dual serial/USB cable: P/N D40022-000
- Note
- Exact specifications vary with touch IC, configuration, and screen size. The information above represents typical values.
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
