Elo Touch · Accessory

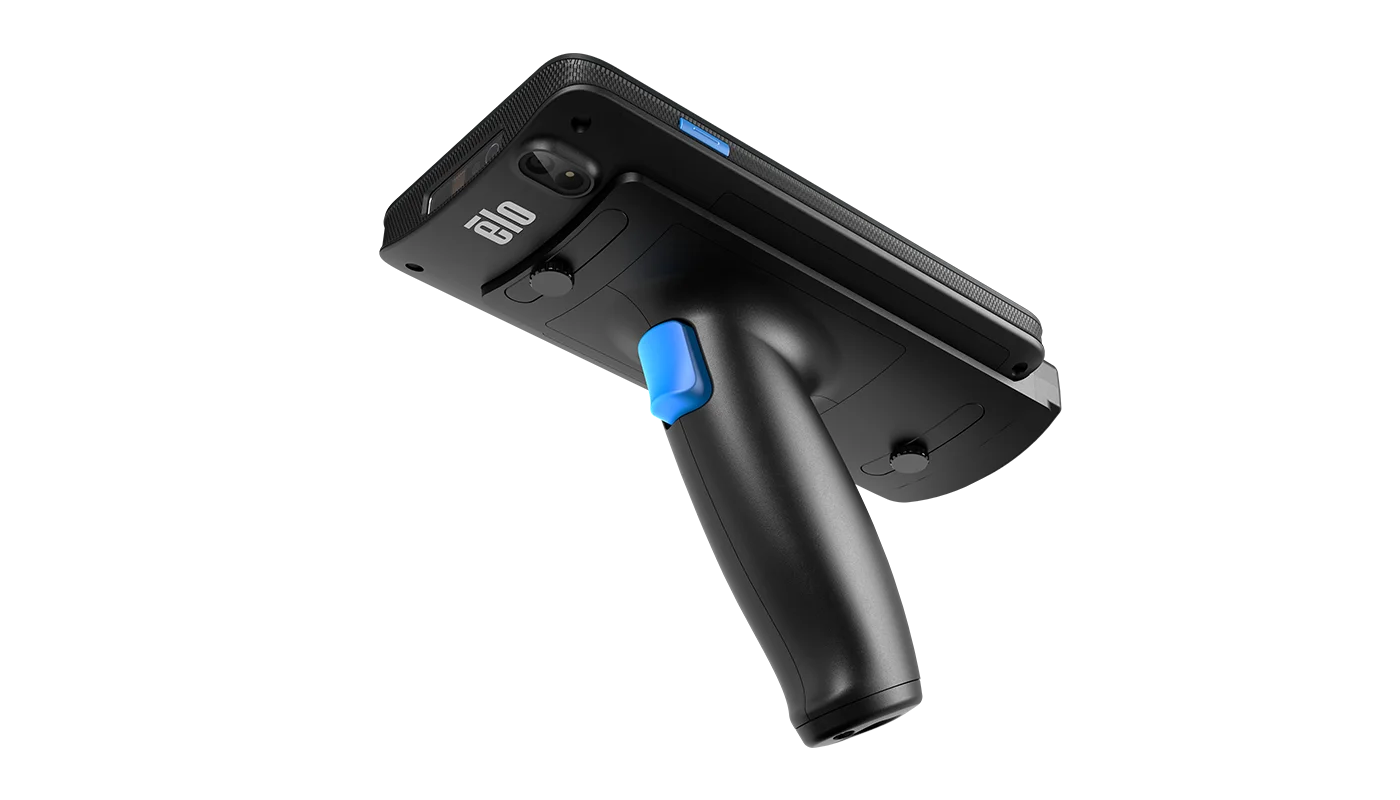

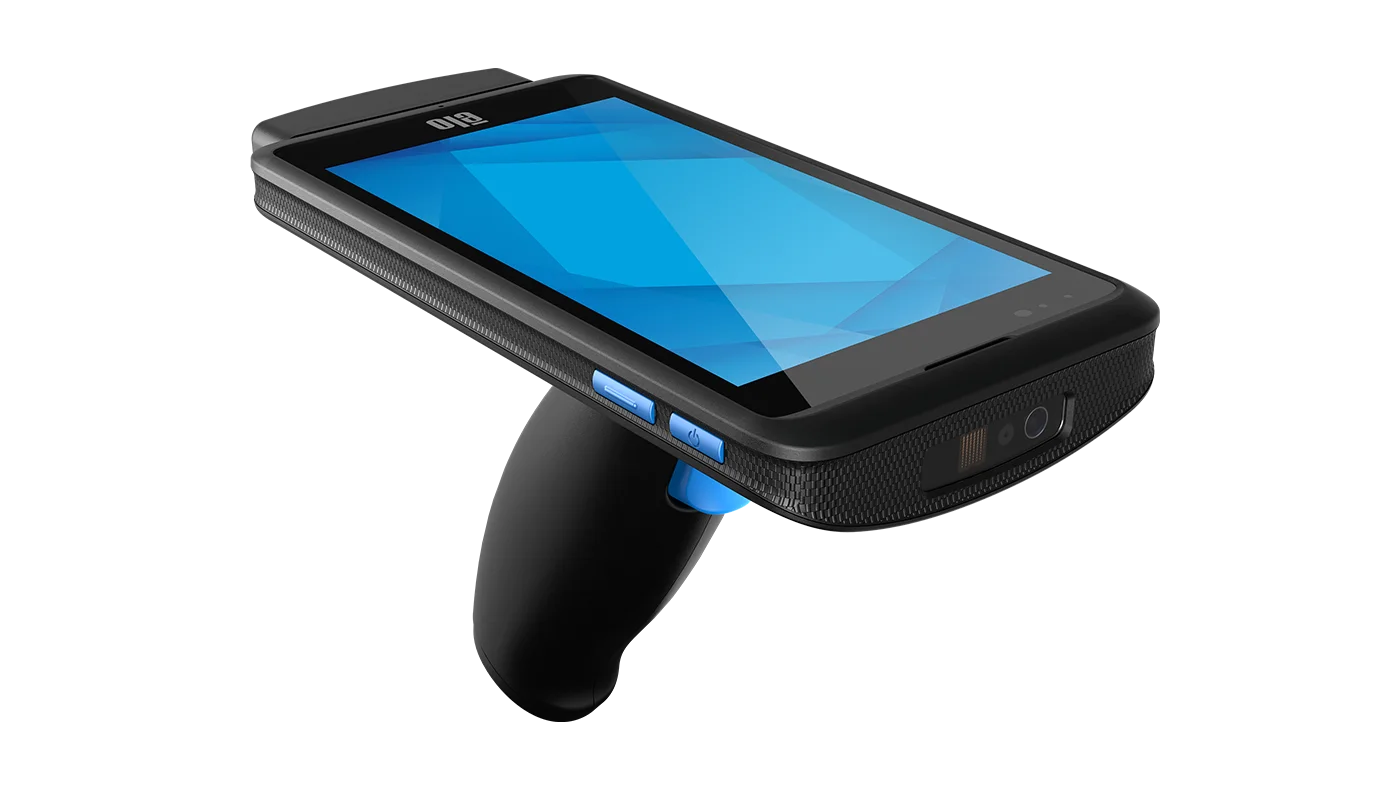

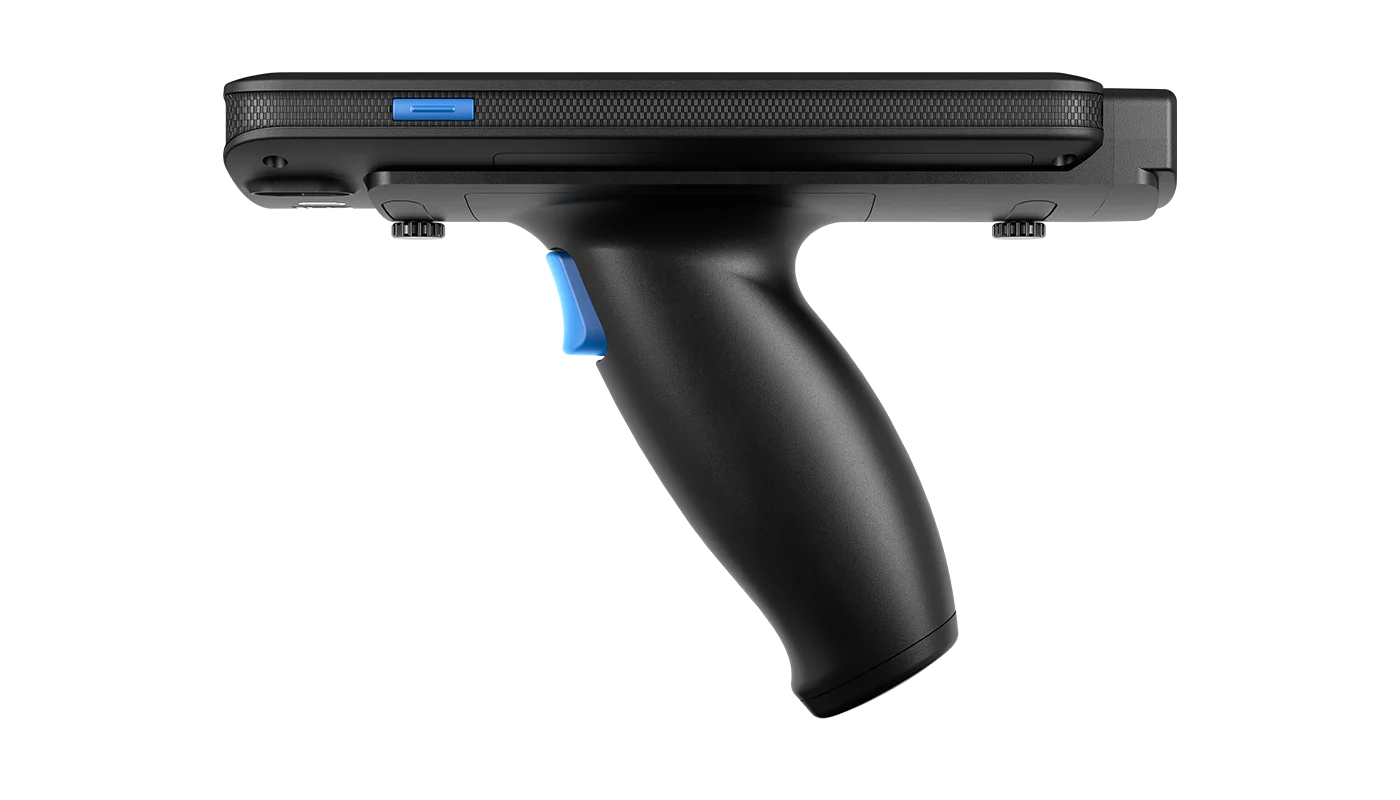

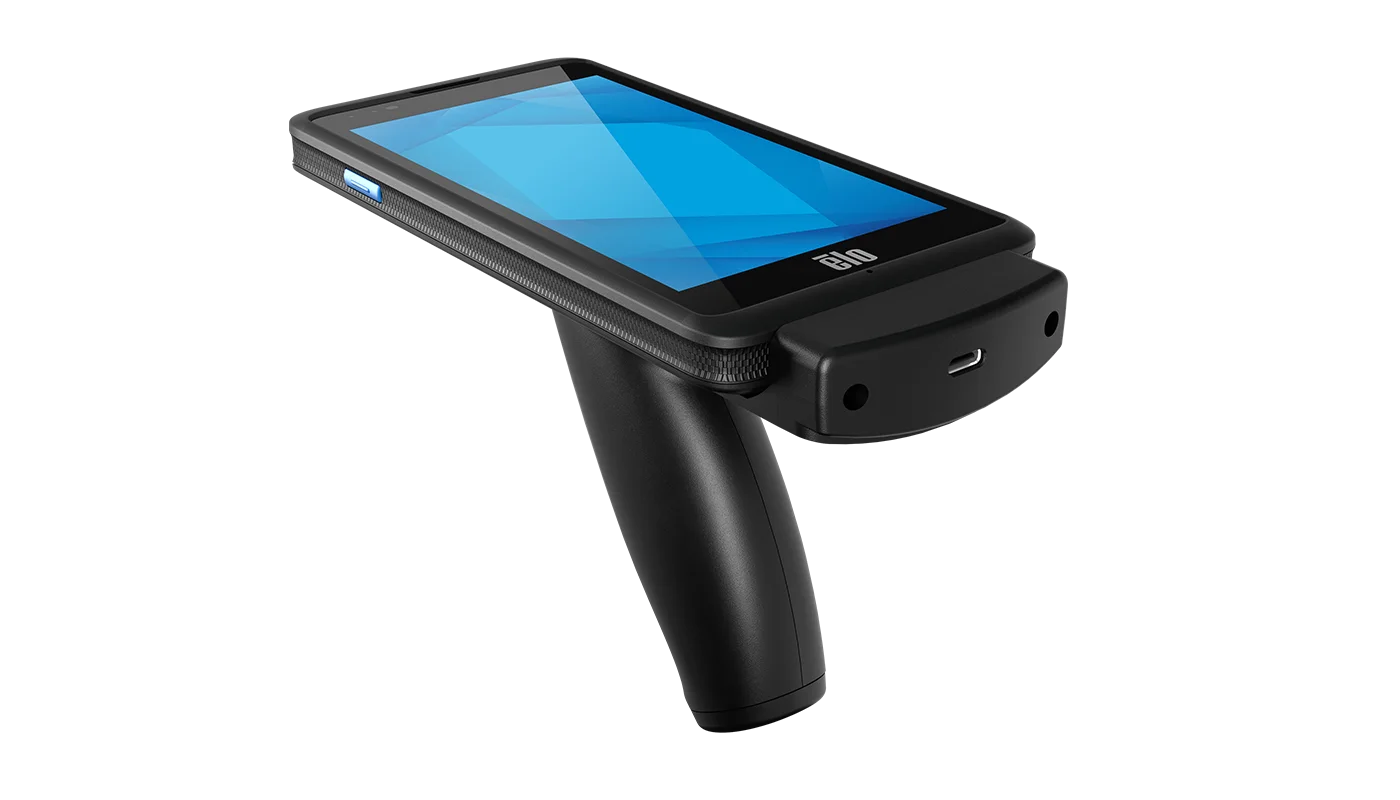

Elo Touch TH10 Trigger Handle
Specifications
Technical
- Part Number(s)
- E393015
- Enclosure Color
- Black
- Compatibility
- M50 Mobile Computer
- I/O Ports
- USB-C
- Dimensions
- 7.52" x 3.62" x 5.04" / 191 mm x 92 mm x 128 mm
- Shipping Box Dimensions
- 8.07" x 6.22" x 5.28" / 205 mm x 158 mm x 134 mm
- Weight (Unpackaged)
- 0.38 lbs / 0.18 kg
- Weight (Packaged)
- 1.50 lbs / 0.68 kg
- Operating Temperature
- 0°C to 50°C / 32°F to 122°F
- Storage Temperature
- -30°C to 60°C / -22°F to 140°F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 95%
- ESD
- Class C: 8KV Contact, 15KV Air
- Regulatory approvals and declarations
- UL, FCC (US) - Class B; cUL, IC (Canada); CB (International safety); CE (Europe) - Class B; VCCI (Japan); RCM (Australia); China RoHS
- MTBF
- 50,000 hours demonstrated
- Warranty
- 1-year
- What's in the Box
- TH10 Trigger Handle; QIG; Power Adapter; US/EU/UK adapter plugs
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
