End of life
Raptool ApprovedApproved for use with the Raptool Client and all Raptool apps.Elo Touch · Accessory

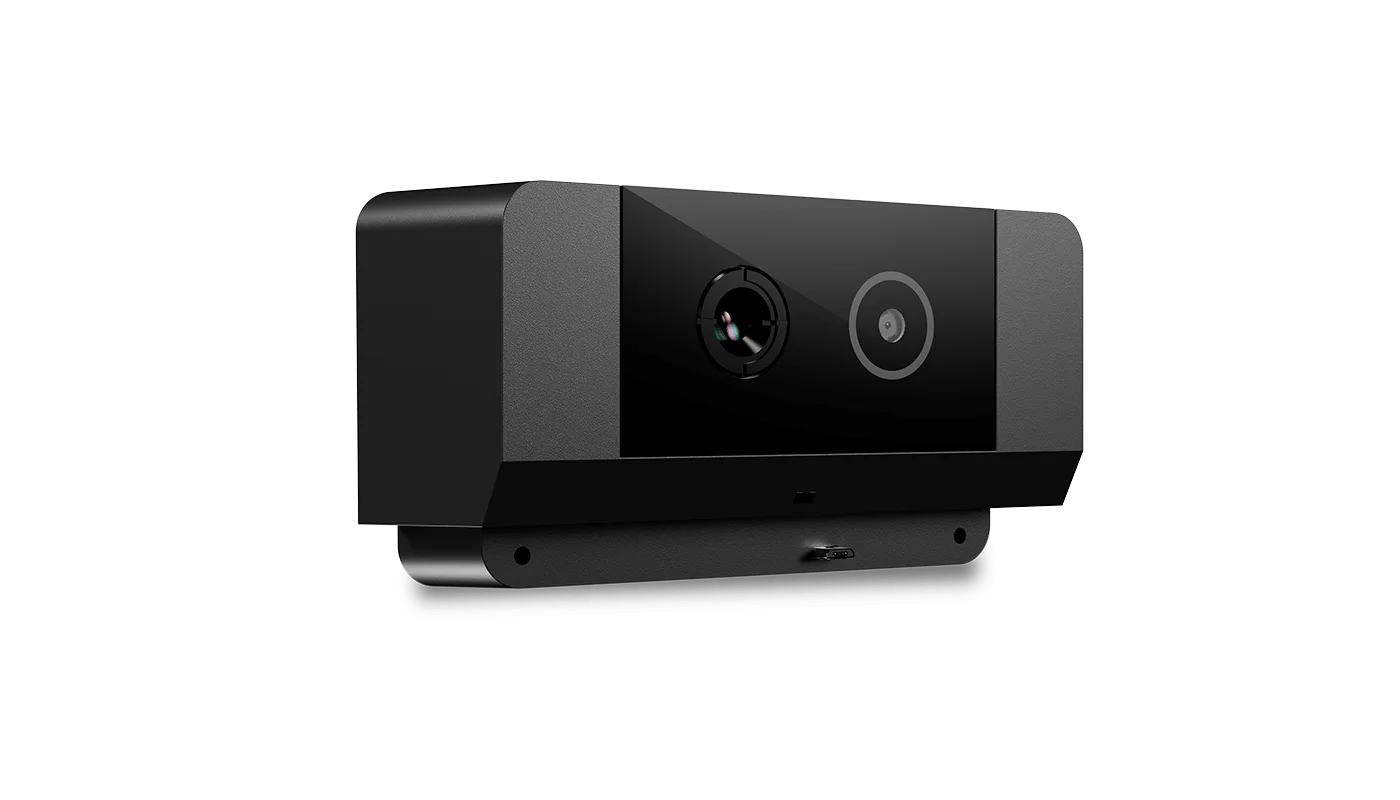

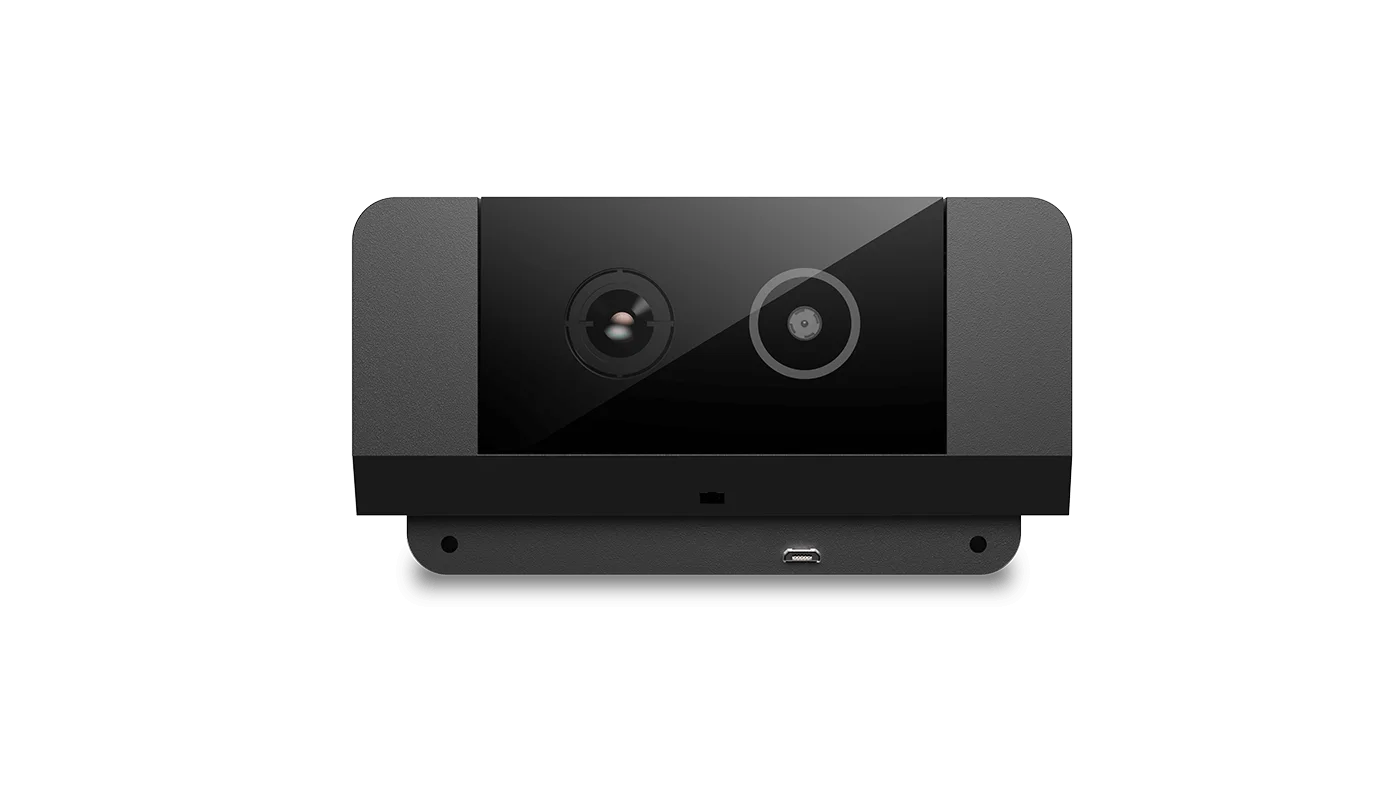

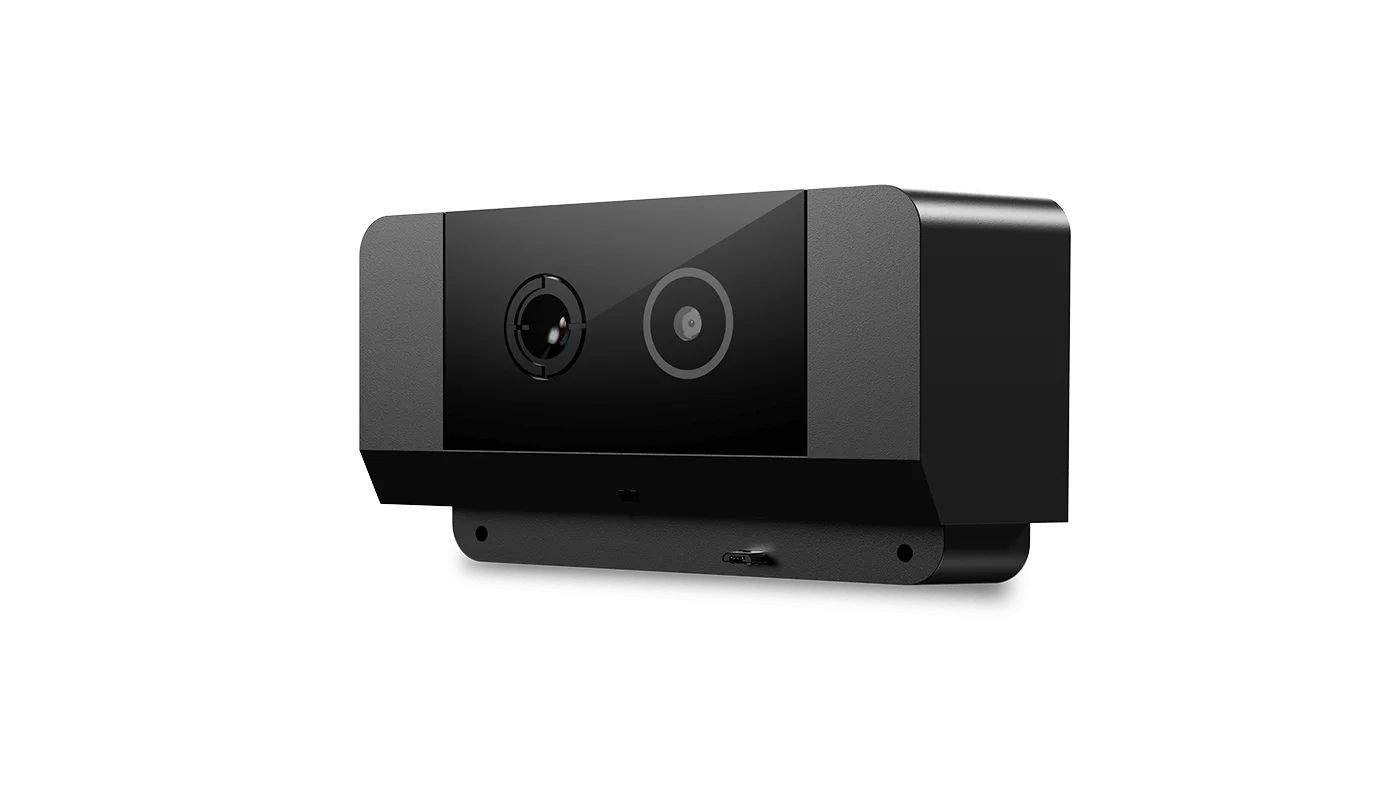

Elo Touch Temperature Sensor Pro
With social distancing and preventative measures being critical, organizations are implementing enhanced safety protocols to help ensure their premises are safer. Elo’s modular temperature screening h
- Operating systemSDKs available for Android, Windows 10 64bit and Linux Ubuntu 18.04 LTS
Overview
With social distancing and preventative measures being critical, organizations are implementing enhanced safety protocols to help ensure their premises are safer. Elo’s modular temperature screening hardware supports these efforts. From check-in to access control, simply pair Elo’s Temperature Sensor with a variety of displays, stands and 3rd-party software to create a contactless self-service solution purpose-built to streamline security administration and increase safety.
- Protect human resources from handling the screening process by leveraging self-service temperature kiosks.
- Deploy and securely manage an entire network of Elo Android-powered devices remotely with EloView - deploy content, manage settings and maintain the OS.
- Utilizing an infrared bolometer (thermometer) and 2D camera, the Temperature Sensor Pro offers heatmap temperature reading up to 40” away with an optimal distance of 24”. With no alignment needed, the temperature sensor can detect a face, automatically adjust based on height and output temperature data for a person detected in the field of view (FOV).
- The sensor can automatically detect whether a person is ready to be checked and with built-in intelligence, the sensor will adjust positioning based on the person’s height.
- Allow personnel and guests to flow through quickly with a variety of access options. By using the data output from the temperature sensor, staff can rapidly identify whether it is appropriate for someone to proceed.
Specifications
Technical
- Part Number
- E534879
- Enclosure Color
- Black
- Compatibility
- 10-, 15-, 22-inch AiO I-Series for Android; 15-, 22-inch AiO I-Series for Windows (2.0); 1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L Touchscreen Monitors; 3202L, 4202L, 4602L, 5502L Touchscreen Signage
- Interface
- USB 2.0
- Measurement Accuracy
- +/- 0.5 ºC
- Measurement Distance
- 12" – 40" / 30 cm – 102 cm (optimal distance: 24" / 61 cm)
- Temperature Measurement Range
- 30 ºC to 42 ºC / 86 ºF to 108 ºF
- IR Camera Resolution
- 160 x 120
- RGB Camera Resolution
- 5MP
- Tilt Angle
- +20º/-30º (auto or manual adjustment)
- IR Field of View (FOV)
- 36º horizontal / 27º vertical
- RGB Field of View (FOV)
- 61º horizontal / 48º vertical
- Operating Temperature
- 10°C to 30°C / 50°F to 86°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- Operating: 20% - 80%; Storage: 5% - 95%
- OS Support
- SDKs available for Android, Windows 10 64bit and Linux Ubuntu 18.04 LTS
- Dimensions
- 5.47" x 2.95" x 2.05" / 139 mm x 75 mm x 52 mm
- Weight (Unpackaged)
- 0.7 lbs / 0.32 kg
- Weight (Packaged)
- 1.04 lbs / 0.47 kg
- Shipping Box Dimensions
- 7.80" x 5.04" x 3.66" / 198 mm x 128 mm x 93 mm
- Warranty
- 2-year
- Extended Service Options
- 2 year warranty coverage + AUR - Elo P/N: E873906
- What's in the Box
- IR Camera; 2 Mounting screws; 2 Mylar screw covers; 1 Extended Micro-USB cable; QIG
- Availability
- US, Canada, EU, UK, Japan, Mexico, Latin America, China
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Discontinued
- End of sale / last shipment
- November 2023
- Status basis
- elotouch.com product page marks it as discontinued (Discontinued November 2023)
