Elo Touch · Accessory

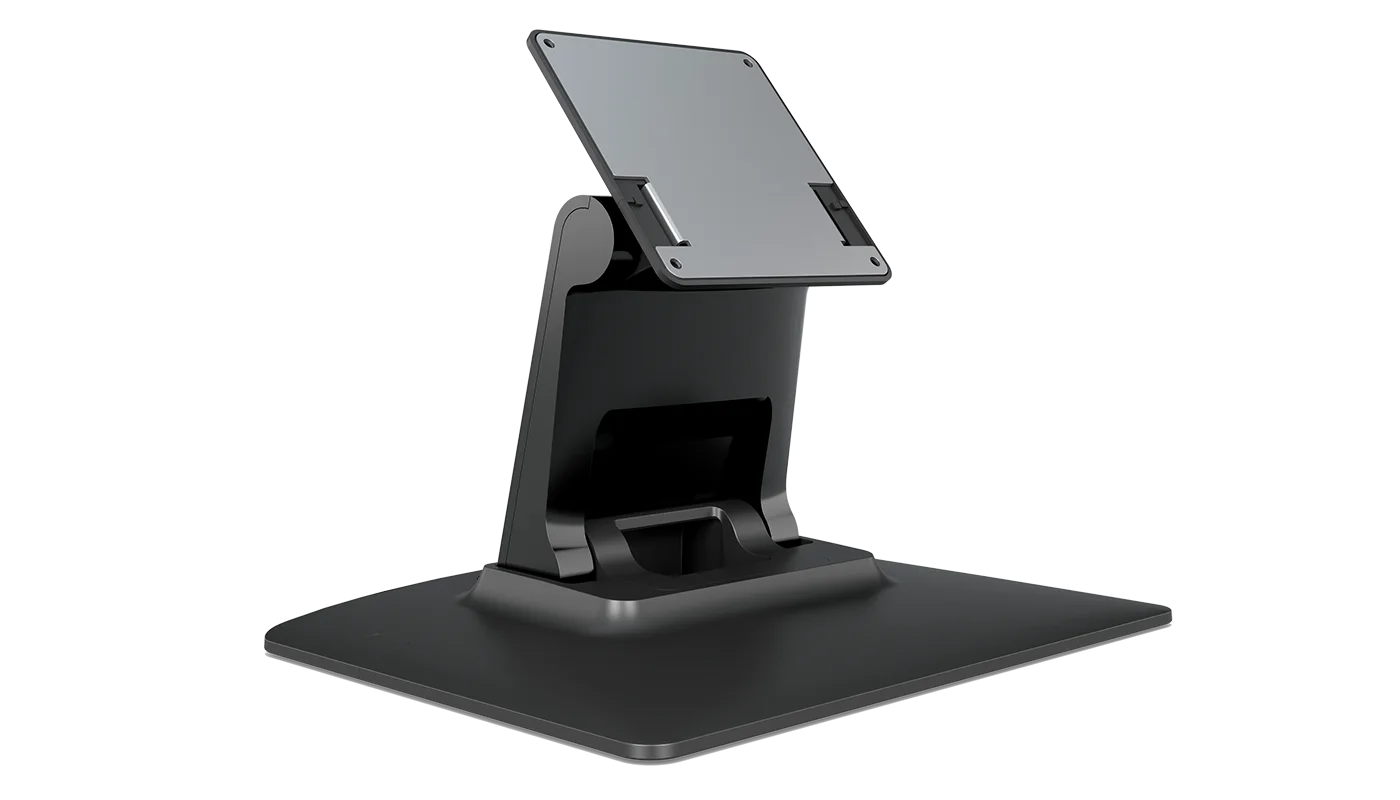

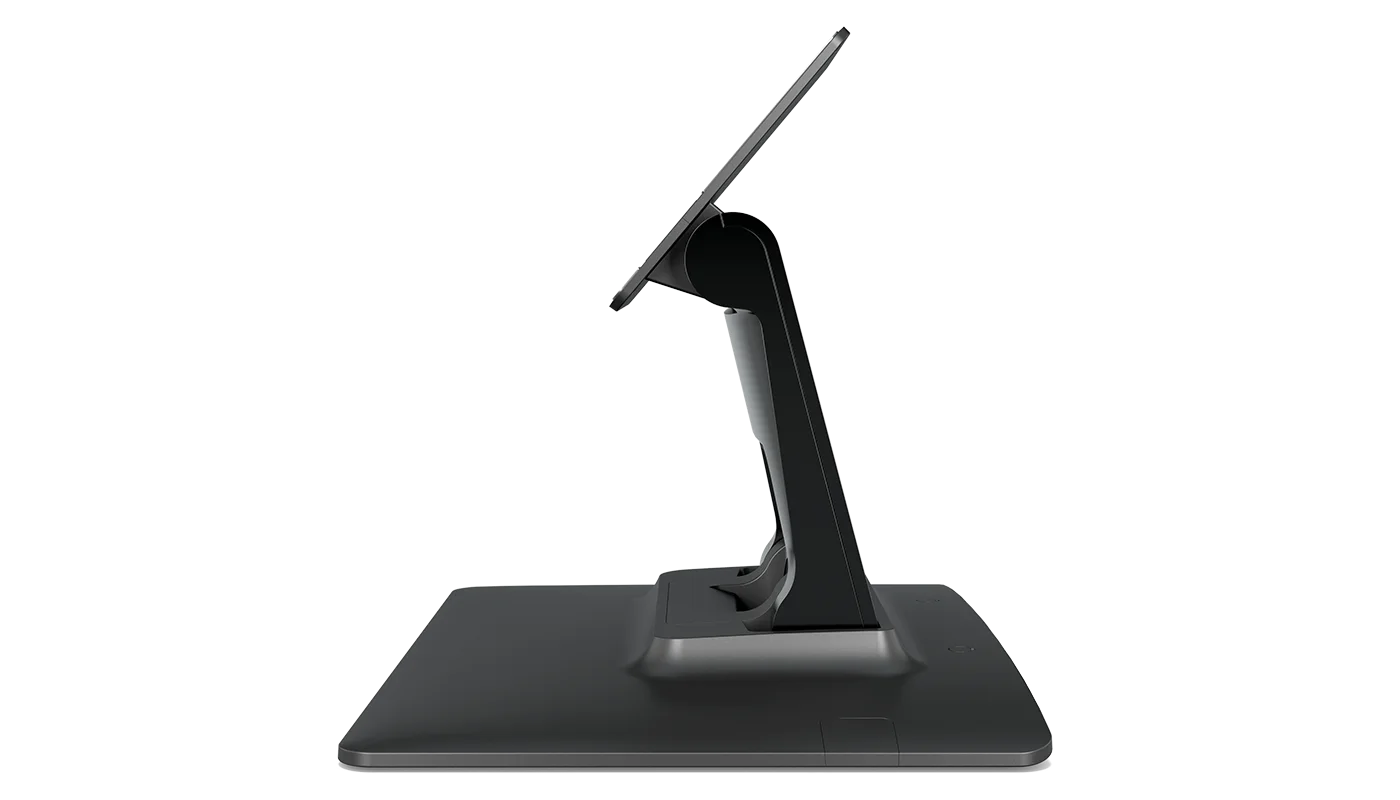

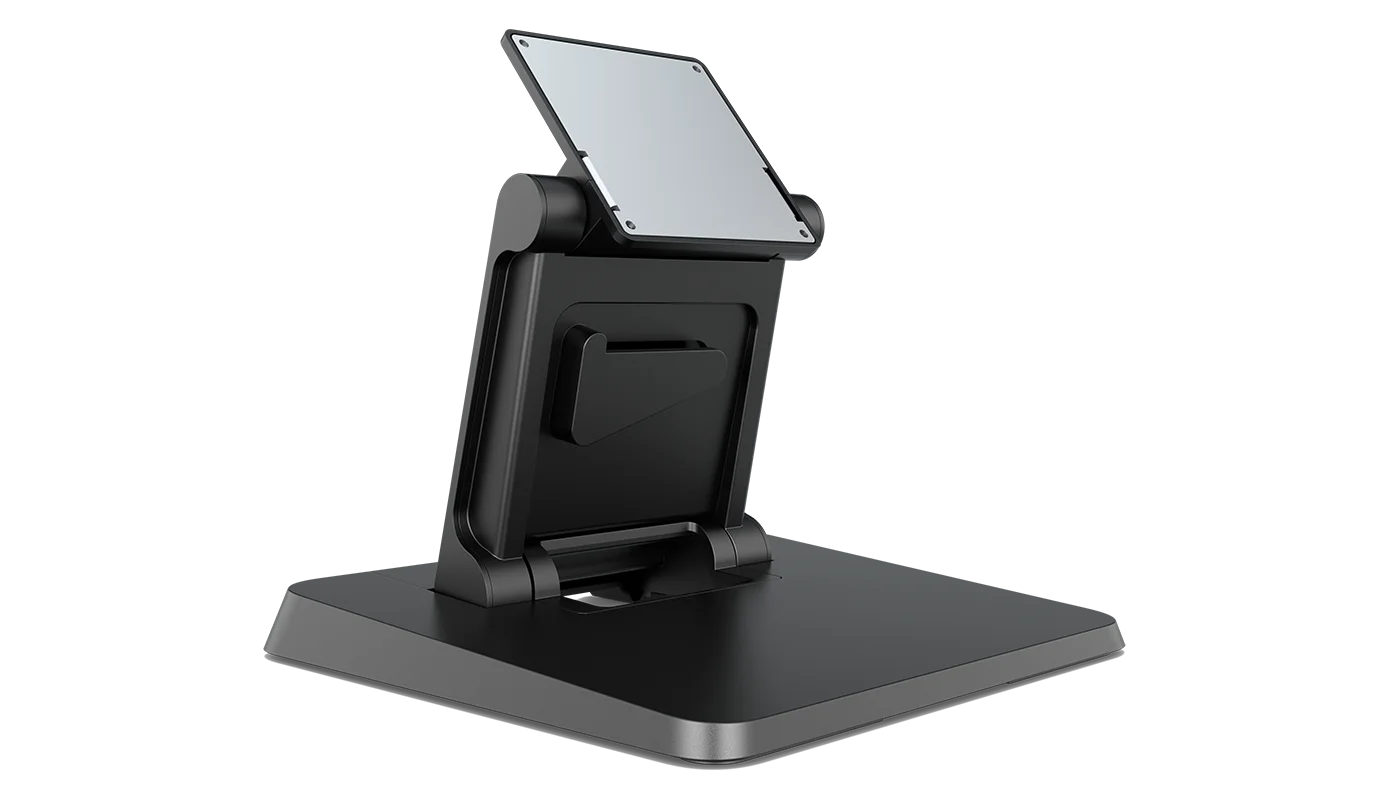

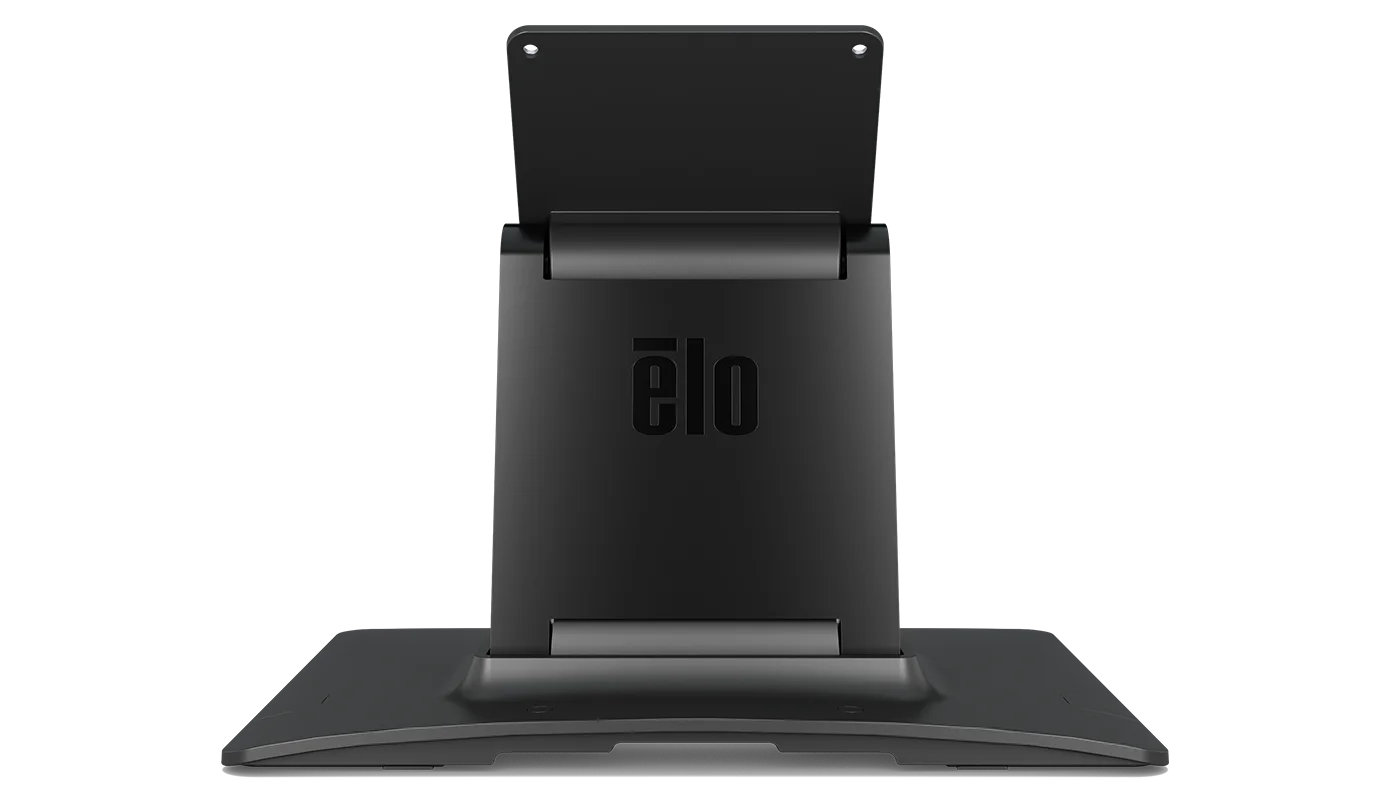

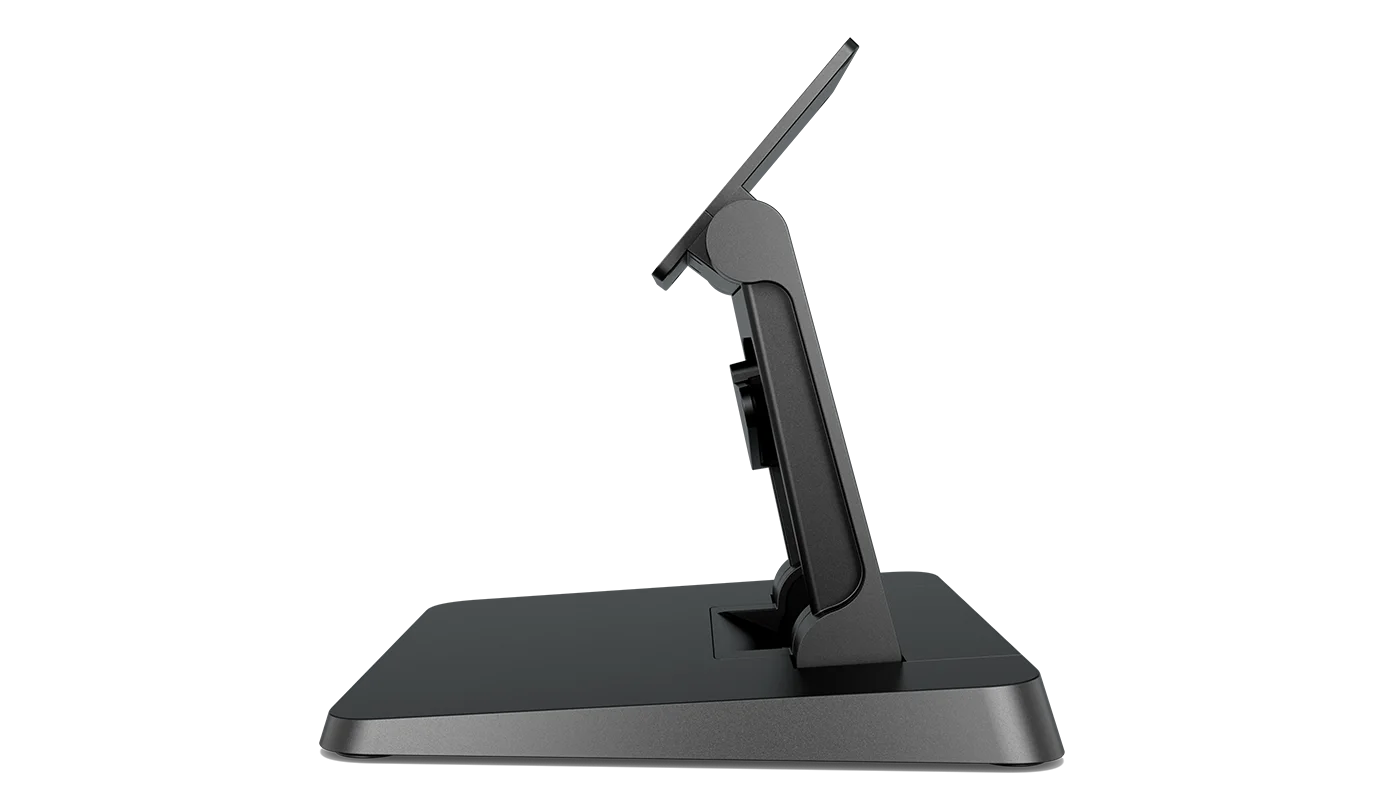

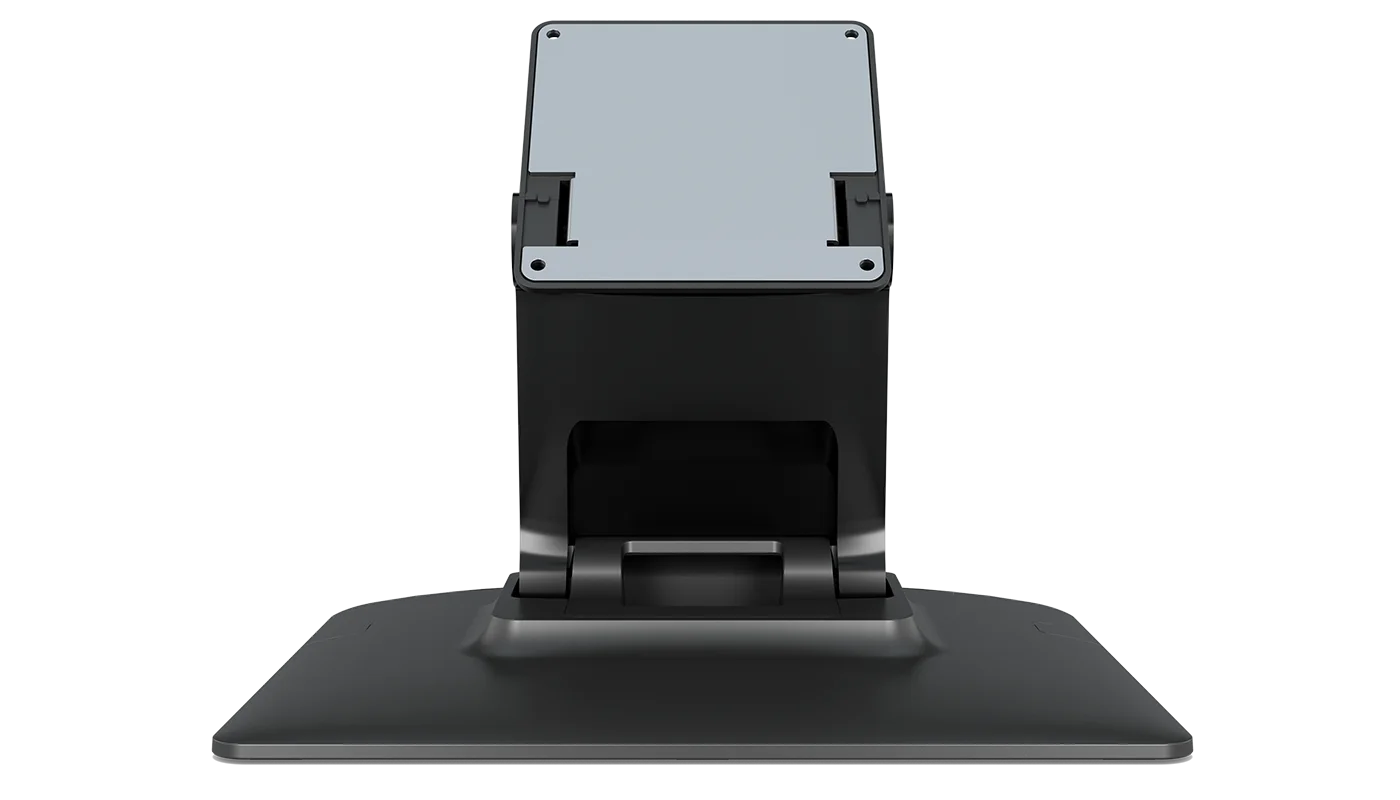

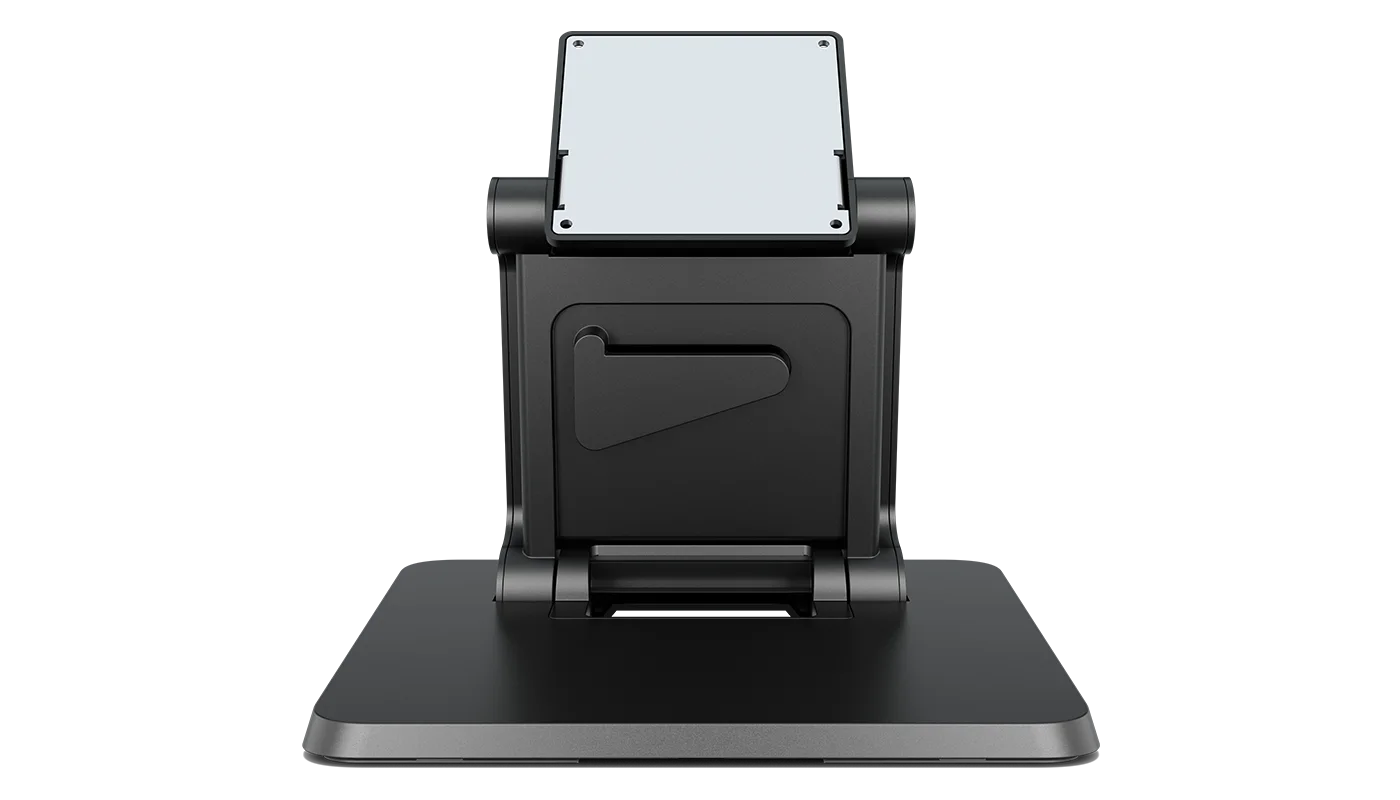

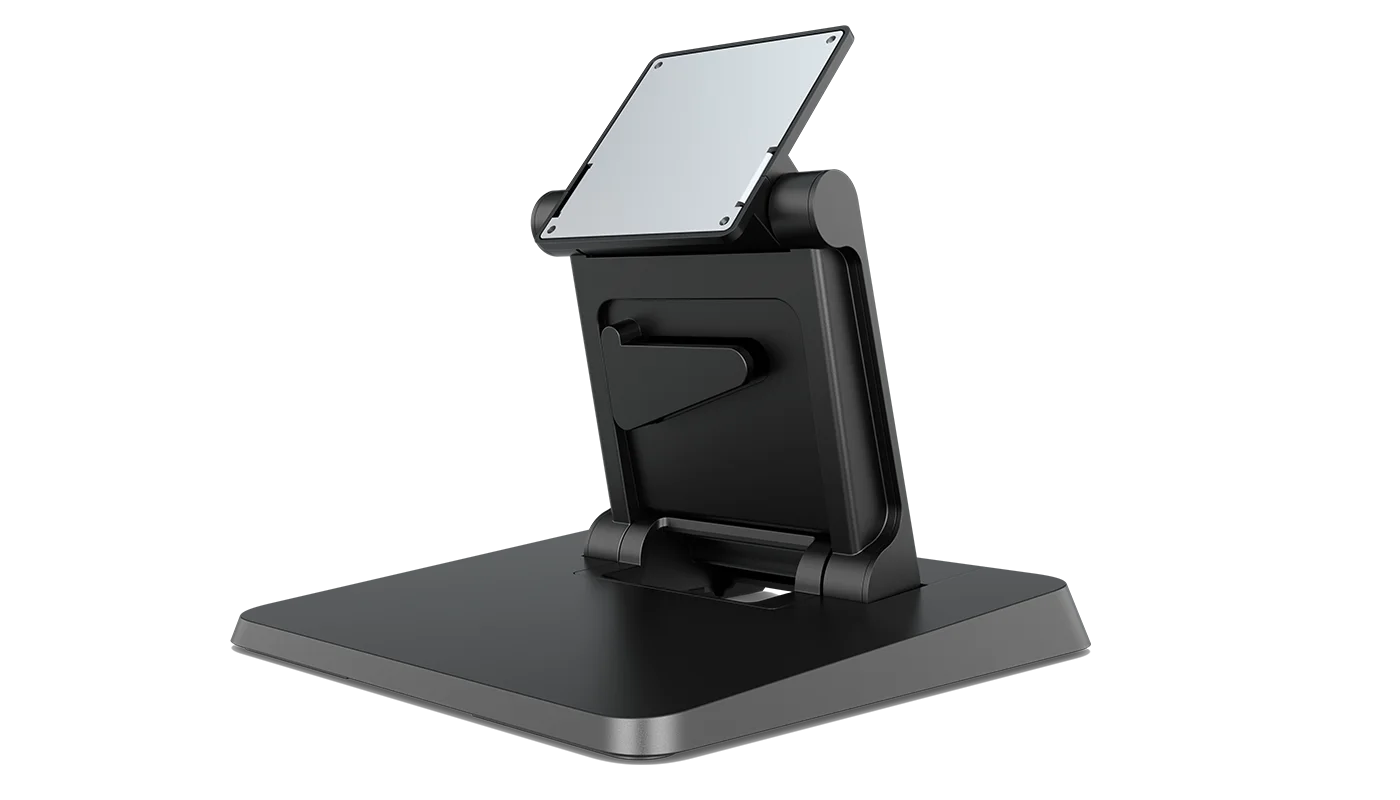

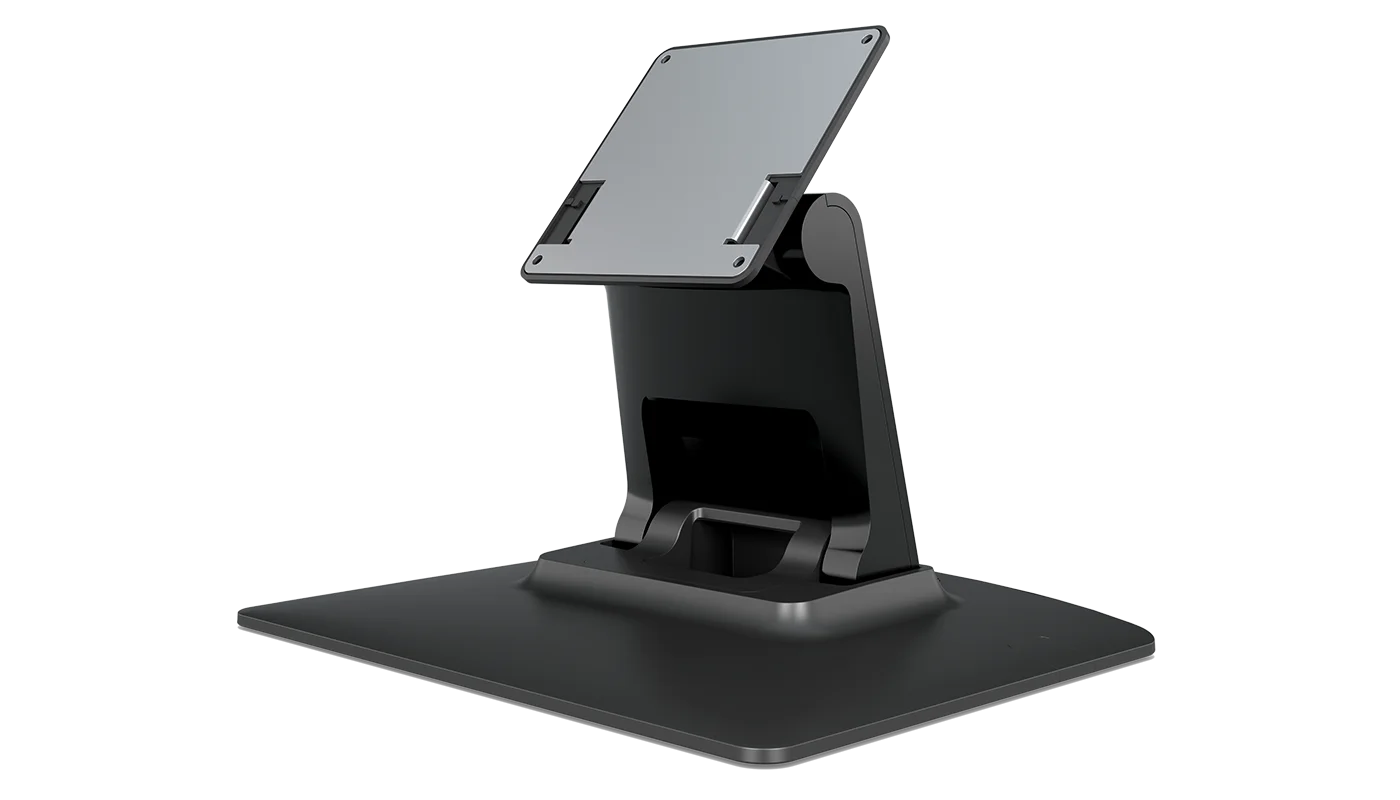

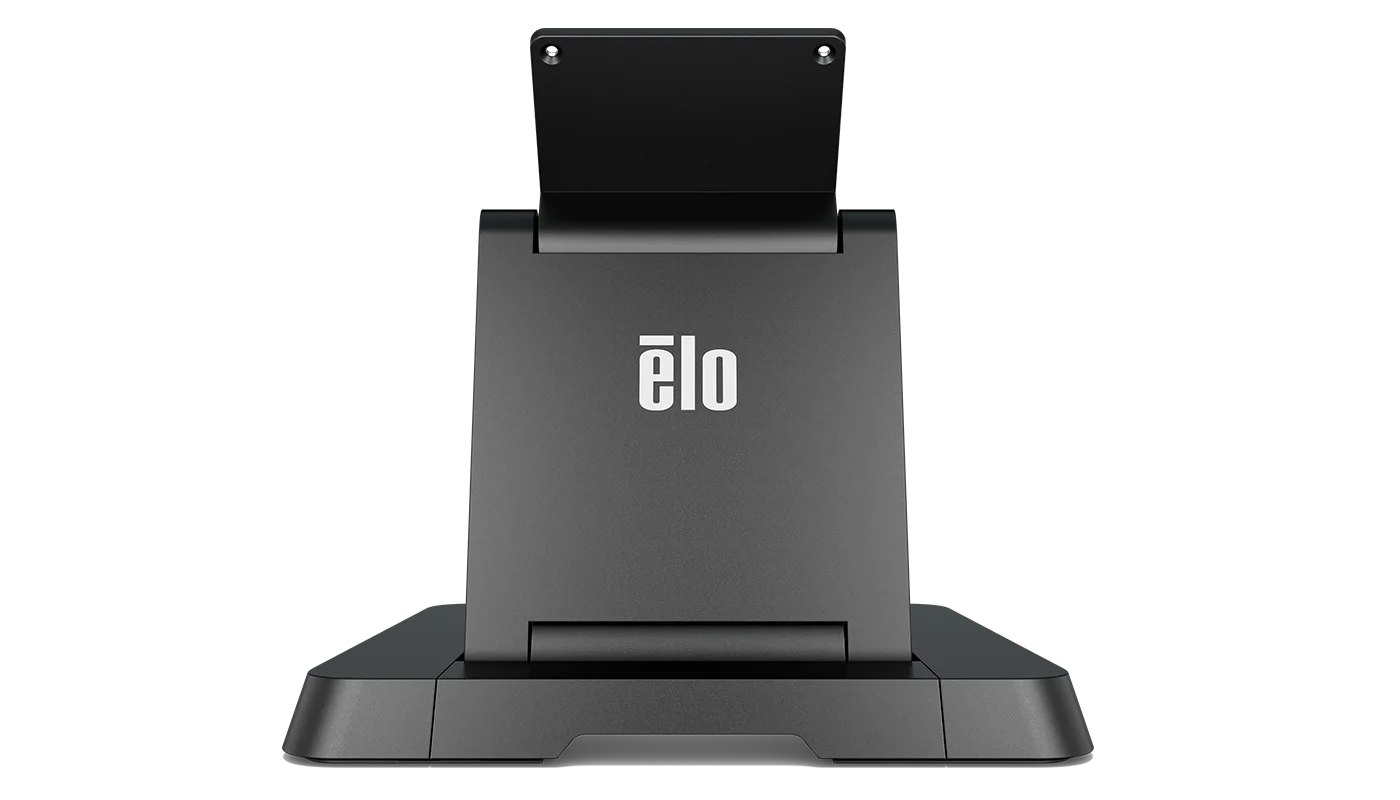

Elo Touch Tabletop Stands
Specifications
Technical
- Part Number(s)
- Black/Silver Tabletop Stands:; E804330 - Tabletop Stand for 1902L, 1903LM, 2002L, 2202L, 2203LM, 15” and 22” Android I-Series 2/3/4; E509844 - Tabletop Stand for 2402L, 2403LM, 2702L, 2703LM, 15” and 22” Android I-Series 2/3/4; Black Tabletop Stands; E044162 - Tabletop Stand for 1502L, 1502LM, 15” Android I-Series 2/3/4, 15” Windows I-Series 2.0; E044356 (Compatible with rear-facing display pole mount kit E038989) - Tabletop Stand for 1502L, 1502LM, 2002L, 15” and 22” Android I-Series 2/3/4, 22” Windows I-Series 2.0; White Tabletop Stands; E765019 - Tabletop Stand for 1502LM, 15” Android I-Series 2/3/4; E808963 - Tabletop Stand for 1903LM, 2203LM, 15” and 22” Android I-Series 2/3/4; E510042 - Tabletop Stand for 2403LM, 2703LM, 15” and 22” Android I-Series 2/3/4
- Enclosure Color
- White or Black
- Compatibility
- Tabletop Stands for 1502L - E044162, E044356; Tabletop Stands for 1502LM - E044162, E044356, E765019; Tabletop Stands for 15-inch I-Series for Android (2/3/4) - E044162, E044356, E765019, (Install all cables before mounting to the stand) / E804330, E509844, E808963, E510042 (M4x10L mounting screws are recommended); Tabletop Stands for 15-inch I-Series for Windows (2.0) - E044162 (Requires adaptor kit E388675); Tabletop Stands for 1902L - E804330; Tabletop Stands for 1903LM - E804330, E808963; Tabletop Stands for 2002L - E804330 (M4x12L mounting screws are recommended), E044356; Tabletop Stands for 2202L - E804330; Tabletop Stands for 2203LM - E804330, E808963; Tabletop Stands for 22-inch I-Series for Android (2/3/4) - E044356 / E804330, E509844, E808963, E510042 (M4x10L mounting screws are recommended); Tabletop Stands for 22-inch I-Series for Windows (2.0) - E044356 (M4x14L mounting screws are recommended); Tabletop Stands for 2402L - E509844; Tabletop Stands for 2403LM - E509844, E510042; Tabletop Stands for 2702L - E509844; Tabletop Stands for 2703LM - E509844, E510042
- Mounting Options
- E044162, E765019, E044356, E804330, E808963, E509844, E510042: 100 x 100mm VESA
- Dimensions
- E044162, E765019: 10.5" x 7.8" x 8.6" / 266.4 mm x 199.1 mm x 219.7 mm; E044356: 10.7" x 9.9" x 10.2" / 272.8 mm x 251.7 mm x 260.2 mm; E804330, E808963: 15.0" x 7.6" x 10.4" / 380 mm x 193.4 mm x 263.2 mm; E509844, E510042: 15.0" x 8.5" x 11.8" / 380 mm x 215 mm x 299.1mm
- Shipping Box Dimensions
- E044162, E765019: 13.39" x 11.42" x 9.45" / 340 mm x 290 mm x 240 mm; E044356: 13.39" x 9.65" x 13.78" / 340 mm x 245 mm x 350 mm; E804330, E808963: 18.03" x 10.94" x 12.24" / 458 mm x 278 mm x 311 mm; E509844, E510042: 18.39" x 11.81" x 15.35" / 467 mm x 300 mm x 390 mm
- Weight (Unpackaged)
- E044162, E765019: 3.31 lbs / 1.5 kg; E044356: 5.53 lbs / 2.51 kg; E804330, E808963: 4.41 lbs / 2 kg; E509844, E510042: 7.1 lbs / 3.22 kg
- Weight (Packaged)
- E044162, E765019: 4.41 lbs / 2 kg; E044356: 8.22 lbs / 3.73 kg; E804330, E808963: 6.61 lbs / 3 kg; E509844, E510042: 8.53 lbs / 3.87 kg
- Warranty
- 2-year
- What's in the Box
- E044356: Stand, Installation Flyer, 4x M4x10L Flat-Head screws; E044162, E765019: Stand, Installation Flyer, 4x M4x10L Pan-Head screws; E804330, E808963, E509844, E510042: Stand, Installation Flyer, 4x M4x15L Flat-Head screws
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
