Elo Touch Status Light (Gen 1)
The Elo Status Lights provide a sleek, low profile solution for highlighting conference room availability and self-checkout (SCO) lane readiness. The Elo Edge Connect Status Lights connect easily via
Overview

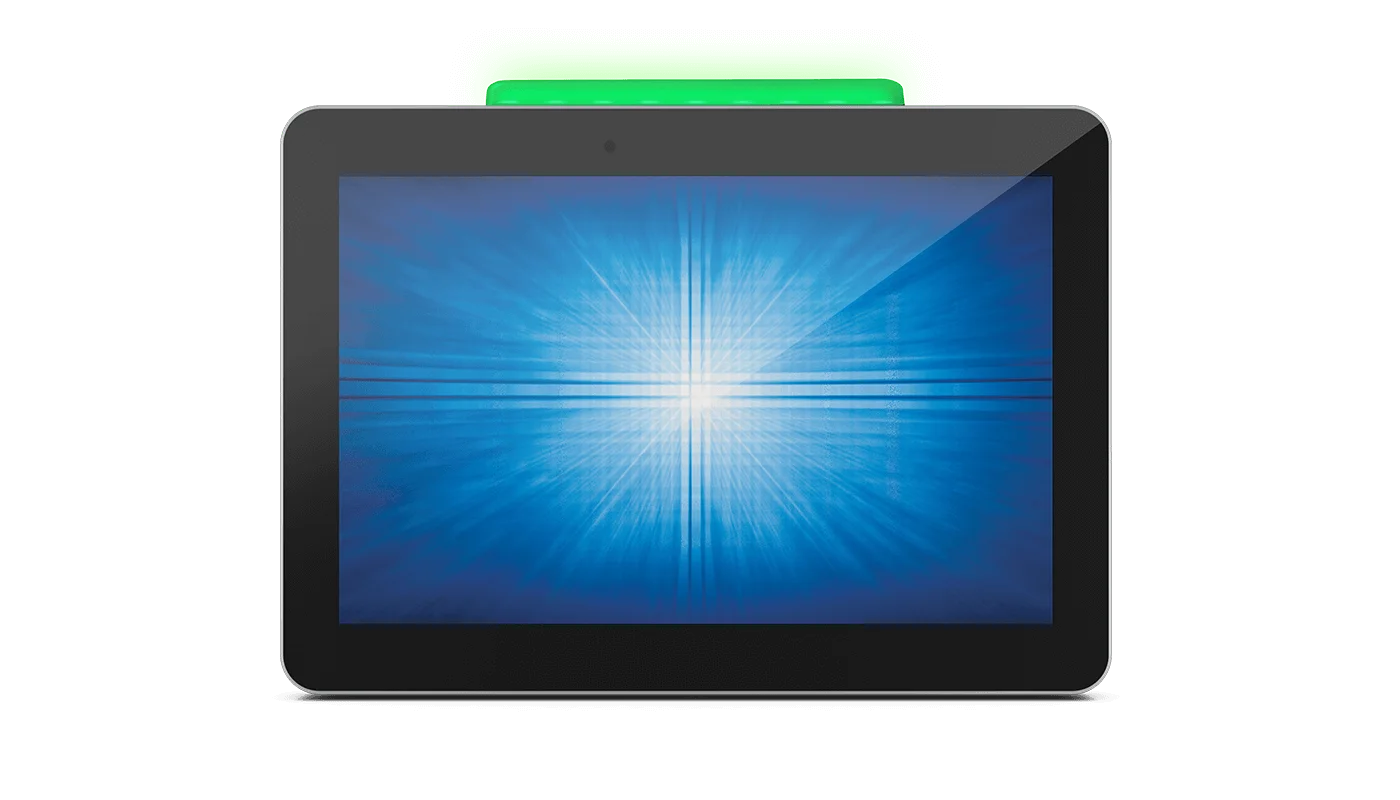

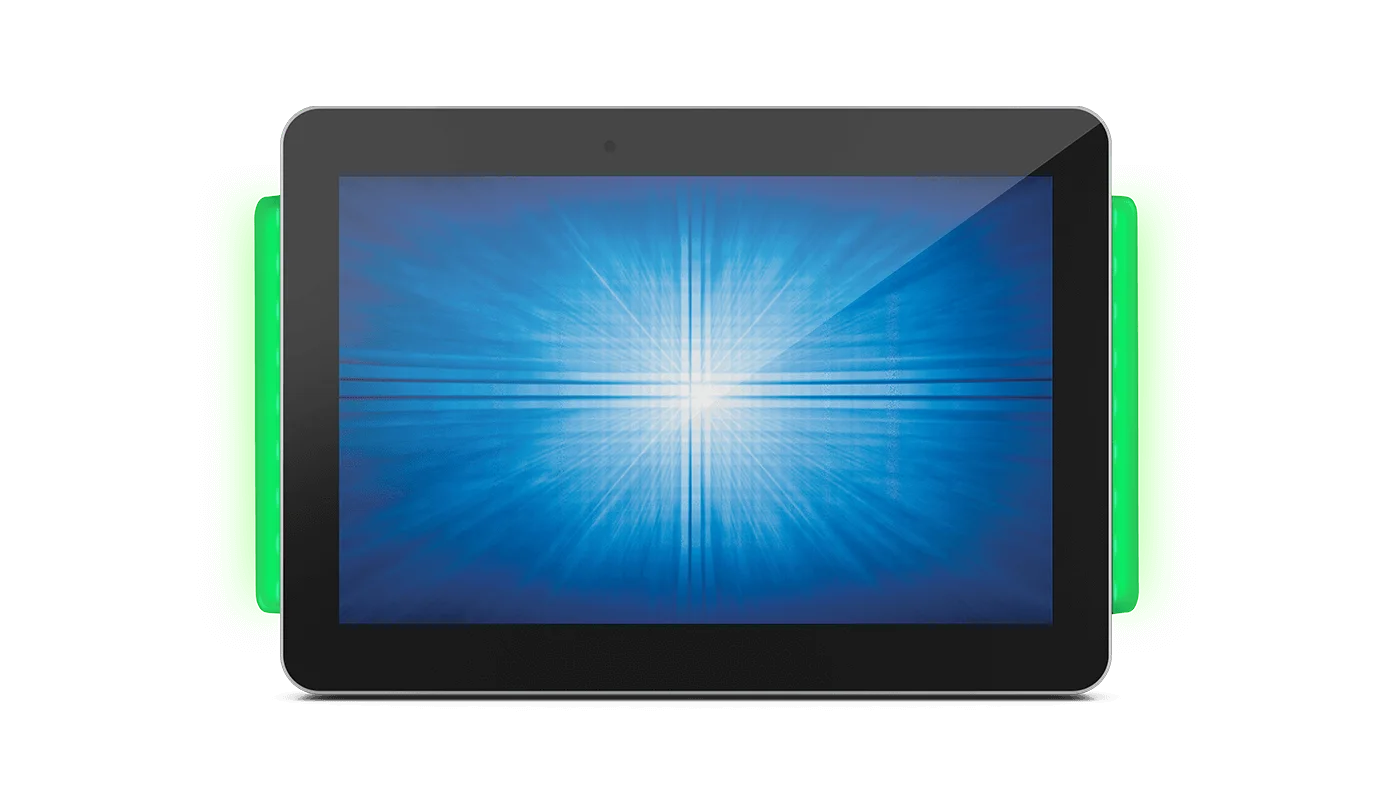

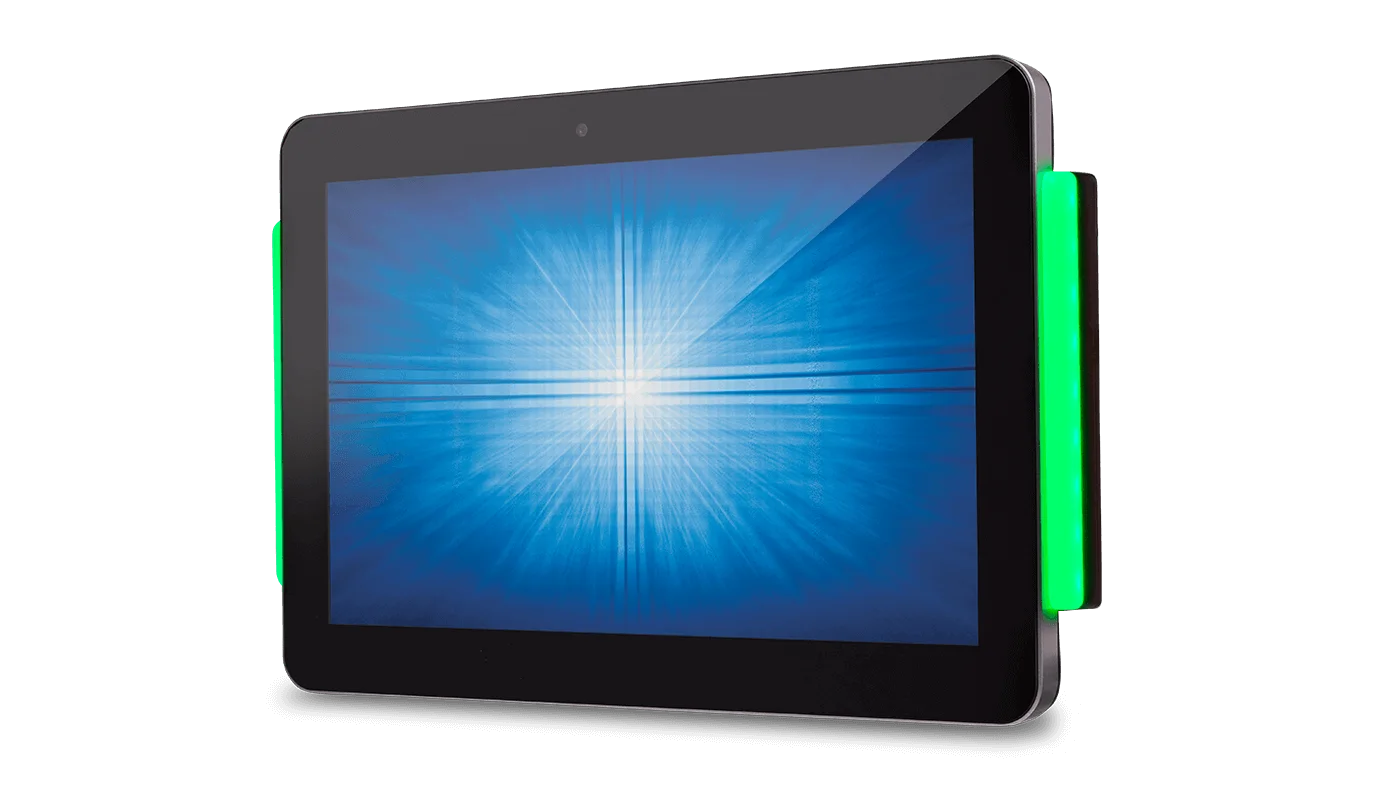

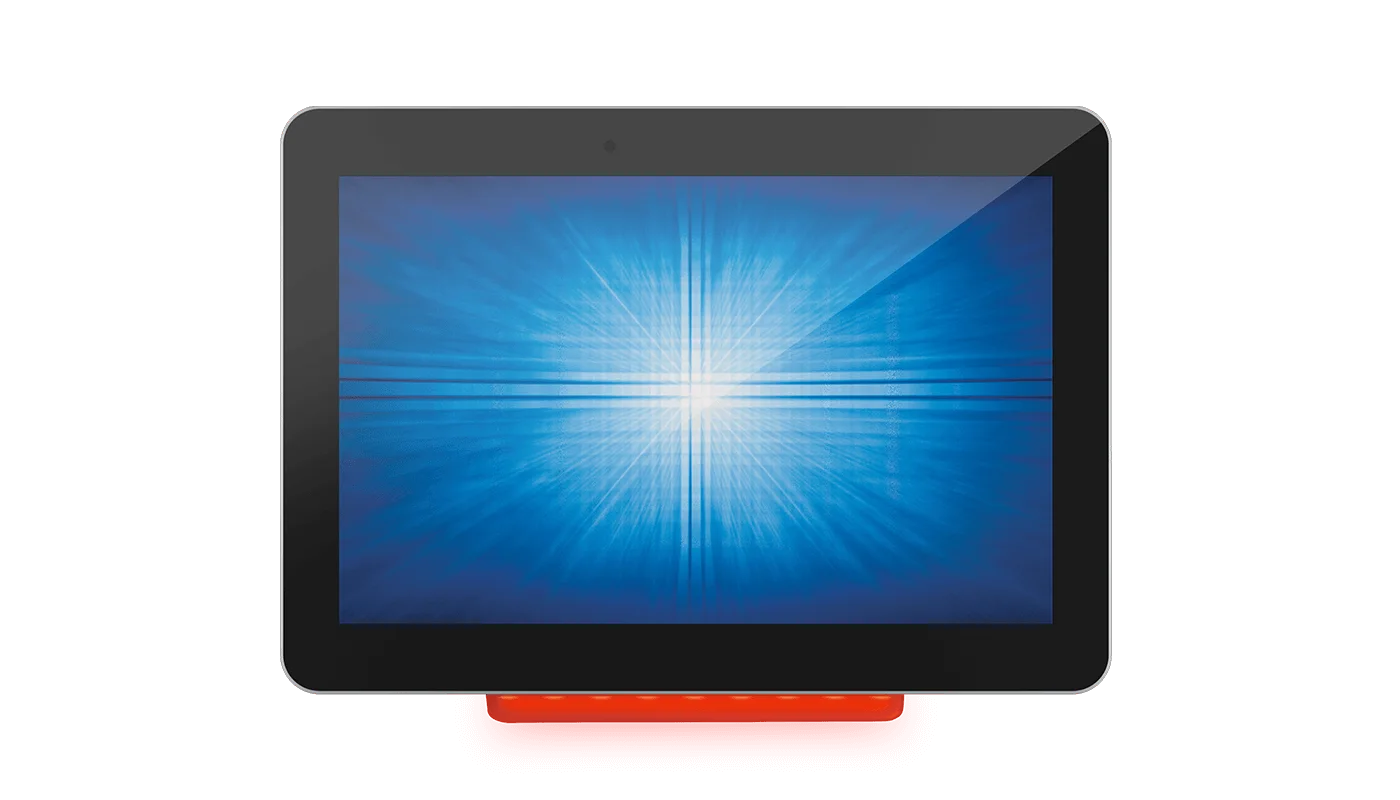

The Elo Status Lights provide a sleek, low profile solution for highlighting conference room availability and self-checkout (SCO) lane readiness. The Elo Edge Connect Status Lights connect easily via a Micro USB port or GPIO to the side of the I-Series in either portrait or landscape – creating an integrated design while delivering the flexibility you need. The lights appear white when not activated and can light up red or green depending on the need or use. Elo provides a set of APIs through the EloView™ SDK allowing you to control the status light via your own APIs.
Specifications
Technical
- Part Number(s)
- Micro USB Connectivity - E466847; GPIO Connectivity - E651272
- Enclosure Color
- Black
- Lens Material
- Polycarbonate
- Input Connector Type
- E466847 - Micro-USB; E651272 - GPIO
- LED
- Red Light (default) and Green Light
- Mounting Options
- Portrait or Landscape
- Input Voltage
- 5V
- Typical Current Draw
- 45mA
- Dimensions
- 4.72'' x 0.75'' x 1.02'' / 119.9 mm x 19.1 mm x 26.0 mm
- Shipping Box Dimensions
- 7.13'' x 4.57'' x 2.76'' / 181 mm x 116 mm x 70 mm
- Weight (Unpackaged)
- E466847 - 0.07 lbs / 0.03 kg; E651272 - 0.09 lbs / 0.04 kg
- Weight (Packaged)
- E466847 - 0.33 lbs / 0.15 kg; E651272 - 0.35 lbs / 0.16 kg
- Warranty
- 3-year
- What's in the Box
- E466847 - 1x Status Light with Micro-USB connector, QIG; E651272 - 1x Status Light with GPIO port, 200mm GPIO Cable, 525mm GPIO Cable, QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
