Elo Touch · Accessory

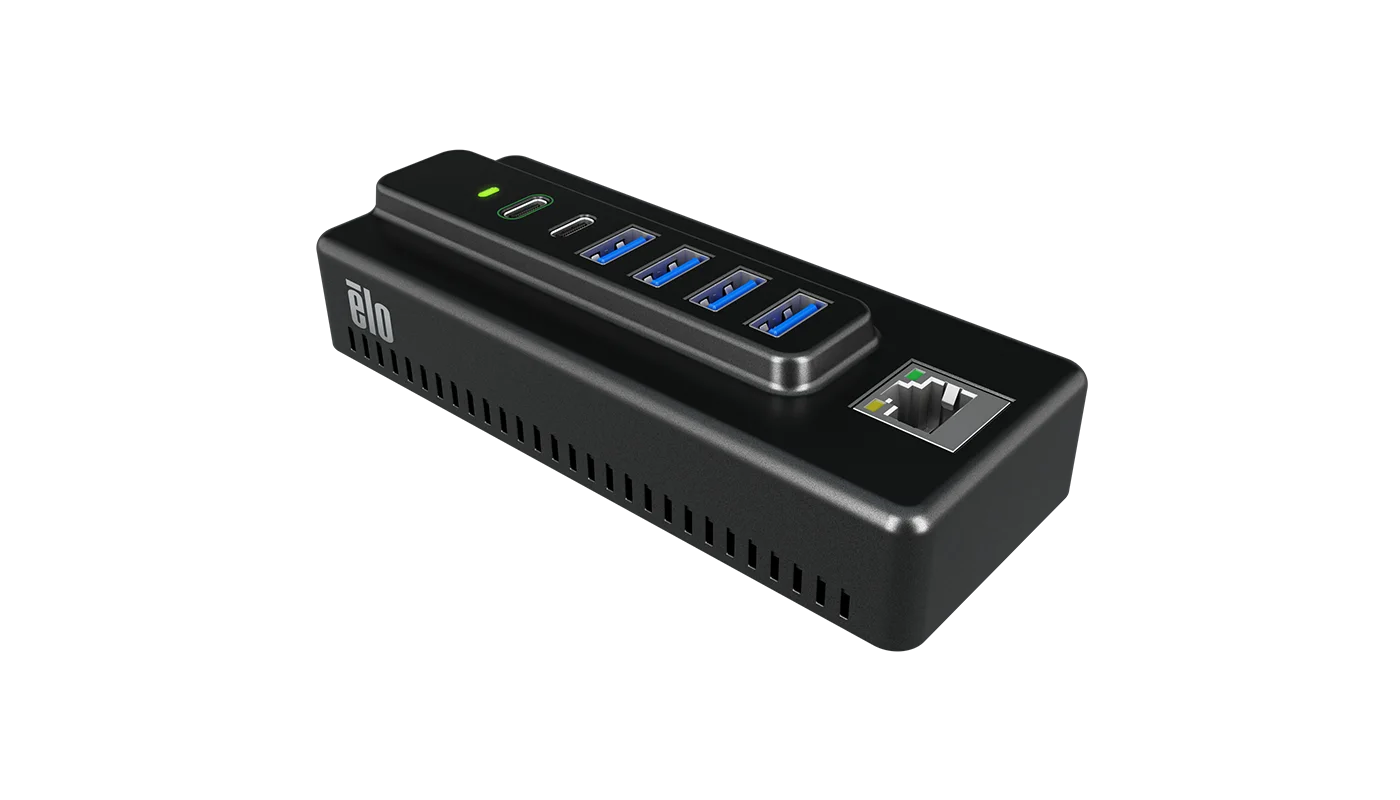

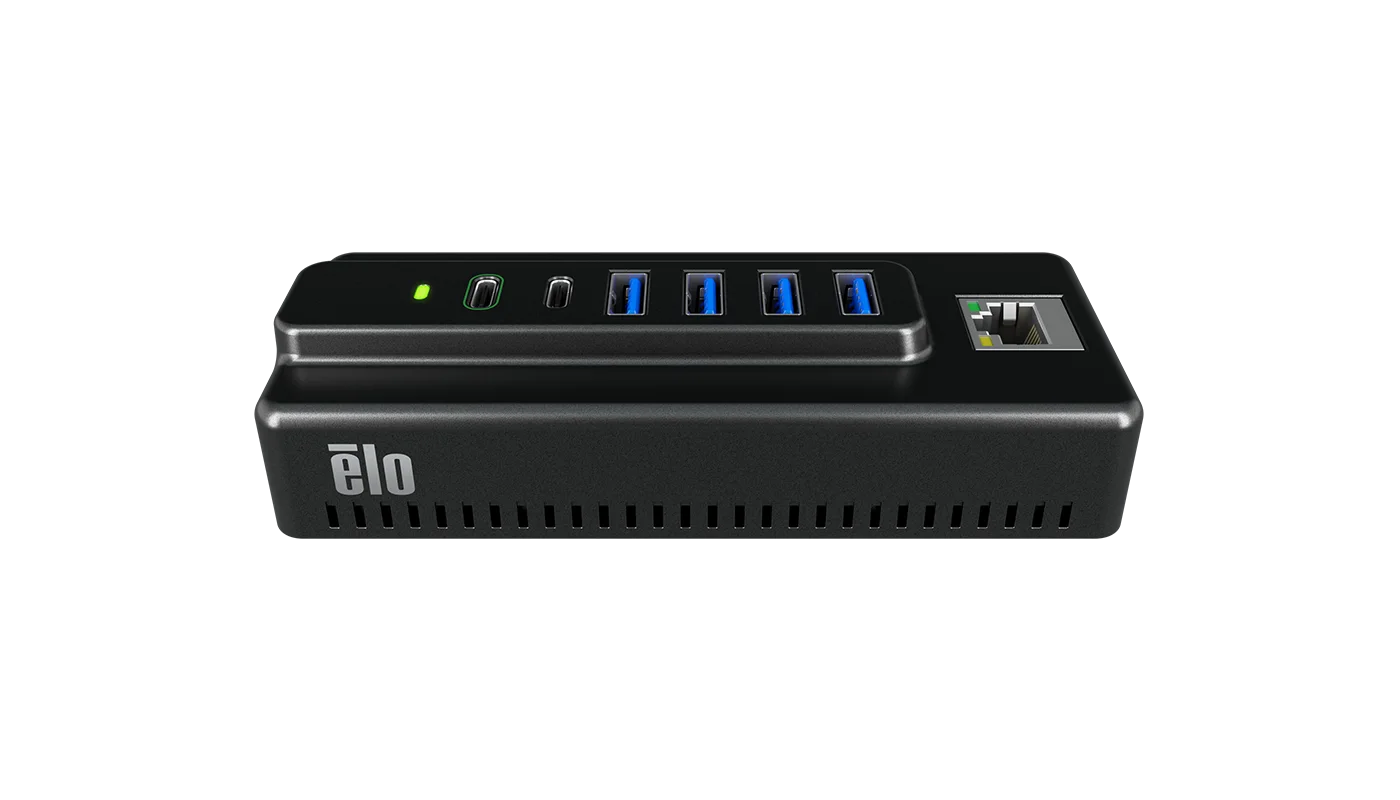

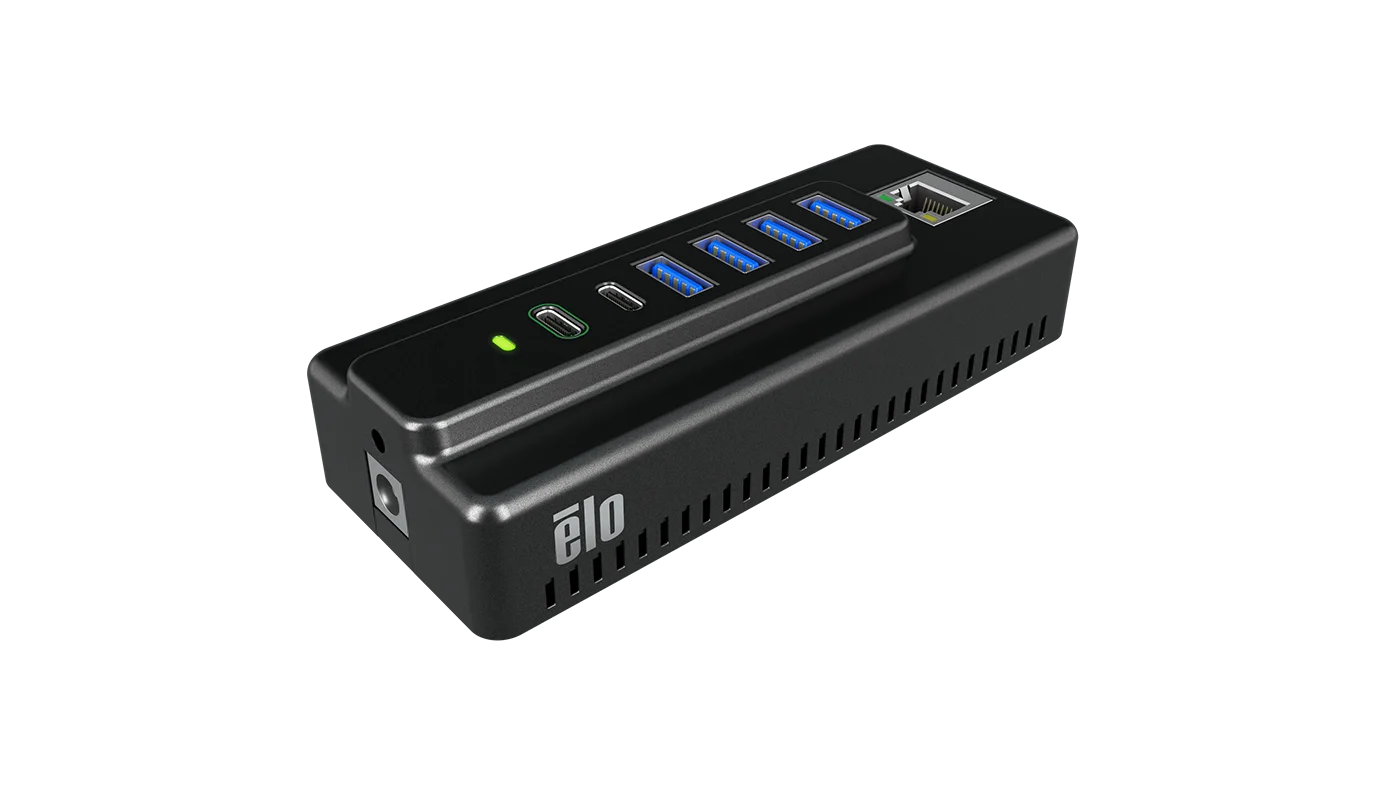

Elo Touch Small Hub
Specifications
Technical
- Part Number(s)
- E815044
- Enclosure Color
- Black
- Compatibility
- M51 Mobile Computer; Elo Pay 7”; Elo Pay M100
- I/O Ports
- 1x USB-C for the host device; 1x USB-C for the 2nd display; 4x USB-A; 1x RJ45
- Dimensions
- 5.04" x 1.15" x 2.0" / 128 mm x 29.15 mm x 51 mm
- Shipping Box Dimensions
- 7.95" x 3.35" x 10.51" / 202 mm x 85 mm x 267 mm
- Weight (Unpackaged)
- 0.33 lbs / 150 g
- Weight (Packaged)
- 3.26 lbs / 1480 g
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- 5% to 95% non-condensing
- MTBF
- 50,000 hours demonstrated
- Warranty
- 1-year
- What's in the Box
- Small Hub; 120W power adapter with NA/EU/UK power cables; 1.8m USBC cable; QIG; Countertop mount option set
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
