Elo Touch · Accessory
Elo Touch Slim Self-Service Stands

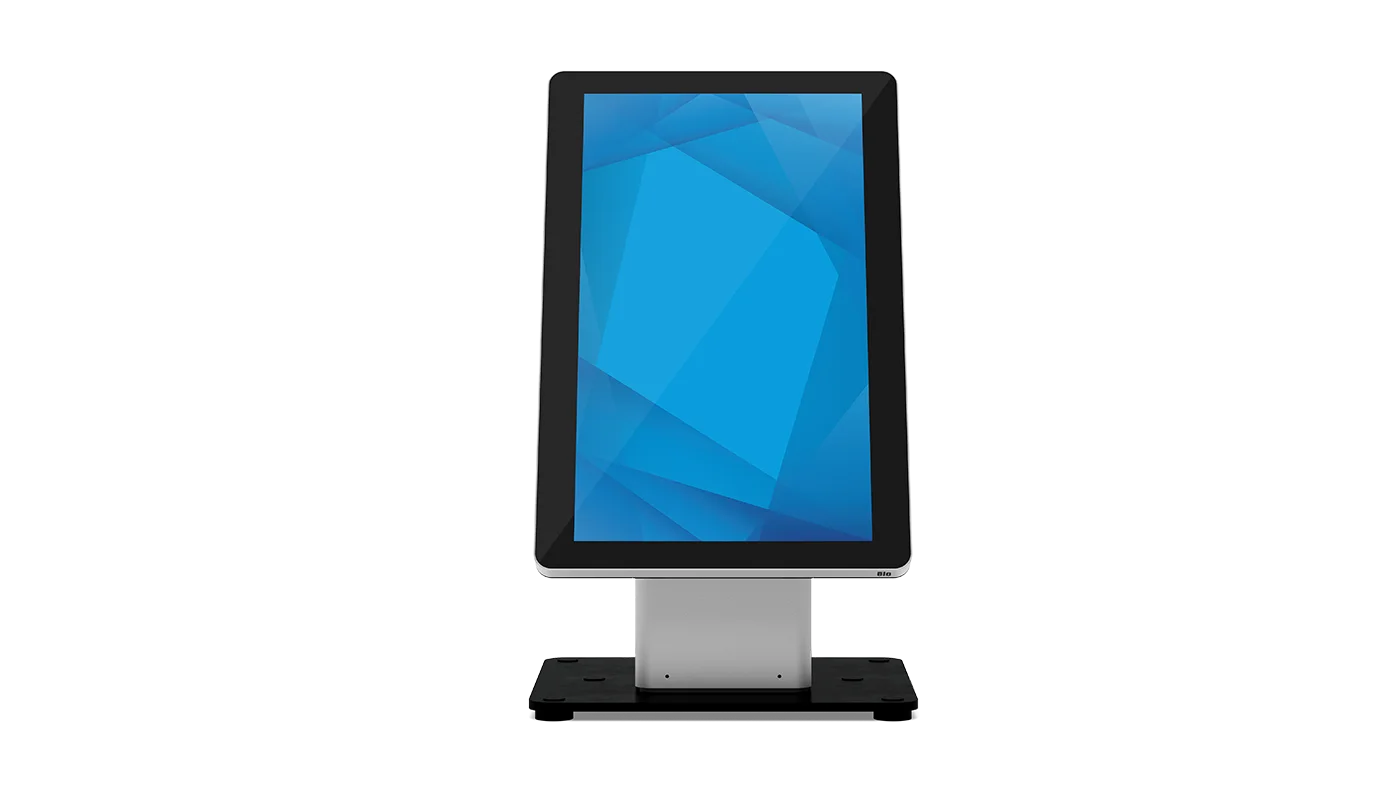

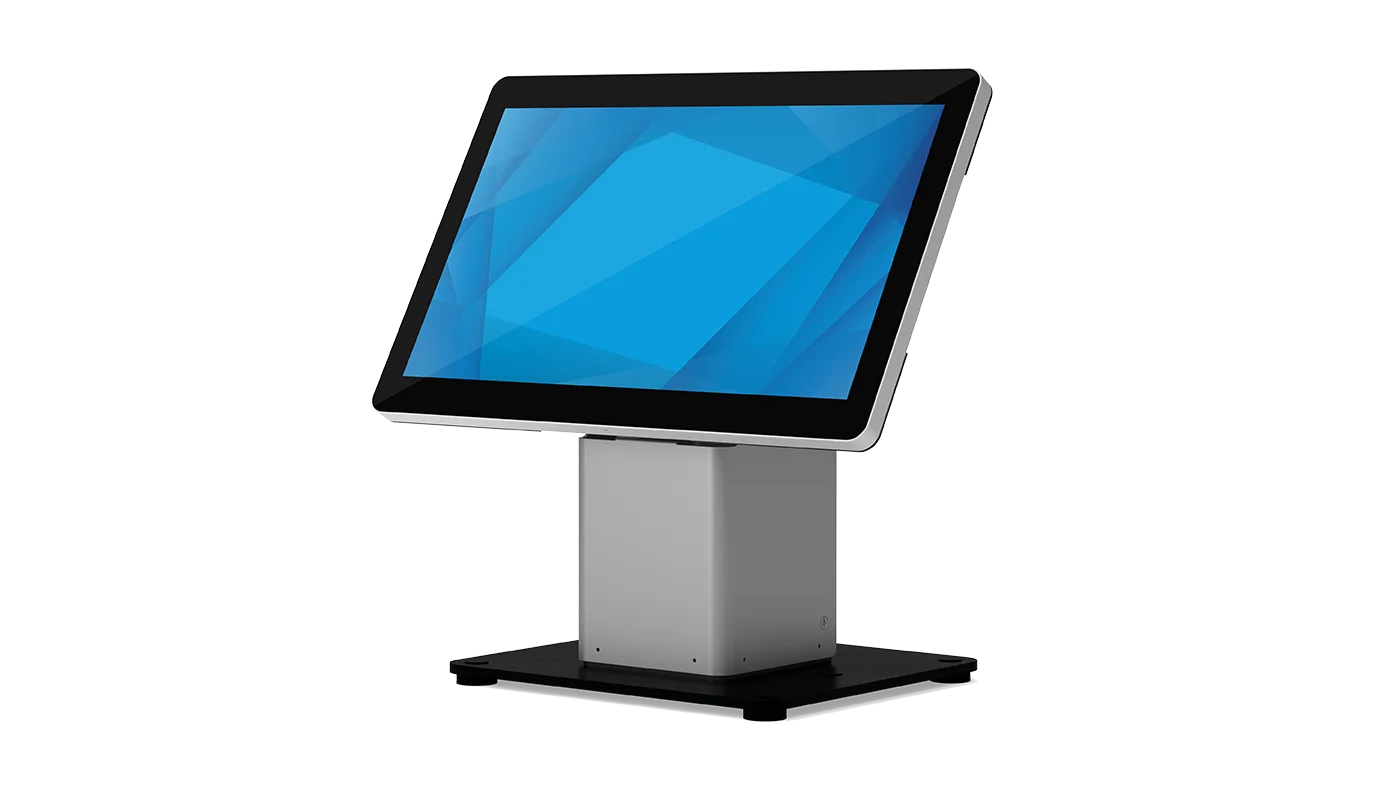

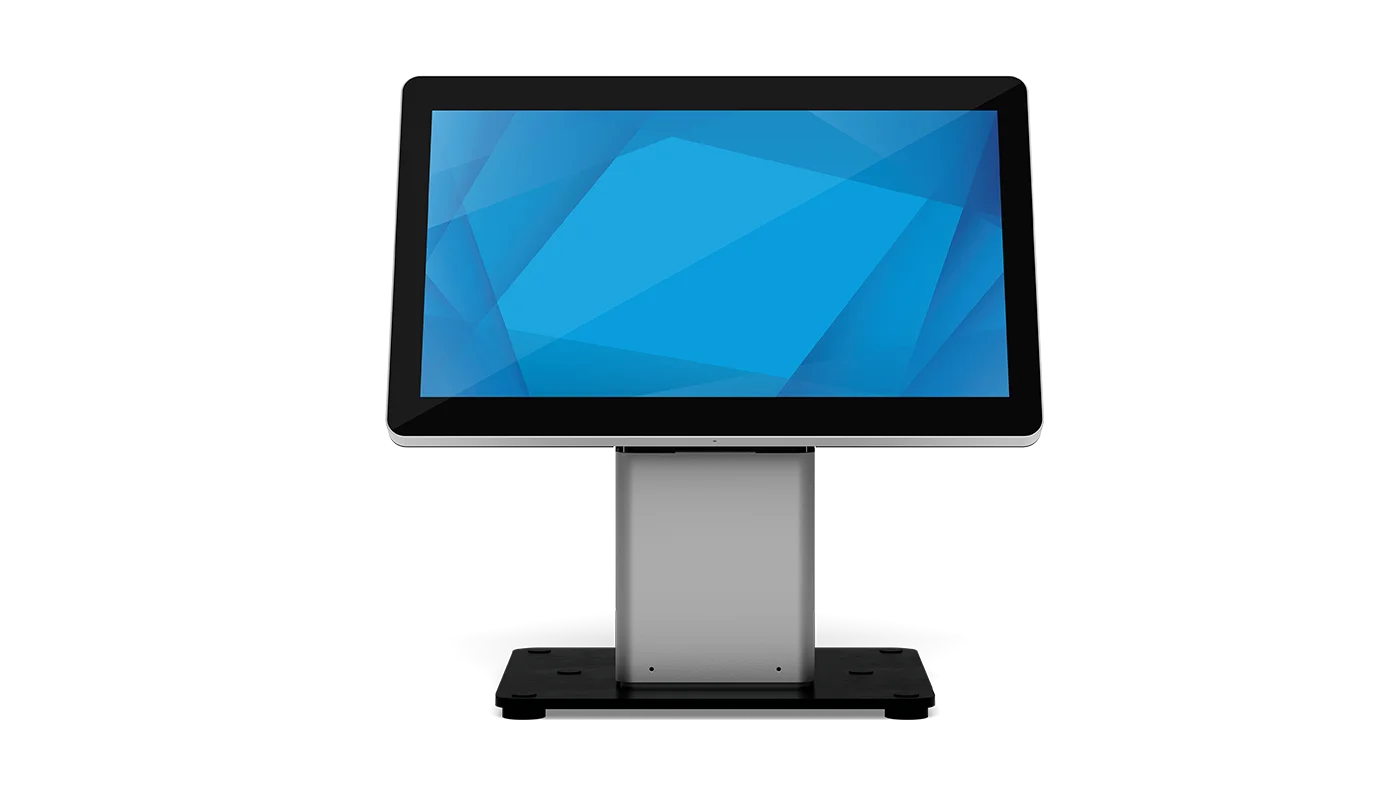

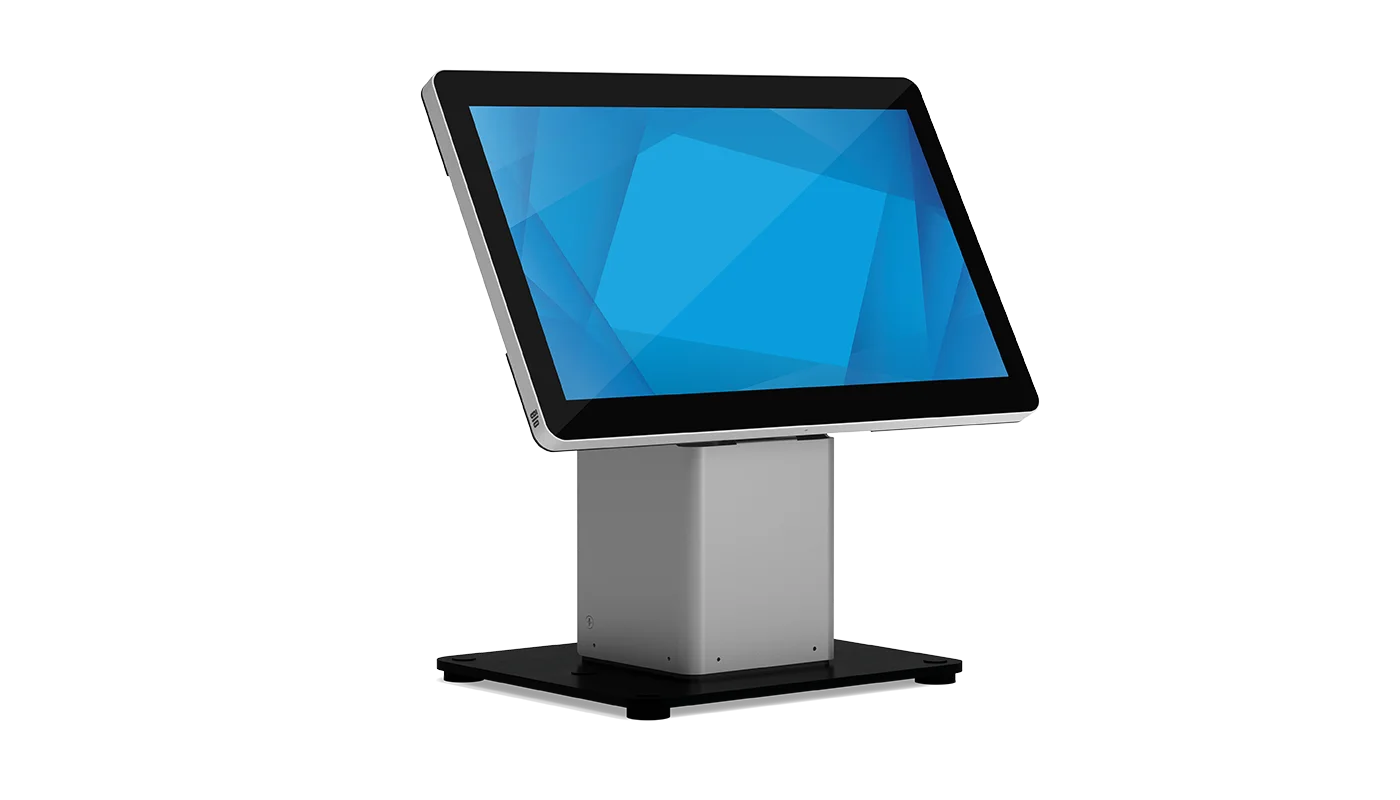

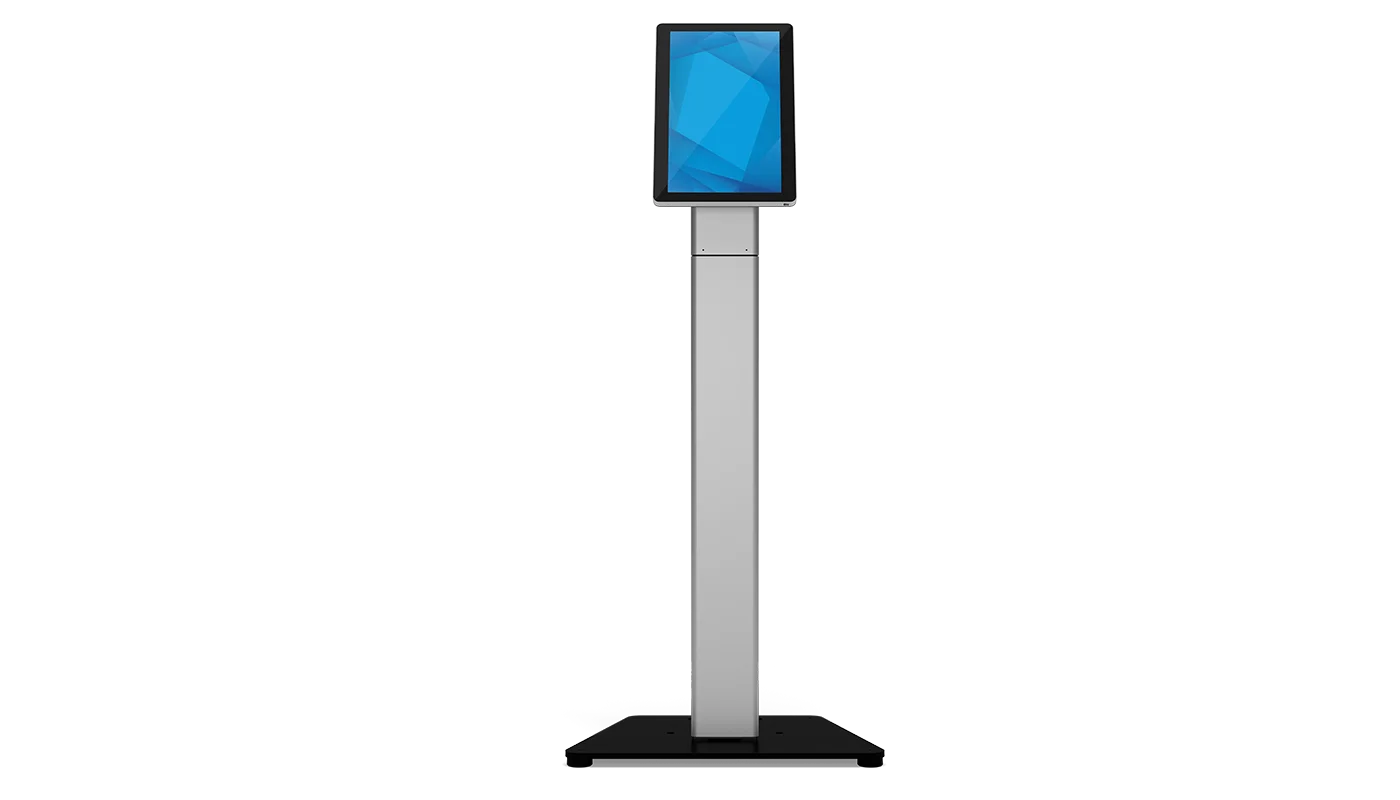

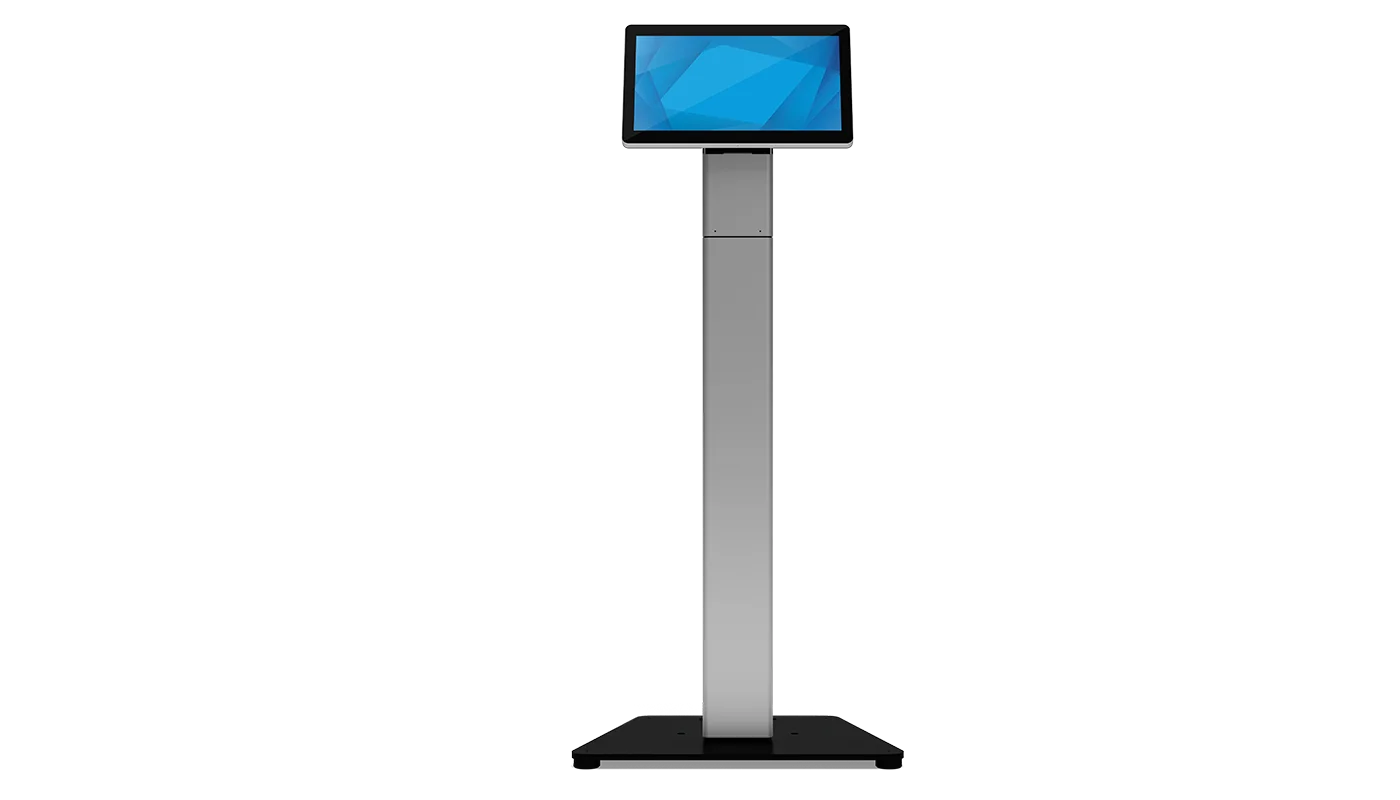

The Elo Slim Self-Service Stands offer a great addition to the current Wallaby Stand lineup by providing an 11% slimmer form factor for environments where space is limited. Compatible with Elo's 15" a
Overview
Streamline Installation of Interactive Experiences in High-Traffic Public Environments.
- The Elo Slim Self-Service Stands offer a great addition to the current Wallaby Stand lineup by providing an 11% slimmer form factor for environments where space is limited. Compatible with Elo's 15" and 22" I-Series AiO touchscreens and Elo Edge Connect™ accessories, the Slim Self-Service Stands offer the flexibility to configure the solution you want. The stands come in both countertop and floor models, giving you the flexibility to tailor your Elo solution to perfectly achieve your vision for your customer experience.
- The Slim Self-Service Stands create unique customer experiences including self-order, endless aisle, price verification, loyalty programs, brand experience and patient check-in.
- Increases average check size and earn higher margins with high-profit add-on items and order modifiers.
- Customers control their transactions, increasing order accuracy while providing a consistent experience every visit.
- Reallocate labor to optimize costs, increase operational efficiency and enhance the total customer experience.
Best for: Restaurant Kiosks
Specifications
Technical
- Part Number(s)
- Slim Self-Service Countertop Stand, Silver - E514693; Slim Self-Service Floor Stand, Silver - E514881 + E515260; Slim Self-Service Countertop Stand, Black - E686344; Slim Self-Service Floor Stand, Black - E686540 + E515260
- Enclosure Color
- Black/Silver
- Compatibility
- Display Compatibility; Portrait and Landscape:; 15” I-Series Android/Windows; 22” I-Series Android/Windows; 1502L Touchscreen Monitor*; 2002L Touchscreen Monitor*; 2202L Touchscreen Monitor*; 2402L Touchscreen Monitor*; 2702L Touchscreen Monitor* (portrait limited to Floor Stand only); *requires center plate (E698263) for portrait mounting; Optional Accessories; EMV Cradle for MagTek eDynamo – Elo P/N: E375343; EMV Cradle for Verifone E355 – Elo P/N: E201088; EMV Cradle for Ingenico ICMP – Elo P/N: E200465; EMV Cradle for Ingenico RP457C with BT and USB – Elo P/N: E710930; EMV Cradle for Ingenico RP457C with Audio Jack, BT and USB – Elo P/N: E586981; MSR – Elo P/N: E001002; Barcode Reader – Elo P/N: E093433; 2D Barcode Reader – Elo P/N: E926356; NFC – Elo P/N: E001004; Fingerprint Reader – Elo P/N: E001001; Webcam – Elo P/N: E275233; Status Light Kit for Standard Model I-Series 2.0 for Android – Elo P/N: E466847; Status Light Kit for Value Model I-Series 2.0 for Android – Elo P/N: E651272; Center Plate for 02-Series Monitors (required for portrait mounting) – Elo P/N: E698263
- Dimensions
- Countertop Stand: 10.23" x 8.86" x 12.08" / 260 mm x 225 mm x 306.86 mm; Floor Stand: 21.69" x 13.78" x 46.2" / 551 mm x 350 mm x 1173.48 mm; No display installed
- Shipping Box Dimensions
- Countertop Stand: 16.54" x 11.81" x 9.45" / 420 mm x 300 mm x 240 mm; Floor Top: 50" x 11.81" x 11.02" / 1270 mm x 300 mm x 280 mm; Floor Base: 28.35" x 18.5" x 4.72" / 720 mm x 470 mm x 120 mm; No display installed
- Weight (Unpackaged)
- Countertop Stand: 16.22 lbs / 8.02 kg; Floor Top: 33.51 lbs / 15.2 kg; Floor Base: 26.79 lbs / 12.15 kg
- Weight (Packaged)
- Countertop Stand: 17.68 lbs / 7.36 kg; Floor Top: 39.68 lbs / 18 kg; Floor Base: 30.31 lbs / 13.75 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 90%
- Availability
- US, Canada, EMEA, Japan, China
- Warranty
- 2-year
- ADA Compliant
- Yes - software and installation must follow ADA rules
- What's in the Box
- Countertop Stand:; QIG; Small black tie-wrap, x3; Hook and Loop Cable Tie with Buckle, x1; Screws for Countertop Stand (refer to MS; drawing for details); Floor Stand:; QIG; Small black tie-wrap, x3; Hook and Loop Cable Tie with Buckle, x1; Screws for Floor Stand (refer to MS drawing; for details)
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
