Elo Touch · Accessory

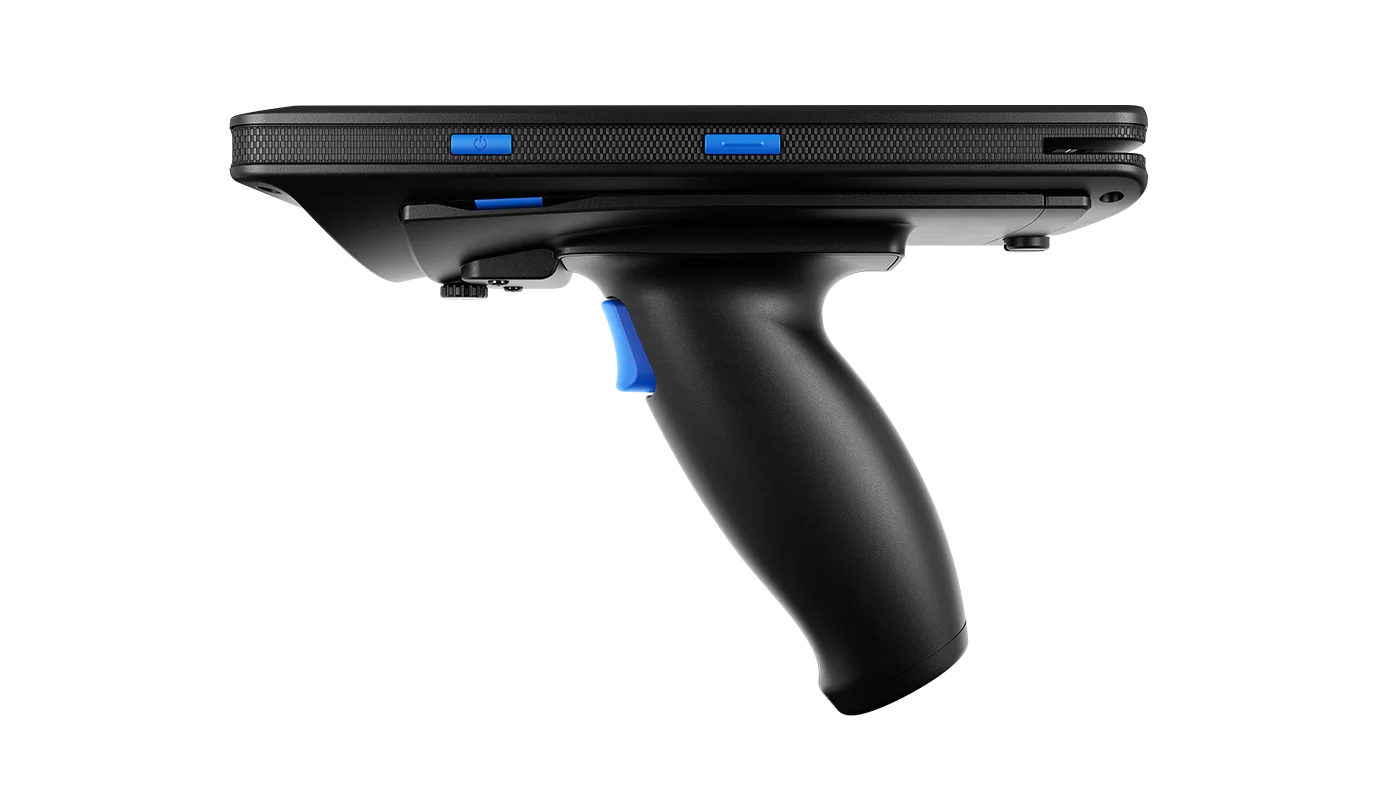

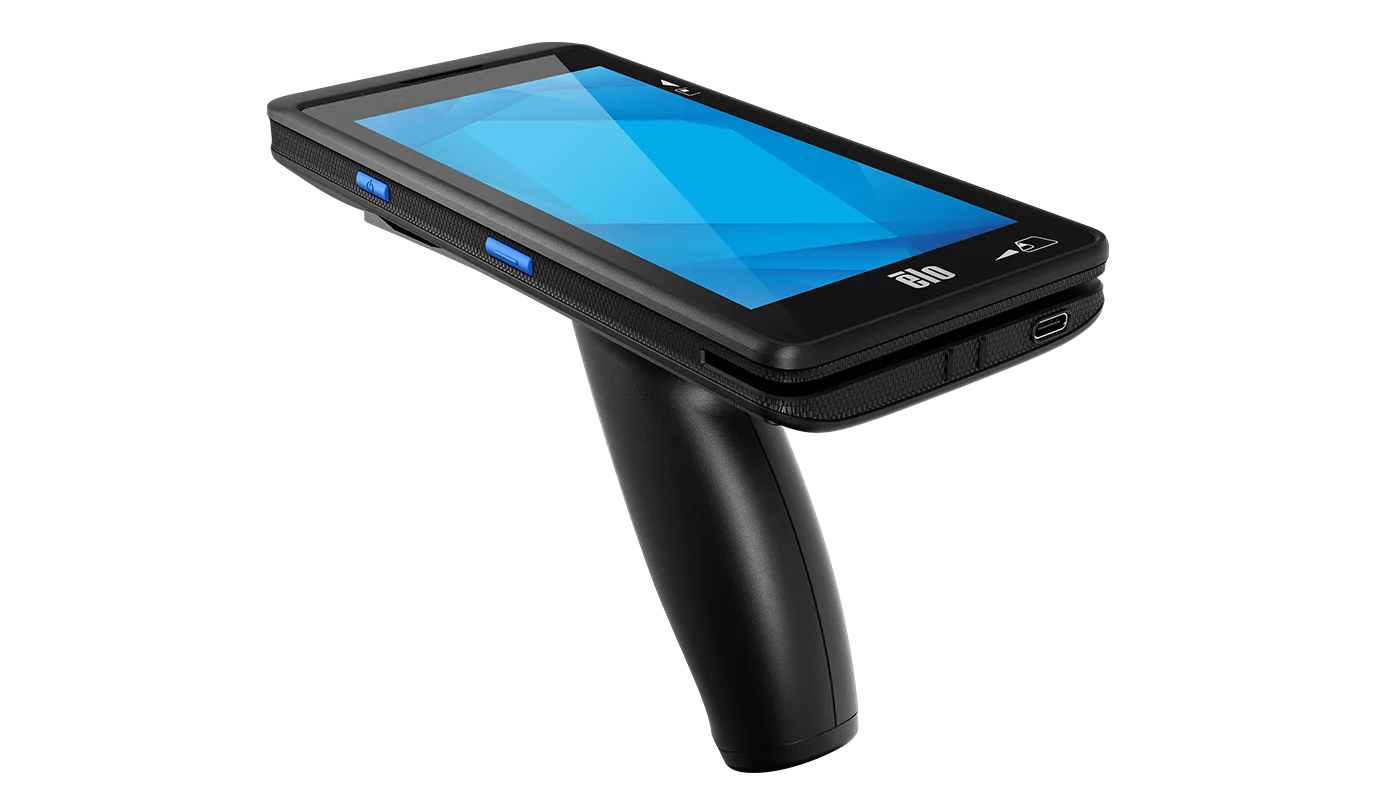

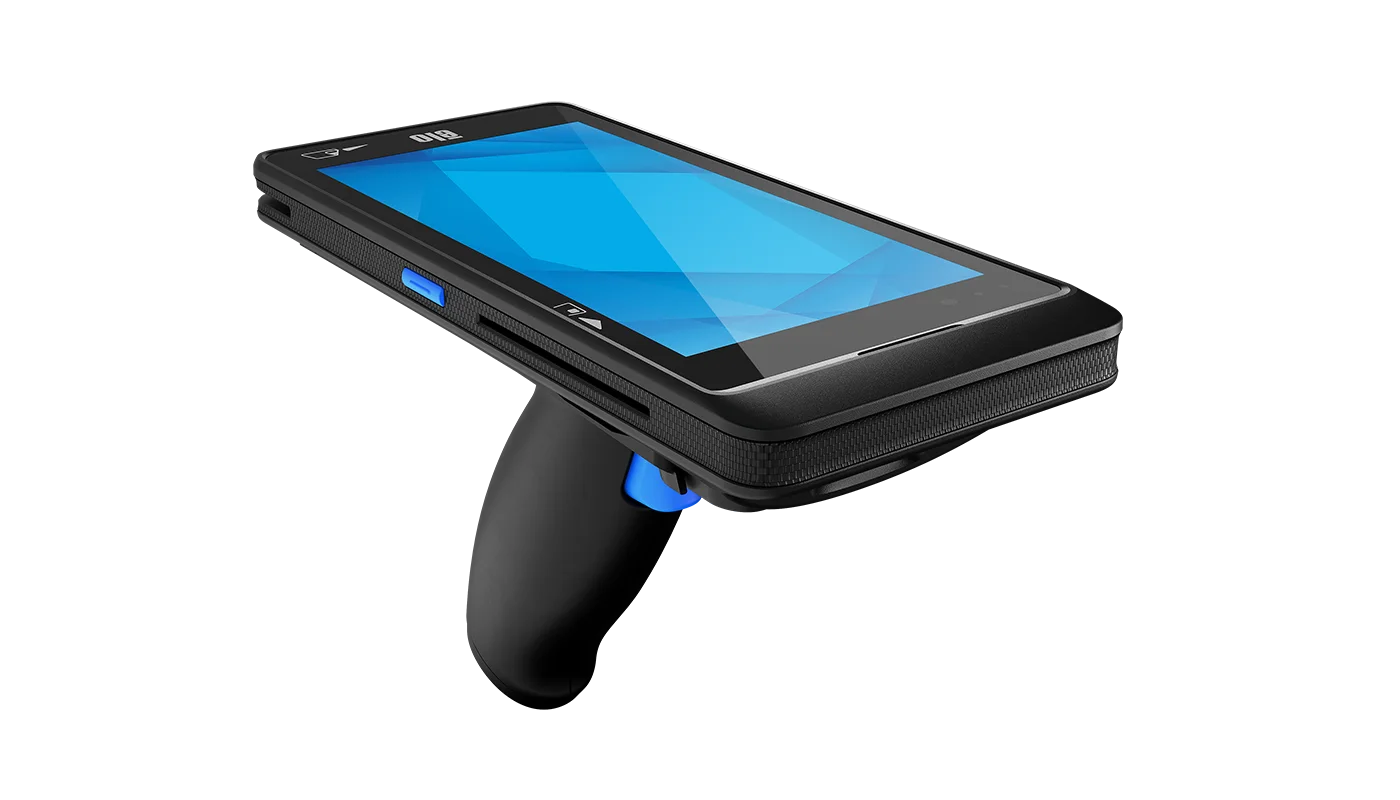

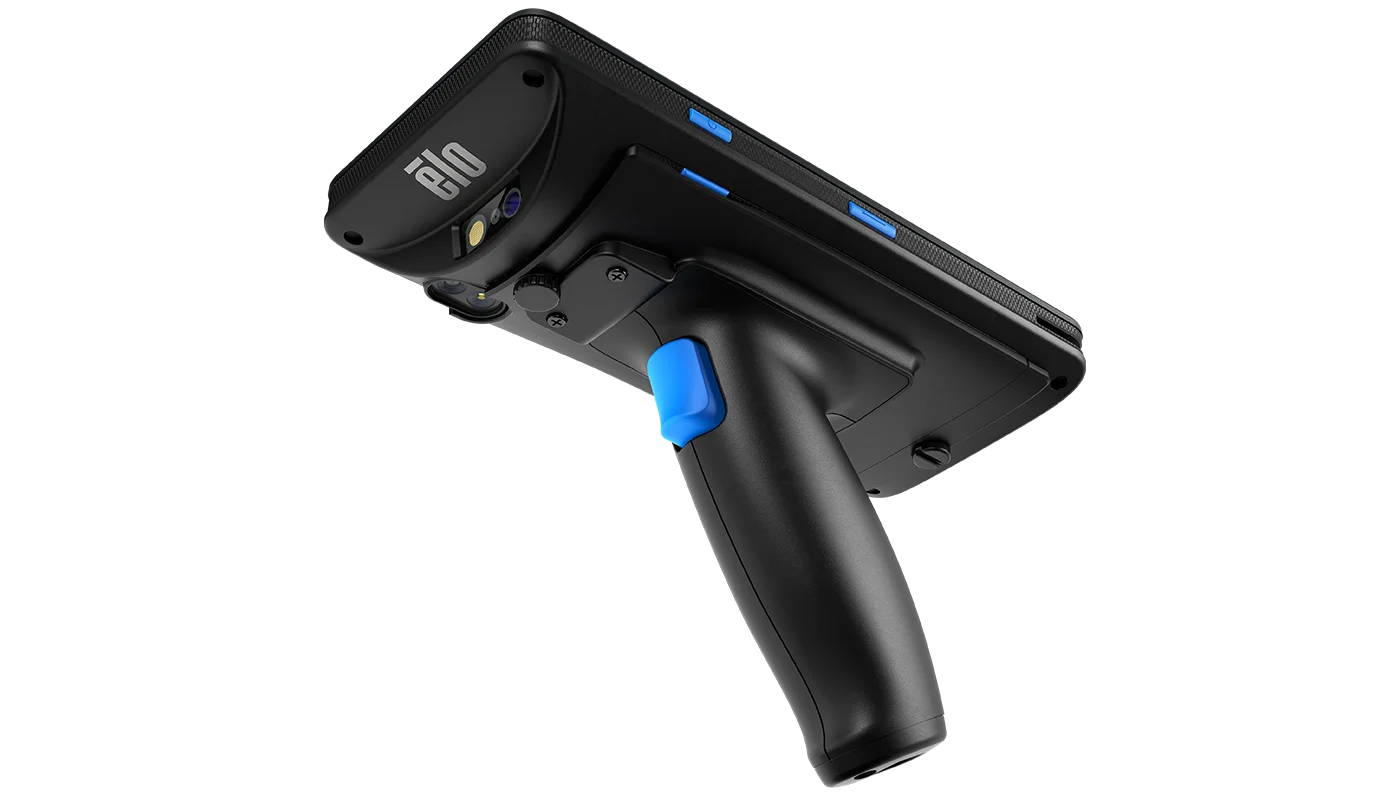

Elo Touch SC11 Scan Handle
Specifications
Technical
- Part Number(s)
- E696483
- Enclosure Color
- Black
- Compatibility
- Elo Pay M60 Mobile Computer
- Dimensions
- 5.67" x 2.87" x 4.53" / 144 mm x 73 mm x 115 mm
- Shipping Box Dimensions
- 1 device: 8.1" x 6.2" x 5.4" / 205 mm x 158 mm x 137 mm; 12 devices/carton: 17.1" x 17.2" x 13.8" / 434 mm x 436 mm x 350 mm
- Weight (Unpackaged)
- 0.22 lbs / 0.1 kg
- Weight (Packaged)
- 1 device: 0.66 lbs / 0.3 kg; 12 devices/carton: 10.7 lbs / 4.87 kg
- Operating Temperature
- 0°C to 50°C / 32°F to 122°F
- Storage Temperature
- -30°C to 60°C / -22°F to 140°F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 95%
- Regulatory approvals and declarations
- UL, FCC (US) - Class B; CB (International safety); CE (Europe) - Class B
- MTBF
- 50,000 hours demonstrated
- Warranty
- 1-year
- What's in the Box
- SC11 Scan Handle; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
