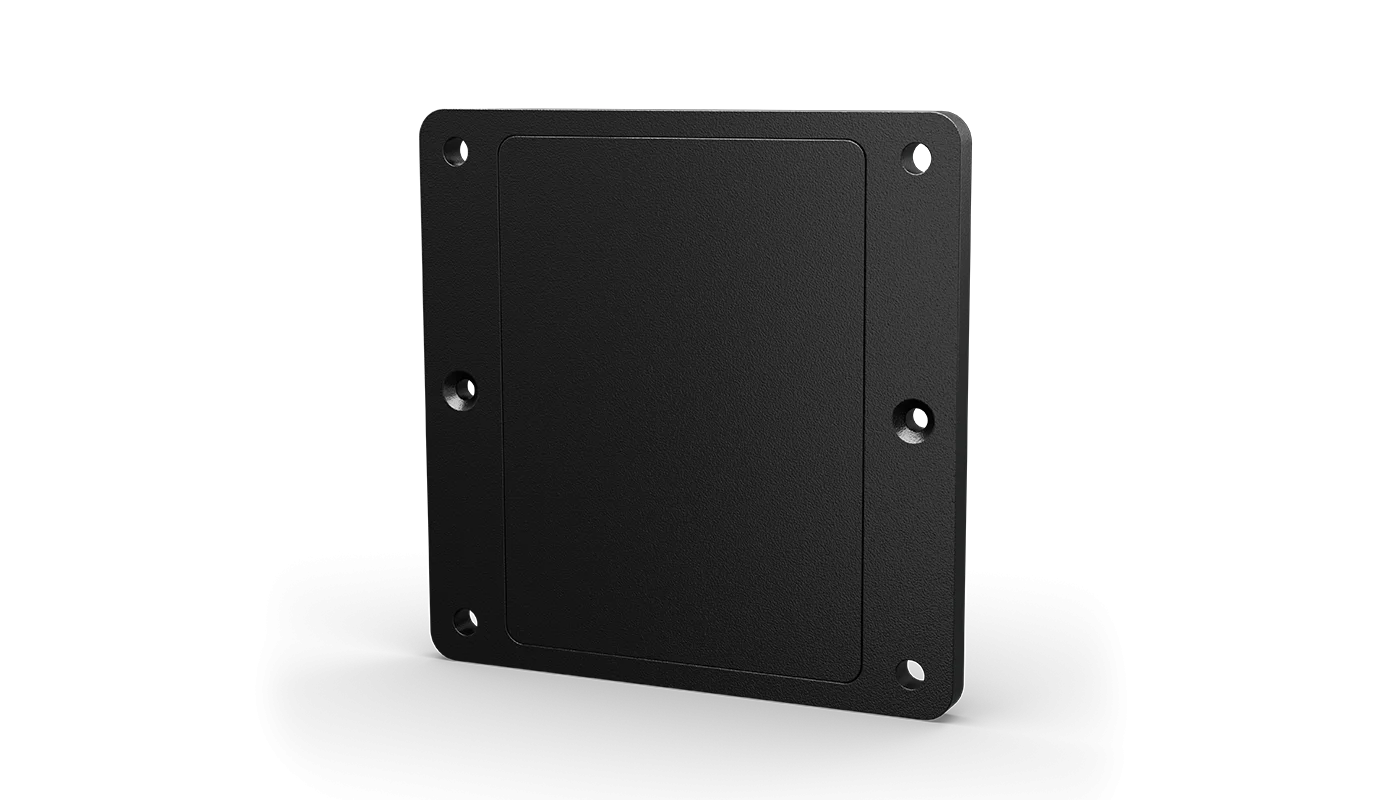

Elo Touch Power-over-Ethernet (POE) Module (For I-Series 4)
The Power-over-Ethernet (POE) module offers a convenient and cost effective way to deliver power to the Android I-Series. The module allows you to put a DC voltage onto specific pairs of the Ethernet
Overview

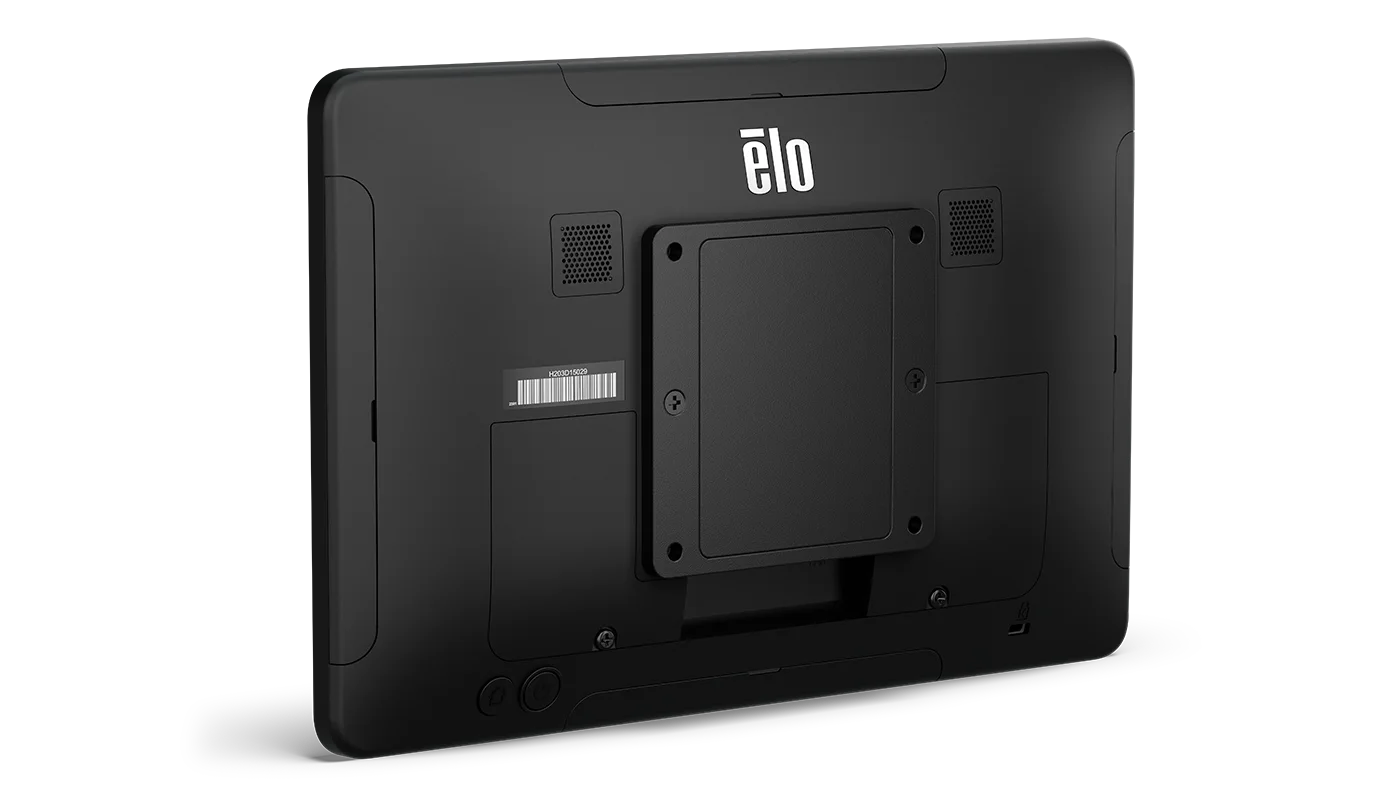

The Power-over-Ethernet (POE) module offers a convenient and cost effective way to deliver power to the Android I-Series. The module allows you to put a DC voltage onto specific pairs of the Ethernet cable so that devices connected to the network can use it as a power source. So instead of requiring a power drop which can be expensive, you can run a low voltage network to simplify installation of solutions for shelf signage and AV applications like conference room schedulers or AV control displays.
- 10 Value 15 Value 22 Value 10 Standard 15 Standard 22 Standard Bluetooth Disable Disable Disable Enable Enable Enable WiFi Enable Enable Enable Disable Disable Disable USB 3.0 Type A Disable Disable Disable Disable Disable Disable USB 3.0 Type C Disable Disable Disable Disable Disable Disable USB Peripheral Ports Disable Disable Disable Disable Disable Disable GPIO Disable Disable Disable Disable Disable Disable External display Disable Disable Disable Disable Disable Disable Audio Enable (47%) Enable (47%) Enable (47%) Enable (50%) Enable (50%) Enable (0%) Brightness level Enable (80%) Enable (80%) Enable (80%) Enable (80%) Enable (80%) Enable (70%)
Specifications
Technical
- Part Number(s)
- E413396
- Enclosure Color
- Black
- POE Standard Protocols
- IEEE802.3, 10BASE T/IEEE802.3ab, 1000BASE-T/IEEE802.3u,100BASE-TX IEEE802.3at, Power over Ethernet
- Transmission Media
- Cat5 or higher per TIA/EIA-568
- Efficiency
- Isolated power supply efficiency >85%
- Customizable Settings
- Panel Brightness; Wi-Fi/ Bluetooth; Audio; USB Port1 (type A); USB Port2 (type C); MicroUSB3; MicroUSB4; MicroUSB5; MicroUSB6; GPIO; External Display
- Dimensions
- Without 21.5" spacer: 3.46" x 3.46" x 0.74" / 88 mm x 88 mm x 18.8 mm; With 21.5" spacer: 4.53" x 4.53" x 0.74" / 115 mm x 115 mm x 18.8 mm
- Shipping Box Dimensions
- Single box: 6.57" x 6.45" x 2.52" / 167 mm x 164 mm x 64 mm
- Mounting Options
- VESA 75mm and 100mm
- Weight (Unpackaged)
- Without 21.5" spacer: 0.218 lbs / 0.099 kg; With 21.5" spacer: 0.262 lbs / 0.119 kg
- Weight (Packaged)
- 0.55 lbs / 0.25 kg
- Temperature
- Operating: 0°C to 40°C (32°F to 104°F); Storage: -20°C to 70°C (-4°F to 158°F); Protection: +/-15KV for ESD/Surge protection OTP, SCP, OCP protection; Dielectric strength: 1500Vrms
- Humidity
- Operating: 20% to 80%; Storage: 5% to 95%
- Warranty
- 2-year
- Regulatory approvals and declarations
- FCC (US); IC (Canada); CE (Europe); VCCI (Japan); RCM (Australia)
- What's in the Box
- POE Device; Quick Install Guide; 2x M3x8mm flat head screws (in a ziplock bag, labeled); 4x M4x12mm flat head screws (in a ziplock bag, labeled); 4x M4x12mm pan head screws (in a ziplock bag, labeled); 1x POE Spacer; Hot plug warning label
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
