Elo Touch · Accessory

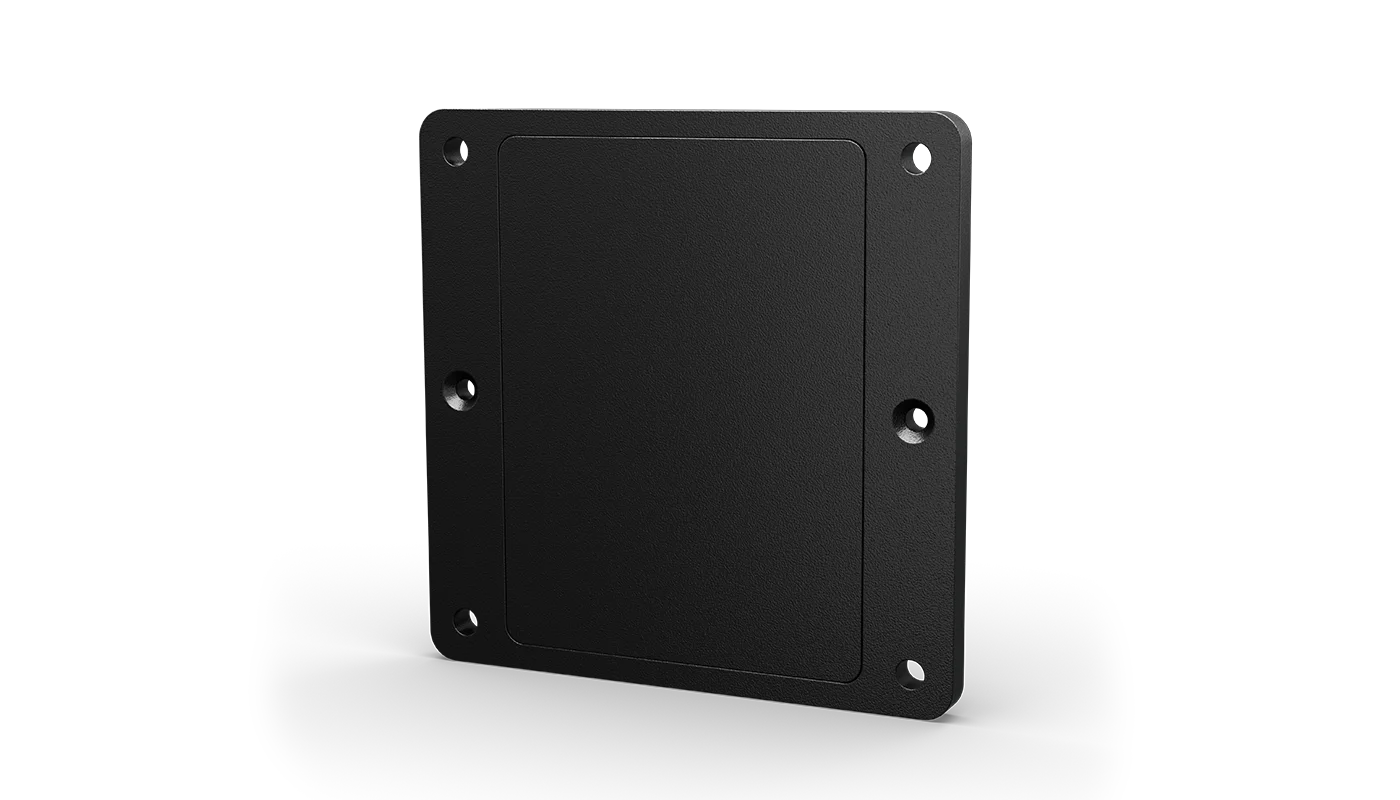

Elo Touch Power-over-Ethernet (POE) Module (For I-Series 4 & 5)
The Power-over-Ethernet (POE) module offers a convenient and cost effective way to deliver power to the Android I-Series. The module allows you to put a DC voltage onto specific pairs of the Ethernet
Overview
The Power-over-Ethernet (POE) module offers a convenient and cost effective way to deliver power to the Android I-Series. The module allows you to put a DC voltage onto specific pairs of the Ethernet cable so that devices connected to the network can use it as a power source. So instead of requiring a power drop which can be expensive, you can run a low voltage network to simplify installation of solutions for shelf signage and AV applications like conference room schedulers or AV control displays.
Best for: Conference Room Technology · Conference Room Accessories
Specifications
Technical
- Part Number(s)
- E669163
- Enclosure Color
- Black
- POE Standard Protocols
- IEEE802.3, 10BASE T/IEEE802.3ab, 1000BASE-T/IEEE802.3u,100BASE-TX IEEE802.3at, IEEE802.3bt, Power over Ethernet
- Transmission Media
- Cat5 or higher per TIA/EIA-568
- Efficiency
- IEEE802.3at: Isolated power supply efficiency >85%; IEEE802.3bt: Isolated power supply efficiency >79%
- Customizable Settings
- Panel Brightness; Wi-Fi/ Bluetooth; Audio; USB Port1 (type A); USB Port2 (type C); MicroUSB3; MicroUSB4; MicroUSB5; MicroUSB6; GPIO; External Display
- Dimensions
- Without 21.5" spacer: 3.46" x 3.46" x 0.74" / 88 mm x 88 mm x 18.8 mm; With 21.5" spacer: 4.53" x 4.53" x 0.74" / 115 mm x 115 mm x 18.8 mm
- Shipping Box Dimensions
- Single box: 7.09" x 5.71" x 1.65" / 180 mm x 145 mm x 42 mm; Carton: 14.76" x 12.2" x 16.73" / 375 mm x 310 mm x 425 mm
- Mounting Options
- VESA 75mm and 100mm
- Weight (Unpackaged)
- Without 21.5" spacer: 0.218 lbs / 0.099 kg; With 21.5" spacer: 0.262 lbs / 0.119 kg
- Weight (Packaged)
- Single box: 0.511 lbs / 0.232 kg; Carton: 18.396 lbs / 8.352 kg
- Temperature
- Operating: 0°C to 40°C (32°F to 104°F); Storage: -20°C to 70°C (-4°F to 158°F); Protection: OTP, OCP protection
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95%
- Warranty
- 2-year
- Regulatory approvals and declarations
- FCC (US); IC (Canada); CE (Europe); VCCI (Japan); RCM (Australia)
- What's in the Box
- POE Device; Quick Install Guide; 2x M3x8mm flat head screws (in a ziplock bag, labeled); 4x M4x12mm flat head screws (in a ziplock bag, labeled); 4x M4x12mm pan head screws (in a ziplock bag, labeled); 1x POE Spacer
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
