Elo Touch · Accessory
Elo Touch Pole Stands
Specifications
Technical
- Part Number(s)

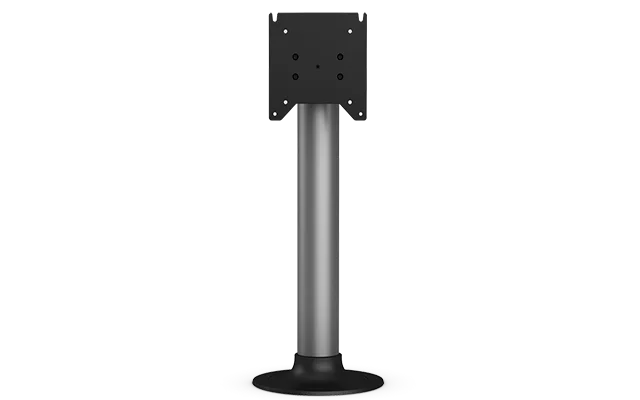

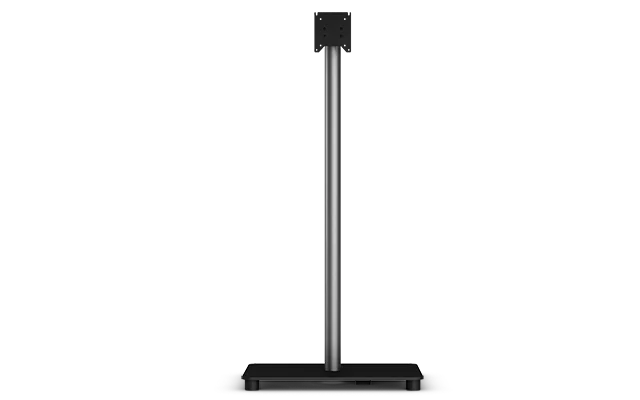

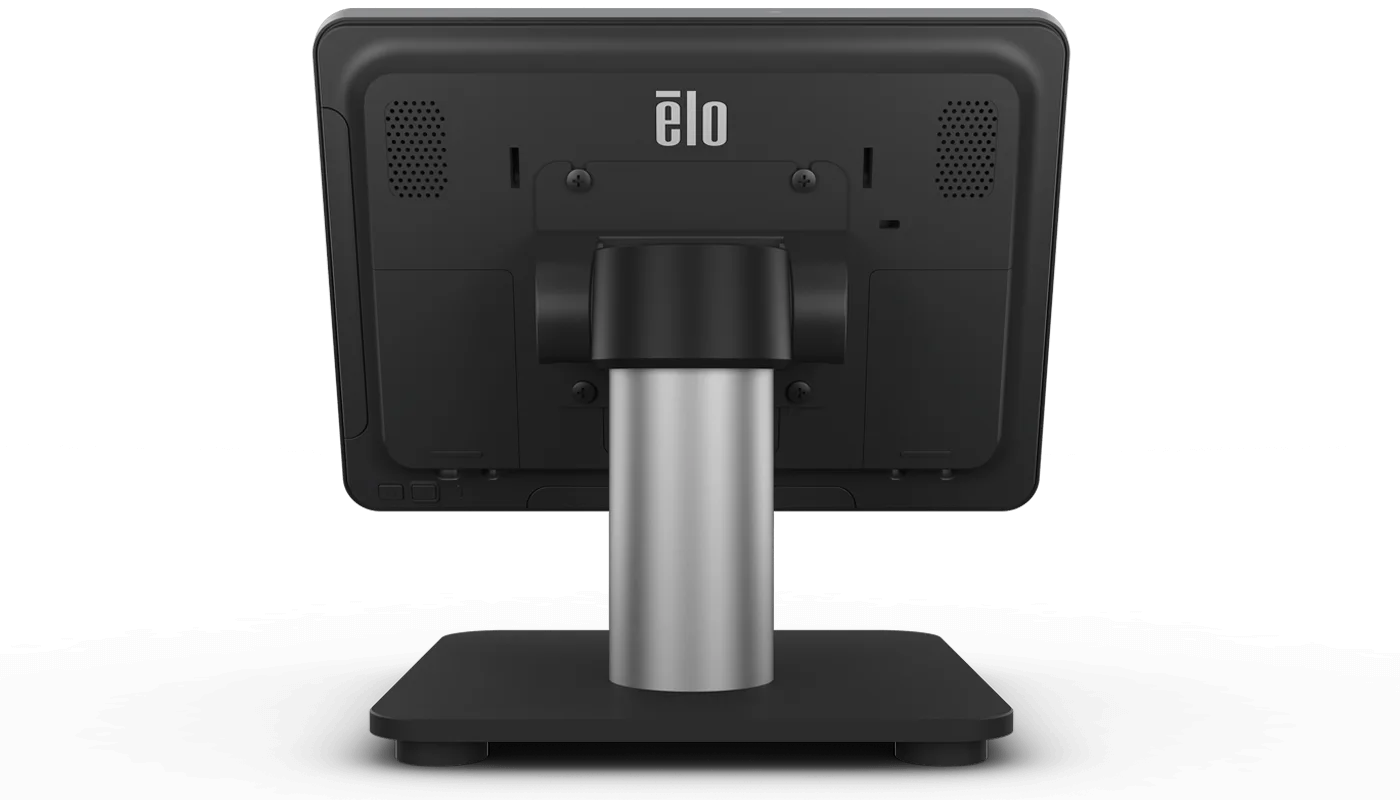

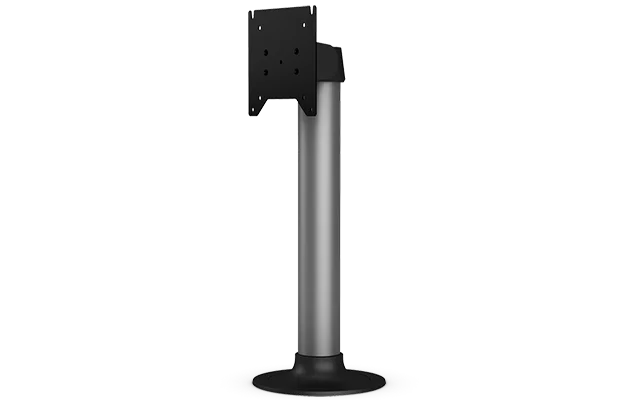

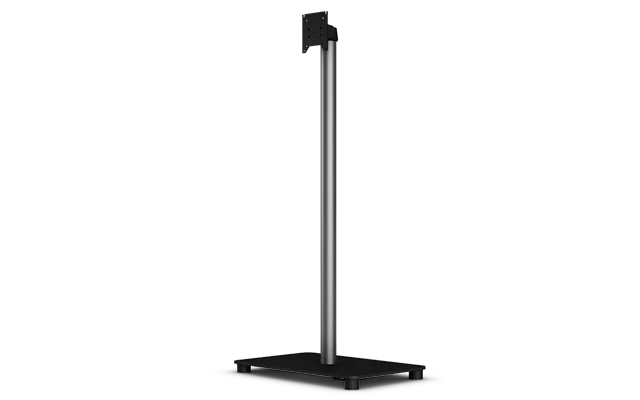

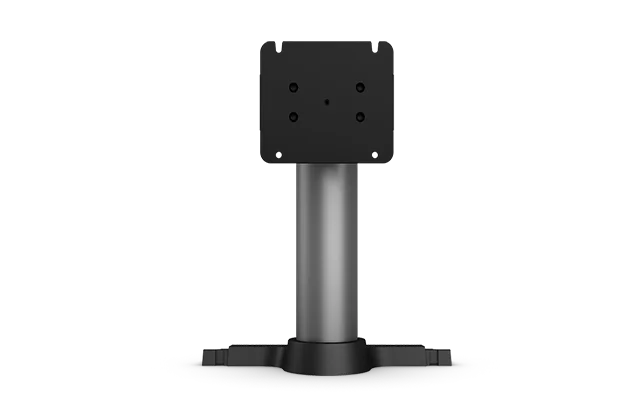

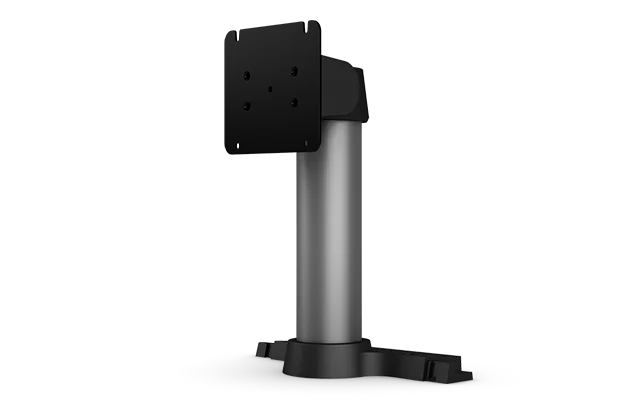

- 6” (152.4 mm) Pole Mount Bolt Down Kit - E047458; 12” (304.8 mm) Pole Mount Bolt Down Kit - E047663; 18” (457.2 mm) Pole Mount Bolt Down Kit - E047864; Pole Mount Floor Stand - E048069; Pole Mount Tabletop Stand - E160104; Rear-facing Display Pole Mount Kit - E038989
- Enclosure Color
- Black/Silver
- Compatibility
- E047458, E047663, E047864, E048069: 1002L, 1302L, 1502L, 1502LM, 1902L, 1903LM, 2002L, 2202L, 2203LM, Android I-Series 2/3/4 (10”, 15”, 22”), Windows I-Series 2.0 (15”)*; E160104: 0702L, 1002L, Android I-Series 2/3/4 (10”); E038989: 0702L, 1002L, 1302L, Android I-Series 2/3/4 (10”); *M4x17 mounting screws are recommended when pairing with Windows I-Series 2.0 (15”)
- Mounting Options
- E047458, E047663, E047864, E048069, E160104: 75 x 75mm and 100 x 100mm; E038989: 75 x 75mm
- Dimensions
- E047458: 6.4" x 6.4" x 9.8" / 163.5 mm x 163.5 mm x 249.5 mm; E047663: 6.4" x 6.4" x 15.7" / 163.5 mm x 163.5 mm x 399.5 mm; E047864: 6.4" x 6.4" x 21.0" / 163.5 mm x 163.5 mm x 534.5 mm; E048069: 21.7" x 13.8" x 42.0" / 550 mm x 350 mm x 1066.5 mm; E160104: 7.1" x 7.1" x 6.8" / 180 mm x 180 mm x 172.5 mm; E038989: 8.3" x 4.8" x 10.0" / 210 mm x 122 mm x 253.4 mm
- Shipping Box Dimensions
- E047458: 13.7" x 10.2" x 9.6" / 348 mm x 258 mm x 245 mm; E047663: 19.6" x 10.2" x 9.6" / 498 mm x 258 mm x 245 mm; E047864: 24.6" x 10.4" x 9.1" / 625 mm x 265 mm x 230 mm; E048069: 44.9" x 18.5" x 10.0" / 1140 mm x 470 mm x 255 mm; E160104: 11.22" x 11.02" x 9.25" / 285 mm x 280 mm x 235 mm; E038989: 11.8” x 9.8" x 7.9" / 300 mm x 250 mm x 200 mm
- Weight (Unpackaged)
- E047458: 2.5 lbs / 1.14 kg; E047663: 3.1 lbs / 1.4 kg; E047864: 3.5 lbs / 1.6 kg; E048069: 33.1 lbs / 15 kg; E160104: 5.29 lbs / 2.4 kg; E038989: 2.4 lbs / 1.1 kg
- Weight (Packaged)
- E047458: 4.1 lbs / 1.87 kg; E047663: 5.1 lbs / 2.3 kg; E047864: 5.8 lbs / 2.64 kg; E048069: 38.4 lbs / 17.4 kg; E160104: 6.2 lbs / 2.81 kg; E038989: 3.3 lbs / 1.49 kg
- Warranty
- 2-year
- What's in the Box
- E047458, E047663, E047864: Stand, 100mm VESA plate, QIG, 4x M4x6 pan-head screws, 4x M4x8 pan-head screws, 4x M4x12 pan-head screws; E048069: Stand, 75mm VESA plate, Installation Flyer, 4x M4x6 pan-head screws, 4x M4x8 pan-head screws, 4x M4x12 pan-head screws; E160104: Stand, 100mm VESA plate, 4x M4x 6 Pan-Head screws, 4x M4x8 pan-head screws; E038989: Stand, VGA cable, USB cable, USB Y cable, QIG, 4x M4x6 pan-head screws, 4x M4x8 pan-head screws
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
