End of lifeElo Touch · Accessory

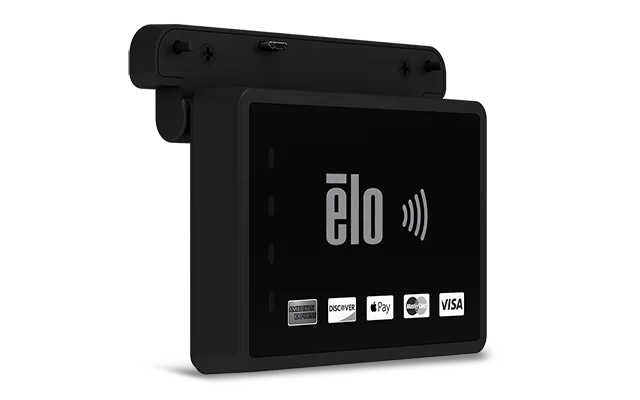

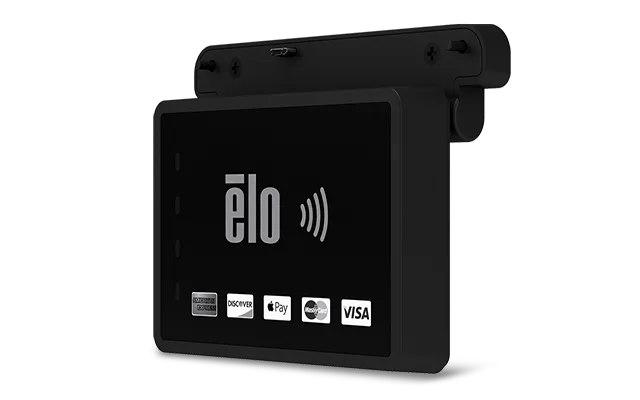

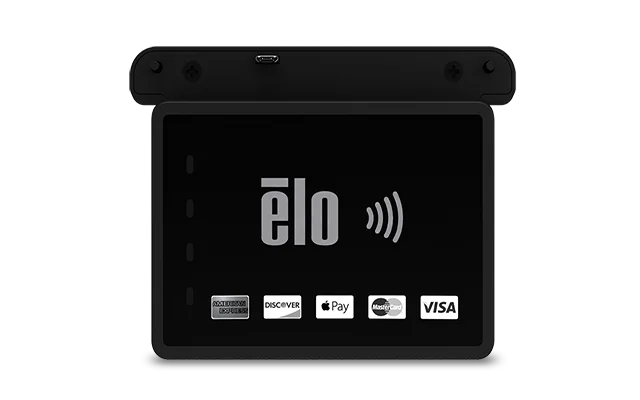

Elo Touch NFC/RFID (previous model)
The Near Field Communication (NFC) adapter for mobile payments offers increased compatibility with the latest point of sale applications. The accessory is easily installed by the user, providing an el
Overview
The Near Field Communication (NFC) adapter for mobile payments offers increased compatibility with the latest point of sale applications. The accessory is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Specifications
Technical
- Part Number(s)
- E001004
- Enclosure Color
- Black
- Power Supply
- 5VDC ± 5%
- Interface
- USB
- Interface Modes
- HID Keyboard and USB Virtual COM
- Frequency Range
- 13.56 MHz
- Communication Signal
- Standard RS232 signal level; Compatible with USB 2.0 specification; TTL 5V signal level (optional); Comm Signal Logic 1 = ‐3 volts to ‐15 volts or TTL level 5 volts; (RS232) Logic 0 = +3 volts to +15 volts or TTL level 0 volt
- Communication Range
- 40mm
- MIFARE Applications
- Read/Write of MIFARE Plus/Classic/Ultralight/DESFire cards; Support MIFARE higher baud rate up to 424KHz
- Operating modes
- Read/Write; Peer-to-Peer; Card emulation
- Supported Operating Systems
- Windows POSReady 7 32-bit; Windows Embedded Pro 7 32-bit; Windows Embedded Pro 7 64-bit; Windows Industry Embedded Pro 8.1 32-bit; Windows Industry Embedded Pro 8.1 64-bit; Android 4.4.2
- Payment Applications
- American Express ExpressPay; Discover ZIP; MasterCard PayPass/MCHIP; Visa MSD/qVSDC; Google wallet
- Weight (Unpackaged)
- 0.35 lbs/ 0.16 Kg
- Weight (Packaged)
- 0.60 lbs/ 0.27 Kg
- Warranty
- 2-year
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Discontinued
- Replacement
- new RFID
- Status basis
- elotouch.com lists it as replaced by new RFID
