Elo Touch · Accessory

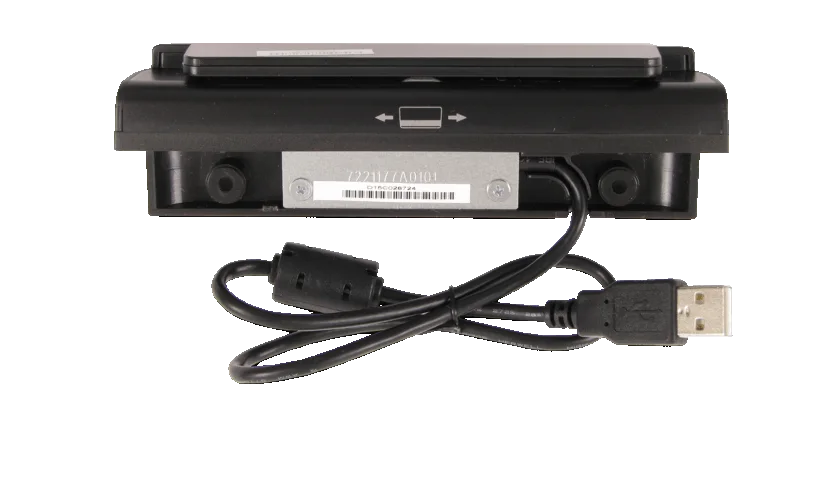

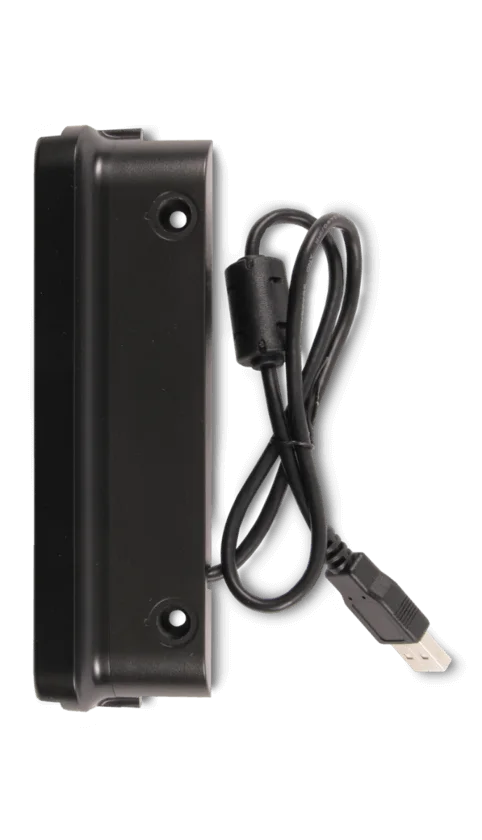

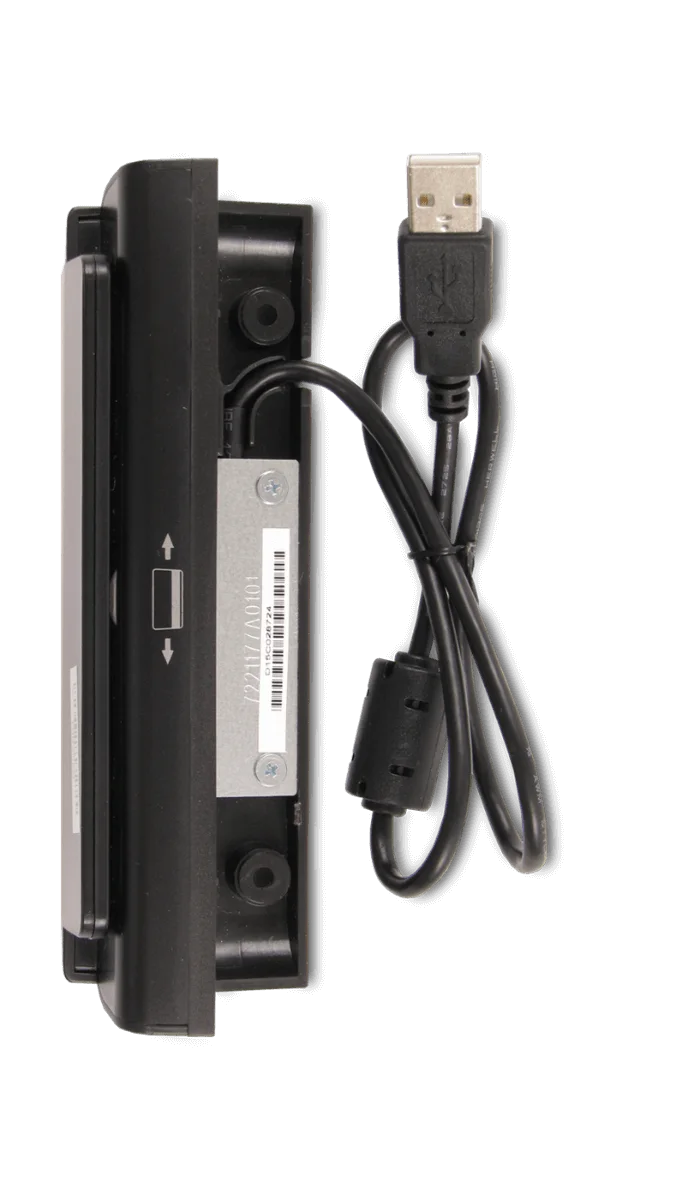

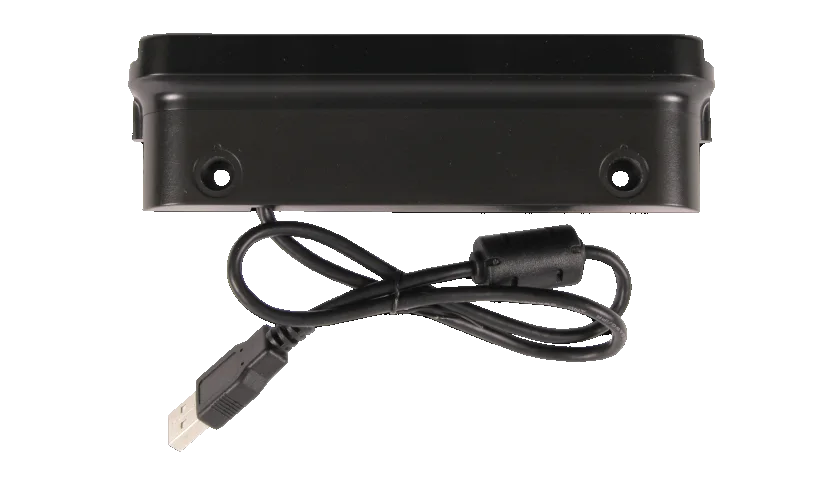

Elo Touch Magnetic Stripe Reader (E-Series)
Overview
The Elo magnetic stripe reader (MSR) for the E-Series Touchscreen Computer provides ease of collecting card data. The MSR is easy to mounted and powered through the USB port. With a swipe of the card, you can capture up to three tracks of data quickly and accurately.
Specifications
Technical
- Part Number
- E122229
- Enclosure Color
- Black
- Swipe Speed
- 4~60 ips (10.1~152.4 cm/sec)
- Swipe Direction
- Bi-direction
- Card Width
- 0.025 ~0.035 inches
- Number of Tracks
- 3 tracks
- Encryption
- Non-Encrypting Level 2
- Power Supply
- 5.0VDC +/- 0.25V
- Interface
- USB
- Supported Emulation Modes
- HID and Keyboard
- Supported Formats
- ISO 7811; ISO 7810; AAMVA; CA DMV; ANSI
- Supported Operating Systems
- Ubuntu Linux LTS; Windows POSReady 7 32-bit; Windows Embedded Pro 7 32-bit; Windows Embedded Pro 7 64-bit; Windows Industry Embedded Pro 8.1 32-bit; Windows Industry Embedded Pro 8.1 64-bit; Android 4.4.2
- Warranty
- 2-year
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
