Elo Touch · Accessory

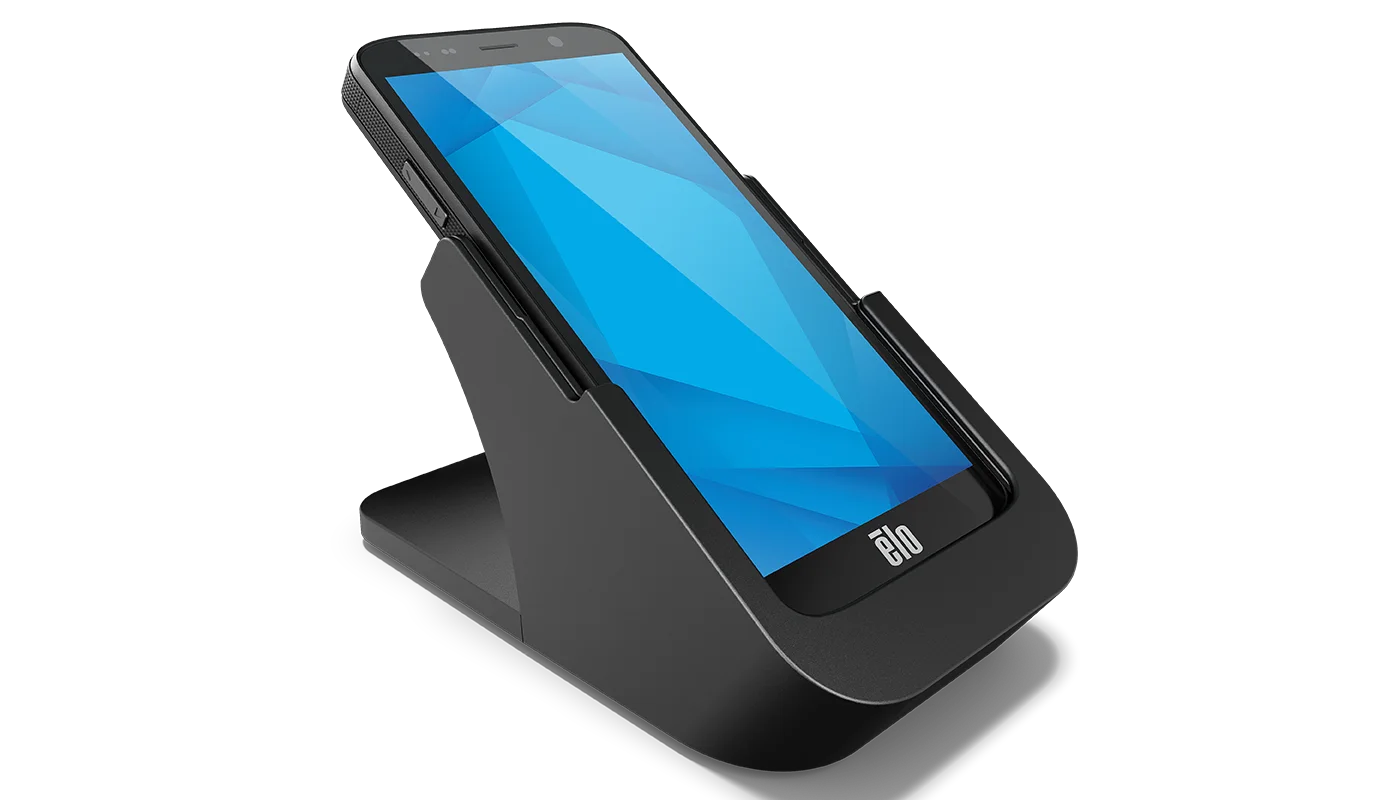

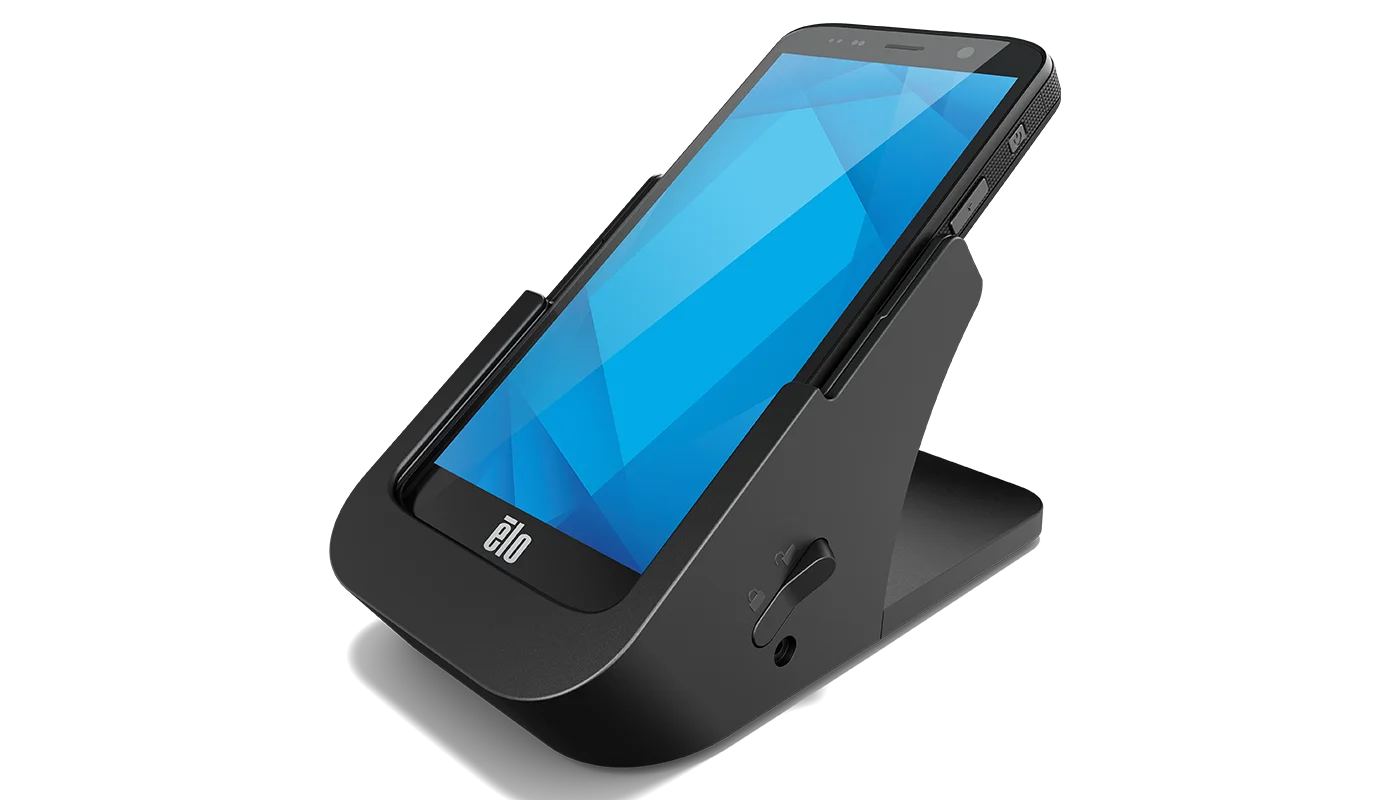

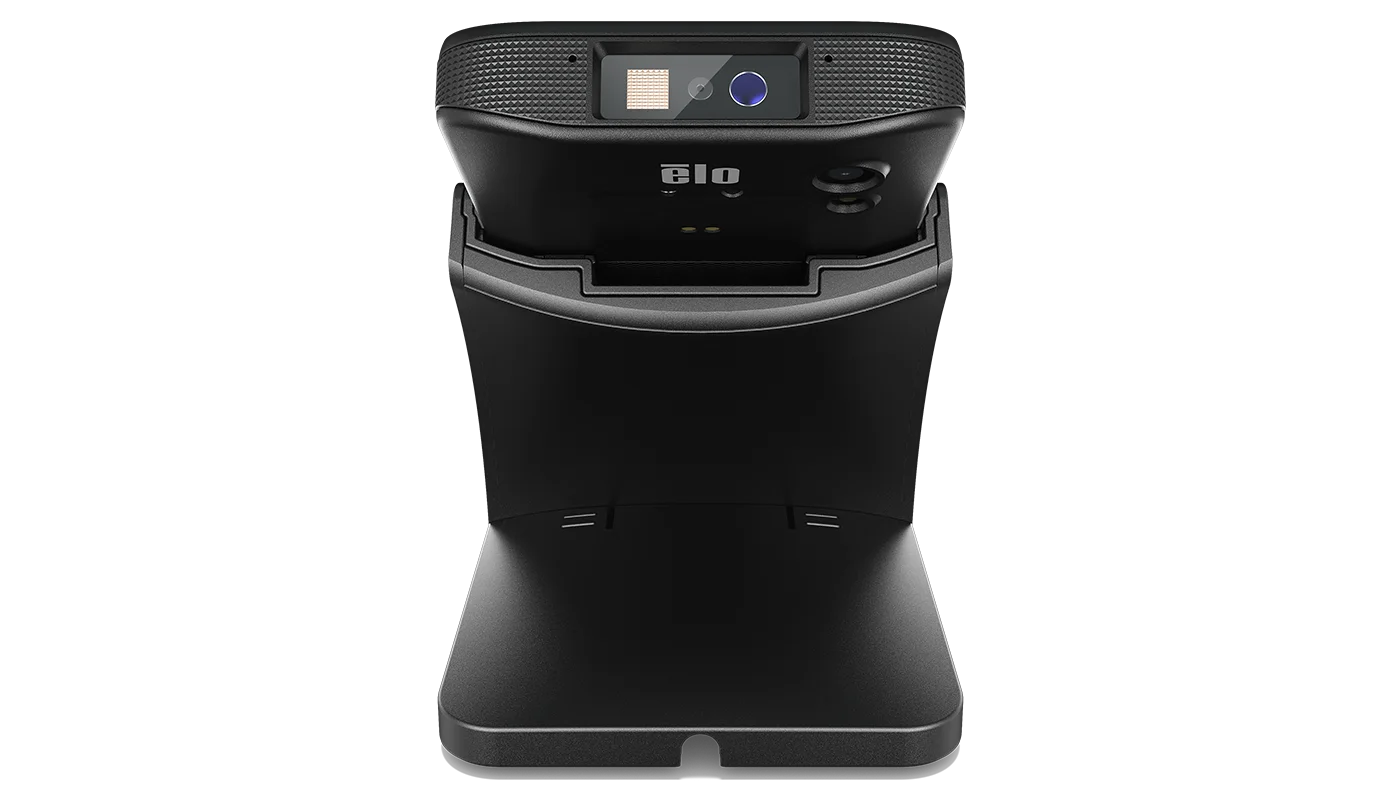

Elo Touch M51 Single Device Docks
Specifications
Technical
- Part Number(s)
- M51 Single Device Dock with Pogo-Pins - E534089; M51 Single Device Dock with USB-C - E367373
- Enclosure Color
- Black
- Compatibility
- M51 Mobile Computer (with and without rubber boot); Small Hub: E815044; Large Hub: E815235; EM10: E863687
- Dimensions
- 3.74" x 3.43" x 6.38" / 95 mm x 87 mm x 162 mm
- Shipping Box Dimensions
- 4.06" x 3.94" x 7.48" / 103 mm x 100 mm x 190 mm
- Weight (Unpackaged)
- 0.90 lbs / 407 g
- Weight (Packaged)
- 1.11 lbs / 505 g
- Operating Temperature
- -20°C to 50°C / -4°F to 122°F
- Storage Temperature
- -30°C to 60°C / -22°F to 140°F
- Humidity
- 5% to 95% non-condensing
- Regulatory approvals and declarations
- UL, FCC (US) - Class B; cUL, IC (Canada); CB (International safety); CE (Europe) - Class B
- MTBF
- 50,000 hours demonstrated
- Warranty
- 1-year
- What's in the Box
- M51 Single Device Dock with Pogo-Pins; 1x Spacer for use without Rugged Boot (Preassembly); 1x M3 x 11mm screw; QIG; M51 Single Device Dock with USB-C; 1x Spacer for use without Rugged Boot (Preassembly); 1x M3 x 11mm screw; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
