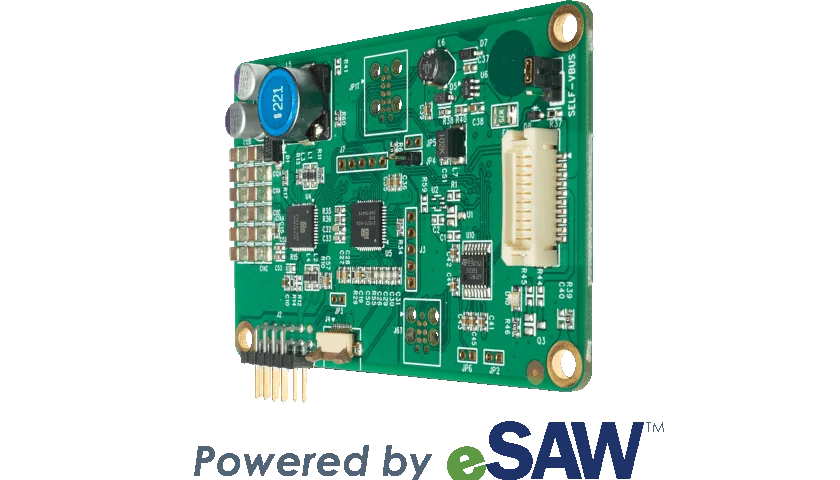

Elo Touch IntelliTouch 3200 Series Controller (single & dual touch)
The Elo Touch Solutions IntelliTouch 3200 series controller is designed to work specifically with IntelliTouch Surface Acoustic Wave touch screens. The 3200 series controller is powered by the industr
Overview
The Elo Touch Solutions IntelliTouch 3200 series controller is designed to work specifically with IntelliTouch Surface Acoustic Wave touch screens. The 3200 series controller is powered by the industry's newest technology, eSAW™. With eSAW, this controller provides 4Xs the sensitivity of its predecessor, making it truly a cost-effective PCAP alternative.
- The 3200 series SAW controller supports single and dual touch thru serial interface or via USB. It is a full-speed, self-powered, USB device.
- Elo’s IntelliTouch SAW controllers are designed and manufactured to work specifically with IntelliTouch Surface Acoustic Wave touch screens for optimal performance. The 3200 series controller is dual touch to accommodate virtually any application where IntelliTouch surface acoustic wave is the touchscreen of choice.
Specifications
Technical
- Part Number(s)
- E205846
- Technology
- SAW (IntelliTouch® Surface Acoustic Wave)
- Number of Touches
- Single Touch
- Input Methods
- Finger; Gloved hand; Passive stylus
- Dimensions
- 83.8 mm x 53.3 mm x 11.7 mm
- Surface Treatment
- Clear
- Durability
- Predicted MTBF of 1.5 million hours per Bellcore Issue 6 using the parts stress calculation method for ground benign environment with an ambient temperature of 25°C
- Resolution
- 4096 x 4096
- Touch Activation Force
- under 1 ounce (15 grams) typical
- Input Voltage
- +5 VDC, nominal (+4.75 to +5.25 VDC)
- Baud Rate
- for RS232 Interface: 9600 (default)
- Current - Operating Mode
- 75mA, maximum at +5 VDC. 45mA, maximum at +12VDC
- Operating Temperature
- -20°C to 70°C
- Storage Temperature
- -25°C to 85°C
- Humidity
- Operating: 10% to 90% RH, noncondensing ; Storage: 10% to 90% RH, noncondensing
- Controller Cables
- Serial cable: P/N D16890-000; USB cable: P/N D38640-000; Dual serial/USB cable: P/N D40022-000
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Discontinued
- End of sale / last shipment
- April 2024
- Status basis
- elotouch.com product page marks it as discontinued (Discontinued April 2024)
