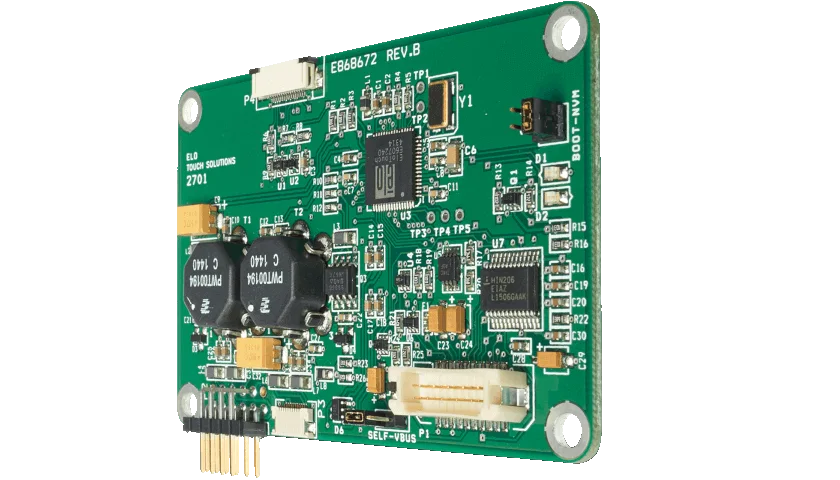

Elo Touch IntelliTouch 2701 Series Controller (single touch)
The Elo Touch Solutions IntelliTouch controllers are designed to work specifically with IntelliTouch SAW touchscreens. Building technology with coordinating components enables a much smoother design a
Overview
The Elo Touch Solutions IntelliTouch controllers are designed to work specifically with IntelliTouch SAW touchscreens. Building technology with coordinating components enables a much smoother design and user experience.
- The 2701 series controller is a single touch unit that works through serial interface or via USB. It is a full-speed, self-powered, USB device. By default, the controller communicates over a RS-232 serial link. If, however, a USB cable is connected, the controller switches to an exclusively USB communicating mode.
- Elo’s IntelliTouch controllers are designed and manufactured to work specifically with IntelliTouch SAW touchscreens for optimal performance. The controller maintains a no-touch reference signal. This reference signal is continuously updated to adapt to electronic drift and effects of contamination such as dirt and scratches. The live signal is compared to the reference signal to detect touches.
Specifications
Technical
- Part Number(s)
- D68054-000
- Technology
- SAW (IntelliTouch® Surface Acoustic Wave)
- Number of Touches
- Single Touch
- Input Methods
- Finger; Gloved hand; Passive stylus
- Dimensions
- 83.8 mm x 53.3 mm x 12.2 mm
- Surface Treatment
- Clear
- Resolution
- 4096 x 4096
- Touch Activation Force
- 2 to 3 ounces (55 to 85 grams) typical
- Input Voltage
- +5 VDC, nominal (+4.75 to +5.25 VDC)
- Report Rate
- 90pps
- Baud Rate
- for RS232 Interface: 9600 (default) and 19200
- Current - Operating Mode
- 75mA, maximum at +5 VDC. Typical power dissipation is 300mW at 5V.
- Operating Temperature
- 0°C to 60°C
- Storage Temperature
- -25°C to 85°C
- Humidity
- 10% to 90% RH (Non Condensing)
- Controller Cables
- Serial cable: P/N D16890-000; USB cable: P/N D38640-000; Dual serial/USB cable: P/N D40022-000
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Discontinued
- End of sale / last shipment
- April 2024
- Status basis
- elotouch.com product page marks it as discontinued (Discontinued April 2024)
