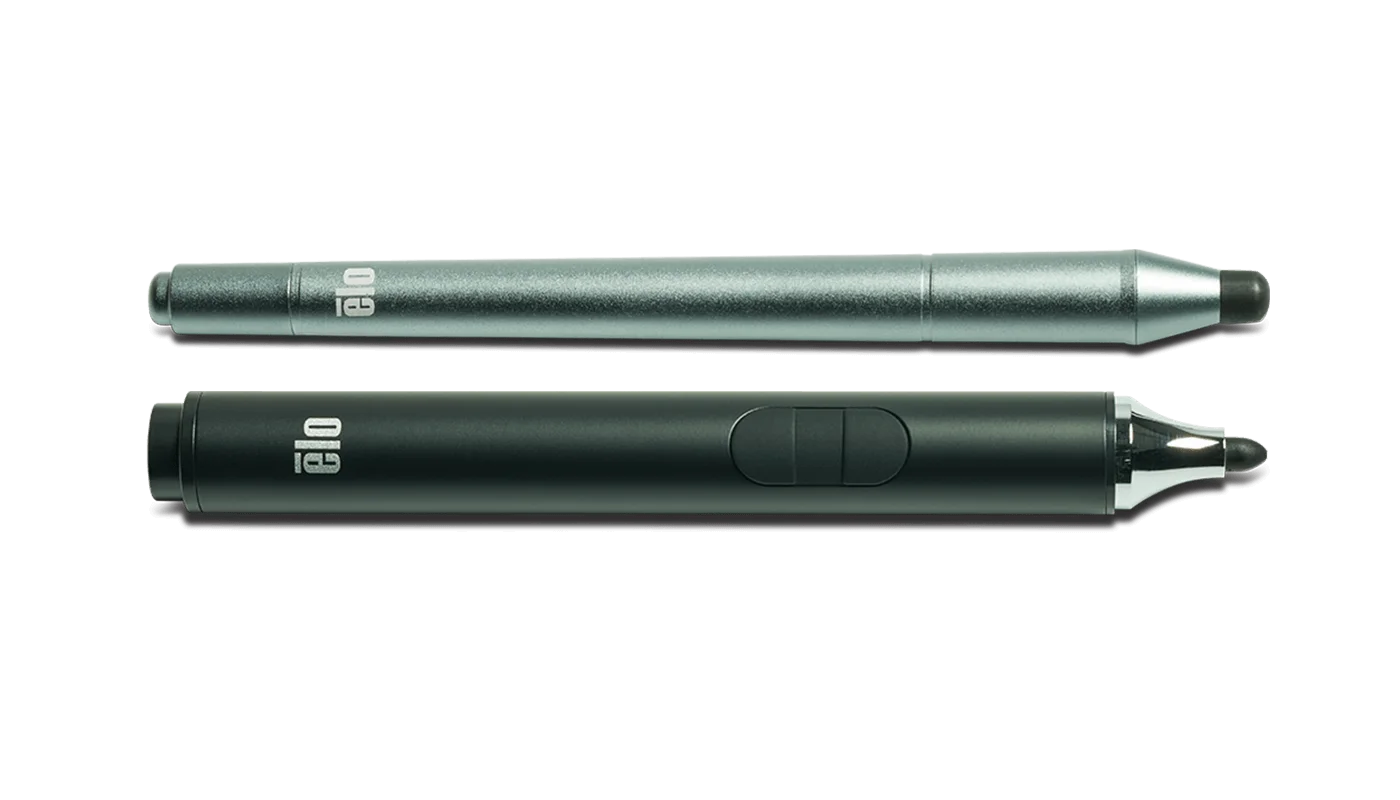

Elo Touch IDS Touch Stylus

Technical

Part Number(s)

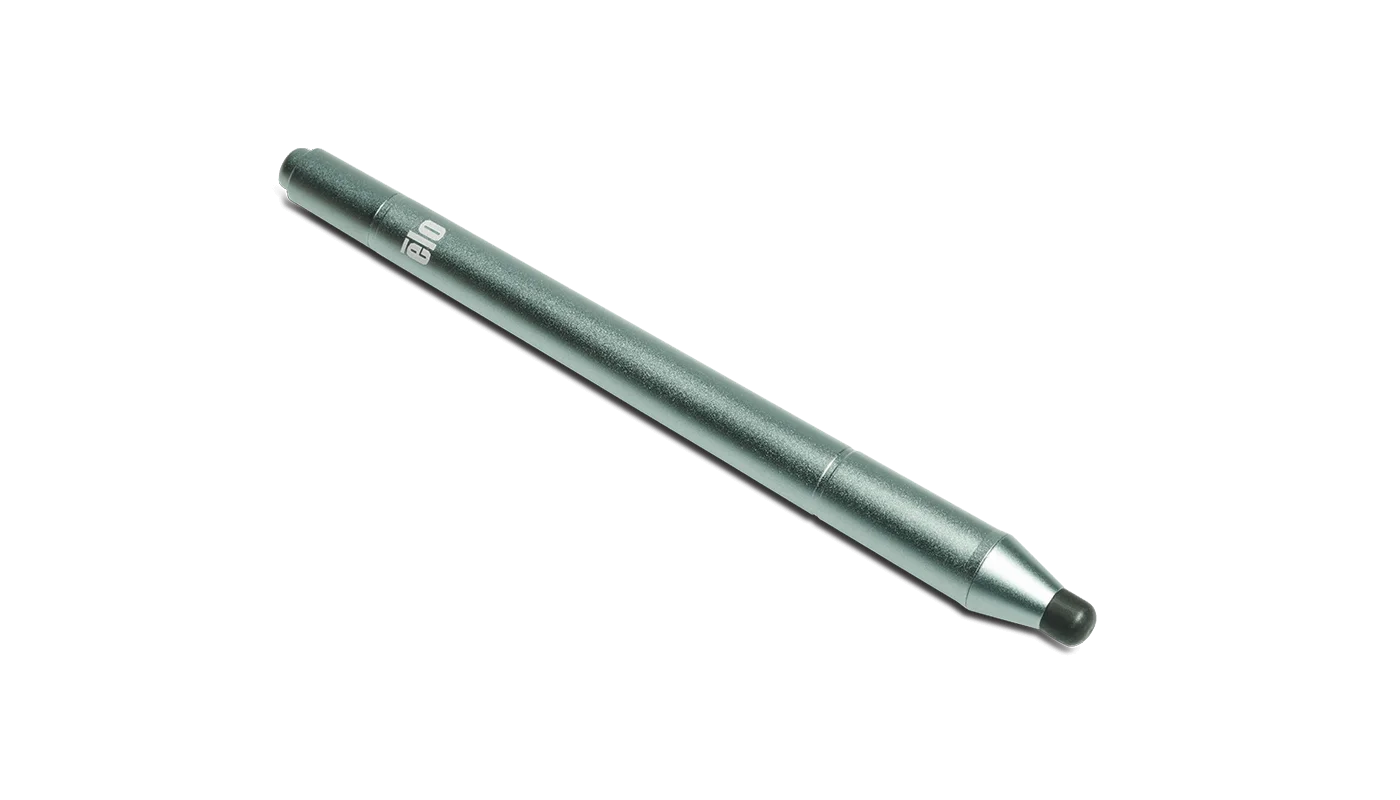

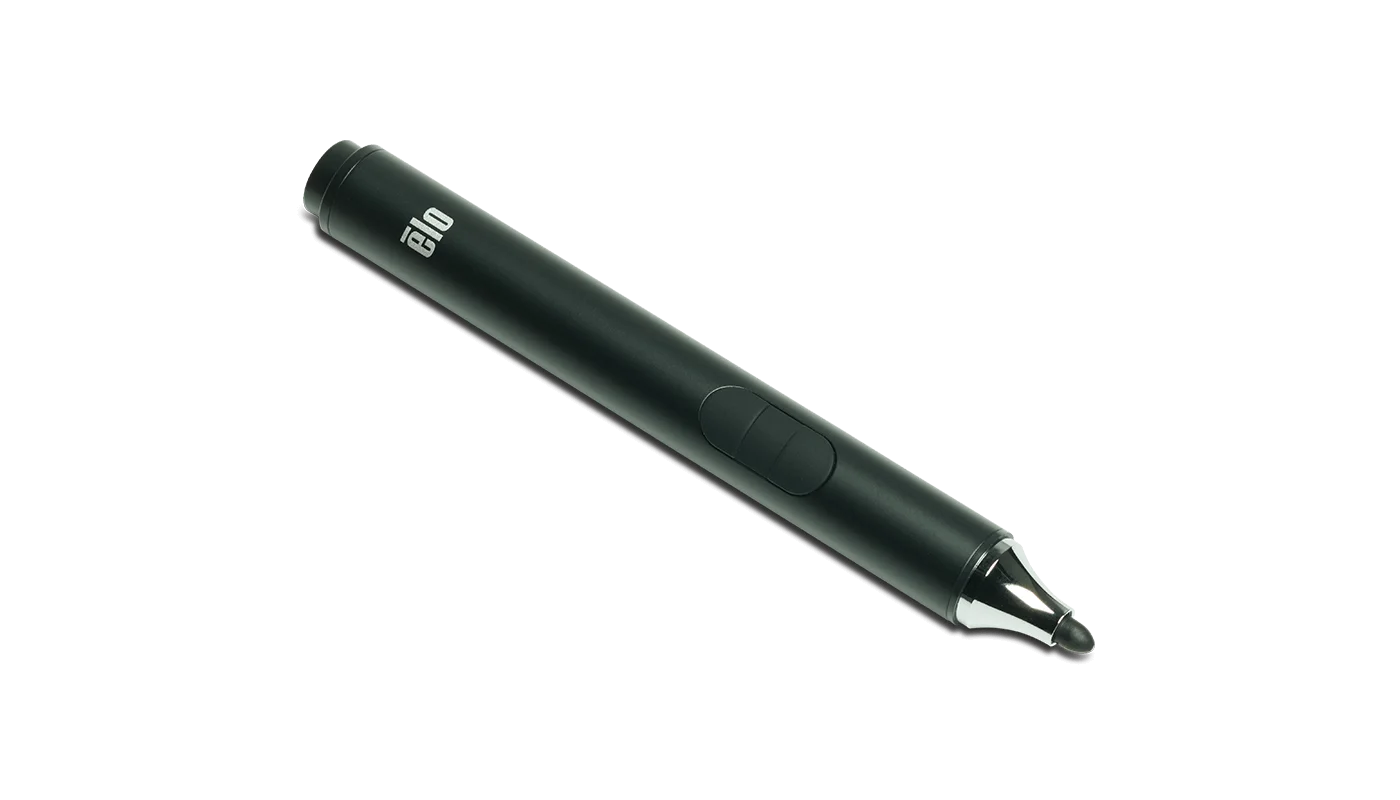

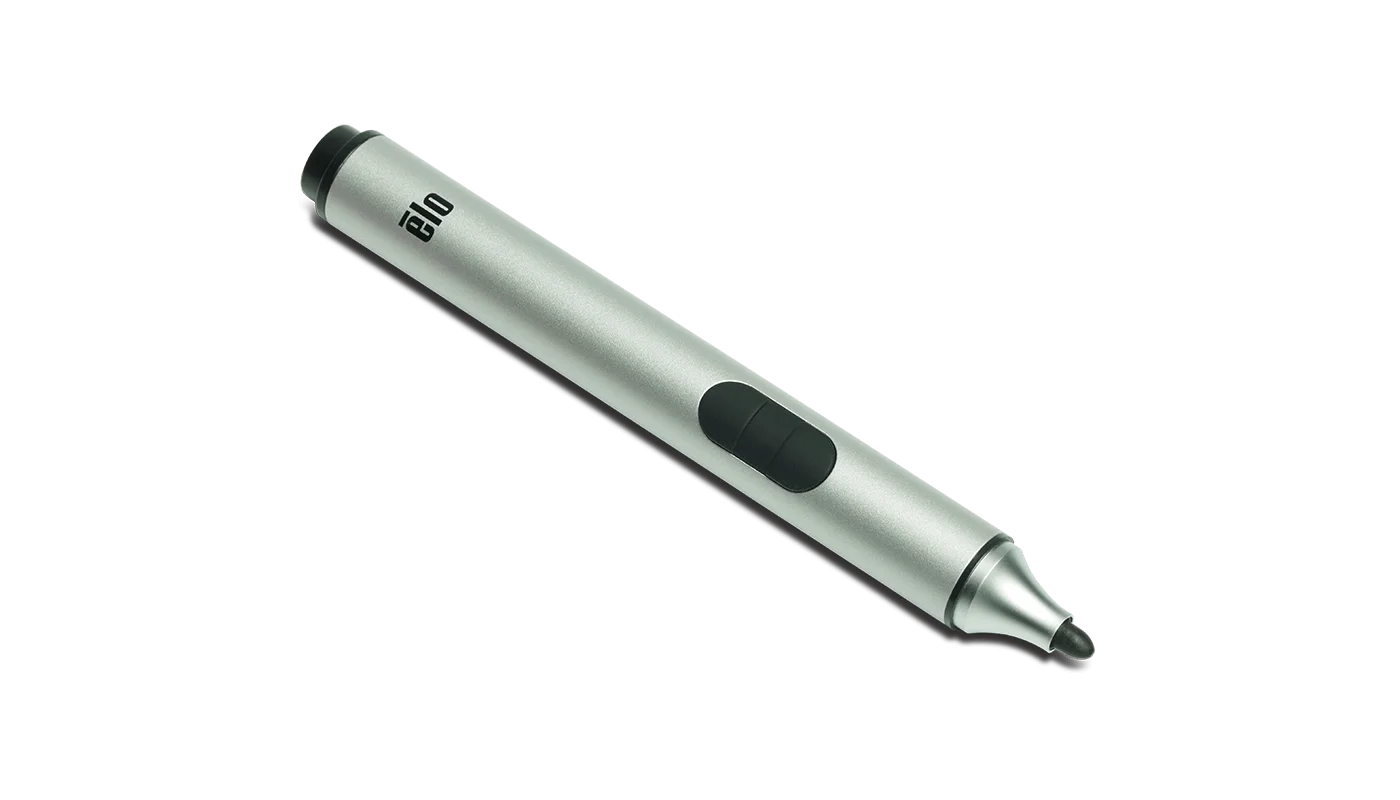

Active Stylus for PCAP IDS Displays - E216215; Passive Stylus for IR IDS Displays - E727568

Compatibility

Active: 5053L, 5553L, 6553L PCAP Interactive Displays; Passive: 4303L, 5053L, 5054L, 5553L, 5554L, 6553L IR Interactive Displays

Technology

Active: Active Capacitive Coupled; Passive: N/A

Enclosure Color

Active: Black/Silver; Passive: Space grey

Working Frequency

Active: 90KHz – 250KHz, Frequency Hopping Supported; Passive: N/A

Pressure Level

Active: Up to 1024 levels; Passive: N/A

Buttons

Active: Eraser, Barrel; Passive: N/A

Active Tip Force

Active:

Report Rate

Active: Typical: ≥ 133Hz; Passive: N/A

Power

Active: AA battery x1, replaceable; Passive: N/A

Power Consumption (Typical)

Active:; Active: 6mA @1.5V; Suspend: 75uA @1.5V; Passive: N/A

Touch Accuracy

Active:; ≤ ±1mm for center area; ≤ ±1.5mm within 8mm of the edges; Passive: N/A

Jitter

Active:; ≤ ±1mm for center area; ≤ ±1.5mm within 8mm of the edges; Passive: N/A

Supported Operating Systems

Active: Win7, Win10, Android, Linux; Passive: N/A

Other Features

Active:; Auto Power Off: enter sleep mode after idle for 2 mins; Pressure Detection; Tilt Angle Detection; Pen Priority; Function Button: Lower for eraser function, upper for barrel function; See User Guide for details on how to use these functions.; Passive: N/A

Dimensions

Active: 5.68" x 0.63" / 144.2 mm x 16 mm; Passive: 6.52" x 0.56" / 165.6 mm x 14.3 mm

Weight (Unpackaged)

Active: 0.06 lbs / 26 g; Passive: 0.07 lbs / 32 g

Operating Temperature

0°C to 50°C / 32°F to 122°F

Storage Temperature

30°C to 70°C / -22°F to 158°F

Humidity

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

Warranty

2-year

What's in the Box

Active:; Black active stylus x1; Silver active stylus x1; AA battery x2; Passive:; Space grey passive stylus x2
