End of life
Raptool ApprovedApproved for use with the Raptool Client and all Raptool apps.Elo Touch · Accessory
Elo Touch Huddle Kit
Helping Businesses Stay Connected
- Operating systemWindows 10 64-bit (SAC)
Overview
As corporate offices begin to open, collaboration via video conferencing will be essential in this new hybrid working environment of office-based and remote employees. By pairing Elo’s Huddle Kit with an award-winning interactive display, IT leaders can simply add their collaboration software to provide a complete interactive system that fosters engagement amongst users, regardless of location.
- Each kit includes Elo’s Conference Camera and i5 Windows 10 Computer Module complete with a pre-loaded intuitive dashboard for easy navigation to the pre-installed whiteboarding and wireless BYOD content-sharing software. The dashboard also allows for quick access to any 3rd party video conferencing and office productivity software.

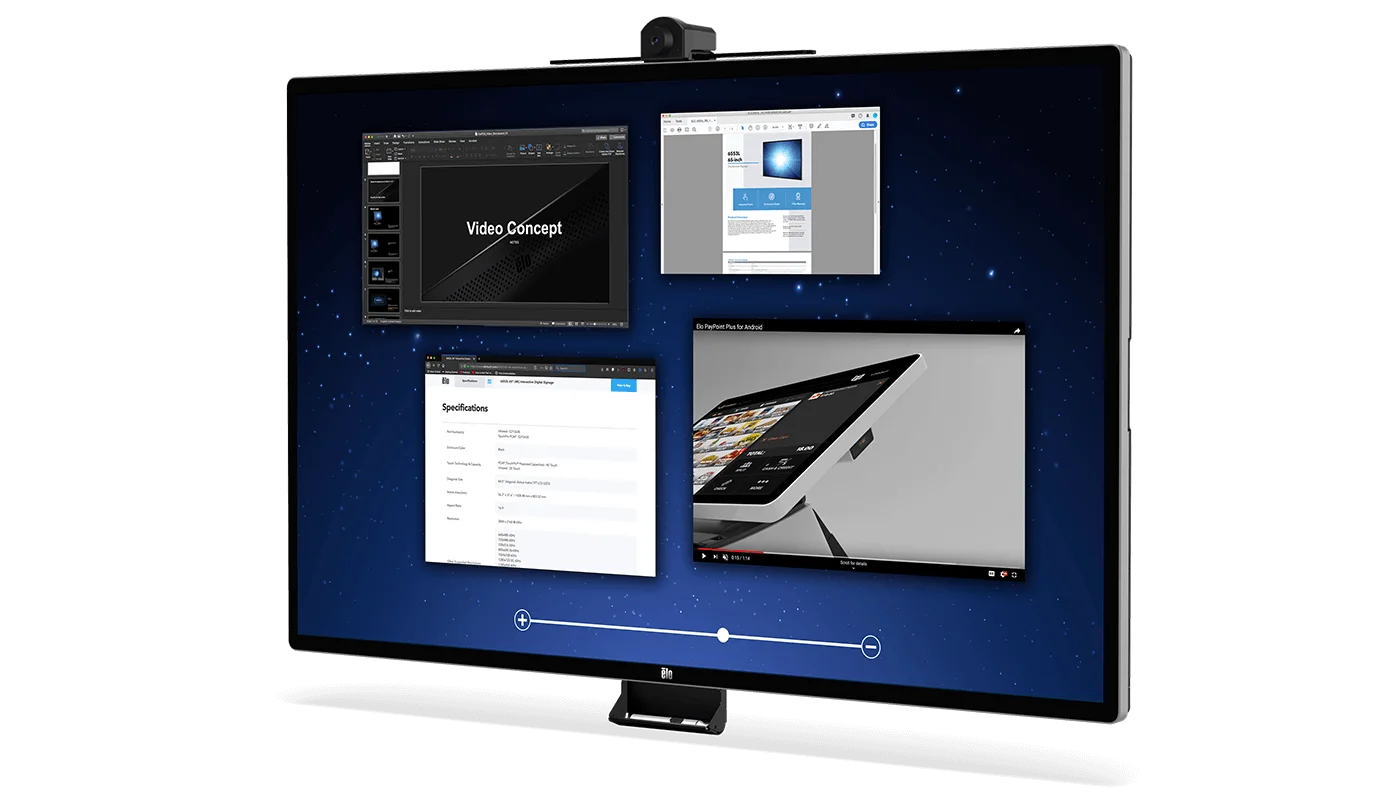

- Purpose-built to make collaboration easy – simply connect the Huddle Kit with an Elo large format interactive display to create a robust huddle room solution.

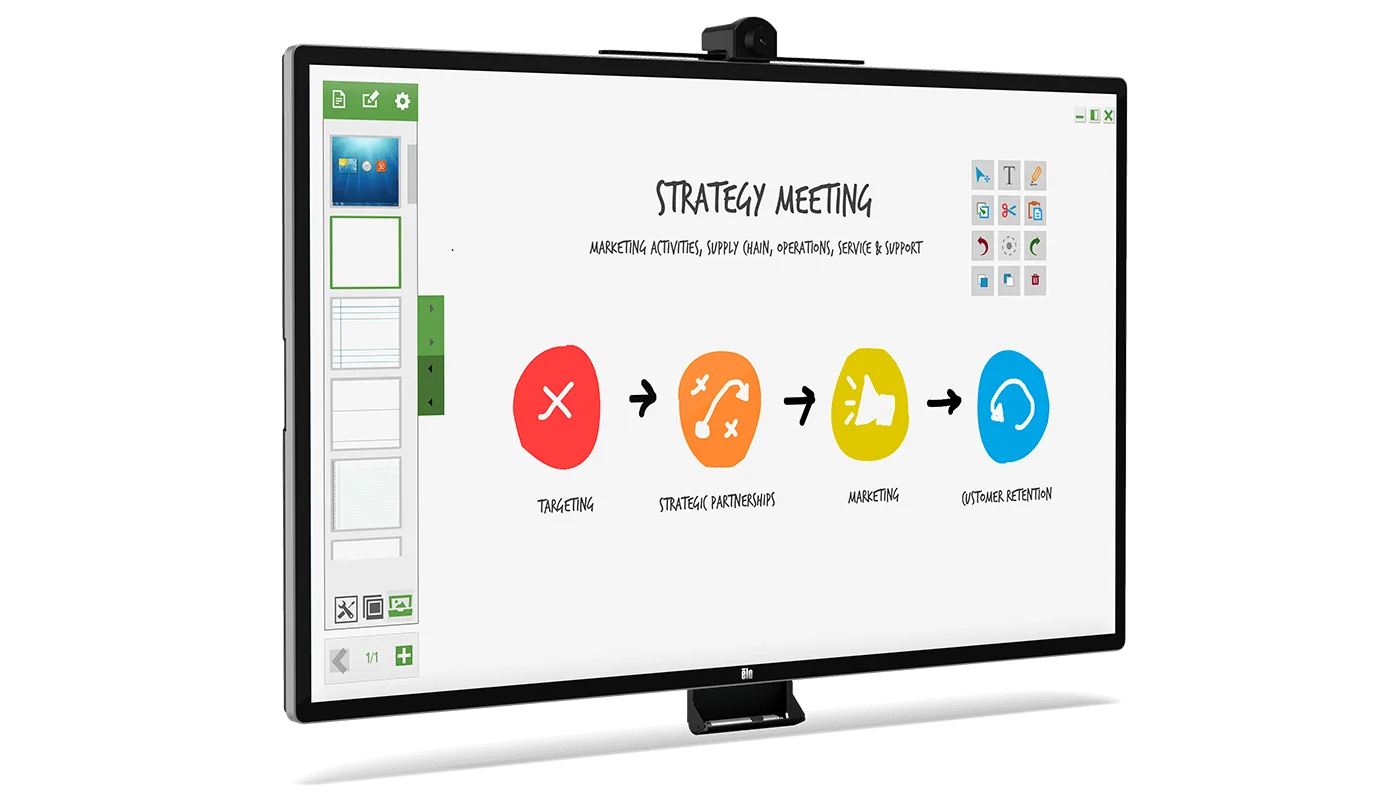

- Complete with DisplayNote Launcher's intuitive dashboard for easy navigation to your collaboration apps, Montage for your wireless BYOD content sharing, and Qwizdom’s robust annotation and whiteboarding solutions.*
- Elo's Interactive Displays, available in PCAP or IR with anti-glare, offer a sleek, slim design built to withstand the rigors of continuous commercial use.

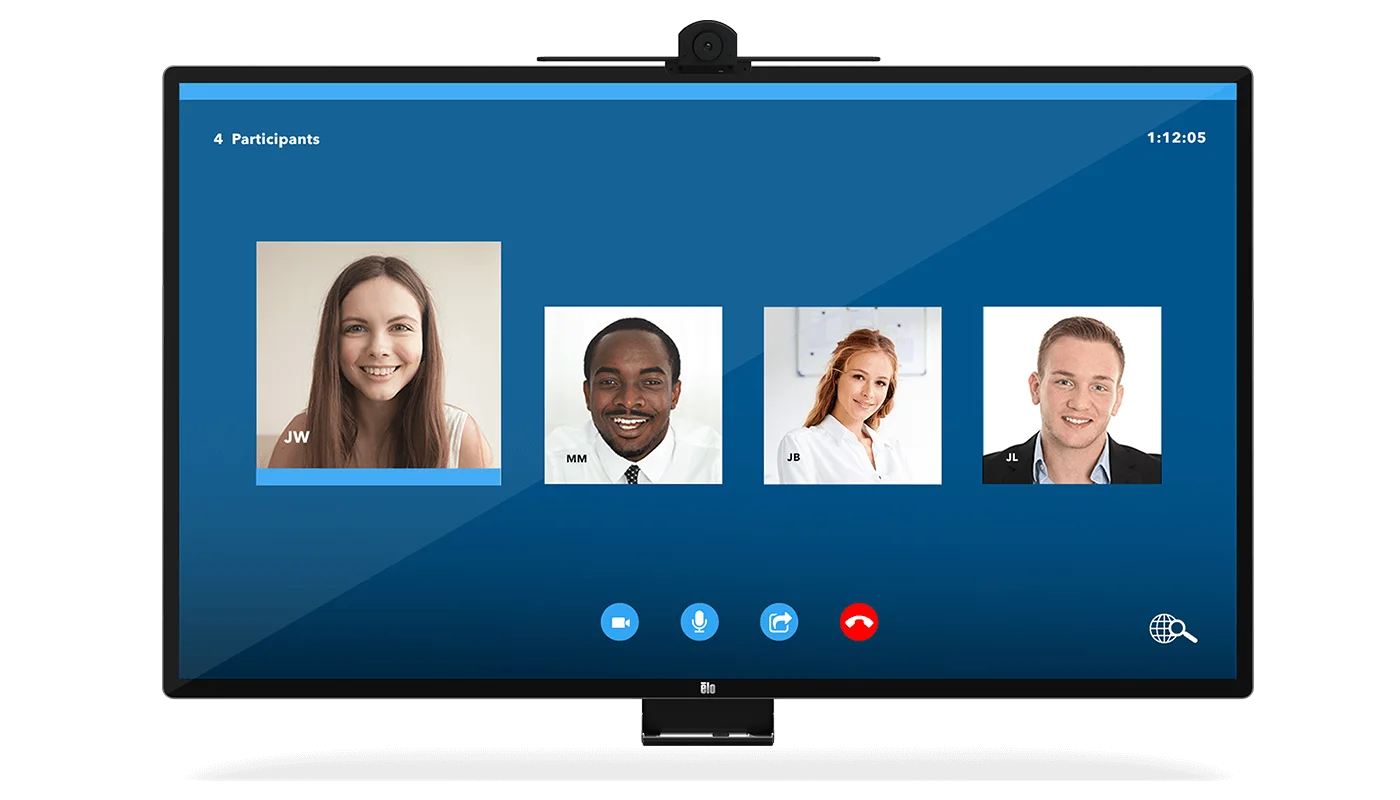

- The Conference Camera delivers full HD video with wide viewing angles, an adjustable slider and a 30° tilt that supports both vertical and horizontal adjustment.
Videos
Specifications
Technical
- Part Number(s)
- E380925
- Product
- Huddle Kit
- Weight (Packaged)
- 12.57 lbs / 5.7 kg
- Shipping Box Dimensions
- 17.52" x 6.06" x 26.38" / 445 mm x 154 mm x 670 mm
- Compatibility
- 3203L TouchPro; 4303L TouchPro and IR; 5553L TouchPro and IR; 6553L TouchPro and IR; Mounting the camera to the bottom port will limit compatibility to Windows, Mac, or Ubuntu (with a VLC player) and limits resolution to 720p

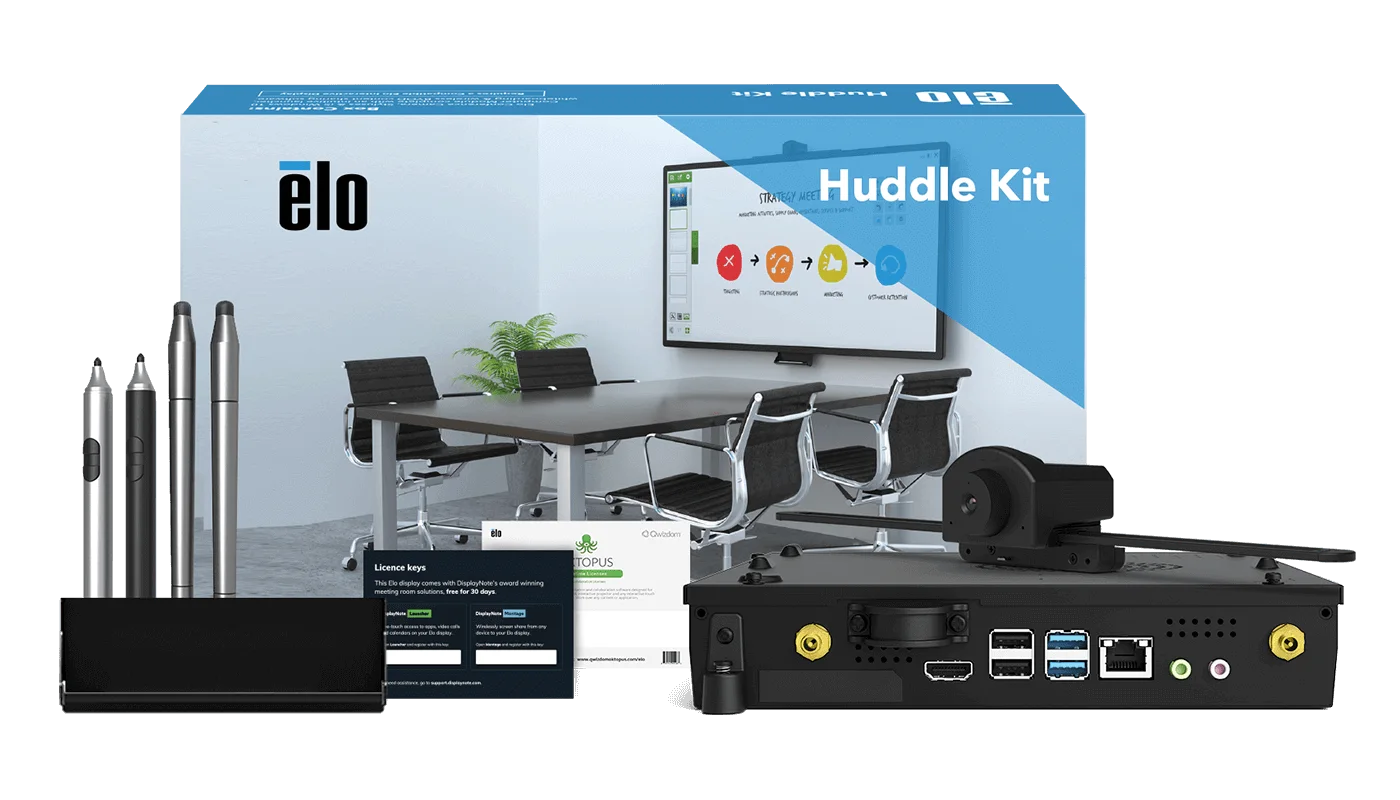

- What's in the Box
- i5 Win 10 Computer Module (ECMG4) - Elo P/N: E405488; Conference Camera – Elo P/N: E277819 (includes AEC cable); 2x Active Stylus (for PCAP only) – Elo P/N: E216215 (includes 2x AA battery); 2x Passive Stylus (for IR only) – Elo P/N: E727568; Stylus Tray; 2x WiFi/BT Antenna; 4x M6x50 screws; 4x M8x50 screws; 4x Spacers; 2x thumb screws for Stylus Tray; 2x thumb screws for Conference Webcam; Whiteboard License Card; DisplayNote Launcher License Card; DisplayNote Montage License Card; Quick Install Guide
- Product
- Elo Computer Module (ECMG4)
- Processor
- Intel Core i5-7500T Processor; (6M Cache, up to 3.30 GHz); 6 MB Intel Smart Cache; 8 GT/s Direct Media; Interface 3 (DMI3)
- Chipset
- Intel H110 Chipset
- Thermal Design Power (TDP)
- 35W
- Graphics
- Intel HD Graphics 630
- BIOS
- AMI
- Memory (RAM)
- 16 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots; *Maximum memory using 2 slots. Expandable up to 64GB maximum. DDR4-2133/2400 @ 1.2V
- Storage
- 256GB m.2 Solid State Drive (SSD); GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
- Video Out
- 1 x HDMI (UHD capable)
- USB Ports
- 2 x USB 2.0 Type A; 2 x USB 3.0 Type A
- Ethernet Port
- 1 x LAN RJ45
- Wireless
- IEEE 802.11 a/b/g/n/ac (MU-MIMO)
- Bluetooth
- Bluetooth 5
- Audio Ports
- 1 x 3.5 mm Line out; 1 x 3.5 mm MIC in
- Power Supply
- Power provided by compatible Interactive Display
- OS
- Windows 10 64-bit (SAC)
- Software
- DisplayNote Montage and Launcher – with 30 day trial licenses; Qwizdom Oktopus Whiteboard - with perpetual license
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -30°C to 60°C / -22°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 90%
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E896120; 5 year warranty coverage - Elo P/N: E896322; 3 year warranty coverage + AUR - Elo P/N: E896699; 4 year warranty coverage + AUR - Elo P/N: E896903; 5 year warranty coverage + AUR - Elo P/N: E897104
- Product
- Conference Camera
- Field of View
- Vertical: 65° ± 5%; Horizontal: 80° ± 5%; Diagonal: 96° ± 5%
- Frame Rate
- 30fps @ FHD
- Focus Type
- Fixed Focus
- UVC Compatible
- Yes - UVC 1.1
- Microphone
- Analog Mic with Acoustic Echo Cancellation (AEC)
- Supported Video Resolutions
- FHD (1920 x 1080); HD (1280 x 720); VGA (640 x 480 and 640 x 360)
- Video Format
- YUY2/MJPG
- Warranty
- 3-year
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Discontinued
- Replacement
- ECMG4
- Status basis
- elotouch.com lists it as replaced by ECMG4
