Elo Touch · Accessory

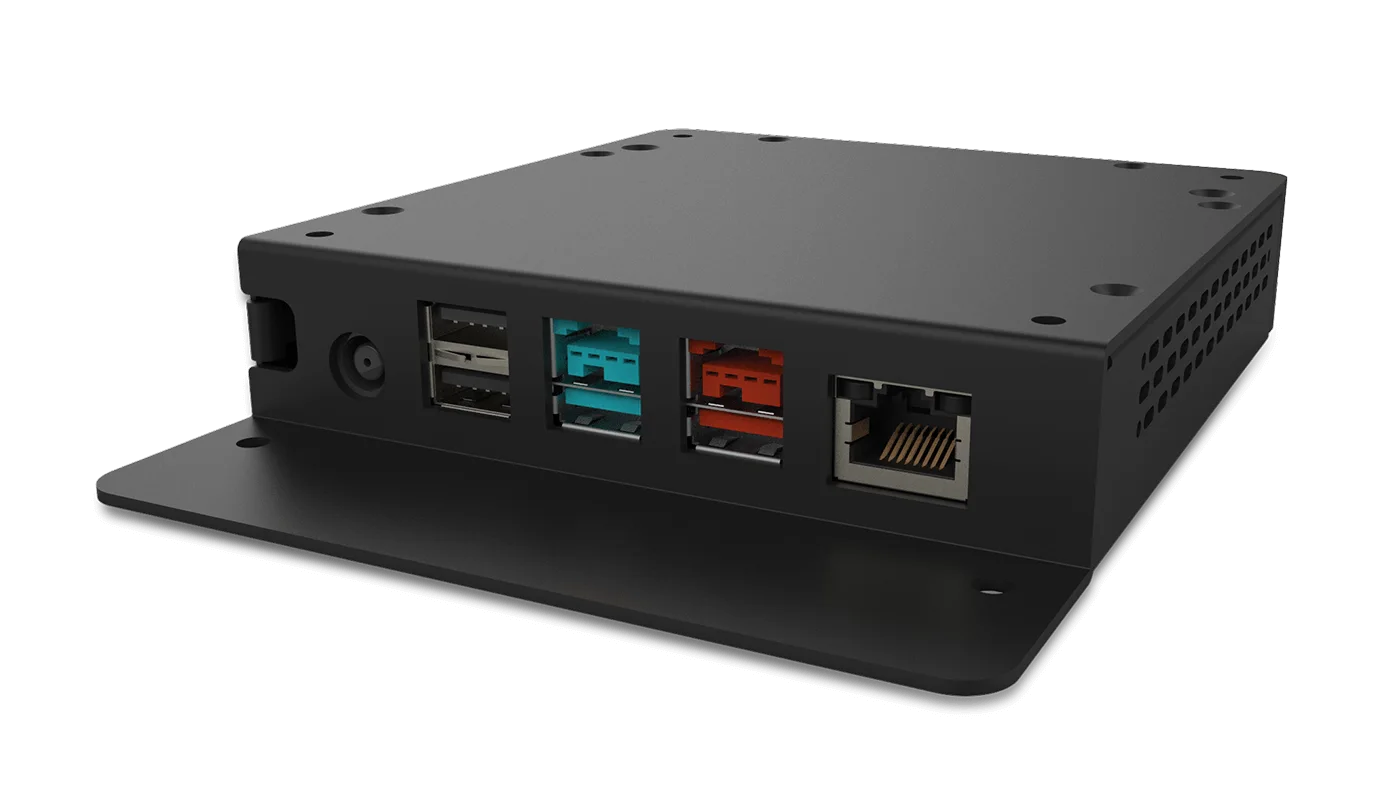

Elo Touch Expansion Module for Android (Gen 1)
Elo's expansion module provides options for installation - either on the back of the I-Series unit with a VESA mount or under the flip stand for better cable management.
Overview
Elo's expansion module provides options for installation - either on the back of the I-Series unit with a VESA mount or under the flip stand for better cable management.
Specifications
Technical
- Part Number(s)
- Long Cable Kit - Mounted under the flip stand - E923781; Short Cable Kit - Mounted on the back of the I-Series - E412240
- Enclosure Color
- Black
- Compatibility
- E923781 - Compatible with the 15” I-Series for Android; E412240 - Compatible with the 15” and 22” I-Series for Android; Note: Expansion Module requires 150W power brick, different from I-Series (included in the box).
- I/O Ports
- 12V (1.5A) Powered USB; 24V (2.3A) Powered USB; Serial COM Port (RJ45); 5V USB 2.0 (x2); 19V DC IN
- Dimensions
- 5.79" x 4.69" x 1.02" / 147mm x 119mm x 26mm
- Shipping Box Dimensions
- 13.5" x 10.0" x 3.93" / 344mm x 255mm x 100mm
- Mounting Options
- 100mm VESA mount; Additional mounting options with I-Series Flip Stand - Elo P/N: E924077 (see I-Series Flip Stand dimensional drawing MS601866 for more details)
- Weight (Unpackaged)
- 1.26 lbs / 0.57 kg
- Weight (Packaged)
- 4.00 lbs /1.81 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95%
- Regulatory approvals and declarations
- CE (Europe) - Class A; China RoHS; The following countries are certified with the i-series:; UL, FCC (US) - Class A; cUL, IC (Canada); CB (International safety); VCCI (Japan); RCM (Australia); BSMI (Taiwan); KCC (Korea)
- MTBF
- 50,000 hours demonstrated
- Warranty
- 2-year
- What's in the Box
- 150W power brick - Elo P/N: E001060; Power cable (1.8 m) IEC 60320-C5 to NA plug; Power cable (1.8 m) IEC 60320-C5 to EU/KR plug; RJ45 to DB9 Serial Cable
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
