Overview

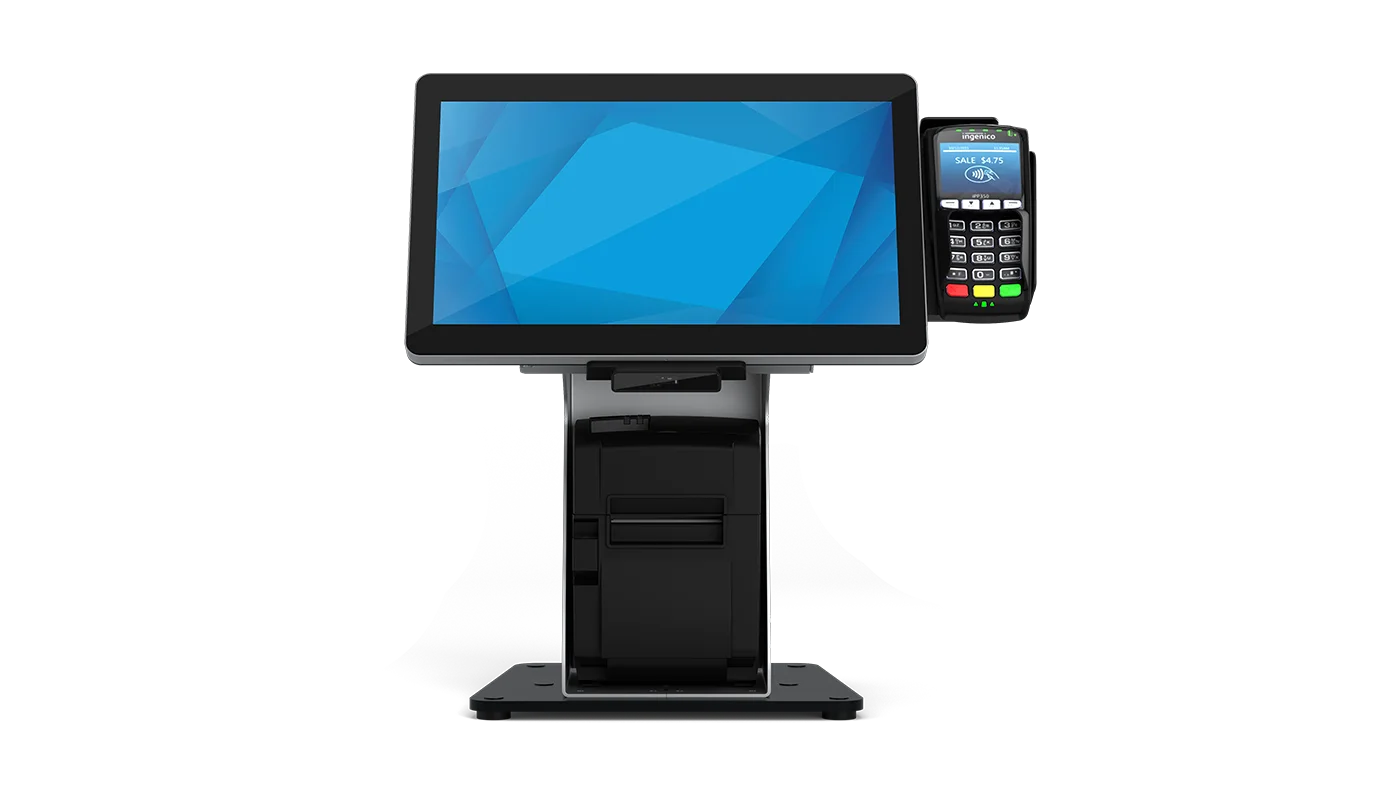

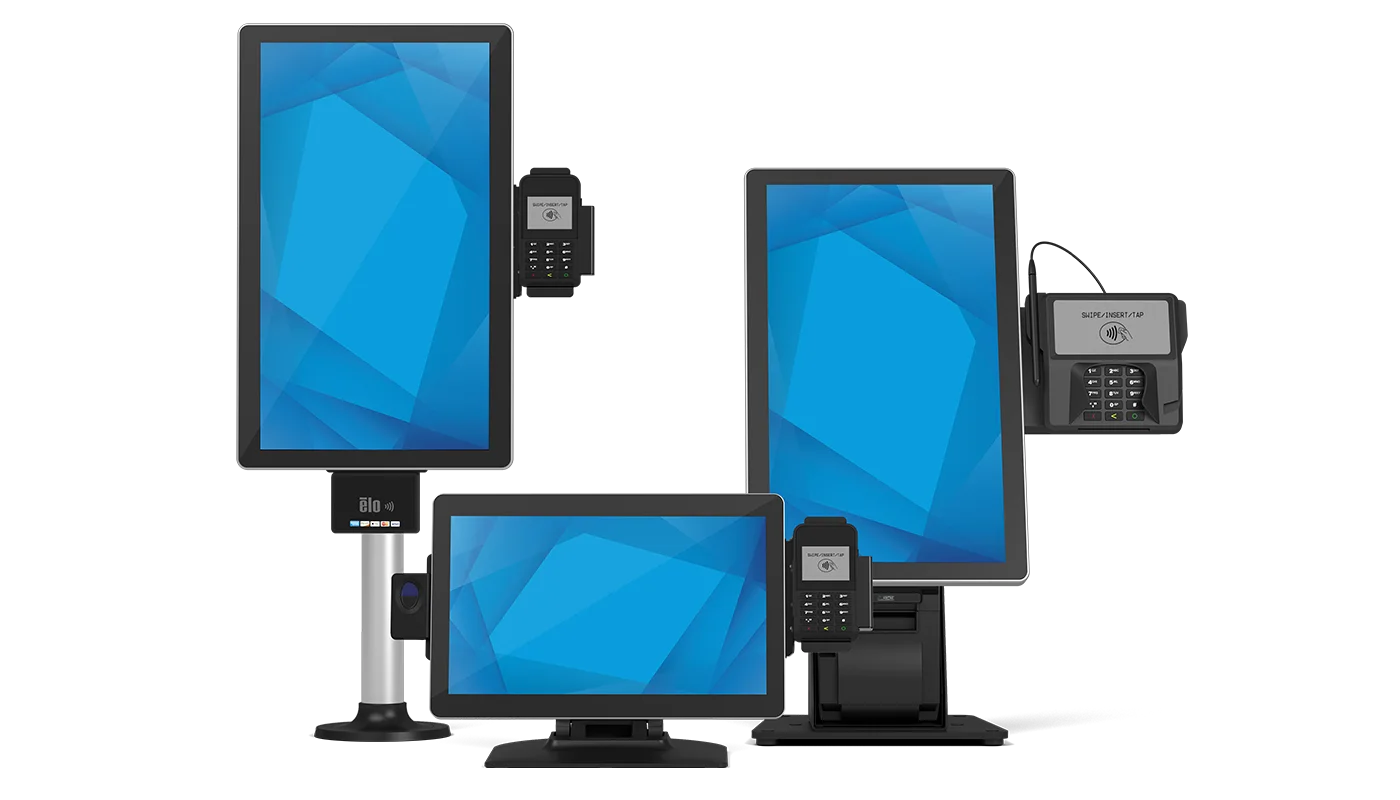

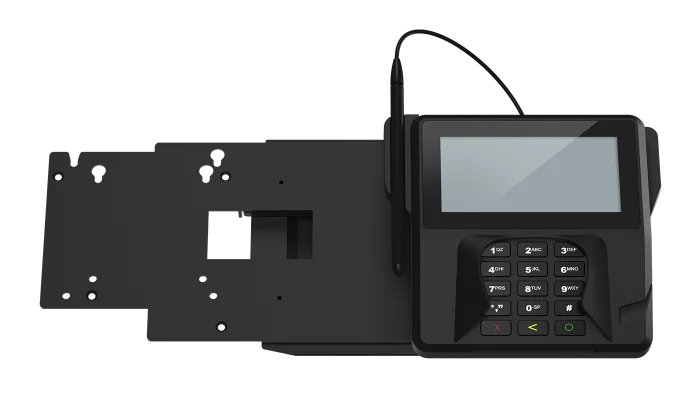

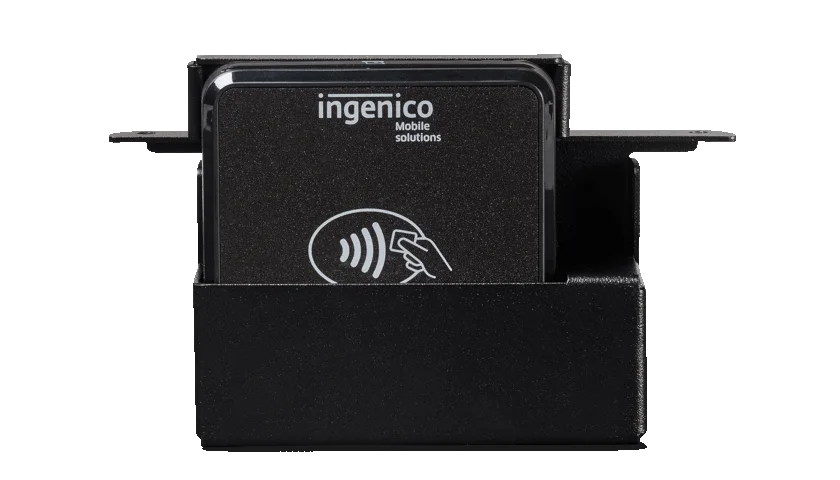

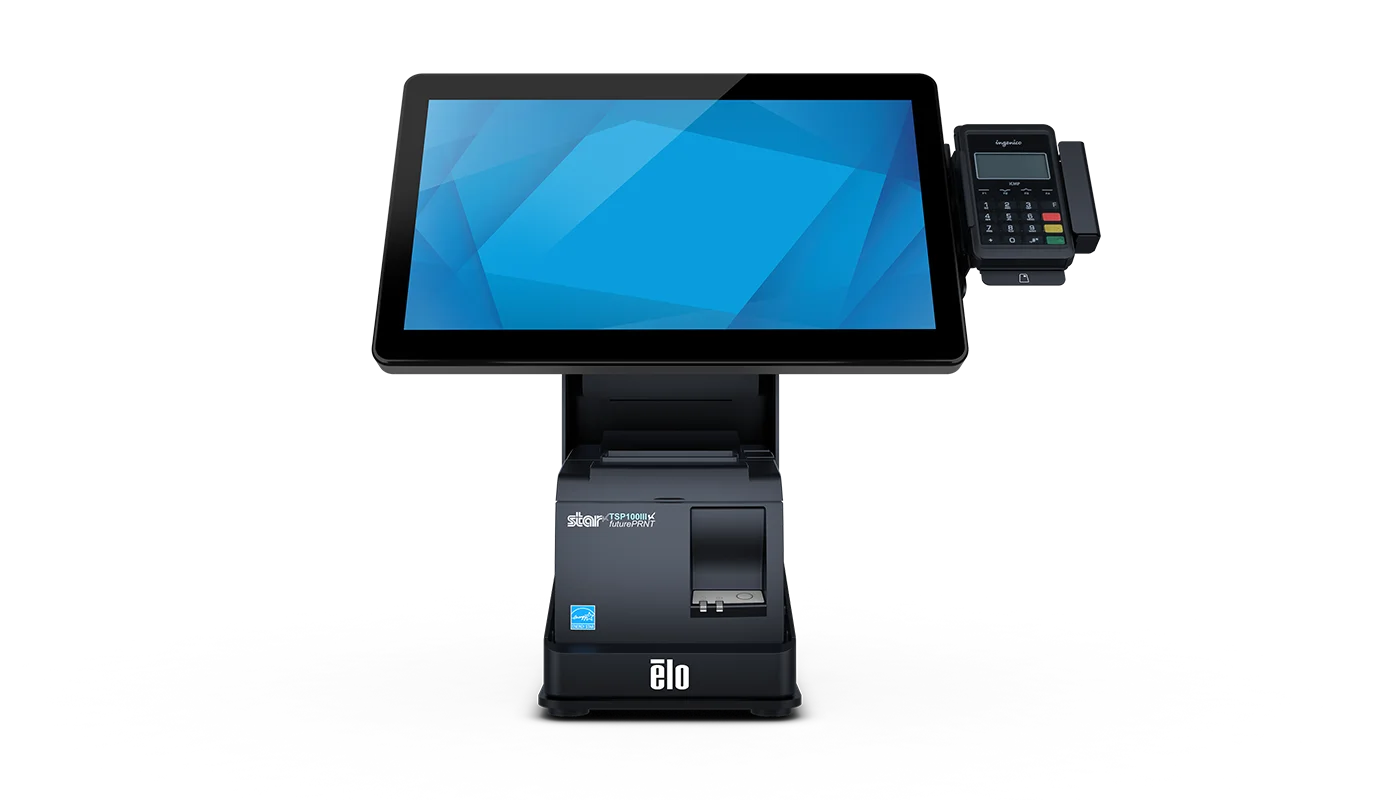

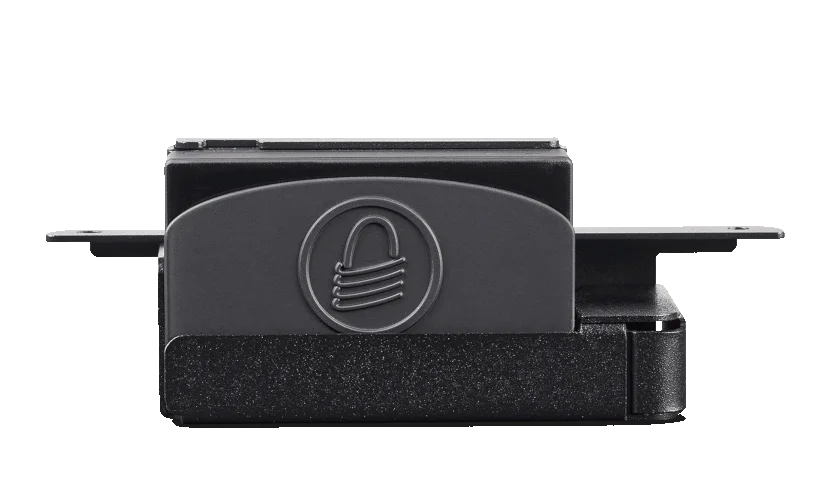

EMV payment devices require additional space and have varied mounting requirements based on your POS Terminal or self-service kiosk setup. With Elo’s fully integrated EMV cradles, mounting is simple, seamless, and secure. The cradles attach to the side of the interactive display or to the stand itself, supporting a variety of Verifone, Ingenico and MagTek payment devices. The sturdy metal design is built to withstand the rigors of continuous public use expected in retail environments. Start enabling the customer to control the checkout process with confidence and ease at any point of sale system. Creating endless aisle, product configurators, self-service, mPOS, POS applications and more is now easier than ever.

POS and kiosk management can be even easier with EloView™. A revolutionary interactive platform, EloView is a secure management platform for remote content delivery and device management. Whether you need to push new content to a device or simply change the screen brightness, EloView has got you covered. EloView software provides device setup, remote management, alerts, attract loops, and the ability to securely upgrade the operating system, applications, and content.

Specifications

Technical

Part Number(s): EMV Cradle for MagTek eDynamo - E375343; EMV Cradle for Ingenico RP457c with Audio Jack, BT and USB - E586981; EMV Cradle for Ingenico RP457c with BT and USB - E710930; For Wallaby Stands (E421137, E421325 + E797162) only with 15" & 22" I-Series:; EMV Cradle for Verifone MX915/M400 & Ingenico iSC250 & Square Terminal - E458992; EMV Cradle for Ingenico iPP320/350/315 - E458797; EMV Cradle for Ingenico RP757 - E920661; EMV Cradle for Verifone MX925 - E352169; EMV Cradle for Verifone P400 - E906829; EMV Cradle for Ingenico LANE3000/LANE3600 - E458605; For Wallaby Pro Stands (E989127, E989314 + E989512, E989127 + E990079, E989314 + E989314 + E989705) with 22” I-Series and 2402L, 2403LM, 2702L, 2703LM touchscreen monitors:; EMV Cradle for Verifone MX915/M400 & Ingenico iSC250 & Square Terminal - E458992; EMV Cradle for Ingenico iPP320/350/315 - E458797; EMV Cradle for Ingenico RP757 - E920661; EMV Cradle for Verifone MX925 - E352169; EMV Cradle for Verifone P400 - E990282; EMV Cradle for Ingenico LANE3000 - E990468; EMV Cradle for Ingenico LANE5000 - E996512; EMV Cradle for Ingenico LANE7000 - E990654
Enclosure Color: Black
Compatibility: Select EMV Cradles are Compatible with Elo Touchscreens; E458992, E920661, E458797, E352169, E906829, E458605: I-Series AiO Interactive Displays (15" & 22") on Wallaby Stands; E375343, E586981, E710930: I-Series AiO Interactive Displays (10'', 15'' & 22''); E375343, E586981, E710930: EloPOS for Windows; E375343, E586981, E710930: E-Series 2; E375343, E586981, E710930: 1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L Touchscreen Monitors; E375343, E586981, E710930: 3203L, 4303L, 5503L, 5053L Touchscreen Signage; E458992*, E920661*, E458797*, E352169*, E990282, E990468, E996512, E990654: I-Series AiO Interactive Displays (22") on Wallaby Pro Stands; E458992*, E920661*, E458797*, E352169*, E990282, E990468, E996512, E990654: 2402L, 2403LM, 2702L, 2703LM Touchscreen Monitors on Wallaby Pro Stands; * Not compatible with the ECMG4
Mounting Options: Portrait or Landscape
Interface: E920661, E458797: USB for power and data; E375343, E586981, E710930: USB for power (charging only), Bluetooth for data; E458992: power supply or powered USB for power. USB, WiFi, ethernet or Bluetooth for data*; E352169: power supply for power. USB for data*; E906829, E990282: USB for power, WiFi or Bluetooth for data*; E458605, E990468, E996512, E990654: 5V or 12V powered USB (depending on model) for power. USB, WiFi or ethernet for data*; * Please refer to the EMV payment device documentation for more information
Weight (Unpackaged): E375343: 0.21 lbs / 0.096 kg; E586981: 0.30 lbs / 0.137 kg; E710930: 0.291 lbs / 0.132 kg; E920661: 2.20 lbs / 1.00 kg; E458797: 2.86 lbs / 1.30 kg; E458992: 3.53 lbs / 1.65 kg; E352169: 4.18 lbs / 1.90 kg; E906829: 2.84 lbs / 1.29 kg; E458605: 2.69 lbs / 1.22 kg; E990282: 1.98 lbs / 0.9 kg; E990468: 3.09 lbs / 1.4 kg; E996512: 2.20 lbs / 1.0 kg; E990654: 2.65 lbs / 1.2 kg
Weight (Packaged): E375343: 0.22 lbs / 0.10 kg; E586981: 0.36 lbs / 0.162 kg; E710930: 0.34 lbs / 0.155 kg; E920661: 3.31 lbs / 1.50 kg; E458797: 3.99 lbs / 1.81 kg; E458992: 5.24 lbs / 2.38 kg; E352169: 6.06 lbs / 2.75 kg; E906829: 5.51 lbs / 2.50 kg; E458605: 4.23 lbs / 1.92 kg; E990282: 2.69 lbs / 1.22 kg; E990468: 3.92 lbs / 1.78 kg; E996512: 2.87 lbs / 1.30 kg; E990654: 3.35 lbs / 1.52 kg
Dimensions: E375343: 1.50” x 1.57” x 4.55” / 38.4 mm x 41.0 mm x 115.69 mm; E586981: 1.28” x 2.25” x 4.55” / 32.4 mm x 57.1 mm x 115.69 mm; E710930: 1.12” x 2.25” x 4.55” / 28.4 mm x 115.69 mm x 57.1 mm; E990282: 8.03" x 5.24" x 2.68" / 204 mm x 133 mm x 68 mm; E990468: 7.76" x 4.57" x 2.24" / 197 mm x 116 mm x 57 mm; E996512: 7.48" x 7.17" x 1.89" / 190 mm x 182 mm x 48 mm; E990654: 7.56" x 7.05" x 2.95" / 192 mm x 179 mm x 75 mm; E920661, E352169, E906829, E458992, E458797, E458605: Please review the Wallaby Self-Service Stand dimensional drawing for more information
Shipping Box Dimensions: E375343: 2.56" x 2.56" x 5.71" / 65 mm x 65 mm x 145 mm; E586981, E710930: 2.6" x 3.98" x 5.9" / 66 mm x 101 mm x 150 mm; E920661: 13.22" x 12.01" x 5.51" / 335 mm x 305 mm x 140 mm; E458797: 12.80" x 14.37" x 5.71" / 325 mm x 365 mm x 145 mm; E458992: 17.95" x 12.24" x 4.76 / 456 mm x 311 mm x 121 mm; E352169: 19.68" x 11.61" x 4.52" / 500 mm x 295 mm x 115 mm; E906829: 19.68" x 11.61" x 4.72" / 500 mm x 295 mm x 120 mm; E458605: 15.74" x 12.20" x 4.72" / 400 mm x 310 mm x 120 mm; E990282: 11.61" x 9.25" x 6.5" / 295 mm x 235 mm x 165 mm; E990468, E996512, E990654: 17.13" x 10.83" x 5.91" / 435 mm x 275 mm x 150 mm
Operating Temperature: 0° C to 40° C / 32° F to 104° F
Storage Temperature: -20° C to 60° C / -4° F to 140° F
Humidity: Operating: 20% - 80%; Storage: 10% - 90%
Warranty: 3-year
What's in the Box: E375343: EMV Cradle, QIG, Micro USB Cable (E367617), 2x M3x8 screws; E586981, E710930: EMV Cradle, QIG, Micro USB Cable (E367617), 4x M3x6 screws; E458992, E458797, E352169, E906829, E458605, E990282, E990468, E996512, E990654: EMV Cradle, QIG, Screws; E920661: EMV Cradle, QIG, 3' USB Cable (Type-A to micro, charging only), Screws

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
