End of lifeElo Touch · Accessory
Elo Touch EMV Cradles (previous model)
EMV payment devices require additional space and have varied mounting requirements based on your POS Terminal or self-service kiosk setup. With Elo’s fully integrated EMV cradles, mounting is simple,
Overview

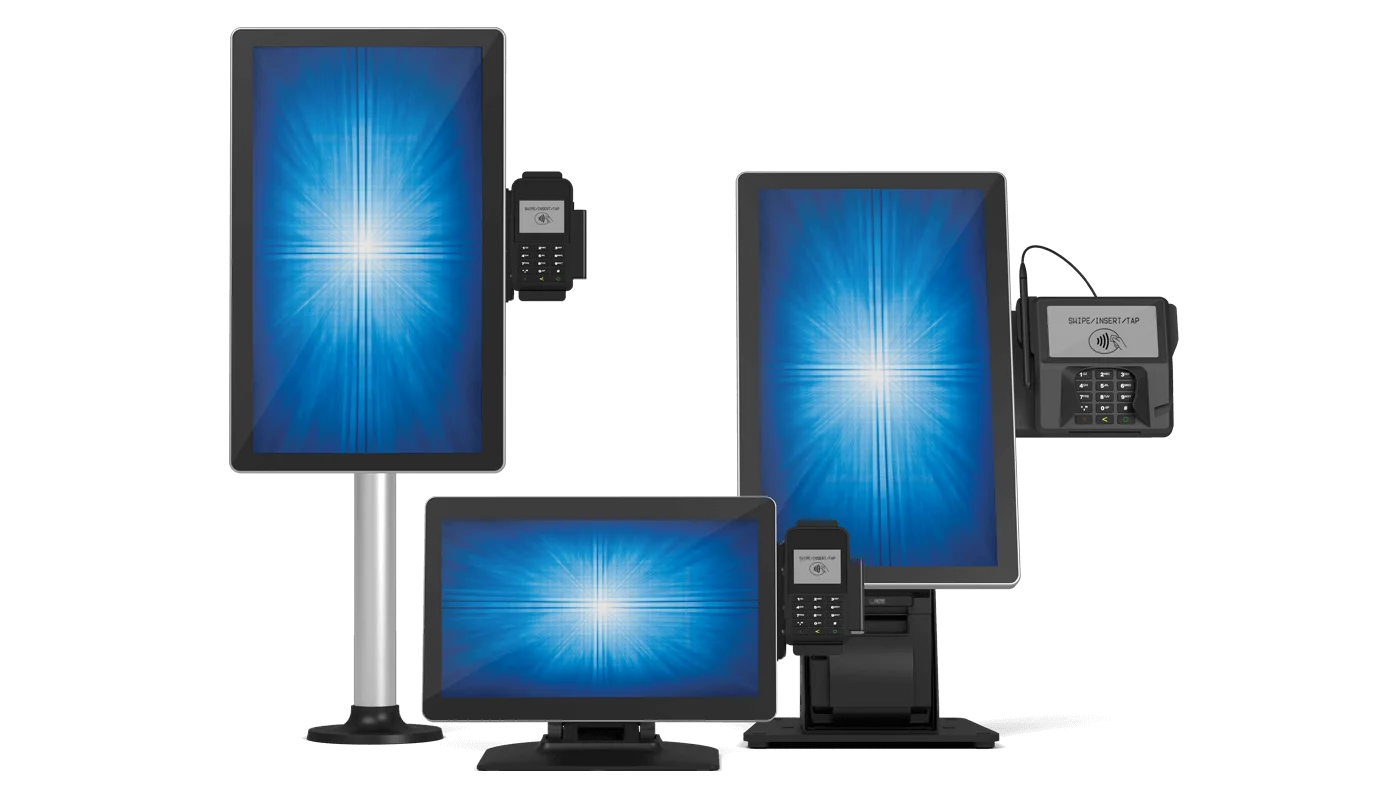

EMV payment devices require additional space and have varied mounting requirements based on your POS Terminal or self-service kiosk setup. With Elo’s fully integrated EMV cradles, mounting is simple, seamless, and secure. The cradles attach to the side of the interactive display or to the stand itself, supporting a variety of Verifone, Ingenico and MagTek payment devices. The sturdy metal design is built to withstand the rigors of continuous public use expected in retail environments. Start enabling the customer to control the checkout process with confidence and ease at any point of sale system. Creating endless aisle, product configurators, self-service, mPOS, POS applications and more is now easier than ever.
- POS and kiosk management can be even easier with EloView™. A revolutionary interactive platform, EloView is a secure management platform for remote content delivery and device management. Whether you need to push new content to a device or simply change the screen brightness, EloView has got you covered. EloView software provides device setup, remote management, alerts, attract loops, and the ability to securely upgrade the operating system, applications, and content.
Specifications
Technical
- Part Number(s)
- EMV Cradle for Ingenico ICMP (I-Series, 02-Series Monitors) - E200465; EMV Cradle for Ingenico ICMP (IDS 03-Series) - E200788; EMV Cradle for Ingenico ICMP (PayPoint) - E953516; EMV Cradle for Verifone E355 (I-Series, 02-Series Monitors) - E201088; EMV Cradle for Verifone E355 (IDS 03-Series) - E201363; EMV Cradle for Verifone E355 (PayPoint) - E002639; For Wallaby Stands (E796783, E796965 + E797162) only 15" & 22" I-Series:; EMV Cradle for Verifone MX915 & Ingenico iSC250 - E798125; EMV Cradle for Ingenico iPP320/350/315 - E699053; EMV Cradle for Ingenico LANE3000 – E410697
- Enclosure Color
- Black
- Compatibility
- Select EMV Cradles are Compatible with Elo Touchscreens; E798125, E699053, E410697: I-Series 2/3 AiO Interactive Displays (15" & 22") on Wallaby Stands; E200465, E201088: I-Series AiO Interactive Displays (10'', 15'' & 22''); E200465, E201088: 02-Series (1002L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L) Touchscreen Monitors; E200788, E201363: IDS (3203L, 4303L, 5503L) Touchscreen Signage; E953516, E002639: PayPoint (Android and Windows)
- Mounting Options
- Portrait or Landscape
- Interface
- E798125, E699053: USB for power and data; E200465, E200788, E953516, E201088, E201363, E002639: USB for power (charging only), Bluetooth for data
- Weight (Unpackaged)
- E200465: 2.03 lbs / 0.92 kg; E200788: 1.12 lbs / 0.51 kg; E953516: 0.93 lbs / 0.42 kg; E201088: 2.10 lbs / 0.95 kg; E201363: 1.04 lbs / 0.47 kg; E002639: 0.99 lbs / 0.45 kg; E798125: 3.53 lbs / 1.60 kg; E699053: 2.76 lbs / 1.25 kg
- Weight (Packaged)
- E200465: 2.29 lbs / 1.04 kg; E200788: 1.41 lbs / 0.64 kg; E953516: 1.19 lbs / 0.54 kg; E201088: 2.31 lbs / 1.05 kg; E201363: 1.43 lbs / 0.65 kg; E002639: 1.21 lbs / 0.55 kg; E798125: 4.17 lbs / 1.89 kg; E699053: 3.88 lbs / 1.76 kg
- Shipping Box Dimensions
- E200465, E200788, E201088, E201363, E953516, E002639: 5.91'' x 11.4'' x 2.76'' / 150mm x 290mm x 70mm; E798125: 17.95” x 12.24” x 4.76” / 456mm x 311mm x 121mm; E699053: 12.80” x 14.37” x 5.71” / 325mm x 365mm x 145mm
- Operating Temperature
- 0° C to 40° C / 32° F to 104° F
- Storage Temperature
- -20° C to 60° C / -4° F to 140° F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 90%
- Warranty
- 3-year
- What's in the Box
- E200465, E200788, E201088, E201363: EMV Cradle, USB Cable (Type-A to micro, charging only); E953516, E002639: EMV Cradle, USB Cable (Type-A to micro, charging only), USB mini to Type-A adapter; E798125, E699053: EMV Cradle, QIG, Tie-wraps, Screws; E410697: EMV Cradle, QIG, Screws
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Discontinued
- Replacement
- new EMV Cradles
- Status basis
- elotouch.com lists it as replaced by new EMV Cradles
