Elo Touch · Accessory

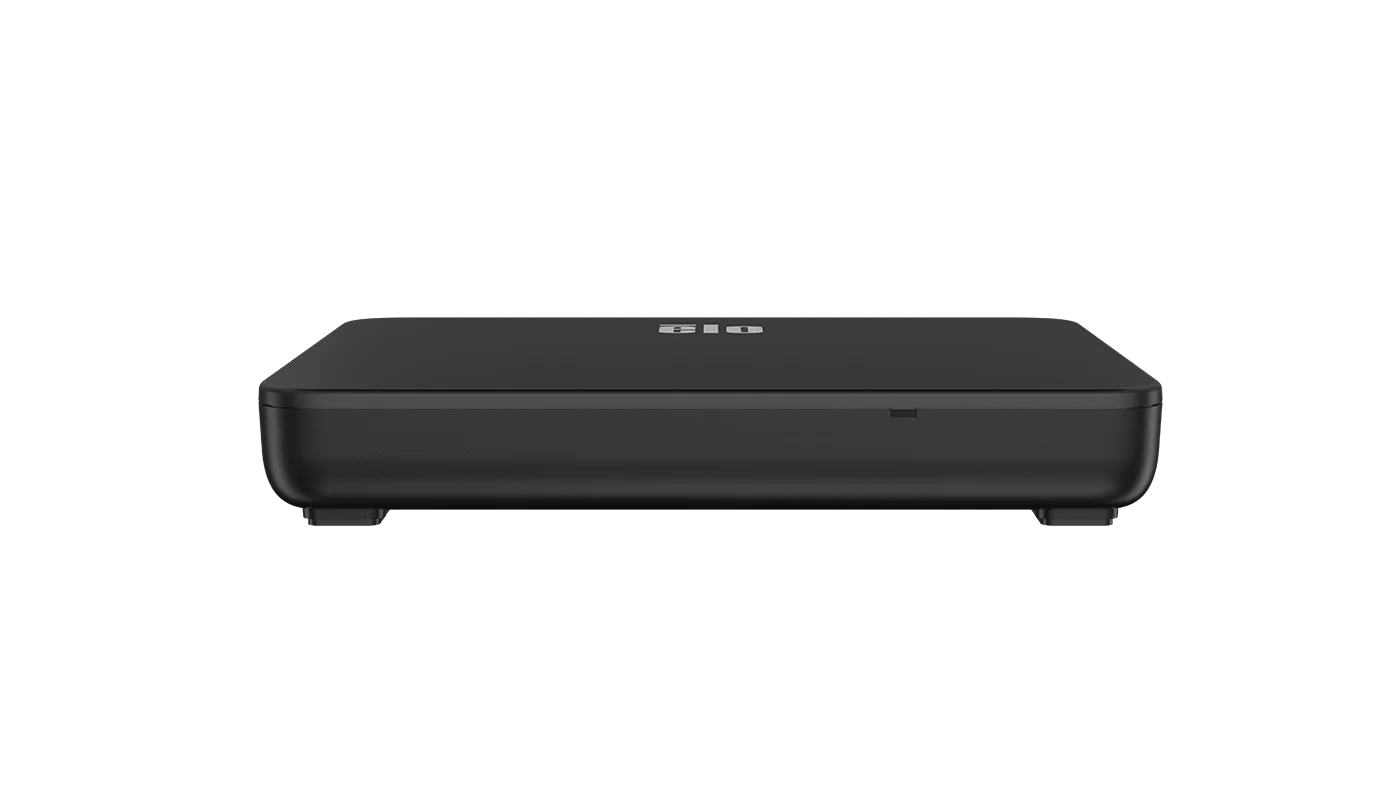

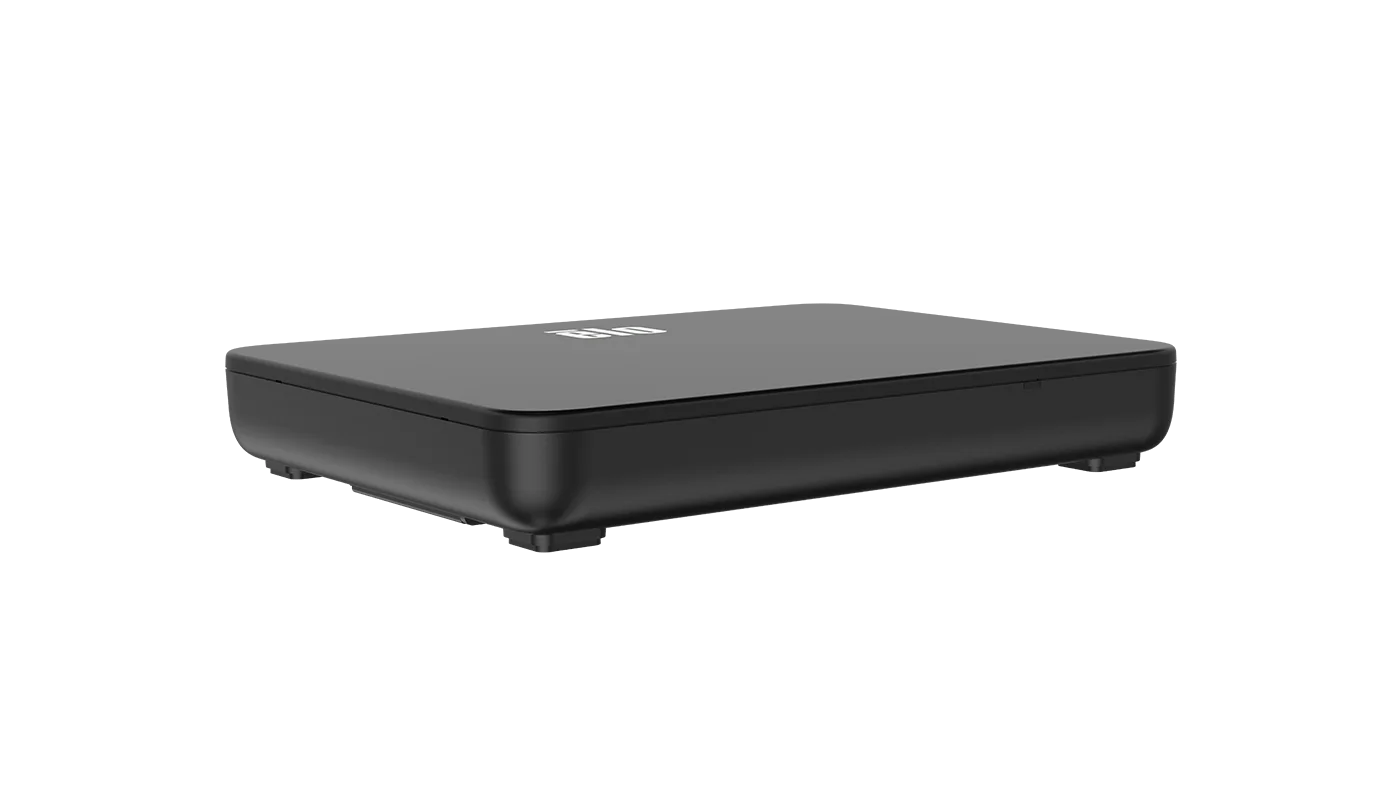

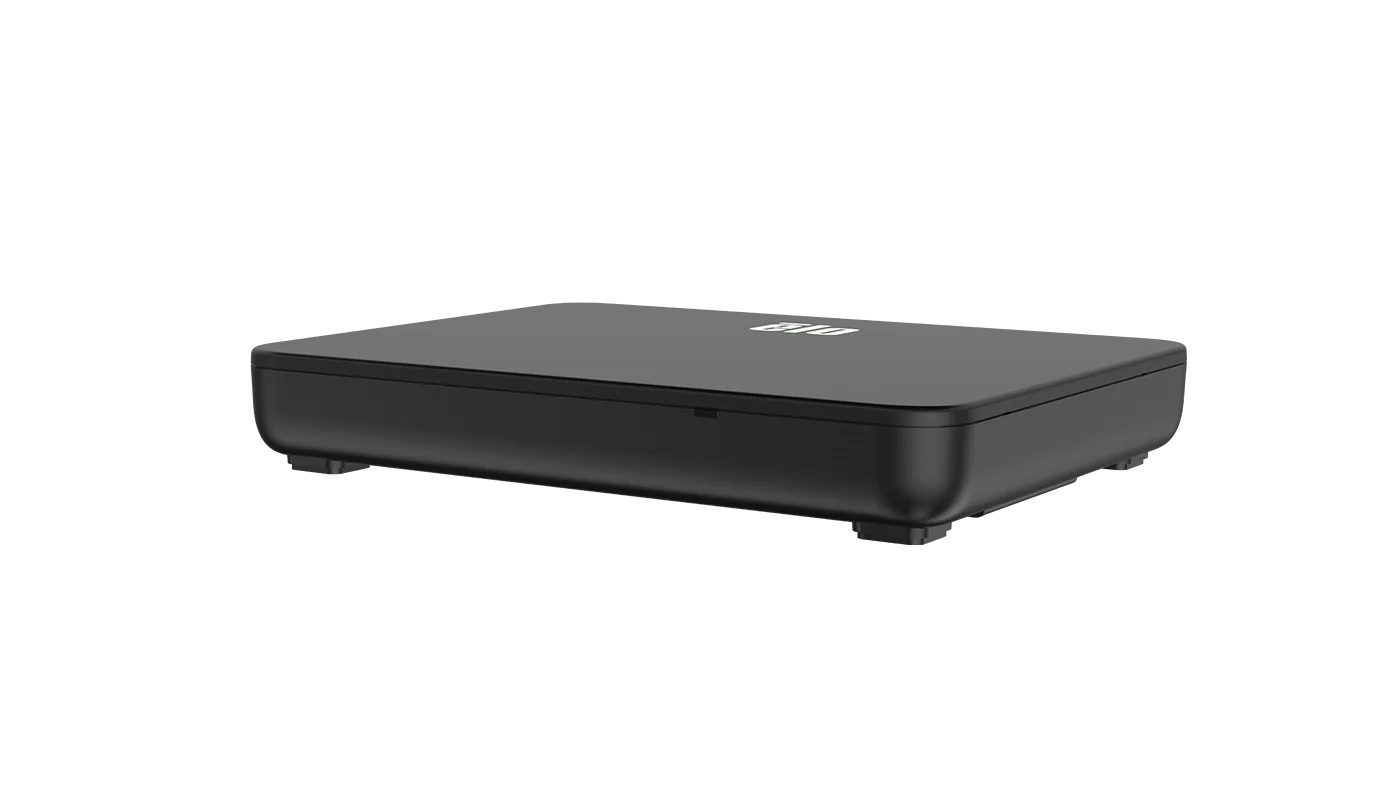

Elo Touch EM10 Expansion Module
Specifications
Technical
- Part Number(s)
- E863687
- Enclosure Color
- Black
- Compatibility
- DS10 Docking Station; Touchscreen monitors with USB C: 1002L, 1302L, 1502L

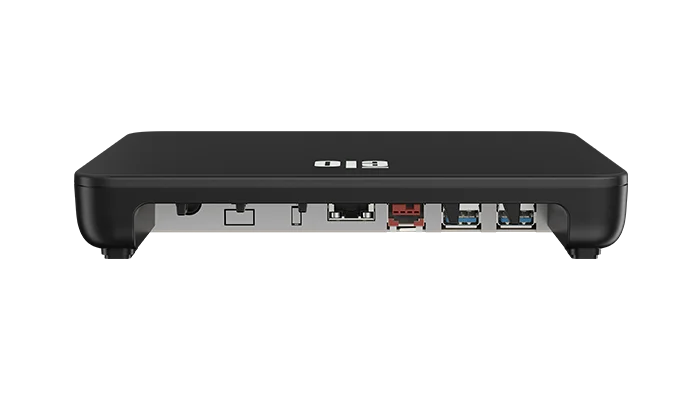

- I/O Ports
- 24V DC IN Jack Connector; USB- Type C; USB- Type C - Display Out; Ethernet 10/100/1000 Mbps; 24V Powered USB; 4 x USB 3.0 Type A
- Dimensions
- 7.32" x 5.82" x 1.14" / 186 mm x 148 mm x 29 mm
- Shipping Box Dimensions
- 9.25" x 6.85" x 5.51" / 235 mm x 174 mm x 140 mm
- Mounting Options
- Countertop (Refer to QIG for more details)
- Weight (Unpackaged)
- 0.99 lbs / 0.45 kg
- Weight (Packaged)
- 3.31 lbs / 1.5 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 95%
- Regulatory approvals and declarations
- UL, FCC (US) - Class B; cUL, IC (Canada); CB (International safety); CE (Europe) - Class B; VCCI (Japan); RCM (Australia); China RoHS
- MTBF
- 50,000 hours demonstrated
- Warranty
- 1-year
- What's in the Box
- Power Adapter (150W(24V/6.25A); US power cord; EU power cord; 1 x USB-C to USB-C cable (1.8mm); 6 x Tie Wraps; 2 x M4 Screws; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
