Elo Touch · Accessory
Elo Touch EloPOS Pack with Windows 10
The EloPOS Pack delivers a powerful enterprise-ready compute platform in a sleek, compact form factor. Backed by the security and infrastructure of a Windows-based system with Intel’s Q370 Chipset and
- Operating systemNo OS; Windows 10 IoT Enterprise LTSC 64-bit
Overview
The EloPOS Pack delivers a powerful enterprise-ready compute platform in a sleek, compact form factor. Backed by the security and infrastructure of a Windows-based system with Intel’s Q370 Chipset and the speed of the Intel’s 9th gen processors, the EloPOS Pack provides the power you need to run your business. With versatile connectivity options, plug in anything from Elo’s latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. The system provides flexibility to make upgrades as your business requirements change.
- From point-of-sale terminals and self-service kiosks to automation controls, the EloPOS Pack offers the connectivity and durability to thrive under the demands of continuous use.
- Purpose-built to accommodate compact spaces, the EloPOS Pack boasts a smaller footprint in both size and weight than other commercial-grade PCs.
- Easily secure the EloPOS Pack to any counter in a snap. Attach the mounting bracket to your desired location and simply clip it into place. And for added security, you can use the Kensington locks.
- With 16 connection ports, you can connect all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices — there is a port to connect it all.
- *Based on Passmark scores comparing 9th generation i3 and i5 vs the competitors current 6th and 7th generation processors
Specifications
Technical
- Part Number(s)
- Win 10, G4900T, 4GB RAM, 128GB SSD - E943670; Win 10, G4900T, 8GB RAM, 128GB SSD - E923382; Win 10, i3-9100TE, 8GB RAM, 128GB SSD - E944068; Win 10, i5-9500TE, 8GB RAM, 128GB SSD - E945053; Win 10, i5-9500TE, 8GB RAM, 256GB SSD - E102709; Win 10, i5-9500TE, 16GB RAM, 256GB SSD - E981371; Win 10, i5-9500TE, 32GB RAM, 256GB SSD - E496697; No OS, G4900T, 4GB RAM, 128GB SSD - E943471; No OS, G4900T, 8GB RAM, 128GB SSD - E930351; No OS, i3-9100TE, 8GB RAM, 128GB SSD - E943864; No OS, i3-9100TE, 16GB RAM, 128GB SSD - E948191; No OS, i5-9500TE, 8GB RAM, 128GB SSD - E944853; No OS, i5-9500TE, 8GB RAM, 512GB SSD - E945259; No OS, i5-9500TE, 16GB RAM, 128GB SSD - E948397; No OS, i5-9500TE, 32GB RAM, 256GB SSD - E511521; No OS, i7-9700TE, 32GB RAM, 256GB SSD - E511713
- Enclosure Color
- Black
- Processor
- Celeron: Intel Celeron Processor G4900T (2M Cache, up to 2.9 GHz); i3: Intel Core i3-9100TE Processor (6M Cache, 3.20 GHz); i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) Intel vPro Support; i7: Intel Core i7-9700TE Processor (12M Smart Cache, up to 3.80 GHz by Intel Turbo Boost Technology 2.0) Intel vPro Support
- Chipset
- Intel Q370 Express
- Graphics
- Celeron: Intel UHD Graphics 610; i3, i5 & i7: Intel UHD Graphics 630
- BIOS
- AMI
- Active Management Technology (AMT)
- Active Management Technology (Intel AMT 11.0) support
- Trusted Platform Module (TPM)
- TPM 2.0
- Memory (RAM)
- Celeron: 4GB 2133MHz DDR4 SO-DIMM on 1 of 4 slots (Expandable to 64GB maximum on 4 slots); i3, i5, i7: 8GB 2133MHz DDR4 SO-DIMM on 1 of 4 slots (Expandable to 64GB maximum on 4 slots); NOTE: Maximum memory using 4 slots. Expandable up to 64GB maximum, SO-DIMM DDR4-2133. Check brand of the memory included in your unit before purchasing the memory kit.
- Storage
- 128GB M.2 SATA SSD 72 TBW; GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
- Compatibility
- Select Models:; 90-Series Open Frames (SAW & PCAP); Large Format Open Frames; Touchscreen Signage (supports a maximum resolution of 1920 x 1080), 7001LT; 02-Series Touchscreen Monitors; Any HDMI-capable display, without touch support
- Control Buttons
- Power
- Wireless
- 802.11 a/b/g/n/ac 2.4GHz and 5GHz
- Bluetooth
- Bluetooth 5.0
- I/O Ports

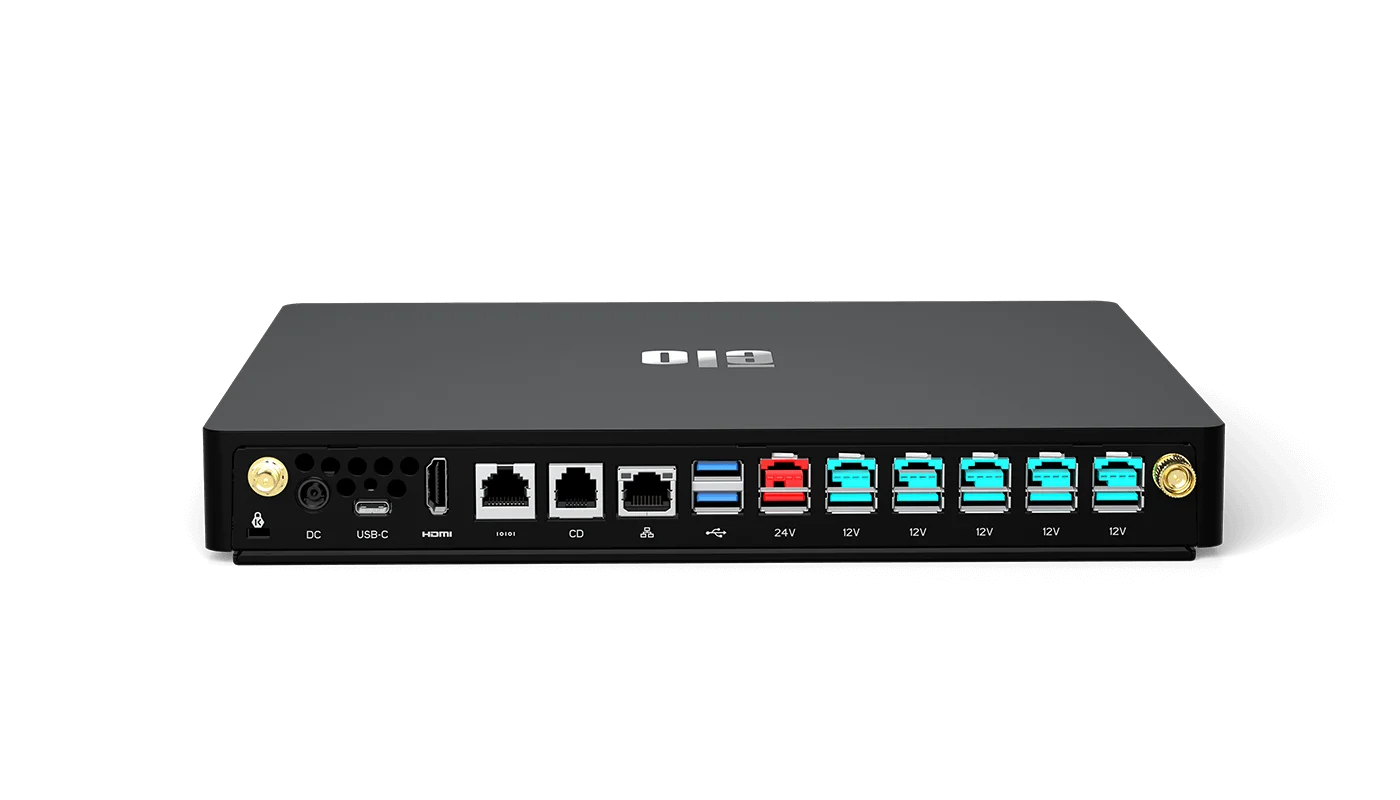

- 1 x HDMI port; 1 x LAN RJ45 (Gigabit); 2 x USB 3.0 (Front side); 2 x USB 3.0 (Rear side); 1 x 24V on I/O; 5 x 12V on I/O; 1 x RJ50; 1 x 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch); 1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port); 1 x 3.5 mm headset jack
- Antenna
- 2T2R design with External SMA connector
- OS
- No OS; Windows 10 IoT Enterprise LTSC 64-bit
- OS Languages
- Windows 10 - 36 Language groups
- Power Supply
- External 24VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 180W
- Power Consumption (Typical)
- ON Celeron: 32.415 W; ON i3: 48.87 W; ON i5: 55.34 W; ON i7: 65 W; SLEEP BIOS EUP Disable:
- Mounting Options
- Bracket mounts to table with screws; System slides forward to engage hooks on bracket
- Other Features
- Serviceable internal components; Kensington Nano Security Slot; Kensington lock slot (standard size).
- Dimensions
- 10.9" x 1.4" x 9.4" / 276 mm x 37 mm x 237.5 mm
- Shipping Box Dimensions
- 16.3" x 6.7" x 13.6" / 414 mm x 169 mm x 346 mm
- Weight (Unpackaged)
- 5.76 lbs / 2.6 kg
- Weight (Packaged)
- 11.02 lbs / 5.0 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 10% to 90%; Storage: 0% to 95% (38.7℃ max wet bulb temperature)
- Real-Time Clock
- CR2032 lithium metal battery
- Storage Upgrade Options
- 256GB M.2 SATA SSD – Elo P/N: E206556, E762128, E503575; 512GB M.2 SATA SSD – Elo P/N: E865041
- Memory Upgrade Options
- 4GB DDR4 Memory SO-DIMM – Elo P/N: E275416, E951667, E952623, E952056; 8GB DDR4 Memory SO-DIMM – Elo P/N: E275635, E951857, E952813, E952252; 16GB DDR4 Memory SO-DIMM – Elo P/N: E953014, E952437
- MTBF
- 50,000 hours demonstrated
- Regulatory approvals and declarations
- UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC, UKCA
- Energy Star
- i3 and i5 - 8.0
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E896120; 5 year warranty coverage - Elo P/N: E896322; 3 year warranty coverage + AUR - Elo P/N: E896699; 4 year warranty coverage + AUR - Elo P/N: E896903; 5 year warranty coverage + AUR - Elo P/N: E897104
- What's in the Box
- EloPOS Pack; North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch); EU Power Cord (1800+/-50mm); Power Adapter – 180W; Cable RJ-50 to DB-9 (900+/-30mm), (3 ft +/- 1 inch); USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch); HDMI cable (1800+/-50mm), (6 ft +/- 1 inch); USB cable (1800+/-50mm), (6 ft +/- 1 inch); 2x SMA Antenna; Quick Installation Guide (QIG)
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
