Elo Touch EloPOS Pack 2 with Intel
High Performance Compute
- Operating systemNo OS; Windows 11 IoT Enterprise LTSC 64-bit
Overview

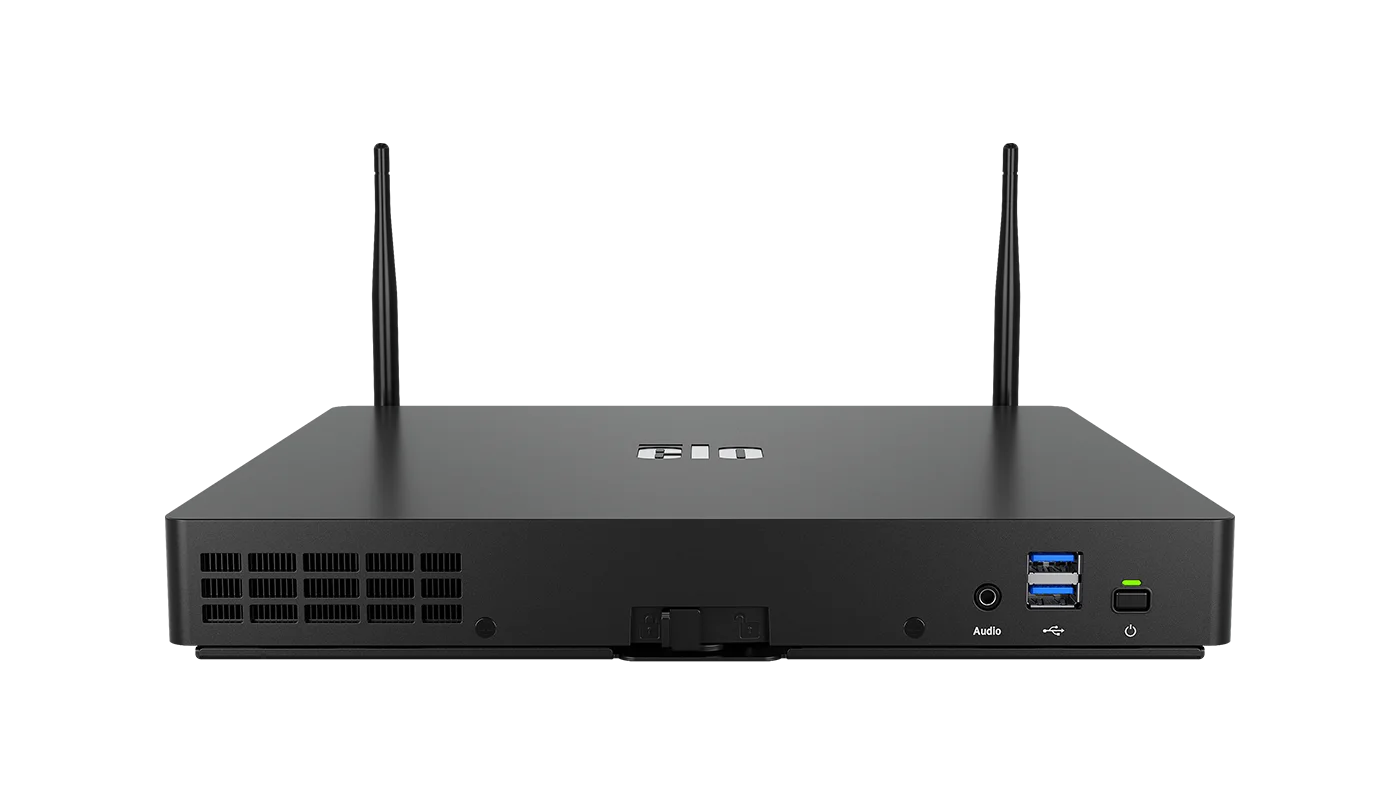

The EloPOS Pack 2 delivers a high performance enterprise- grade computing solution in a sleek, compact form factor. Backed by the security and infrastructure of an Intel- based system with the speed of 14th gen Raptor Lake processors, the EloPOS Pack 2 provides the power you need to run your business.
- Purpose-built to accommodate compact spaces, the EloPOS Pack 2 boasts a smaller footprint in both size and weight than typical commercial-grade PCs.
- Easily secure the EloPOS Pack 2 to any counter in a snap. Attach the mounting bracket to your desired location and simply clip it into place. And for added security, you can use the Kensington locks.
- Easily pair the EloPOS Pack 2 with your monitor of choice to create the perfect solution for your self-checkout and POS lanes.
- With 17 connection ports, you can connect all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices — there is a port to connect it all.
- Experience unparalleled AI processing power with the EloPOS Pack 2, featuring optional Hailo Neural Processing Engine capable of executing 50 TOPS (trillion operations per second). Available with select i7 processor models.
Best for: Retail POS Systems · Windows Retail POS Systems · Linux Retail POS Systems
Specifications
Technical
- Part Number(s)
- No OS, G6900T, 8GB, 128GB - E198884; Win 11, G6900T, 8GB, 128GB - E261603; No OS, i3-14100T, 8GB, 256GB - E261806; Win 11, i3-14100T, 8GB, 256GB - E262004; No OS, i5-14500T, 8GB, 256GB - E262189; Win 11, i5-14500T, 8GB, 256GB - E262377; No OS, i5-14500T, 16GB, 256GB - E262561; Win 11, i5-14500T, 16GB, 256GB - E262761; No OS, i5-14500T, 8GB, 512GB - E262957; Win 11, i5-14500T, 8GB, 512GB - E263167; No OS, i7-14700T, 16GB, 256GB - E263352; Win 11, i7-14700T, 16GB, 256GB - E263537; No OS, i7-14700T, 32GB, 1TB (Hailo Neural Processing Engine) - E166131
- Enclosure Color
- Black
- Processor
- Celeron: Intel Celeron Processor G6900T (4M Cache, up to 2.8 GHz); i3: Intel Core™ i3- 14100T Processor (12M Cache, up to 4.4 GHz by Intel Turbo Boost Technology 2.0); i5: Intel Core™ i5- 14500T Processor (24M Smart Cache, up to 4.8 GHz by In-tel® Turbo Boost Technology 2.0) Intel vPro Support; i7: Intel Core™ i7- 14700T Processor (33M Smart Cache, up to 5.2 GHz by In-tel® Turbo Boost Technology 3.0) Intel vPro Support
- Chipset
- Intel Q670 Express
- Graphics
- Celeron: Intel UHD Graphics 710; i3: Intel UHD Graphics 730; i5 & i7: Intel UHD Graphics 770
- BIOS
- AMI
- Active Management Technology (AMT)
- Celeron, i3: N/A; i5, i7: Active Management Technology (Intel AMT 11.0) support
- RAID
- Intel Volume Management Device (VMD) technology for select SKUs
- Trusted Platform Module (TPM)
- TPM 2.0
- Memory (RAM)
- Celeron, i3: 8GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots); i5: 8GB or 16GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots); i7: 16GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots); NOTE: Maximum memory using 2 slots. Expandable up to 64GB maximum, SO-DIMM DDR5-5600. Check brand of the memory included in your unit before purchasing the memory kit.
- Storage
- Celeron: 128GB M.2 PCIe (NVMe) SSD3, 80 TBW; i3: 256GB M.2 PCIe (NVMe) SSD3, 160 TBW; i5: 256GB M.2 PCIe (NVMe) SSD3, 160 TBW or 512GB M.2 PCIe (NVMe) SSD3, 320 TBW; i7: 256GB M.2 PCIe (NVMe) SSD3, 160 TBW; GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
- Compatibility
- Select Models:; 94-Series Open Frames; 02-Series Touchscreen Monitors; 23-Series Touchscreen Monitors; 70-Series Touchscreen Monitors; Any HDMI-capable display, without touch support
- Control Buttons
- Power
- Wireless
- 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
- Bluetooth
- Bluetooth 5.3
- I/O Ports

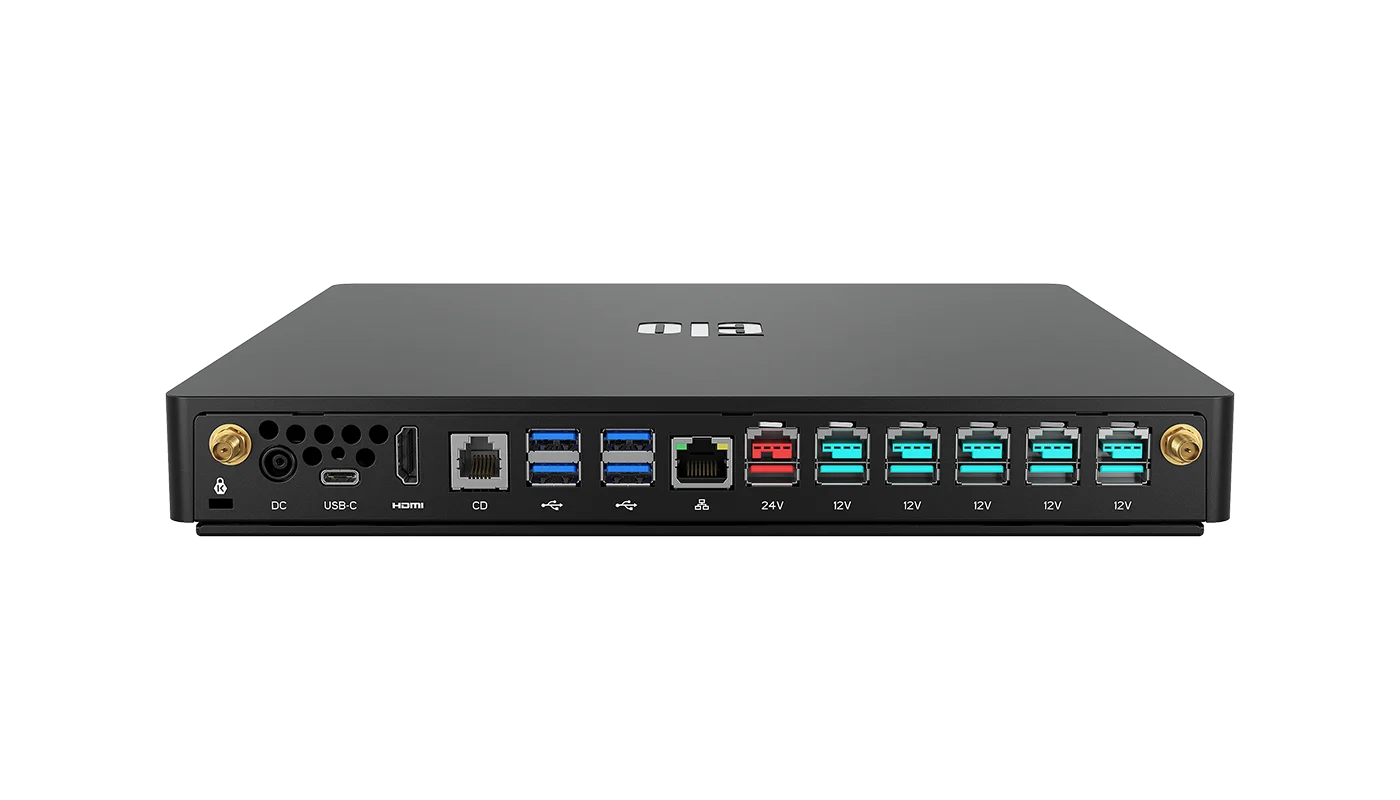

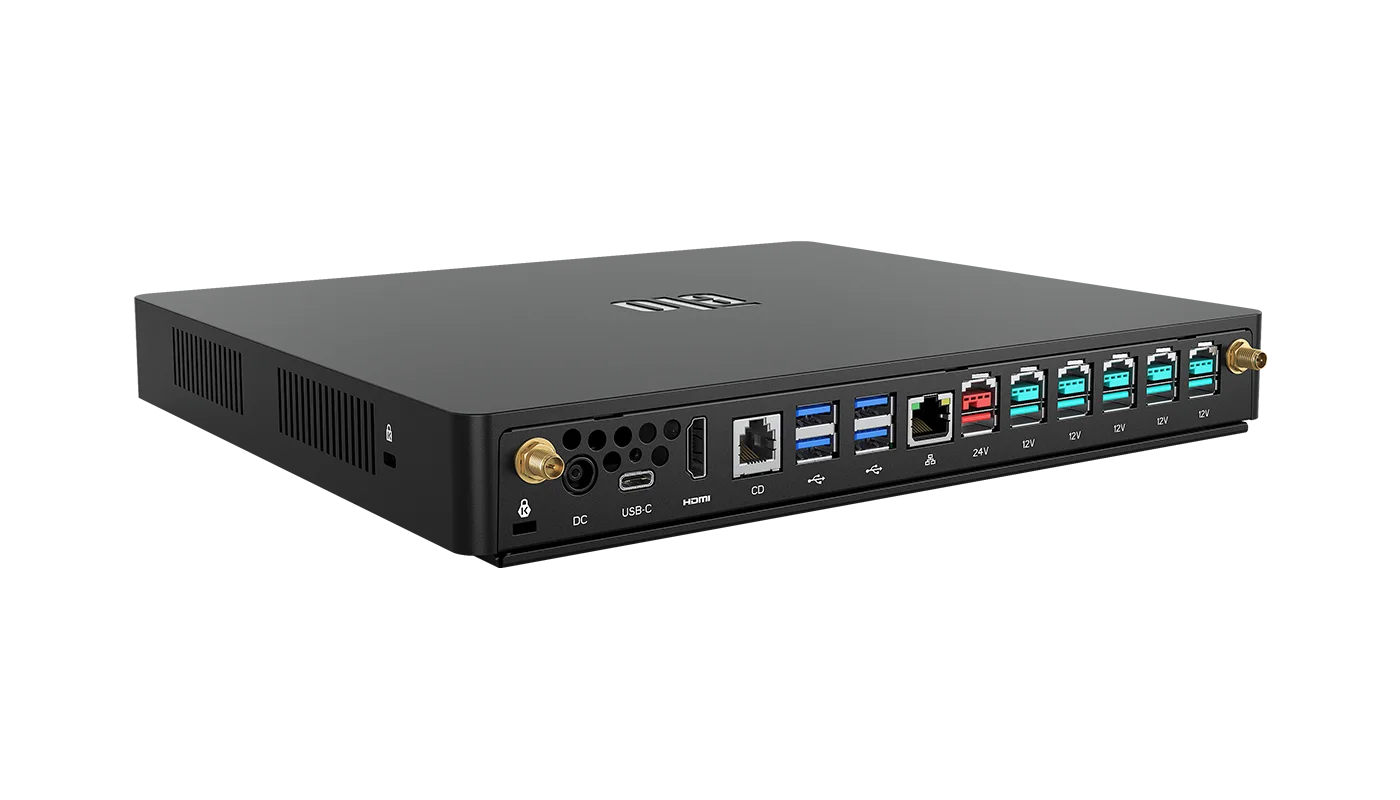

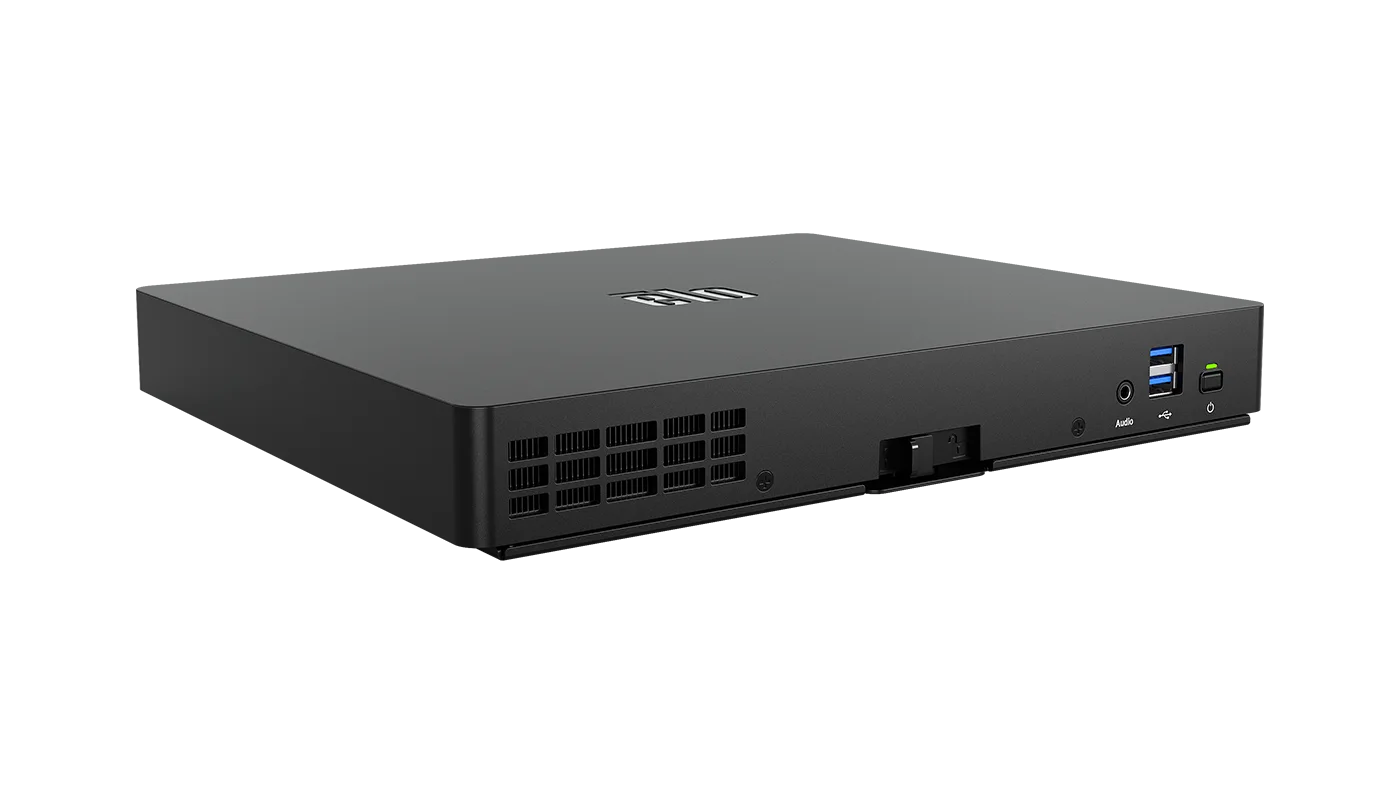

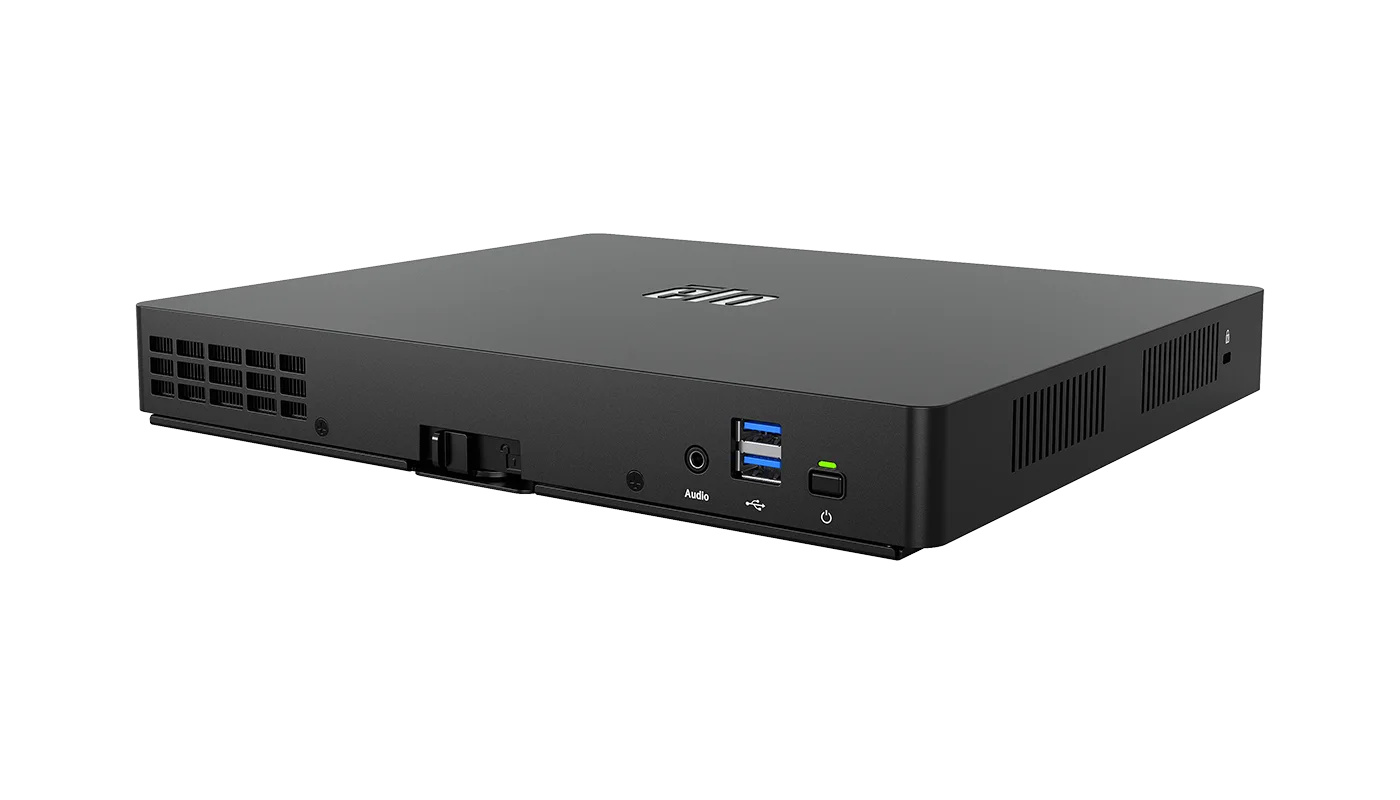

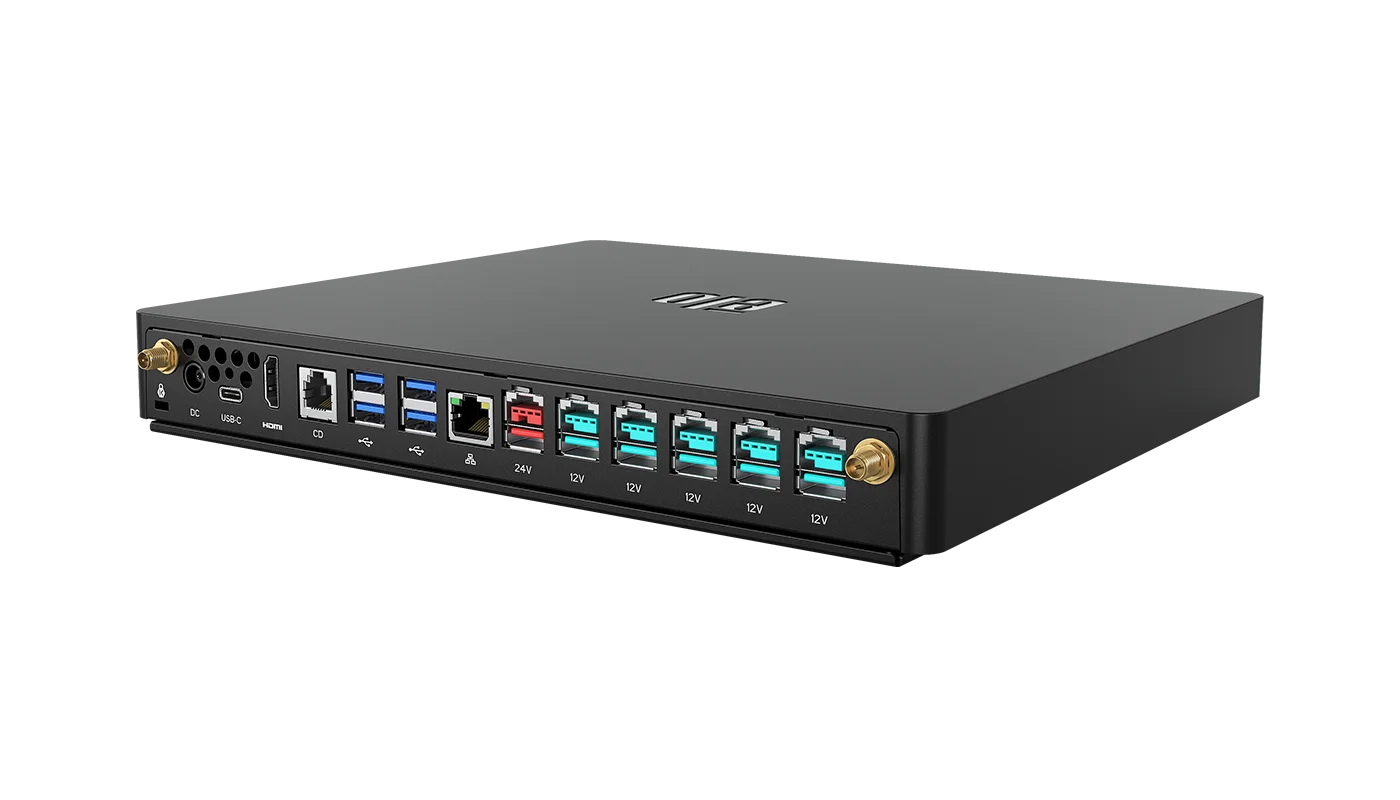

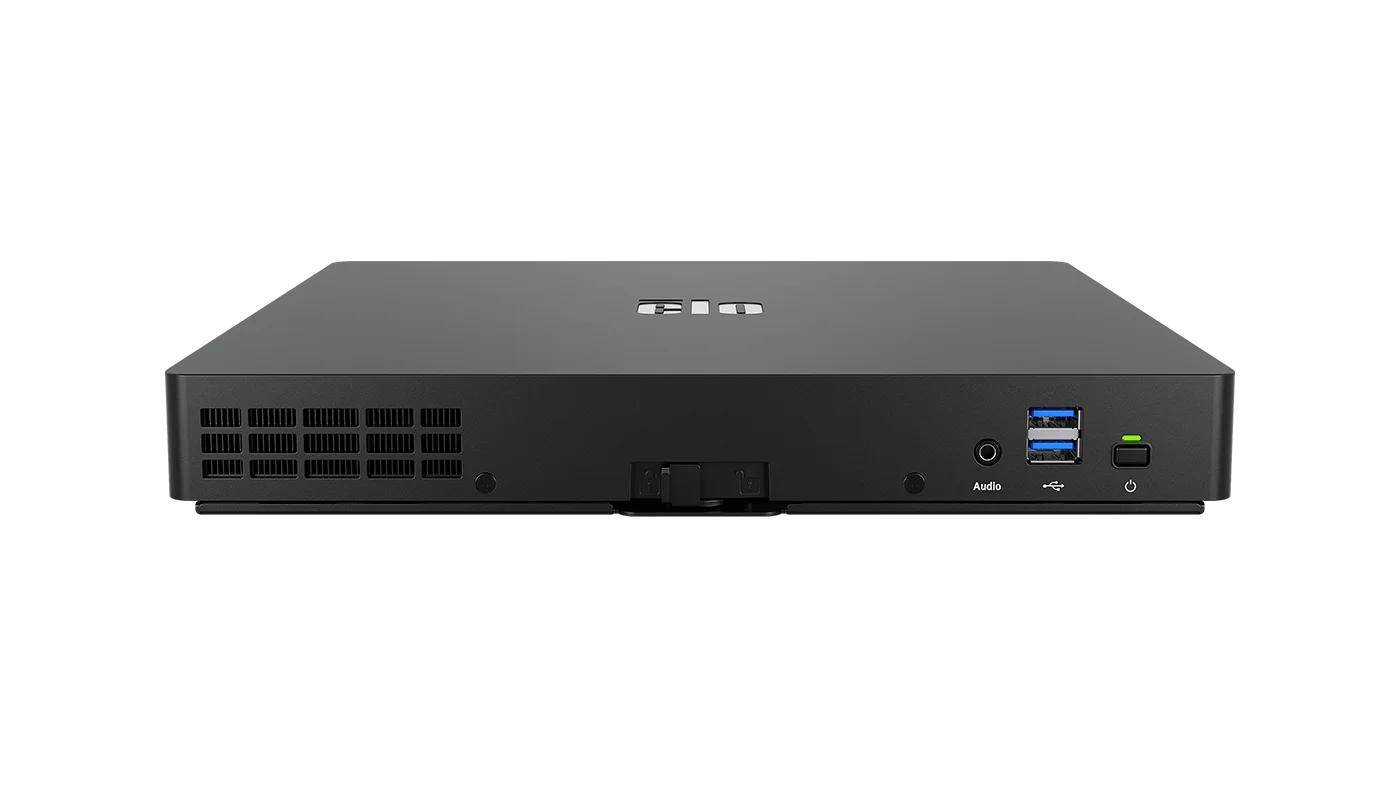

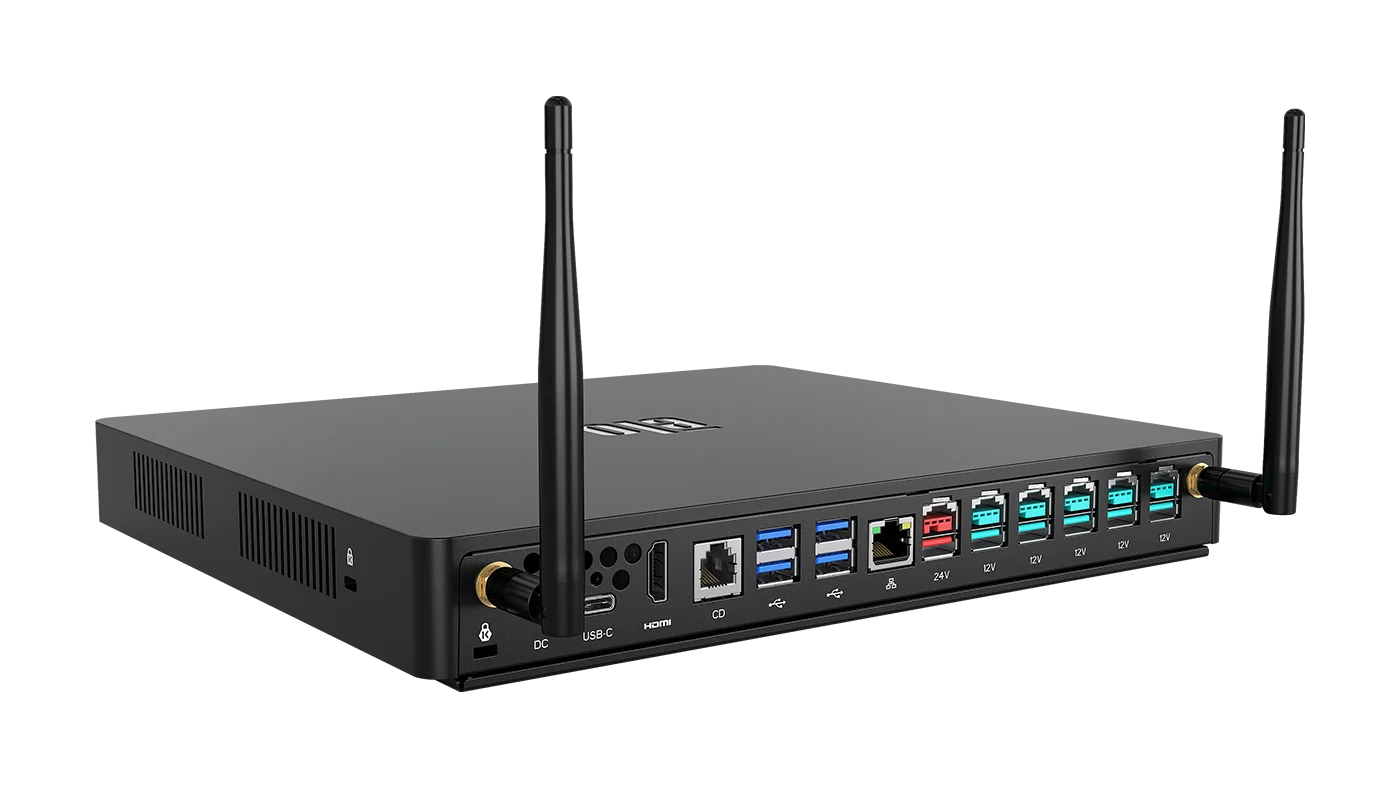

- 1x HDMI port; 1x LAN RJ45 (Gigabit); 2x USB 3.0 (Front side); 4x USB 3.0 (Rear side); 1x 24V Powered USB; 5x 12V Powered USB; 1x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by internal switch); 1x Full-function USB-C (Power up to 27W, PD 5V-3A/9V-3A/15V-1.8A/20V-1.35A, USB 3.0, Display Port); 1x 3.5 mm headset jack
- Antenna

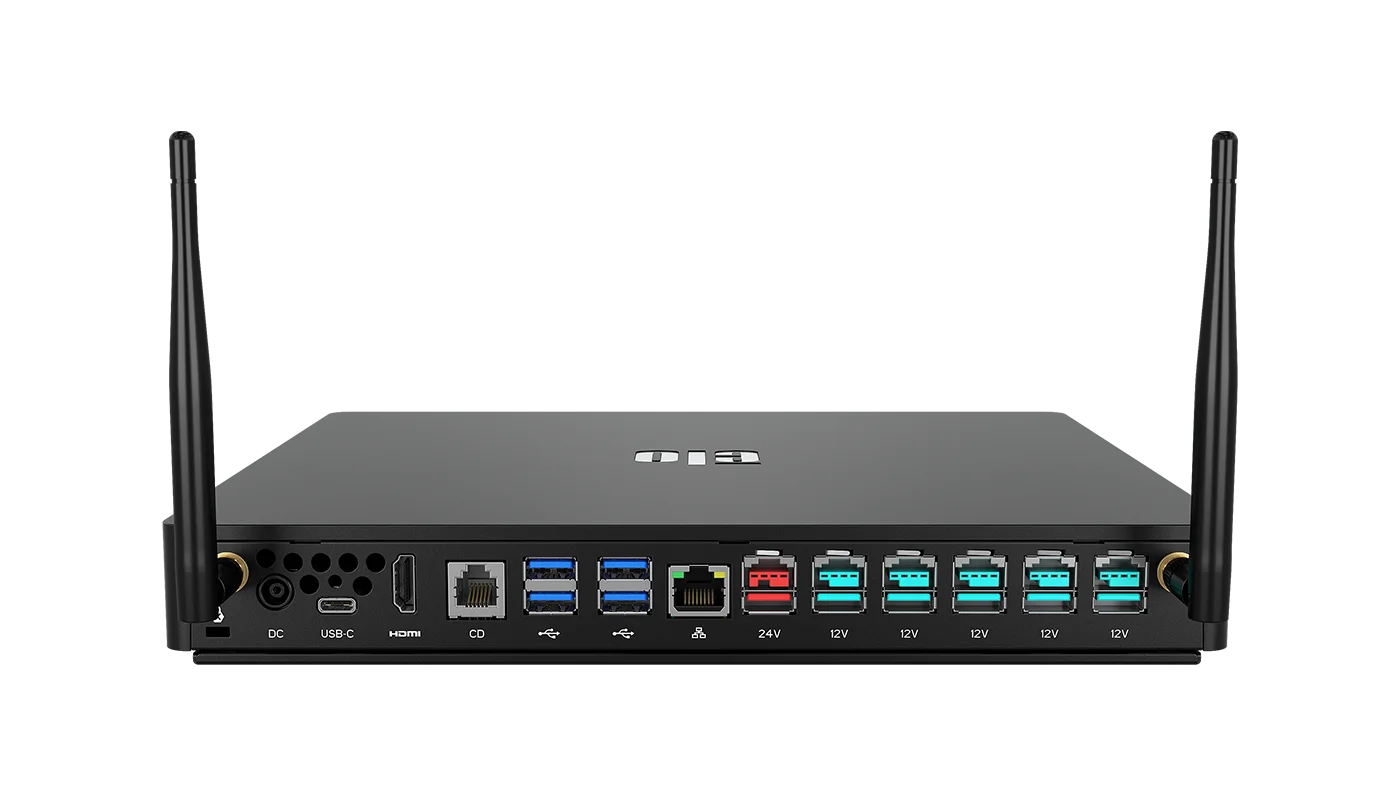

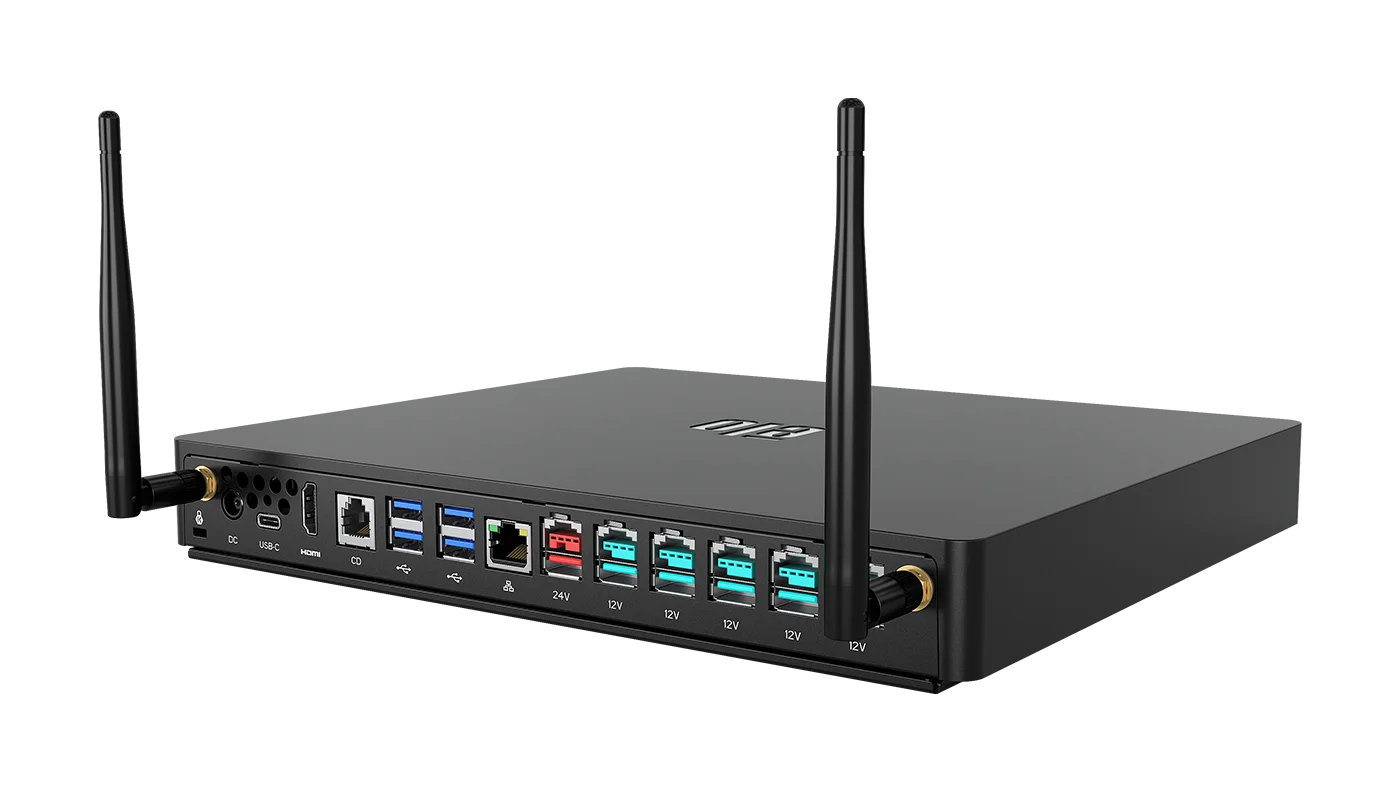

- 2T2R design with External SMA connector
- OS
- No OS; Windows 11 IoT Enterprise LTSC 64-bit
- OS Languages
- Windows 10 - 36 Language groups
- Power Supply
- External 24VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 180W
- Power Consumption (Typical)
- ON Celeron: 35W (8GB DIMM/128GB SSD). Don't exceed 145W for all peripherals load.; ON i3: 63W (8GB DIMM/256GB SSD). Don't exceed 117W for all peripherals load.; ON i5: 62W (8GB DIMM/512GB SSD). Don't exceed 118W for all peripherals load.; ON i7: 63W (16GB DIMM/256GB SSD). Don't exceed 117W for all peripherals load.; SLEEP:
- Mounting Options
- Bracket mounts to table with screws; System slides forward to engage hooks on bracket
- Other Features
- Serviceable internal components; Kensington Nano Security Slot; Kensington lock slot (standard size).
- Dimensions
- 10.9" x 1.4" x 9.4" / 276 mm x 37 mm x 237.5 mm
- Shipping Box Dimensions
- 14.3" x 6.1" x 13.3" / 365 mm x 156 mm x 338 mm
- Weight (Unpackaged)
- 5.76 lbs / 2.6 kg
- Weight (Packaged)
- 10.14 lbs / 4.6 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 10% to 90%; Storage: 0% to 95% (38.7℃ max wet bulb temperature)
- Real-Time Clock
- CR2450 lithium metal battery
- Storage Upgrade Options
- M.2 PCIe (NVMe) 128GB SSD – Elo P/N: E466613; M.2 PCIe (NVMe) 256GB SSD – Elo P/N: E466803
- Memory Upgrade Options
- 8GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466053; 16GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466237; 32GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466430
- MTBF
- 50,000 hours demonstrated
- Regulatory approvals and declarations
- United State UL, FCC; Canada cUL, IC; Germany, TUV; Europe CE; Australia RCM; United Kingdom UKCA; International CB; Japan VCCI, MIC; China CCC, SRRC; Mexico NOM; RoHS CoC
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E896120; 5 year warranty coverage - Elo P/N: E896322; 3 year warranty coverage + AUR - Elo P/N: E896699; 4 year warranty coverage + AUR - Elo P/N: E896903; 5 year warranty coverage + AUR - Elo P/N: E897104
- What's in the Box
- EloPOS Pack; North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch); EU Power Cord (1800+/-50mm); Power Adapter – 180W; USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch); HDMI cable (1800+/-50mm), (6 ft +/- 1 inch); USB cable (1800+/-50mm), (6 ft +/- 1 inch); 2x SMA Antenna; Quick Installation Guide (QIG)
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
