Elo Touch · Handheld computer

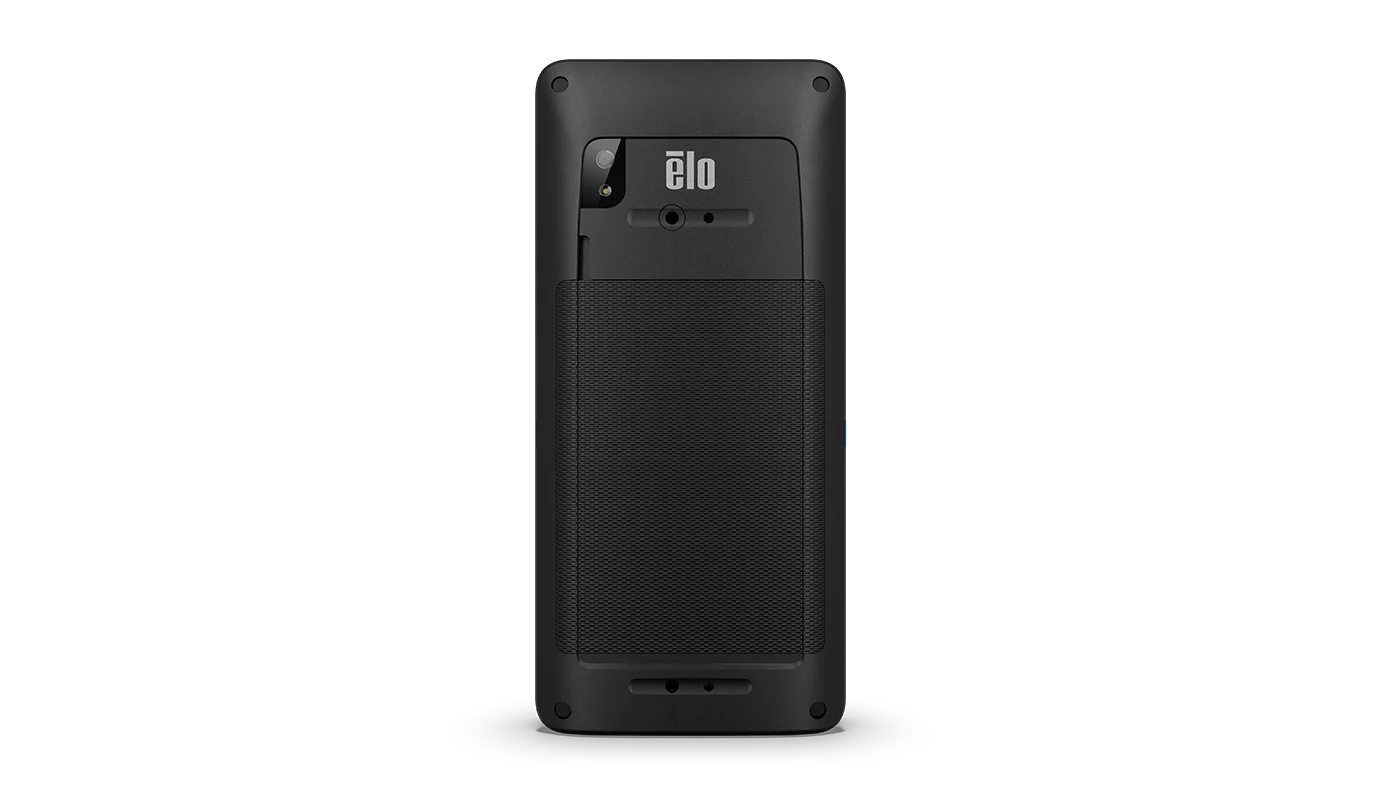

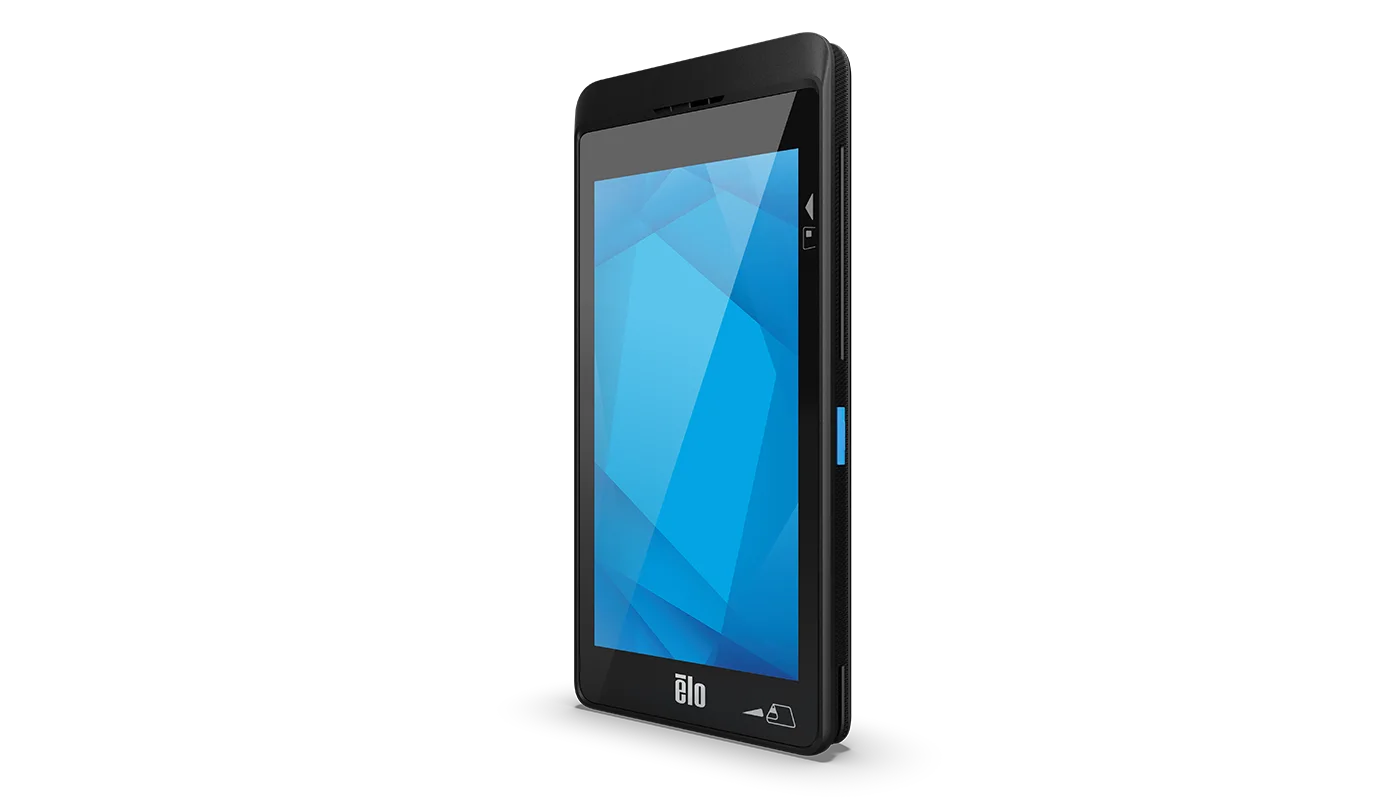

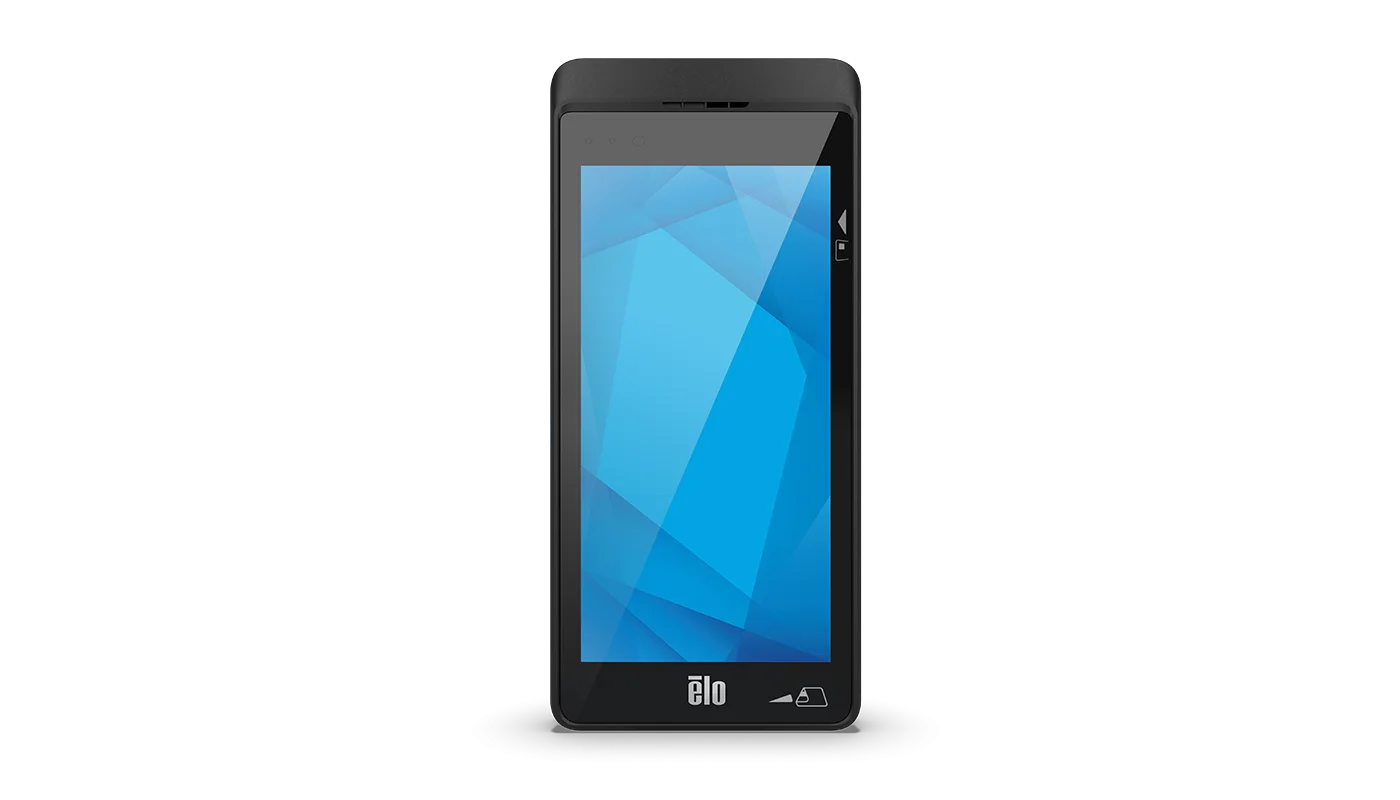

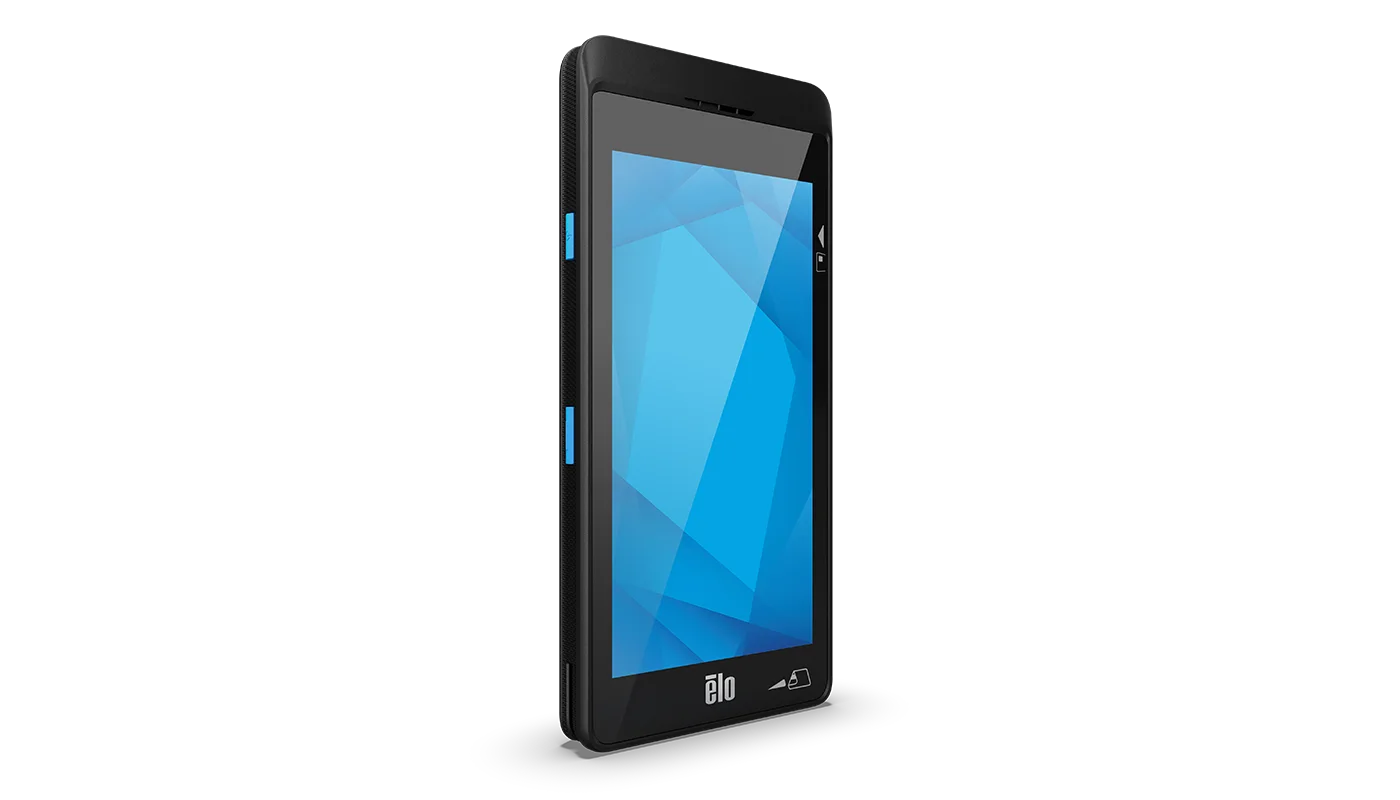

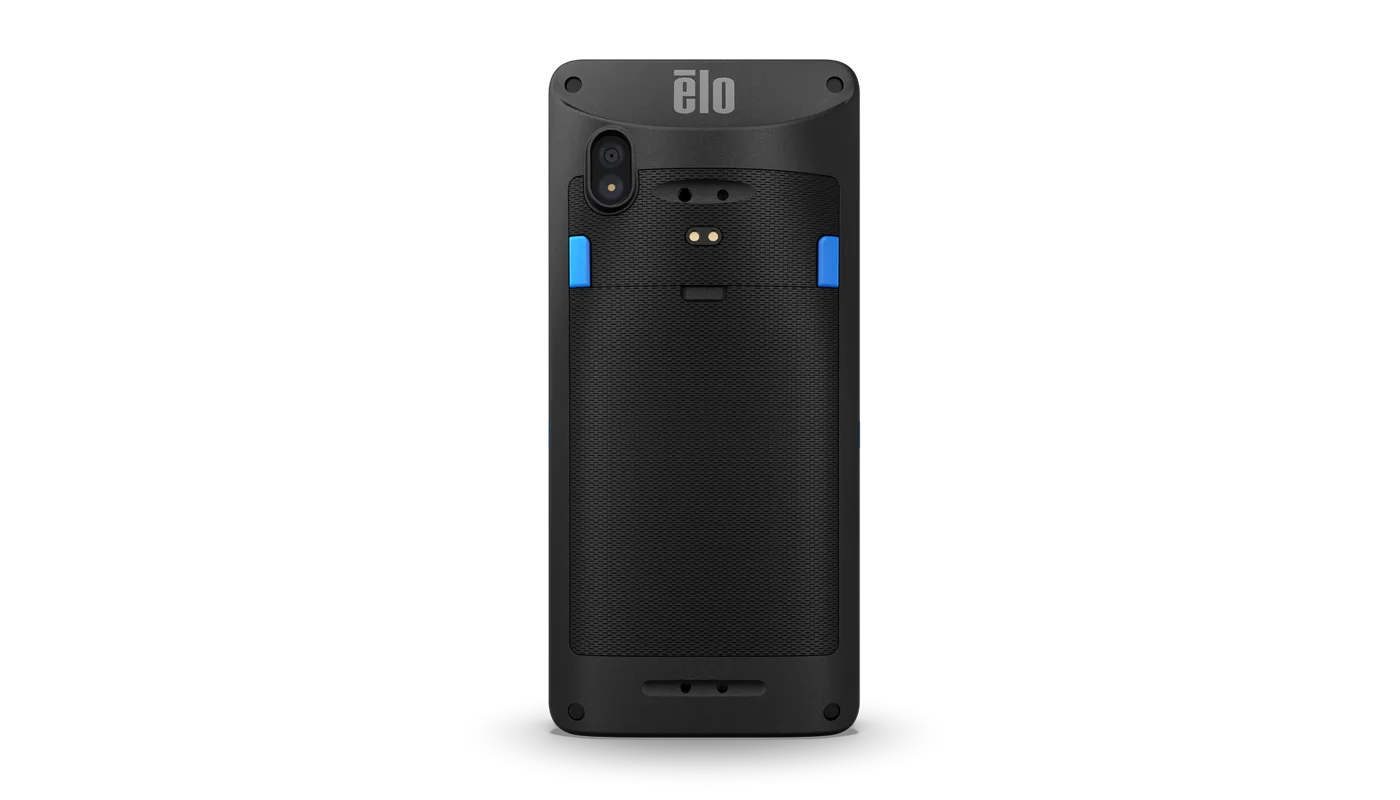

Elo Touch Elo Pay M60 Mobile POS Computer

Accept payments anytime. Anywhere.

Operating systemAndroid 10 with Google Play Services (AOSP capable); Android 12 with Google Play Services (AOSP capable)…
ScanningSE4720 scan engine (1D/2D Imager)*; *on M60S/M60SC models only
BatteryRechargeable Li-Polymer, 3.8V/4000mAh; Serviceable battery; Qualcomm Quick Charge 4
SealingIP54 per IEC standard 60529

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Designed to support your everyday business, the Elo Pay M60 delivers an enterprise-grade, Android mobile point of sale system ready to help you assist customers.

The Elo Pay M60 offers built-in mPOS capabilities to accept payments, conduct business, and track sales all from the palm of your hand.
Complete with a 6-inch HD touch display, integrated payment, flexible Android 10 OS and Qualcomm 660 octa-core processor, the handheld pos computer provides seamless integration, effortless provisioning and simplified device management via EloView or your preferred 3rd‑party MDM.
Are you looking for a cellular or Wi-Fi enabled mobile computer? Do you want an integrated 2D barcode scanner? The Elo Pay M60 has been designed to offer the configuration your business needs.
L1 and L2 CertifiedThe Elo Pay API allows you to easily integrate the M60 in your payment process.
L3 CertifiedElo Pay does the processor certifications for you so you can easily setup your M60 devices to accept payments.

Best for: POS Systems for Restaurants · Mobile Computers for Restaurants · Retail POS Systems · Elo Pay Retail POS Systems

Specifications

Technical

Part Number(s): M60C, Android 10, Cellular (AT&T, T-Mobile, TELUS), United States, Canada - E862945; M60C, Android 10, Cellular (Open Carrier), Europe - E993295; M60, Android 10, WiFi, Worldwide - E863128; M60SC (with barcode scanner), Android 10, Cellular (AT&T, T-Mobile, TELUS), United States, Canada - E898054; M60SC (with barcode scanner), Android 12, Cellular (AT&T, T-Mobile, TELUS), United States, Canada - E678059; M60SC (with barcode scanner), Android 10, Cellular (Open Carrier), Europe - E897852; M60S (with barcode scanner), Android 10, WiFi, Worldwide - E897667; M60S (with barcode scanner), Android 12, WiFi, Worldwide - E678244
Enclosure Color: Black
Touch Technology & Capacity: PCAP (Projected Capacitive) - 2 Touch
Processor: Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor
Memory (RAM): 3GB
Storage: 32GB
Expansion Options: MicroSD up to 32GB SDHC and up to 256 GB SDXC; Option to support 1x nano-SAM card via a Micro SD slot.
OS: Android 10 with Google Play Services (AOSP capable); Android 12 with Google Play Services (AOSP capable); Planned upgrade to Android 14 available with OS 360 subscription
Display: 6” Optically Bonded High Definition LCD
Touchscreen: Projective capacitive with Corning Gorilla Glass; Water rejection; Anti-Fingerprint Coating
Sensor: Light sensor (automatically adjust backlight brightness); Proximity sensor (disable display and touch when user places against head); Accelerometer
Resolution: 1440 x 720
Brightness (typical): 430 nits
Contrast Ratio: 1500:1
Battery: Rechargeable Li-Polymer, 3.8V/4000mAh; Serviceable battery; Qualcomm Quick Charge 4
Cellular: Available on cellular SKU’s with user accessible nano SIM slot.; LTE US, Canada Carriers: AT&T, T-Mobile, TELUS; LTE Europe: Open Carrier; Supported bands; US Models:; WCDMA: B2, B4, B5; LTE: B2, B4, B12, B13, B66; EMEA Models:; WCDMA: B1, B8; LTE: B1, B3, B7, B8, B20
GPS: Simultaneous GNSS Receiver for GPS, GLONASS, Galileo and BeiDou; AGPS support; (for cellular models only)
I/O Ports: USB Type-C for display, charging and data
Camera: 8MP Auto-Focus with Flash LED and Flashlight (Torch)
Payment: EMV Contactless ISO 14443-A/B, MiFare, ISO-18092; EMV Chip Card Reader (chip and pin-on-glass); 3-track MSR ISO 7810/7811
Certifications: PCI-PTS 6.x (PCI Approval Number: 4-30470); EMV L1 & L2; Visa PayWave; Mastercard PayPass; Amex ExpressPay; Discover D-PAS; UnionPay QuickPass; JCB J/Speedy; EFTPOS; COMMON.SECC; Interac Flash; Mastercard TQM; Apple Pay™; Google Pay™; Samsung Pay™
Barcode Scanner: SE4720 scan engine (1D/2D Imager)*; *on M60S/M60SC models only
Wireless: 802.11a/b/g/n/ac with 2x2 MU-MIMO
Bluetooth: Bluetooth 5.0
LED: 1x combination Green/Amber LED for battery/charging status; 1x combination Blue/Red user programmable LED
Keyboard: On screen keyboard
Audio: Microphone; 1W Front facing speaker; USB-C headset support
Buttons: Left and Right Programmable buttons; Left and Right BCR trigger buttons (for M60S/M60SC BCR SKUs only); Power Button
Dimensions: M60/M60C: 7.32" x 3.40" x 0.77" / 186 mm x 86.4 mm x 19.5 mm; M60S/M60SC: 7.32" x 3.40" x 1.27" / 186 mm x 86.4 mm x 32.3 mm
Shipping Box Dimensions: M60/M60C: 8.86" x 5.70" x 2.95" / 225 mm x145 mm x 75 mm; M60S/M60SC: 8.86" x 5.70" x 3.82" / 225 mm x 145 mm x 97 mm
Weight (Unpackaged): M60: 0.79 lbs / 362 g; M60C: 0.82 lbs / 370 g; M60S: 0.87 lbs / 396 g; M60SC: 0.89 lbs / 403 g
Weight (Packaged): M60: 1.61 lbs / 730 g; M60C: 1.63 lbs / 740 g; M60S: 1.74 lbs / 789 g; M60SC: 1.75 lbs / 795 g
Operating Temperature: 0°C to 50°C / 32°F to 122°F
Storage Temperature: -30°C to 60°C / -22°F to 140°F
Humidity: 5% to 95% non-condensing
Regulatory approvals and declarations: UL, FCC (US) - Class B; cUL, IC (Canada); CB (International safety); CE (Europe) - Class B; RCM (Australia); China RoHS
ESD: Class C: 8kV contact, 15kV air
Drop Rating: Multiple 1m drops
Tumble Rating: 200 tumbles, 1.6ft./0.5m per IEC 60068-2-32
Warranty: 1-year
Extended Service Options: 2 year warranty coverage - Elo P/N: E764955; 3 year warranty coverage - Elo P/N: E765148; 4 year warranty coverage - Elo P/N: E765352; 5 year warranty coverage - Elo P/N: E765553; 2 year warranty coverage + AUR - Elo P/N: E765759; 3 year warranty coverage + AUR - Elo P/N: E765956; 4 year warranty coverage + AUR - Elo P/N: E766156; 5 year warranty coverage + AUR - Elo P/N: E766346; 3 year warranty coverage + ADP - Elo P/N: E672040; 5 year warranty coverage + ADP - Elo P/N: E672239; 1 year warranty coverage + AUR + ADP - Elo P/N: E894512; 3 year warranty coverage + AUR + ADP - Elo P/N: E672440; 5 year warranty coverage + AUR + ADP - Elo P/N: E672646; 3 year OS 360 - Elo P/N: E873133
OS Support: Monthly Android security updates available with Elo OS 360 package.
Sealability: IP54 per IEC standard 60529
What's in the Box: Elo M60 Pay; USB Type C Charger with Qualcomm Quick Charge 4.0; Quick Install Guide
Optional Accessories: EM10 Expansion Module - Elo P/N: E863687; RB11 Rubber Boot (for M60 without scanner models) - Elo P/N: E321842; RB11 Rubber Boot (for M60S scanner models) - Elo P/N E701320; DS11 Docking Station (HS11 Hand Strap included) - Elo P/N: E392249; DC11 4 Slot Device Charger (for M60 without scanner models) - Elo P/N: E392443; DC11 4 Slot Device Charger (for M60S scanner models with scan handle) - Elo P/N: E731838; DC11 4 Slot Device Charger (for M60S scanner models with boot and scan handle) - Elo P/N: E707586; HS11 Hand Strap - Elo P/N: E534488; SC11 Scan Handle (for M60S scanner models) - Elo P/N: E696483

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
