Elo Touch · Accessory
Elo Touch Elo Edge Connect Webcam
The Elo Edge Connect Webcam makes it is easy to implement facial recognition applications. From offering customers tailored menus, loyalty discounts and augmented experiences to supporting visitors wi
Overview
The Elo Edge Connect Webcam makes it is easy to implement facial recognition applications. From offering customers tailored menus, loyalty discounts and augmented experiences to supporting visitors with virtual assistants, increasing customer satisfaction is simple with the Webcam. With full HD video, an 8MP USB camera, integrated microphone and compatibility with standard USB Video Class (UVC) drivers, the webcam is designed to seamlessly integrate with a variety of Elo interactive displays making it easy to develop solutions across form factors.

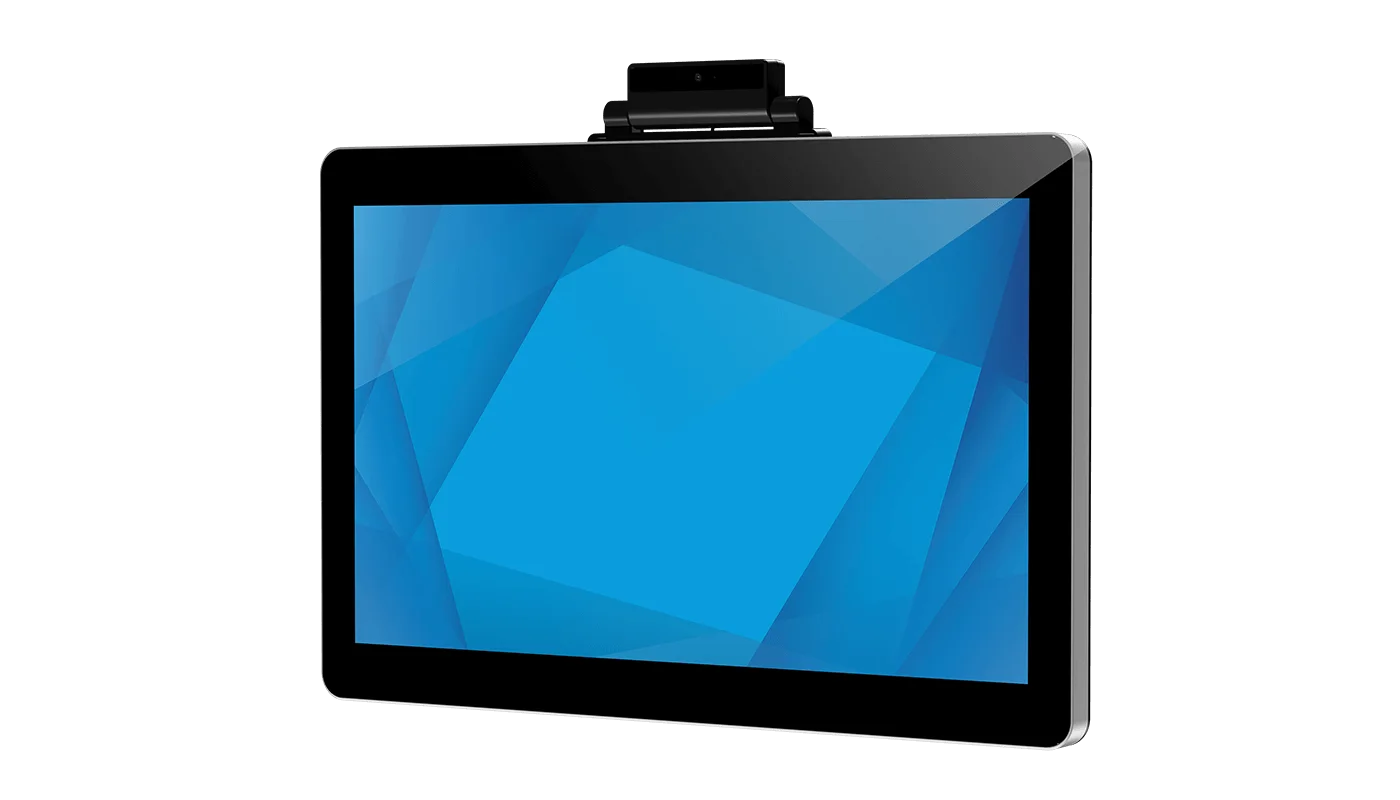

- Built on the Elo Edge Connect platform, the Webcam can be easily integrated with a variety of Elo touchscreens. Simply attach, orient the webcam and get started.
- Our modular design provides our customers with the building blocks to configure a multitude of solutions* - making it easy to deploy a variety of solutions from self-service and virtual assistants to augmented reality experiences. Enhance the way your customers and employees interact in-store and at work by deploying a new generation of interactive technologies.
- To maintain social distancing, companies are implementing virtual assistants across stores, offices and entertainment venues, allowing visitors and customers to interface with remote personnel for help. From chatting with an on-demand receptionist to gaining access to a building or receiving a personalized consultation from a pharmacist about a medication, the Elo Edge Connect Webcam enables a personal connection.
- With facial recognition technology, businesses can delight their customers with a personal touch. They can deliver a menu tailored to recent orders, provide personalized recommendations for complementary items and offer exclusive loyalty rewards to both enhance their customers’ experience and drive sales.
- Virtual health solutions provide convenient access to healthcare providers to help save time, increase satisfaction and deliver a lower cost of care. Whether from a medical cart, in a physician’s office or in a patient room, pair Elo’s interactive displays with the Edge Connect Webcam to help engage, educate and personalize care for patients outside traditional office visits.
Specifications
Technical
- Part Number(s)
- E201494
- Enclosure Color
- Black
- Resolution
- 8MP (3264 x 2448); Full HD (1920 x 1080); HD (1280 x 720); VGA (640 x 480)
- Video Format
- YUY2 / MJPG
- Frame Rate
- 25 fps @ FHD - MJPG format; 5 fps @ FHD - YUY2 format; 30 fps @ HD - MJPG format; 10 fps @ HD - YUY2 format
- Lens Composition
- 5 Plastic + IR Filter (6E)
- Field of View
- Mechanical (M) - 79.2°±5%; Diagonal (D) - 74.4°±5%; Horizontal (H) - 62.3°±5%; Vertical (V) - 48.9°±5%
- Focus Type
- Auto Focus
- Focus Distance
- 3.9" / 10 cm
- Focus Range
- 3.8" ~ 13" / 9.7 cm ~ 33 cm
- Microphone
- 1ch D-Mic
- LED Color
- White
- Interface
- Micro USB (USB 2.0)
- UVC Compatible
- Yes - UVC 1.5
- UAC Compatible
- Yes – UAC 1.0
- Input Voltage
- 5VDC
- Supported Operating Systems
- Windows 7/8.1/10; MAC-OS X 10.4.8 or later; Android OS 7.1 or later; Linux with UVC (above linux-2.6.26)
- SDK Info
- USB HID Camera, No, SDK requirement
- Dimensions
- 4.7" x 1.8" x 0.57" / 119.02 mm x 46.36 mm x 14.31 mm
- Shipping Box Dimensions
- 6.9" x 4.5" x 2.7" / 175 mm x 114 mm x 69 mm
- Weight (Unpackaged)
- 0.12 lb / 0.054 Kg
- Weight (Packaged)
- 0.33 lb / 0.15 Kg
- Operating Temperature
- 10°C to 40°C / 50°F to 104°F
- Storage Temperature
- 0°C to 50°C / 32°F to 122°F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 90%
- Warranty
- 2-year
- What's in the Box
- 2D Webcam; 2 Mounting screws; 2 Mylar screw covers; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
