Elo Touch · Accessory
Elo Touch Elo Edge Connect Status Light
The Elo Edge Connect Status Light provides a sleek, low profile solution for highlighting status and availability for various applications on your favorite Elo products. From conference room availabil
Overview

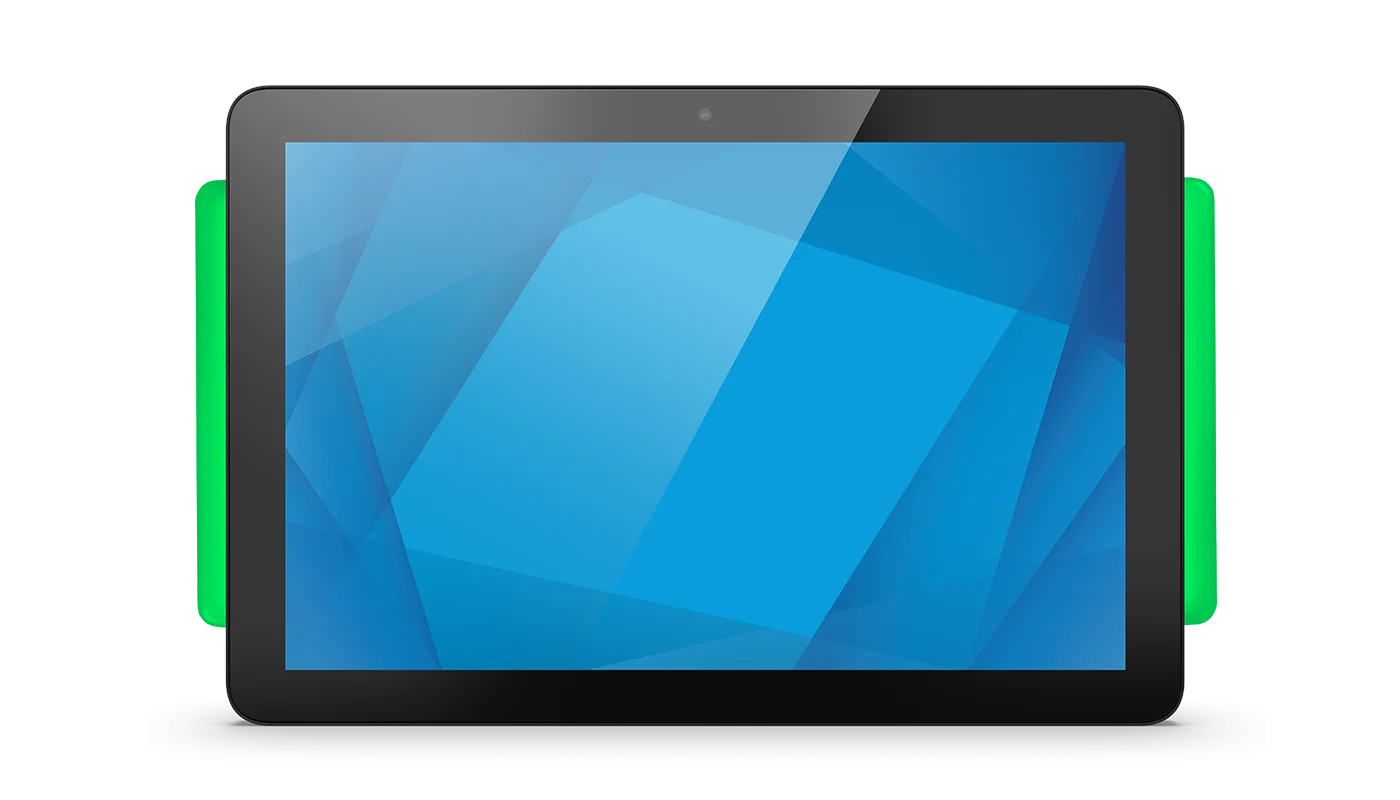

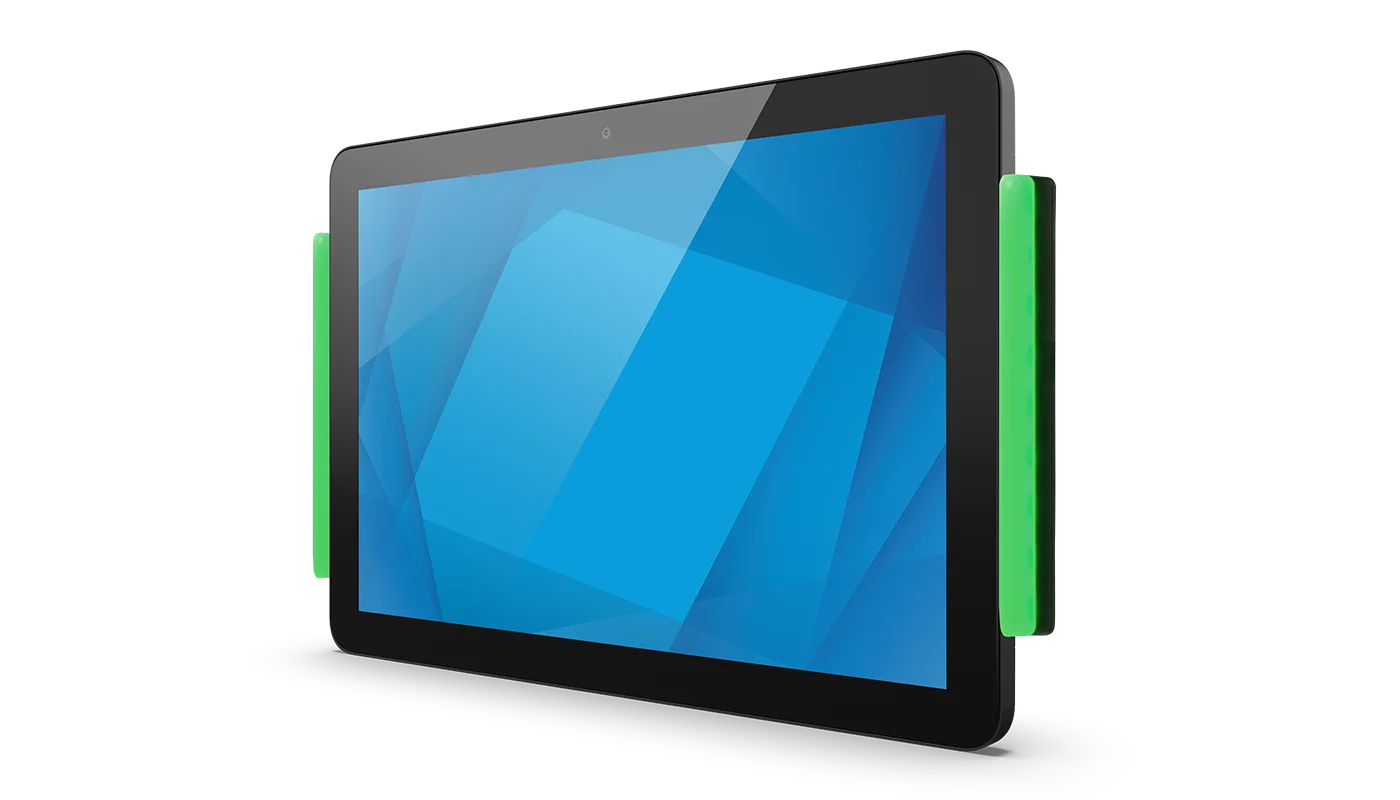

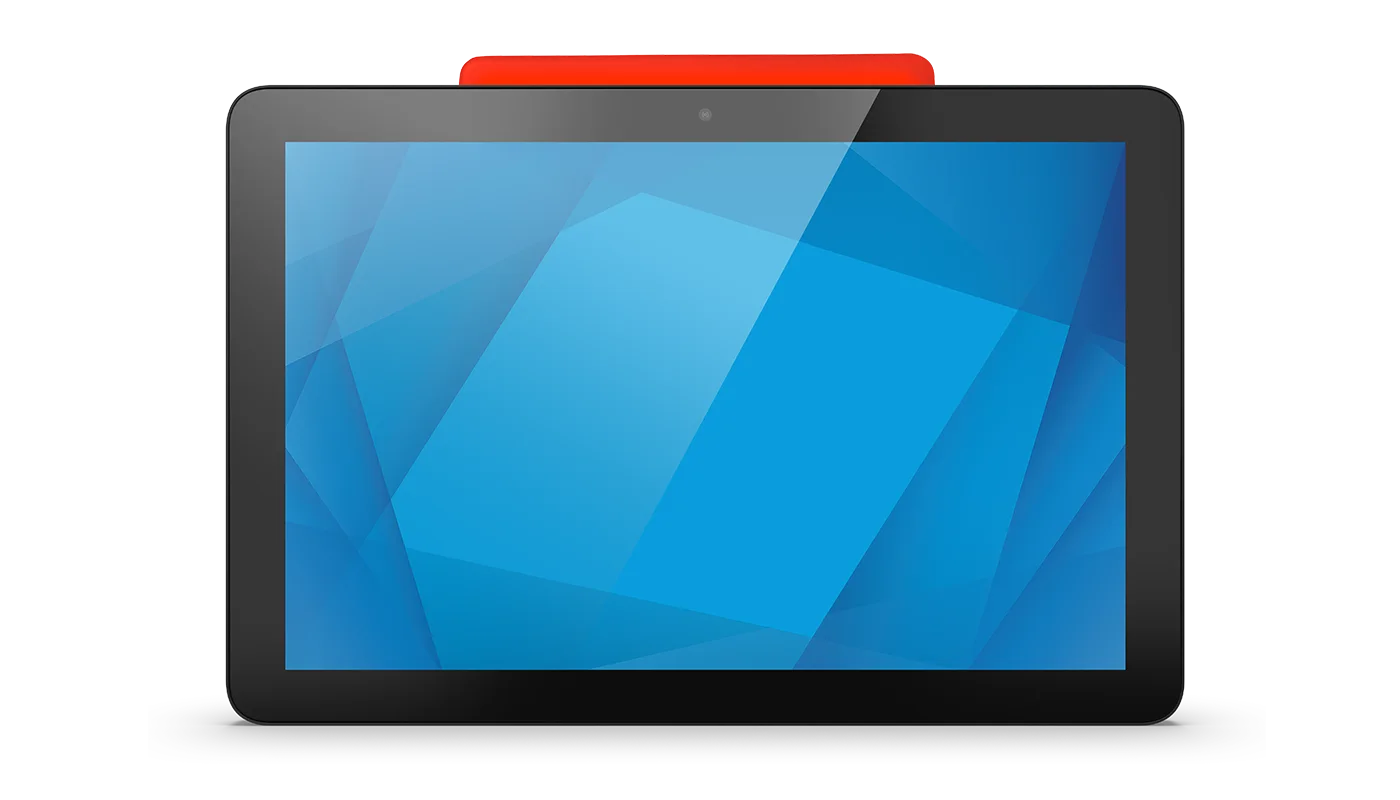

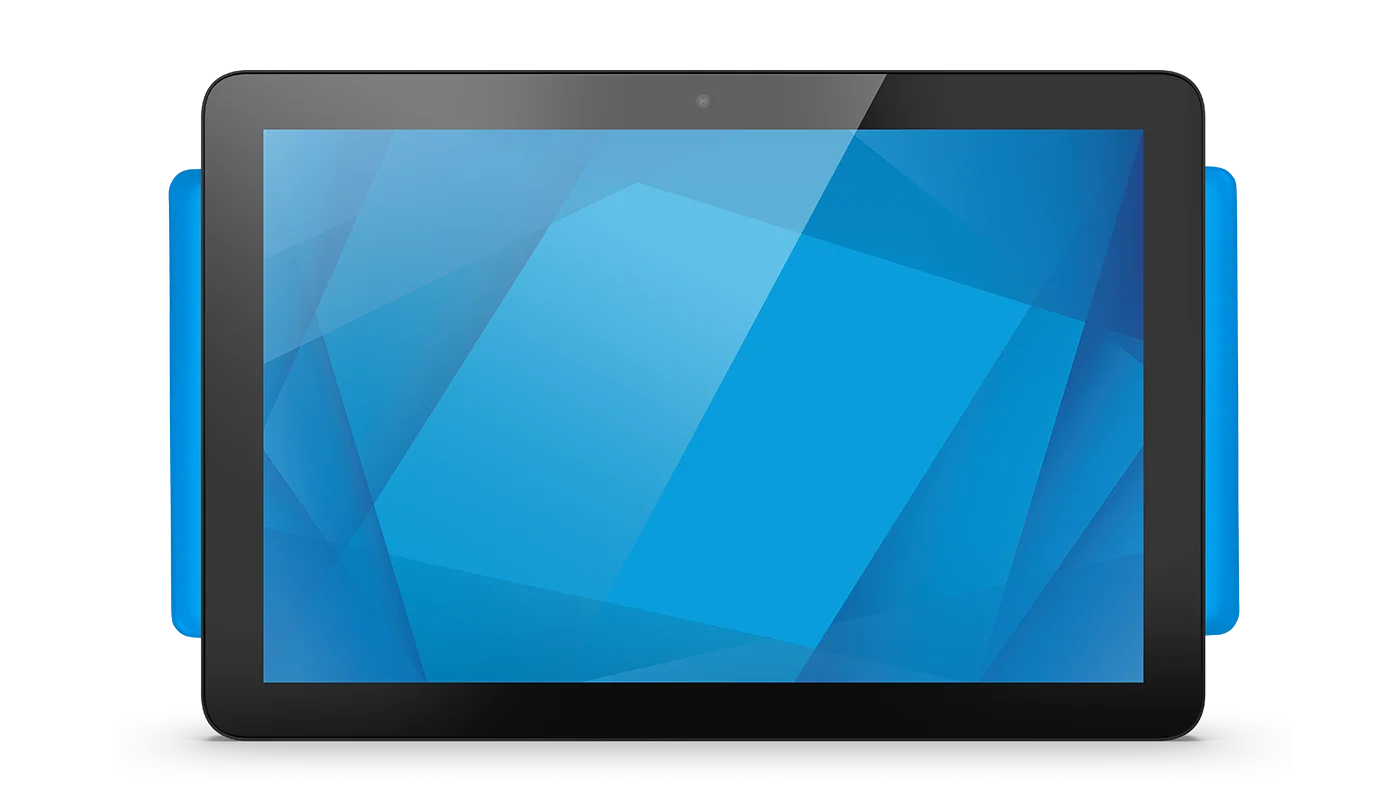

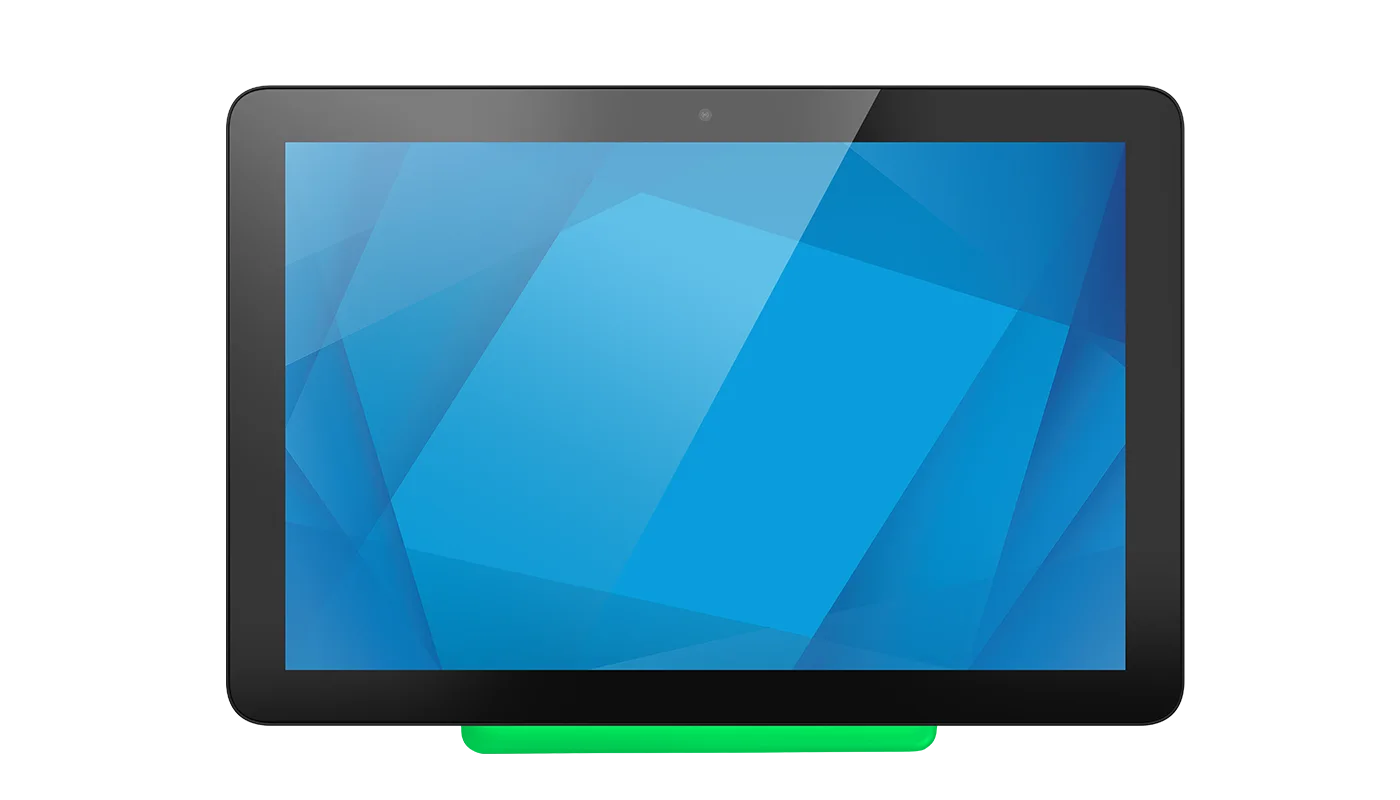

The Elo Edge Connect Status Light provides a sleek, low profile solution for highlighting status and availability for various applications on your favorite Elo products. From conference room availability to self-checkout (SCO) lane readiness, the Status Light easily attaches to the Micro USB ports located on the edge of the touchscreen displays. And, to make managing your solution easy, Elo provides a set of APIs through the EloView™ SDK, allowing you to control the status lights via your own APIs.
Best for: Conference Room Technology · Conference Room Accessories
Specifications
Technical
- Part Number(s)
- E644767
- Enclosure Color
- Black
- Input Connector Type
- Micro-USB
- LED
- Red (default), and RGB LED lights offer various color illumination.; Please download SDK from Elo Support website for custom programming.
- Input Voltage
- 5.0VDC
- Dimensions
- 4.72'' x 0.75'' x 1.02'' / 119.9 mm x 19.1 mm x 26.0 mm
- Shipping Box Dimensions
- 7.165'' x 5.709'' x 1.693'' / 182 mm x 144 mm x 43 mm
- Weight (Unpackaged)
- 0.07 lbs / 0.03 kg
- Weight (Packaged)
- 0.265 lbs / 0.12 kg
- Warranty
- 2-year
- What's in the Box
- 1x Status Light with Micro-USB connector; 2x Mounting screws; 2x Mylar screw covers; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
