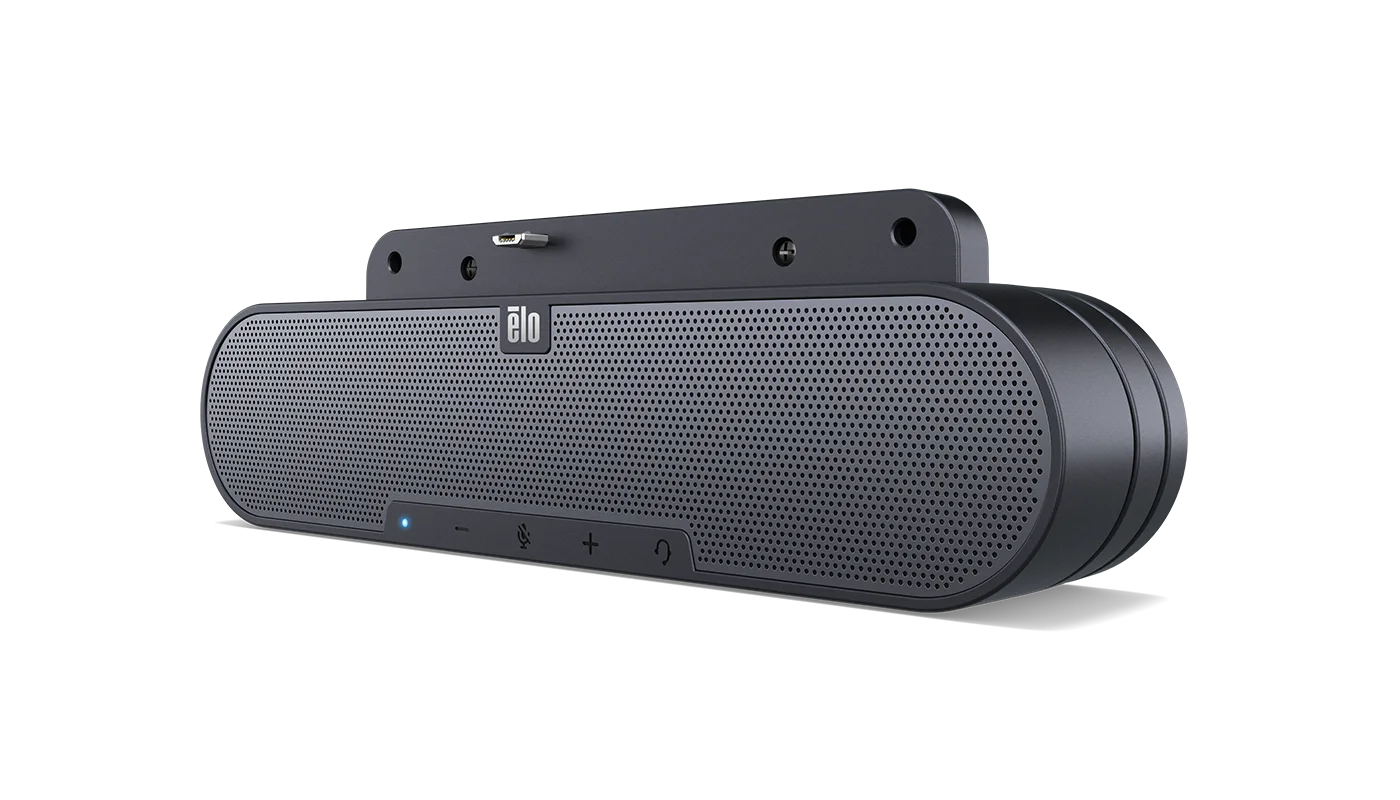

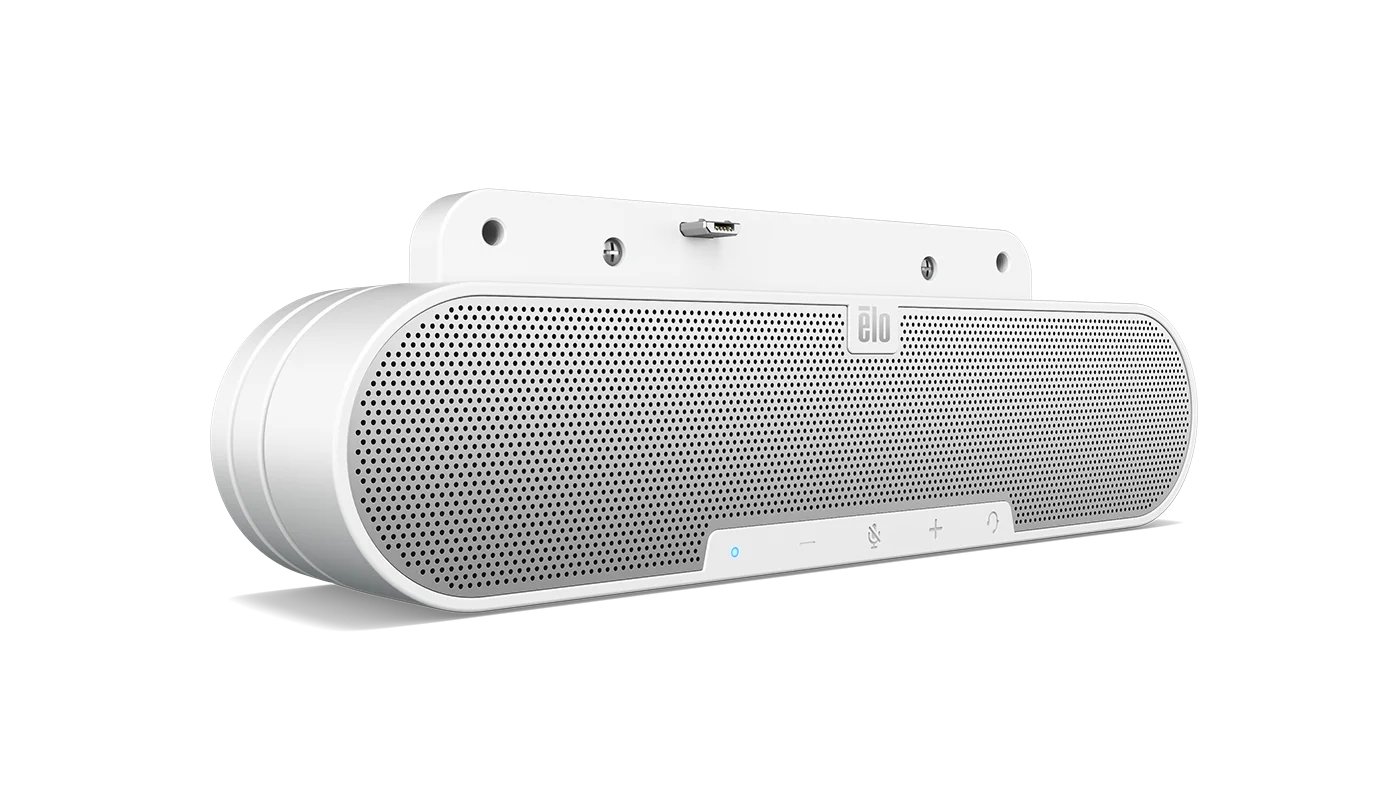

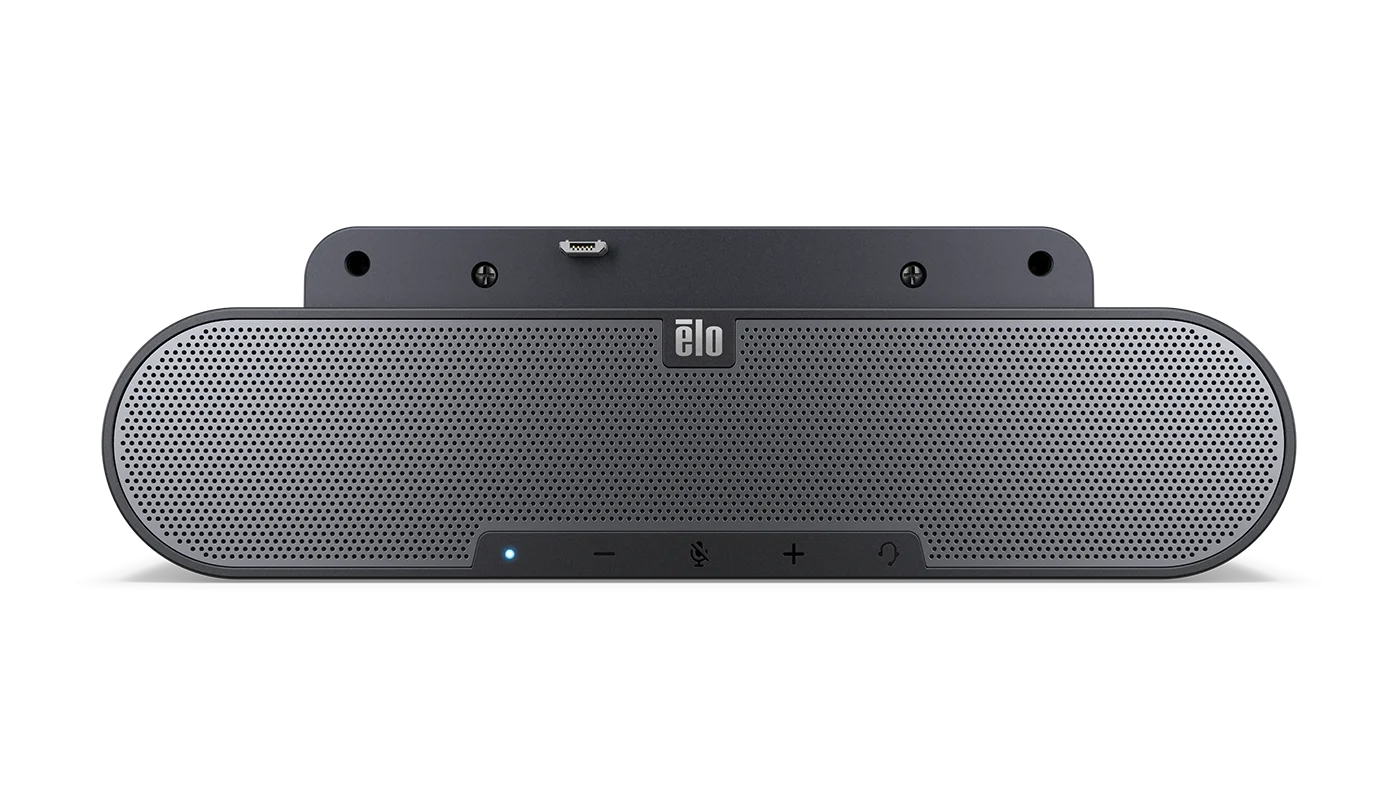

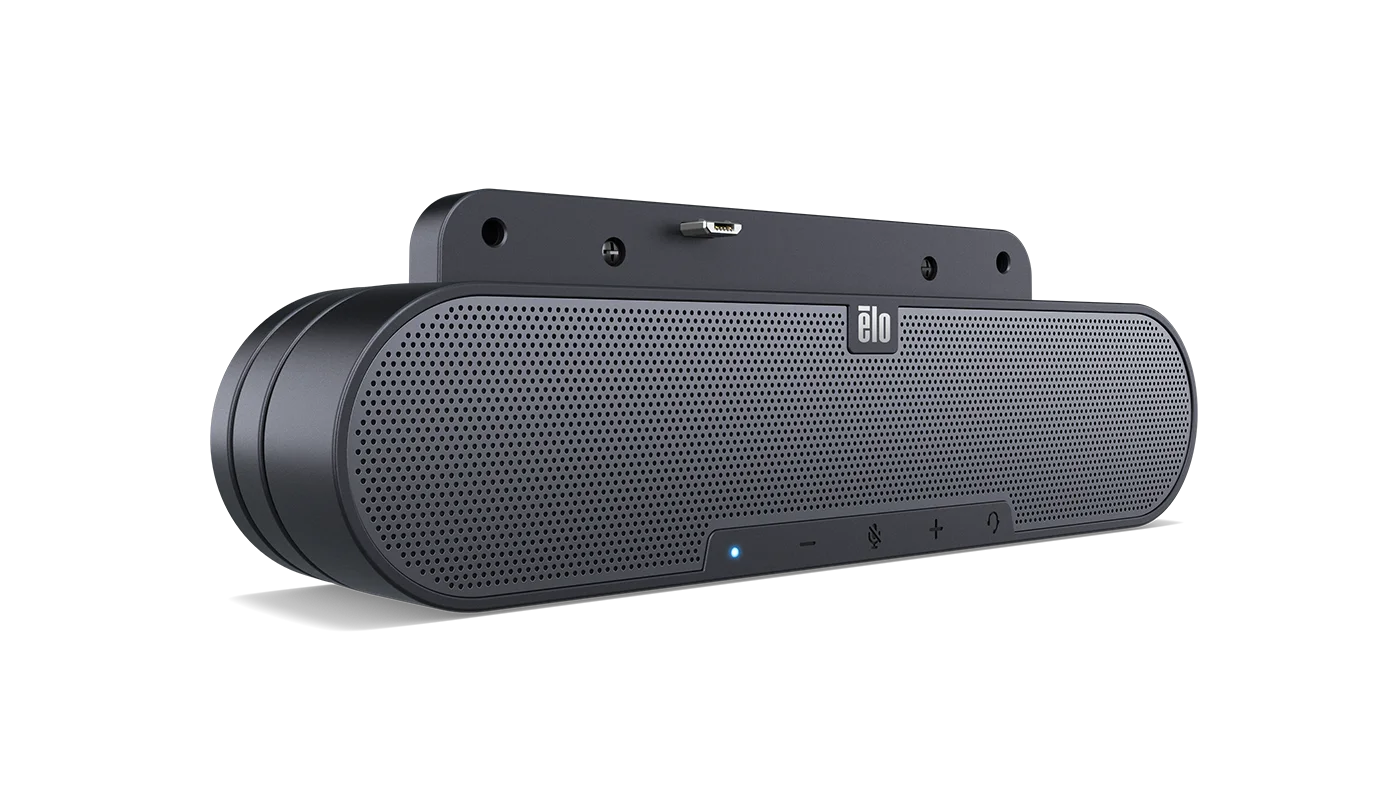

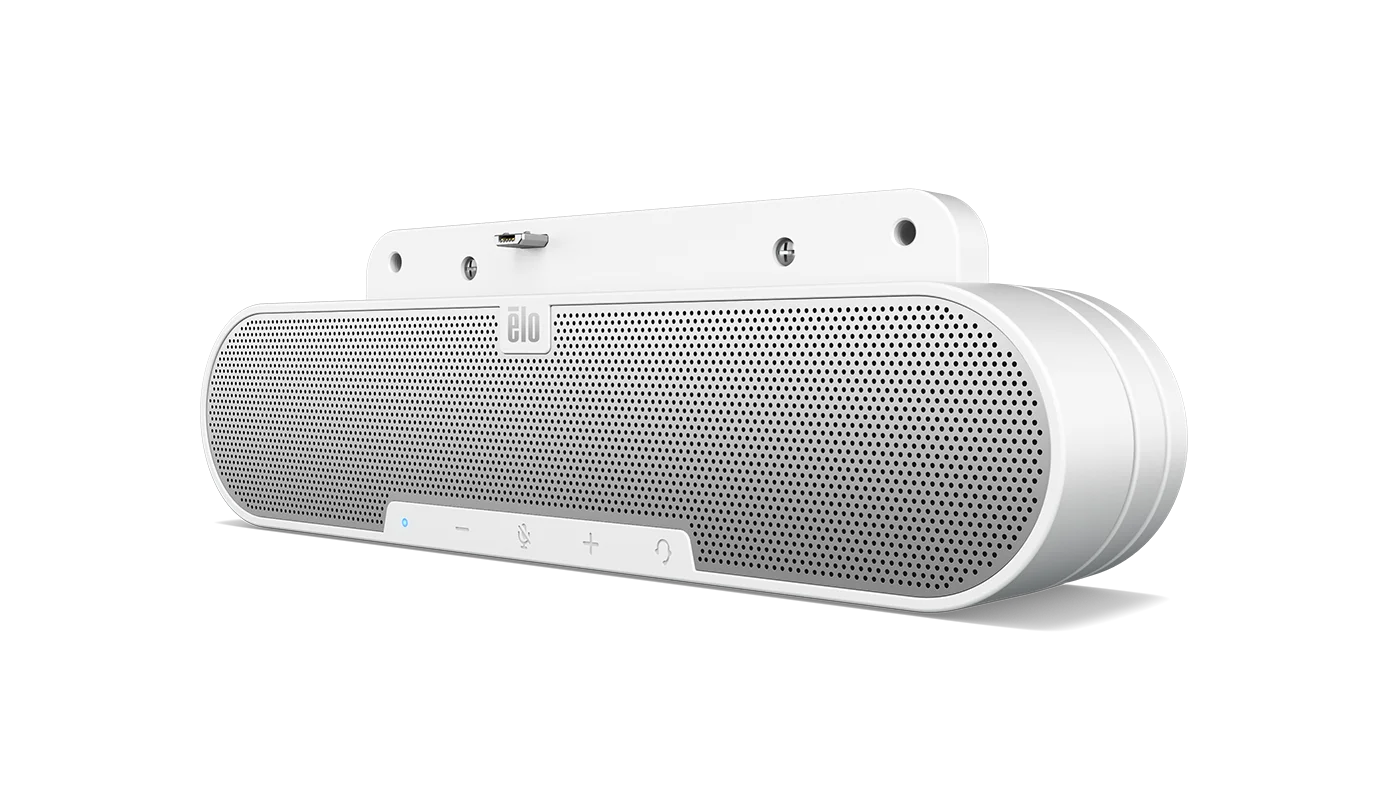

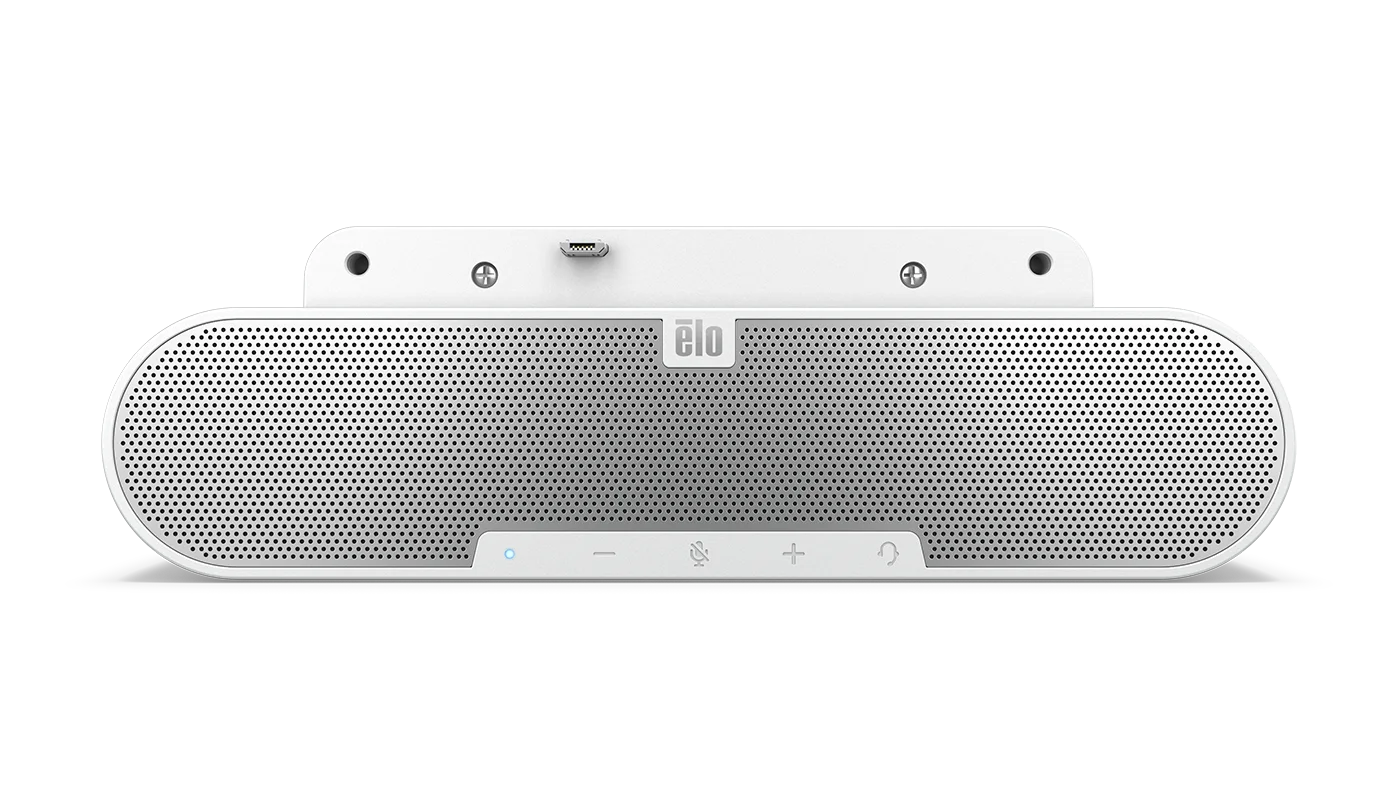

Elo Touch Elo Edge Connect Speaker Bar
Upgrade your audio by adding the Elo Edge Connect Speaker Bar to a variety of Elo touchscreens. With a minimalistic design and easy installation, the speaker bar fits seamlessly into any Edge Connect
- Operating systemAndroid 10/12, Windows 10/11; Ubuntu 22.04
Overview
Upgrade your audio by adding the Elo Edge Connect Speaker Bar to a variety of Elo touchscreens. With a minimalistic design and easy installation, the speaker bar fits seamlessly into any Edge Connect port. Start providing your customers with an immersive audio experience with a simple and space efficient solution.
Best for: Conference Room Technology · Conference Room Accessories
Specifications
Technical
- Part Number(s)
- Black - E894719; White - E133780
- Enclosure Color
- White or Black
- Speaker
- Speaker Type: Internal magnetic speaker; Output Power: Normal: 3W, MAX:5W; Max SPL: 81 ±3dB @1M/1W; Frequency Response: 280Hz-20KHz
- Microphone
- Microphone Frequency: 100-10,000Hz; Analog Signal Processing: Two analog microphone; Microphone Coverage : 360° Omni-directional; Microphone Sensitivity: -30±2dB; Max Pickup Spacing: Within 5 meters
- Amplifier
- Integrated
- Interface
- Micro USB
- Controls
- Mute, Volume+, Volume-
- Headset Button
- Not supported
- I/O Ports
- USB 2.0 (Micro USB); Headphones (mini-phone stereo 3.5 mm)
- Power
- USB Power
- OS Support
- Android 10/12, Windows 10/11; Ubuntu 22.04
- Dimensions
- 165.00 mm x 50.50 mm x 39.40 mm
- Operating Temperature
- 10°C to 40°C / 50°F to 104°F
- Storage Temperature
- 0°C to 50°C / 32°F to 122°F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 90%
- Regulatory approvals and declarations
- FCC/IC/CE/RCM/UK/VCCI
- Warranty
- 1-year
- What's in the Box
- Speaker Bar; 2 Mounting screws; 2x Screw covers; QIG; Micro USB to Micro USB cable
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
