Elo Touch · Accessory

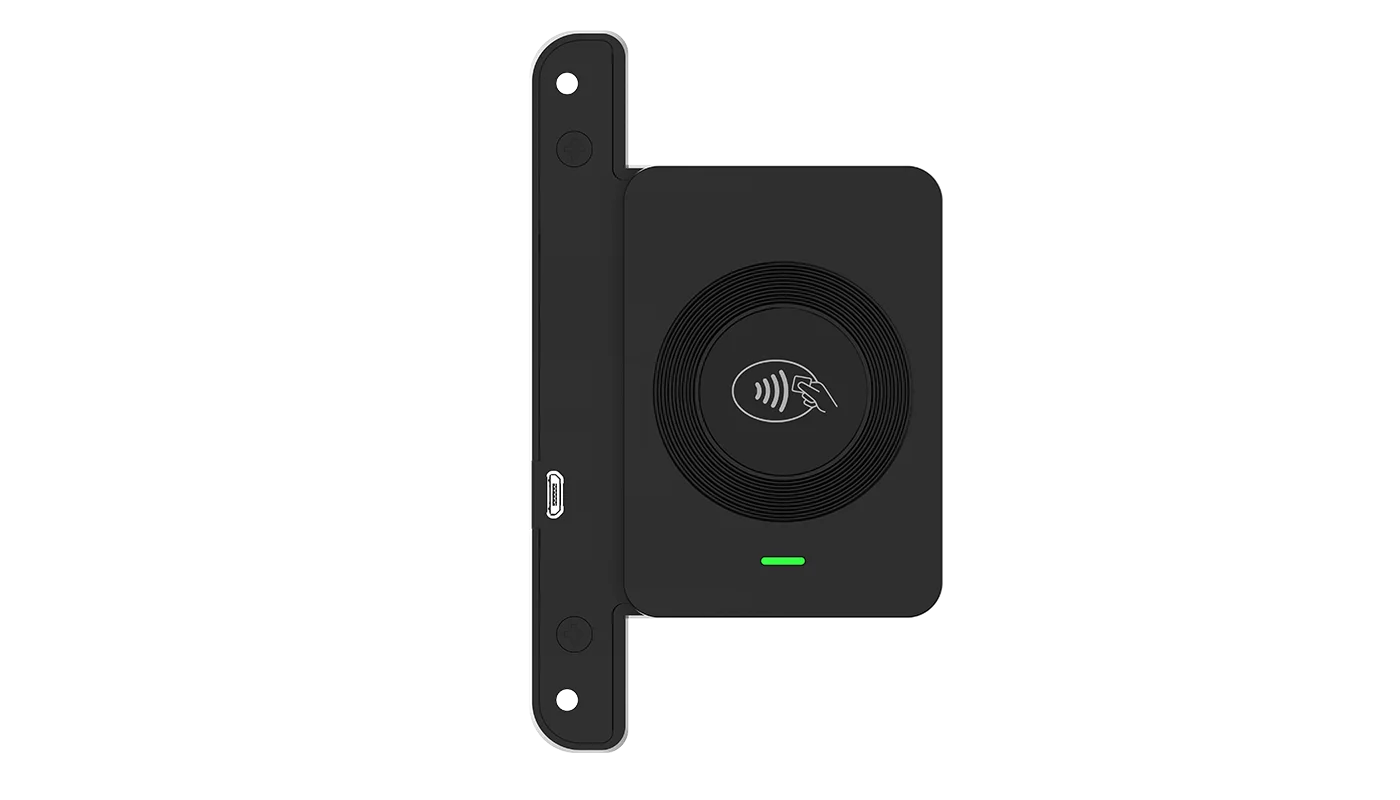

Elo Touch Elo Edge Connect RFID
Overview

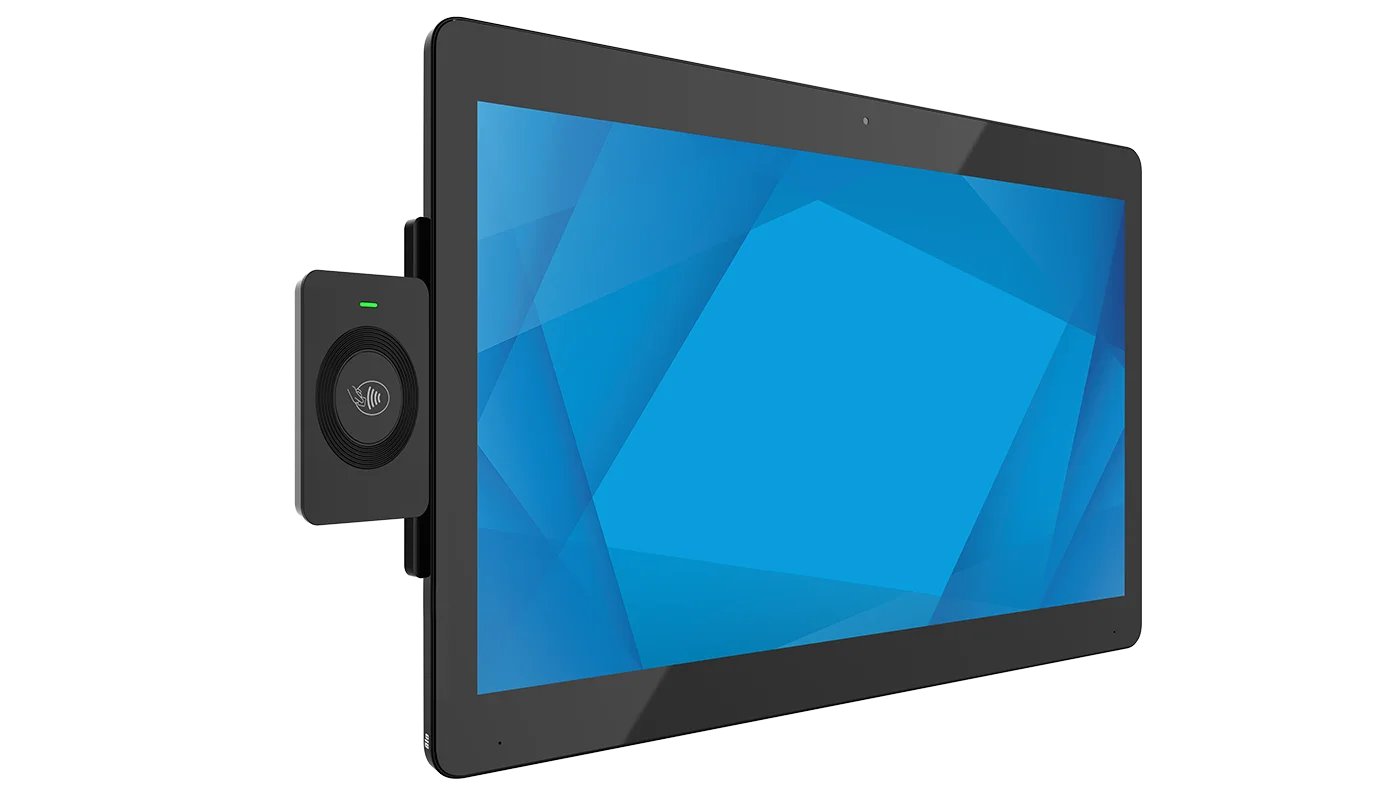

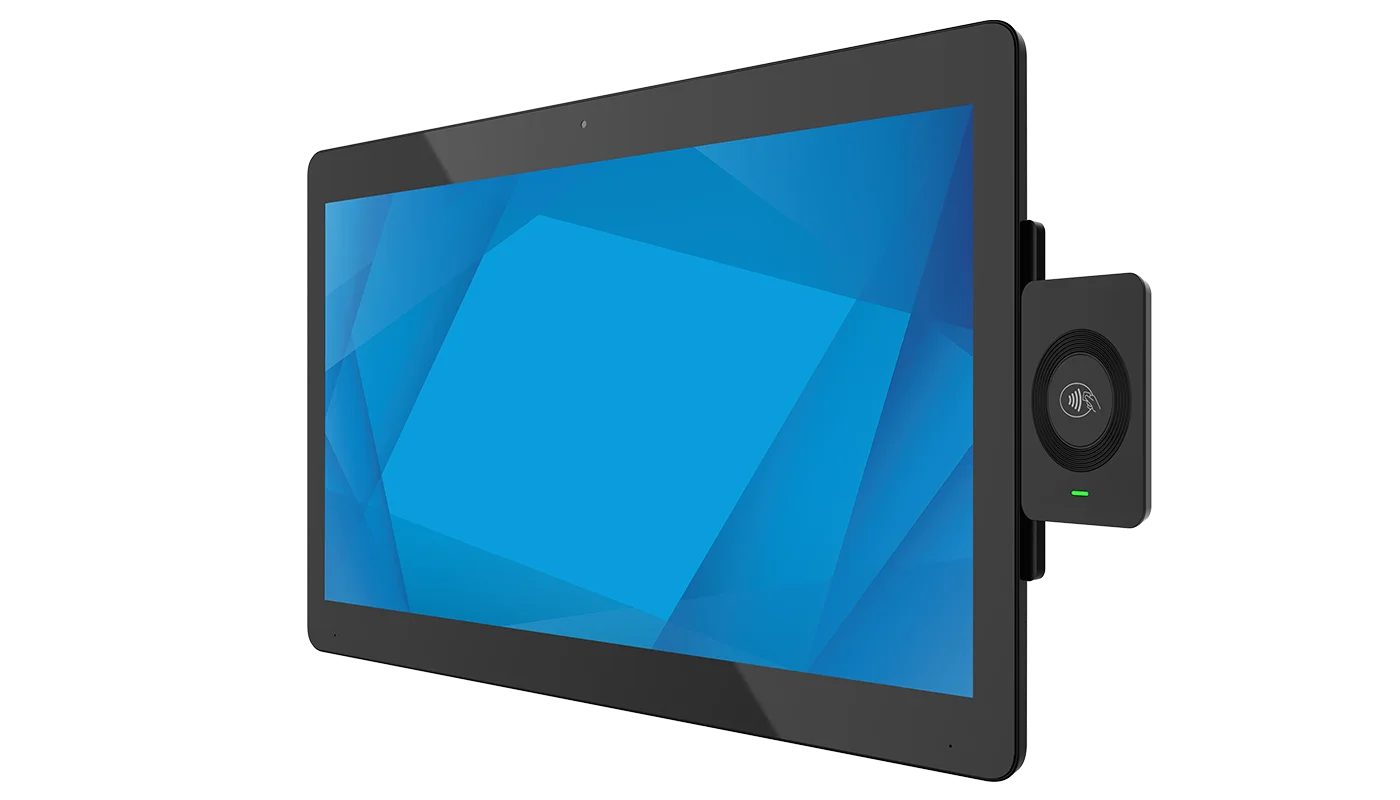

The Elo Edge Connnect™ RFID reader offers multi-interface support, dual frequency, mobile access and a flexible mount that allows users to fold the RFID behind the touchscreen.
Specifications
Technical
- Part Number(s)
- E673037
- Enclosure Color
- Black
- Power Supply
- 5VDC ± 5%
- RF Interface
- ISO/IEC14443 - ISO/IEC14443 Type A & B up to 848kbps, MIFARE Classic, MIFARE DESFire, HID Seos; ISO/IEC15693; HID iCLASS - ISO/IEC15693 mode; FeliCa - CSN only; HID Prox; Indala Prox; BLE - For HID Mobile Access applications
- Host Interface
- USB 2.0
- Interface Modes
- CCID; Keyboard Wedge
- Beeper Support
- Yes
- Status Indicators
- Yes
- Frequency Range
- 125 KHz, 13.56 MHz, 2.44 GHz
- Card & Protocols High Frequency
- CCID:; iCLASS, iCLASS SE/SR, iCLASS Seos, MIFARE Classic 1K / 4K, Ultra Light, Ultra Light C, Plus, MIFARE DESFire 0.6, MIFARE DESFire EV1/EV2, T=CL, ISO 14443A, ISO14443B CSN, FeliCa, SmartMX with up to 848 kbps transmission rate (depending on card1), ISO 15693 with up to 26 kbps transmission rate (depending on card), Student ID in Apple Wallet; KEYBOARD WEDGE:; The following credentials can be handled autonomously: iCLASS, iCLASS SE/SR, iCLASS Seos, MIFARE Classic 1K / 4K, Ultra Light, Ultra Light C, Plus (Security Lvl 1) , MIFARE DESFire 0.6 MIFARE DESFire EV1/EV2 (MAC/DES/3DES / 3K3DES / AES), CEPA (CAN), FeliCa (Idm), PIV, ISO14443B (CSN), Student ID in Apple Wallet
- Card & Protocols Low Frequency
- HID Prox, Indala Prox, EM Prox (Standard Mode Only), AWID Prox
- Supported Operating Systems
- Windows 7/10; Ubuntu 18.04; Mac OS X; Android 7.x or later
- Weight (Unpackaged)
- 0.165 lbs / 0.075 Kg
- Weight (Packaged)
- 0.408 lbs / 0.185 Kg
- Dimensions
- 4.71" x 2.70" x 1.15" / 119.6 mm x 68.5 mm x 29.1 mm
- Shipping Box Dimensions
- 6.89" x 4.49" x 2.72" / 175 mm x 114 mm x 69 mm
- Operating Temperature
- 10°C to 40°C / 50°F to 104°F
- Storage Temperature
- 0°C to 50°C / 32°F to 122°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 90%
- Warranty
- 2-year
- Regulatory approvals and declarations
- FCC (US) - Class B; IC (Canada); CE (Europe) - Class B; VCCI, MIC (Japan); RCM (Australia); SRRC (China); UKCA; China RoHS
- What's in the Box
- RFID; 2 Mounting screws; 2 Mylar screw covers; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
