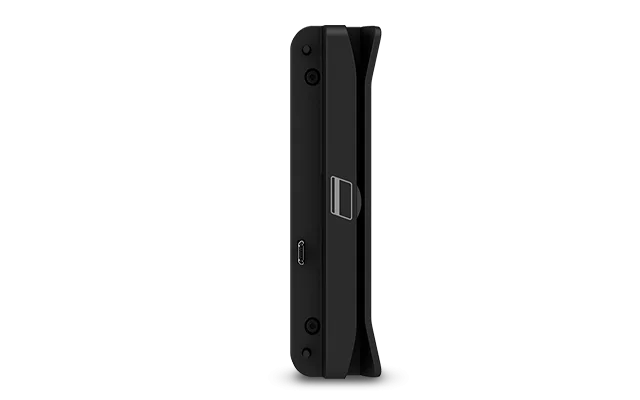

Elo Touch Elo Edge Connect Magnetic Stripe Reader (MSR)
Specifications
Technical
- Part Number
- E001002
- Enclosure Color
- Black
- Swipe Speed
- 4~60 ips (10.1~152.4 cm/sec)
- Swipe Direction
- Bi-directional
- Card Width
- 0.025 ~0.035 inches
- Number of Tracks
- 2 Track non-encrypted; Support for 3 tracks
- Power Supply
- 5V USB
- Power Consumption (Typical)
- 0.5W
- Interface
- Micro USB
- Supported Emulation Modes
- HID and Keyboard
- Supported Formats
- ISO 7811; ISO 7810; AAMVA; CA DMV; ANSI
- Supported Operating Systems
- Ubuntu Linux LTS; Windows POSReady 7 32-bit; Windows Embedded Pro 7 32-bit; Windows Embedded Pro 7 64-bit; Windows Industry Embedded Pro 8.1 32-bit; Windows Industry Embedded Pro 8.1 64-bit; Android 4.4.2
- Mounting Options
- Ability to mount directly to select Elo computers and monitors
- Weight (Unpackaged)
- 0.15 lbs / 0.07 kg
- Weight (Packaged)
- 0.4 lbs / 0.18 kg
- Warranty
- 2-year
- What's in the Box
- MSR; Quick Install Guide; 2 screws for mounting
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
