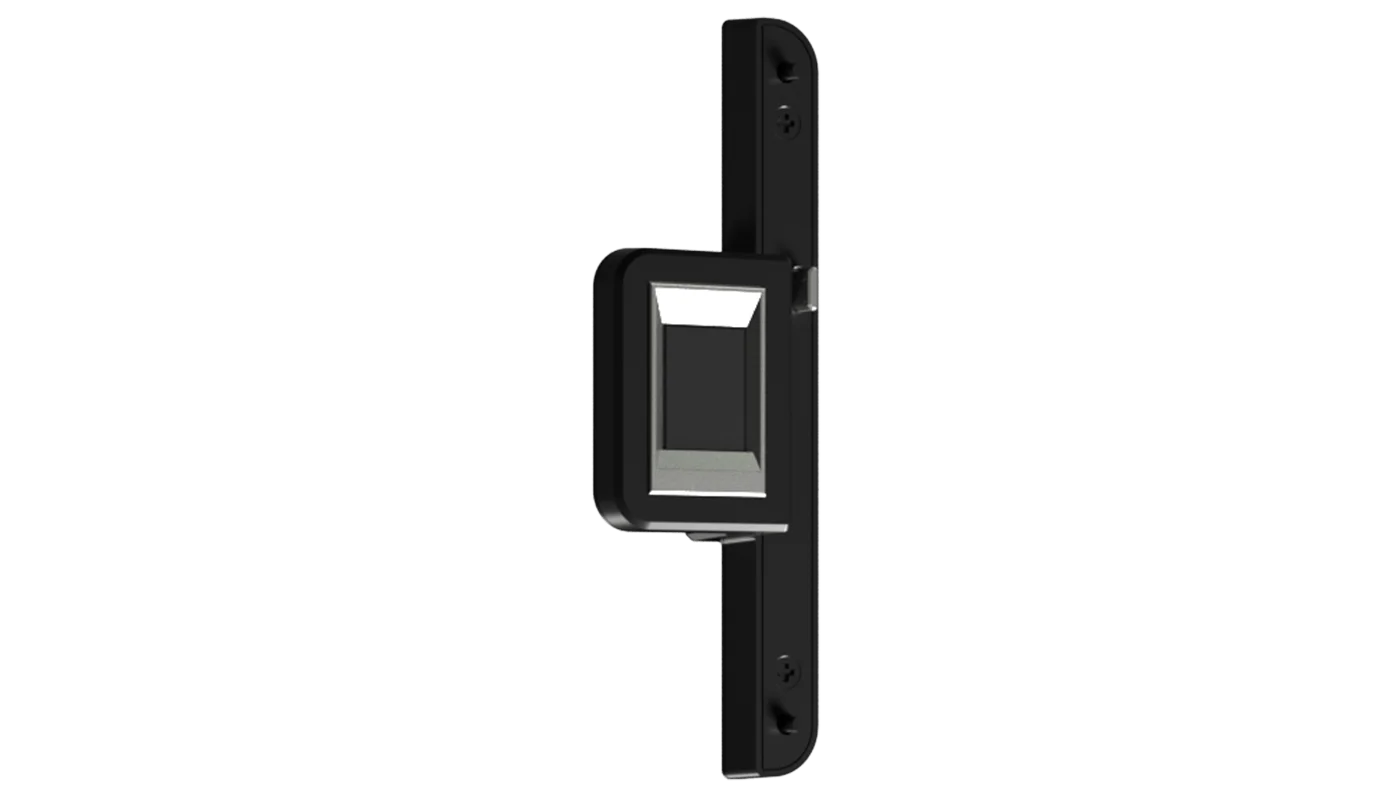

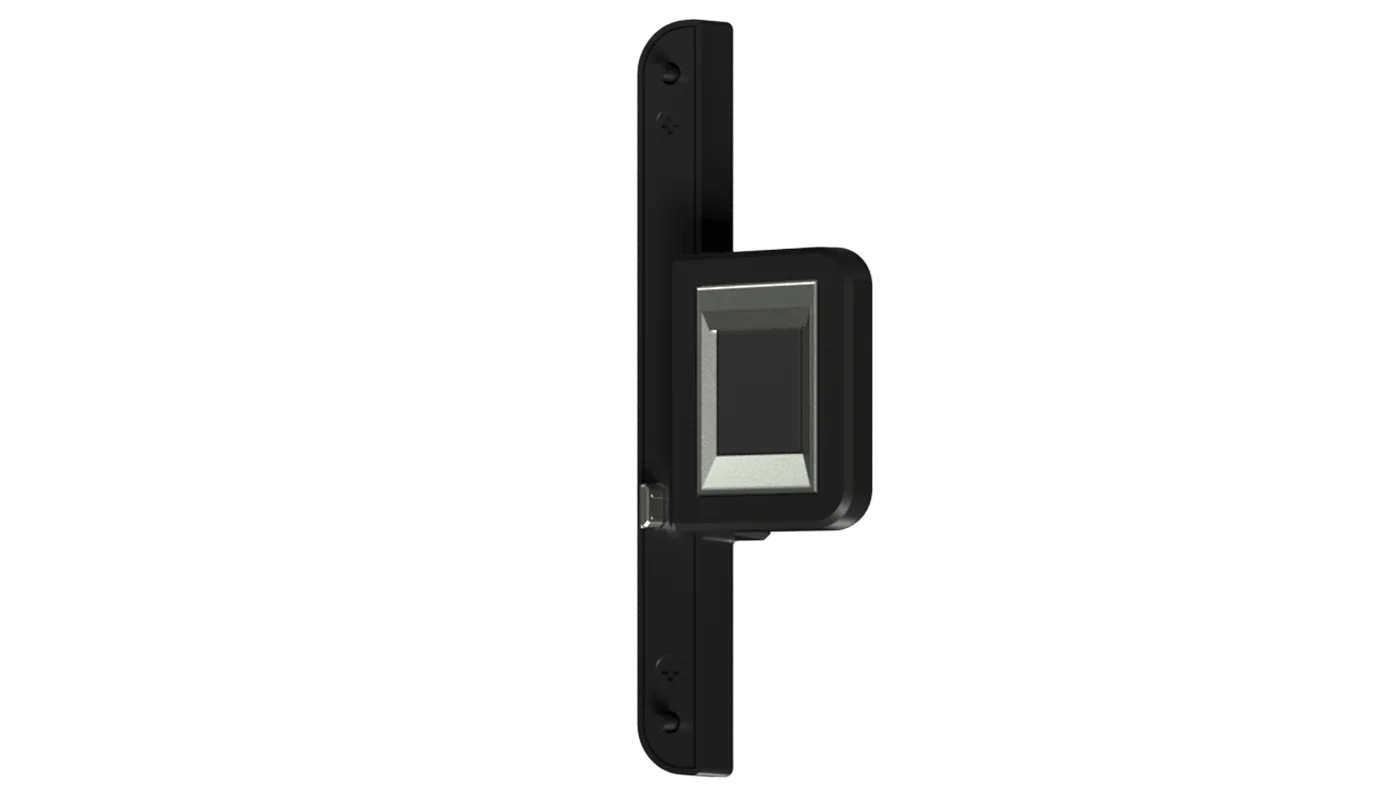

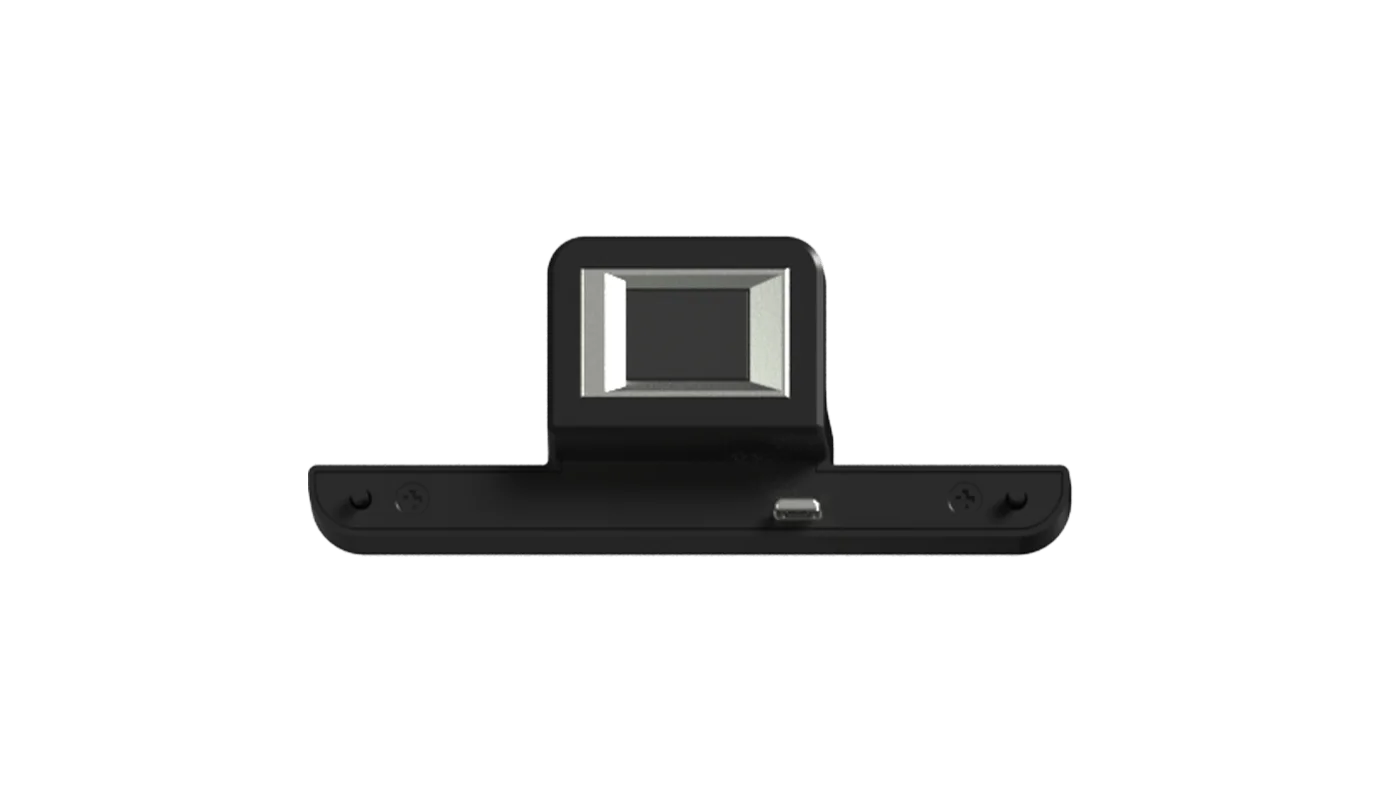

Elo Touch Elo Edge Connect Fingerprint Scanner
Overview

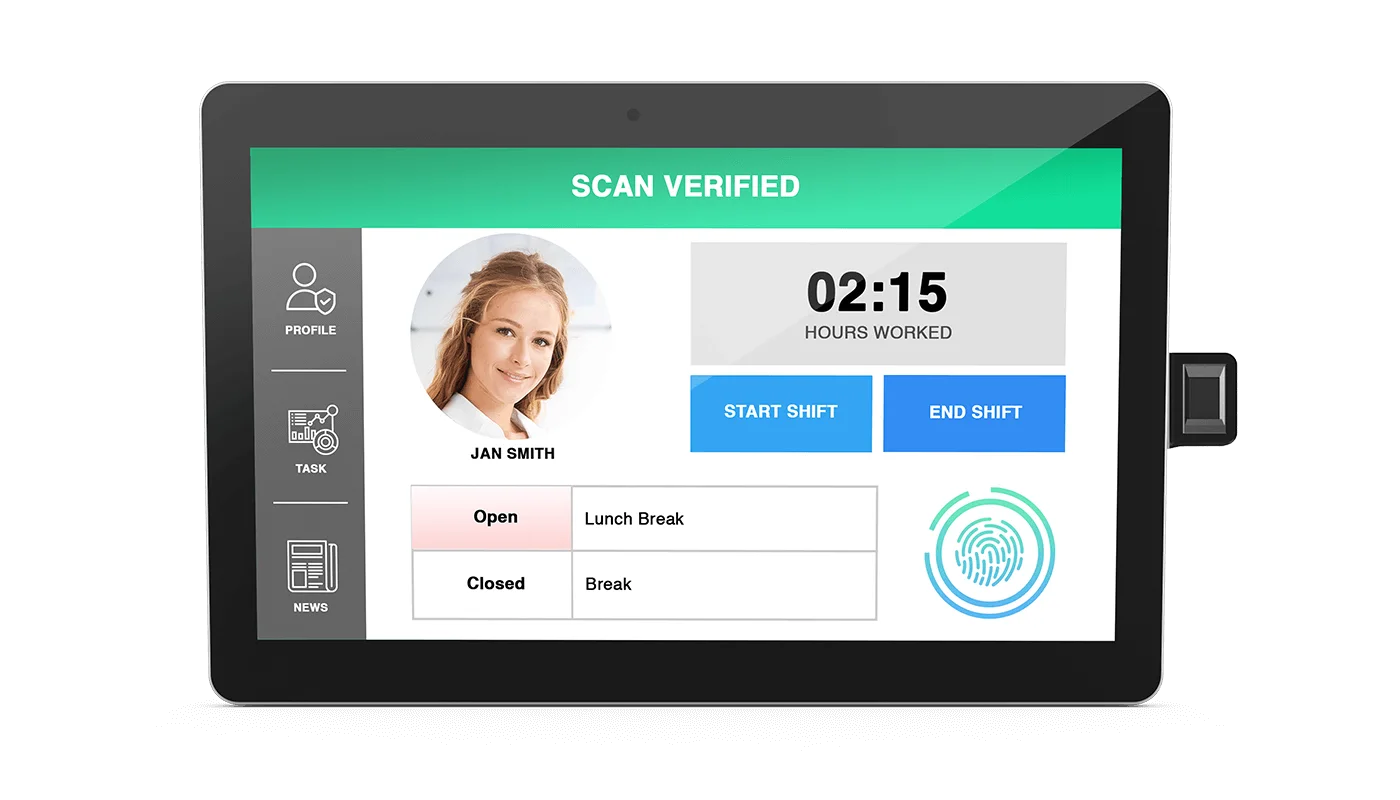

Elo’s Fingerprint Scanner delivers a fast and reliable way to use biometric authentication for individuals who require access to a device or building. From patient and doctor authentication to employee login, the reader seamlessly integrates with a variety of Elo displays via Elo Edge Connect™ technology. By using a capacitive sensor for scanning, the Fingerprint Scanner can withstand up to four million touches - providing the durability you need with high quality scans time after time.
Specifications
Technical
- Part Number(s)
- Black - E134286; White (MTO) - E133591
- Enclosure Color
- Black
- Interface
- Micro USB
- Input Voltage
- 5.0VDC
- Power Consumption (Typical)
- Sleep mode: 1350 uA; Fast Imaging mode: 105 mA
- Resolution
- 508 dpi
- Scan Data
- 8-bit grayscale
- Scan Capture Size
- 12.8 x 18.0 mm / 256 x 360 pixels
- Electrostatic Discharge (ESD)
- 4kv contact; 8kv air
- Dimensions
- 4.70" x 1.72" x 0.99" / 119.6 mm x 43.7 mm x 25.3 mm
- Shipping Box Dimensions
- 6.89" x 4.49" x 2.72" / 175 mm x 114 mm x 69 mm
- Weight (Unpackaged)
- 0.088 lbs / 0.004 kg
- Weight (Packaged)
- 0.33 lbs / 0.15 kg
- Operating Temperature
- 10°C to 40°C / 50°F to 104°F
- Storage Temperature
- 0°C to 50°C / 32°F to 122°F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 90%
- Warranty
- 2-year
- What's in the Box
- Fingerprint Scanner; 2 Mounting screws; 2 Mylar screw covers; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
