End of lifeElo Touch · Accessory

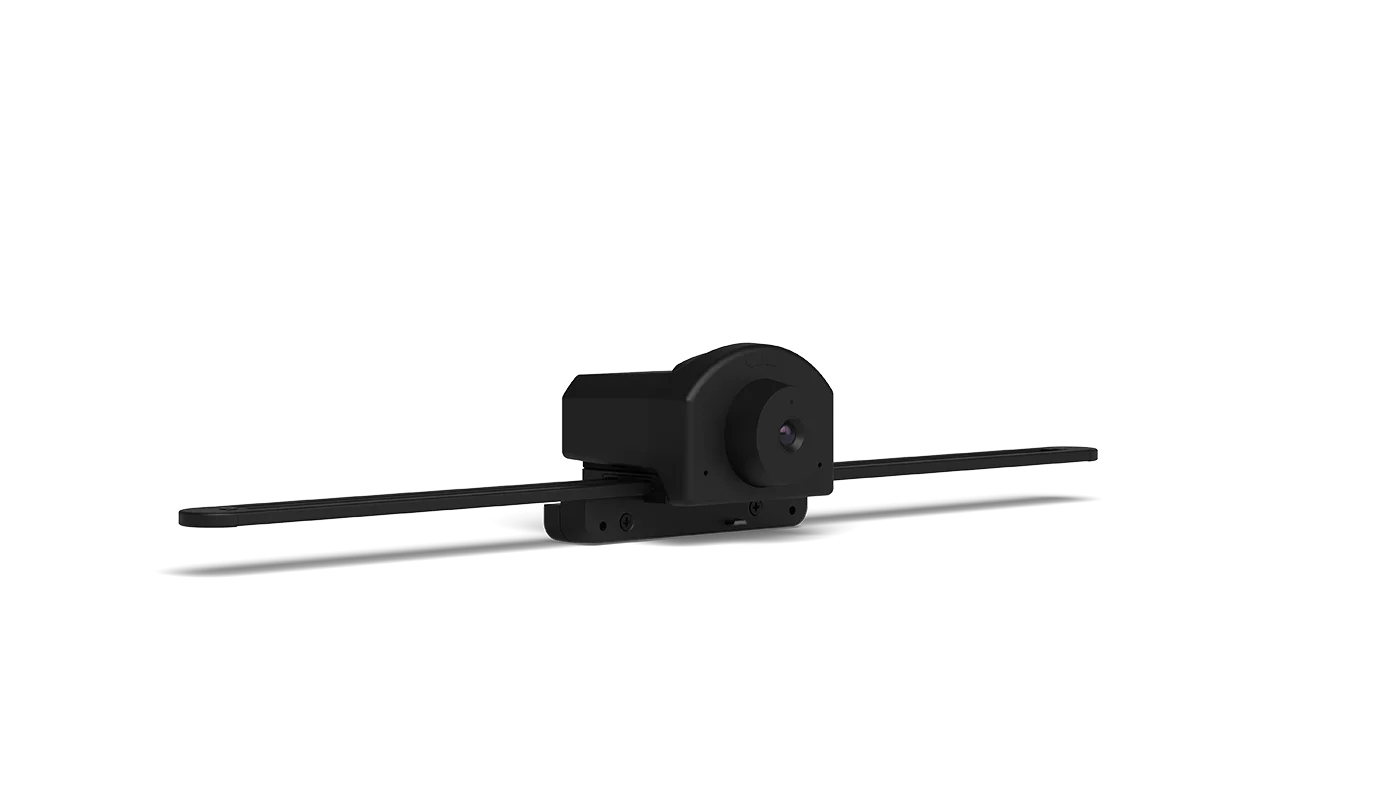

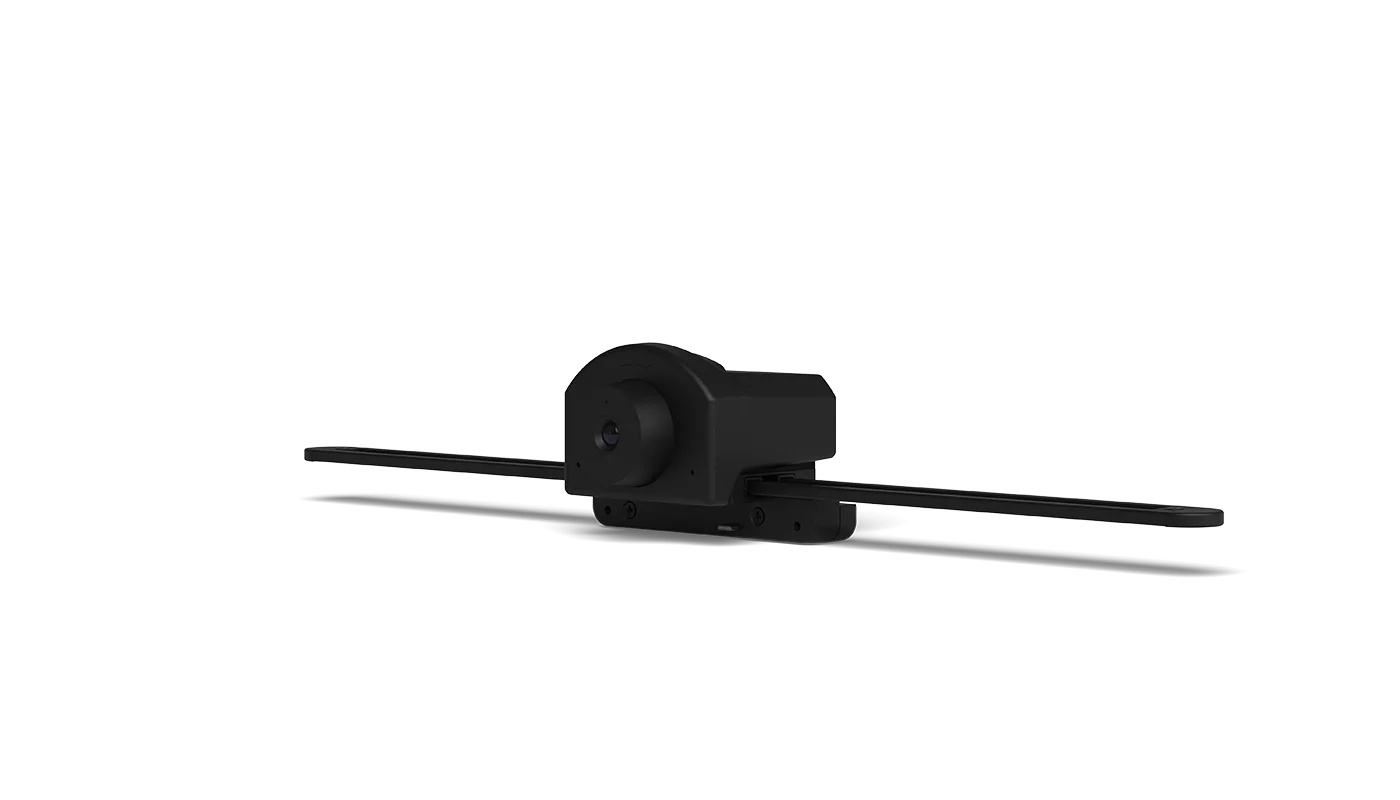

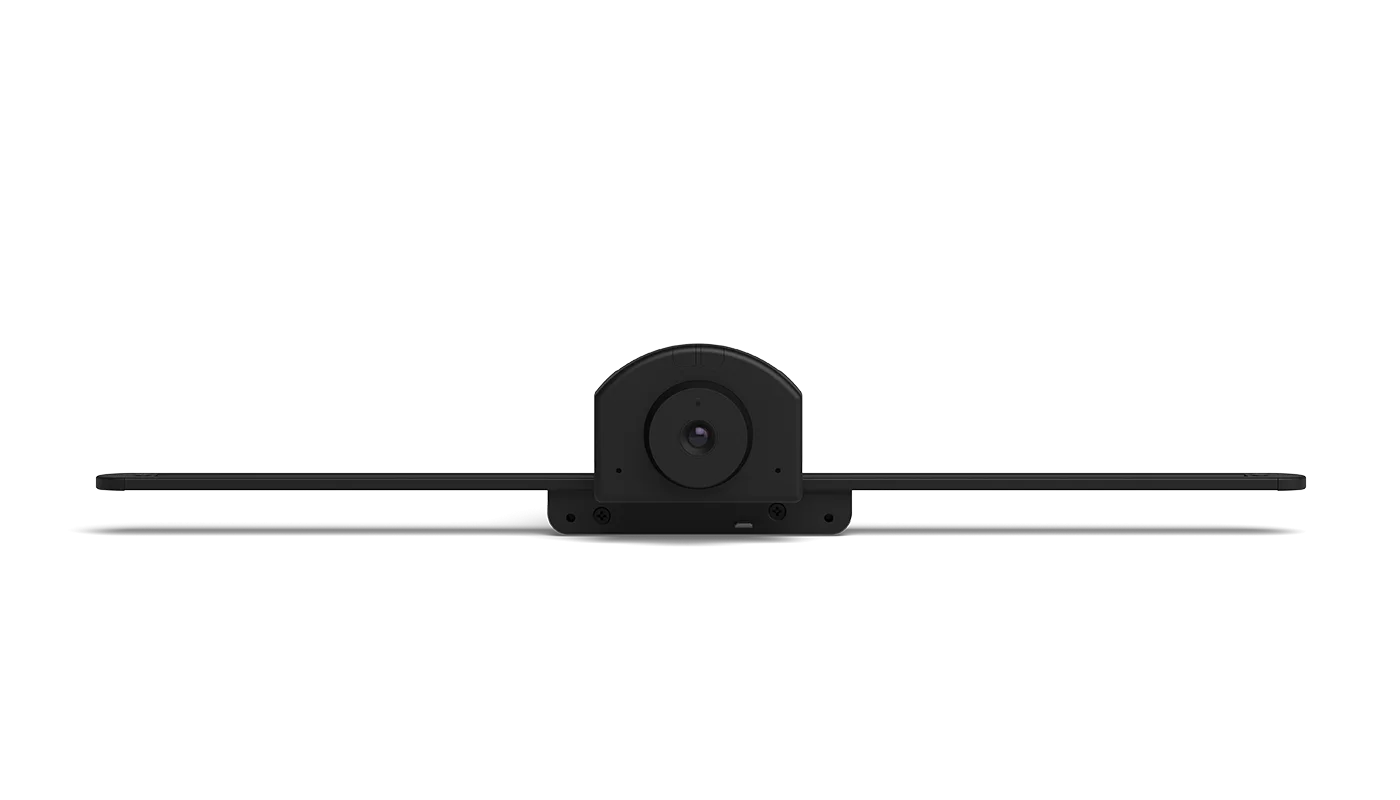

Elo Touch Elo Edge Connect Conference Camera
Elo Conference Camera Video Conferencing Made Easy
Overview

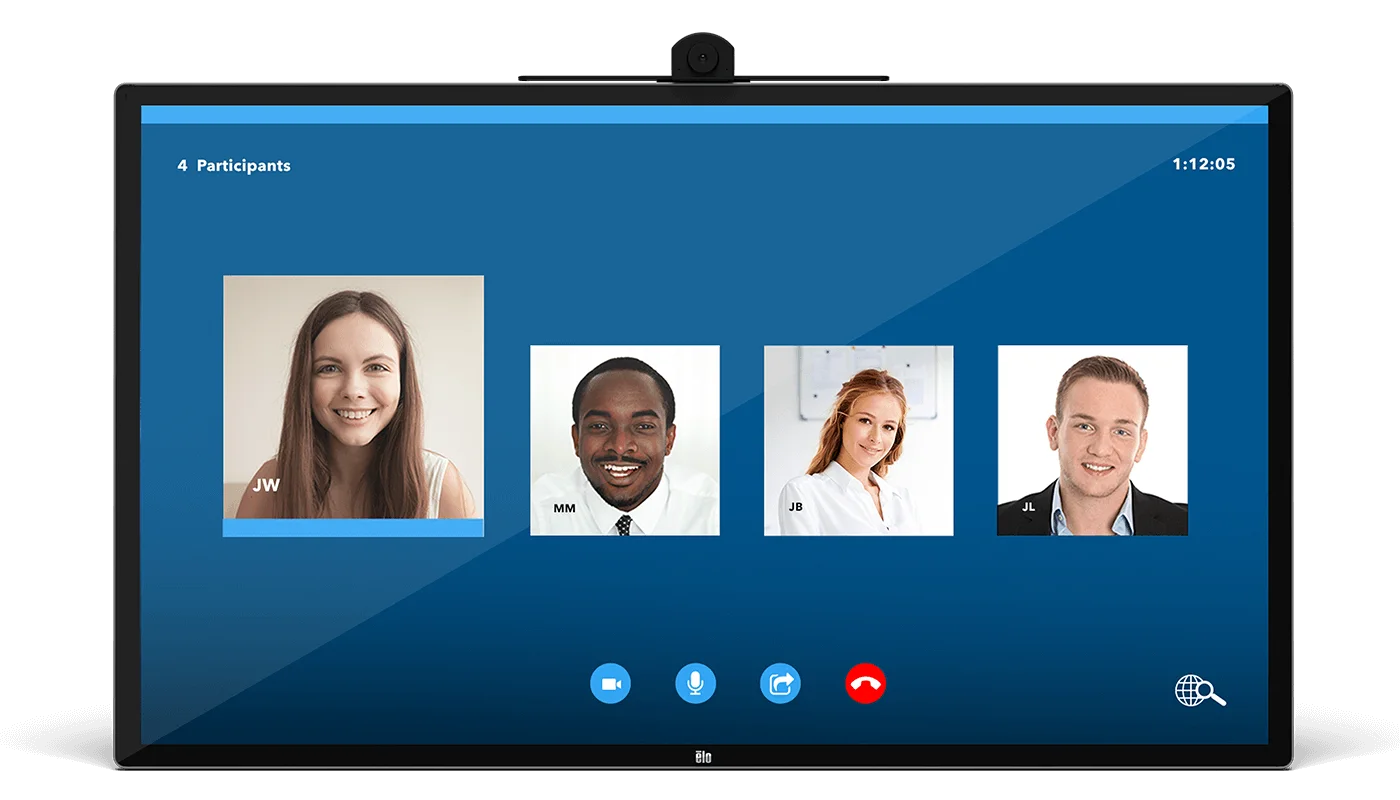

Designed for conference rooms and huddle rooms, the Conference Camera delivers full HD video with wide viewing angles and adjustable positioning to cover any seating configuration. From the camera to the echo-cancelling mic, simply attach it to your interactive display, add your software and you're ready to start your meeting.
- With Elo Edge Connect compatibility, it's easy to attach your Conference Camera securely to any side of your display. Simply attach, orient the camera and start your meeting.
- * Mounting the camera to the bottom port will limit compatibility to Windows, Mac, or Ubuntu (with a VLC player) and limits resolution to 720p
- With the adjustable slider and 30° tilt that supports both vertical and horizontal adjustment, we have your conference room covered. All you have to do is choose whether to mount it on the top or on the side.
- Get up and move around during your meeting with our 96° wide angle field of view.
- With automatic echo cancellation (AEC), the Conference Camera's integrated microphone is designed to optimize huddle and conference room acoustics so your audience can hear you as clearly as if they were right there with you.
Specifications
Technical
- Part Number(s)
- E277819
- Enclosure Color
- Black
- Supported Video Resolutions
- FHD (1920 x 1080); HD (1280 x 720); VGA (640 x 480 and 640 x 360)
- Video Format
- YUY2/MJPG
- Frame Rate
- 30fps @ FHD
- Field of View
- Vertical: 65° ± 5%; Horizontal: 80° ± 5%; Diagonal: 96° ± 5%
- Focus Type
- Fixed Focus
- Microphone
- Analog Mic with Acoustic Echo Cancellation (AEC)
- Other Features
- Automatic gain control; Automatic exposure control; Automatic white balance control; Automatic black level calibration
- Interface
- Micro USB (USB 2.0) with 2.5mm jack (for AEC)
- UVC Compatible
- Yes - UVC 1.1
- Supported Operating Systems
- Windows7/10; MAC-OS X 10.4.8 or later; Android OS 4.0 or later; Linux with UVC (above linux-2.6.26); Note: Android OS Jellybean or later (requires a separate UVC driver),(https://github.com/saki4510t/UVCCamera), Linux with UVC (above linux-2.6.26)
- Dimensions
- 18.55" x 3.22" x 4.05" / 471.1 mm x 81.72 mm x 102.81mm
- Shipping Box Dimensions
- 21.46" x 6.89" x 4.25" / 545 mm x 175 mm x 108 mm
- Weight (Unpackaged)
- 0.8 lbs / 0.36 kg
- Weight (Packaged)
- 2.33 lbs / 1.05 kg
- Warranty
- 3-year
- What's in the Box
- Elo Conference Camera; 2x M3 mounting screws; 2.5mm barrel jack cable; Quick Install Guide
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Discontinued
- Replacement
- 4K Conference Camera
- Status basis
- elotouch.com lists it as replaced by 4K Conference Camera
