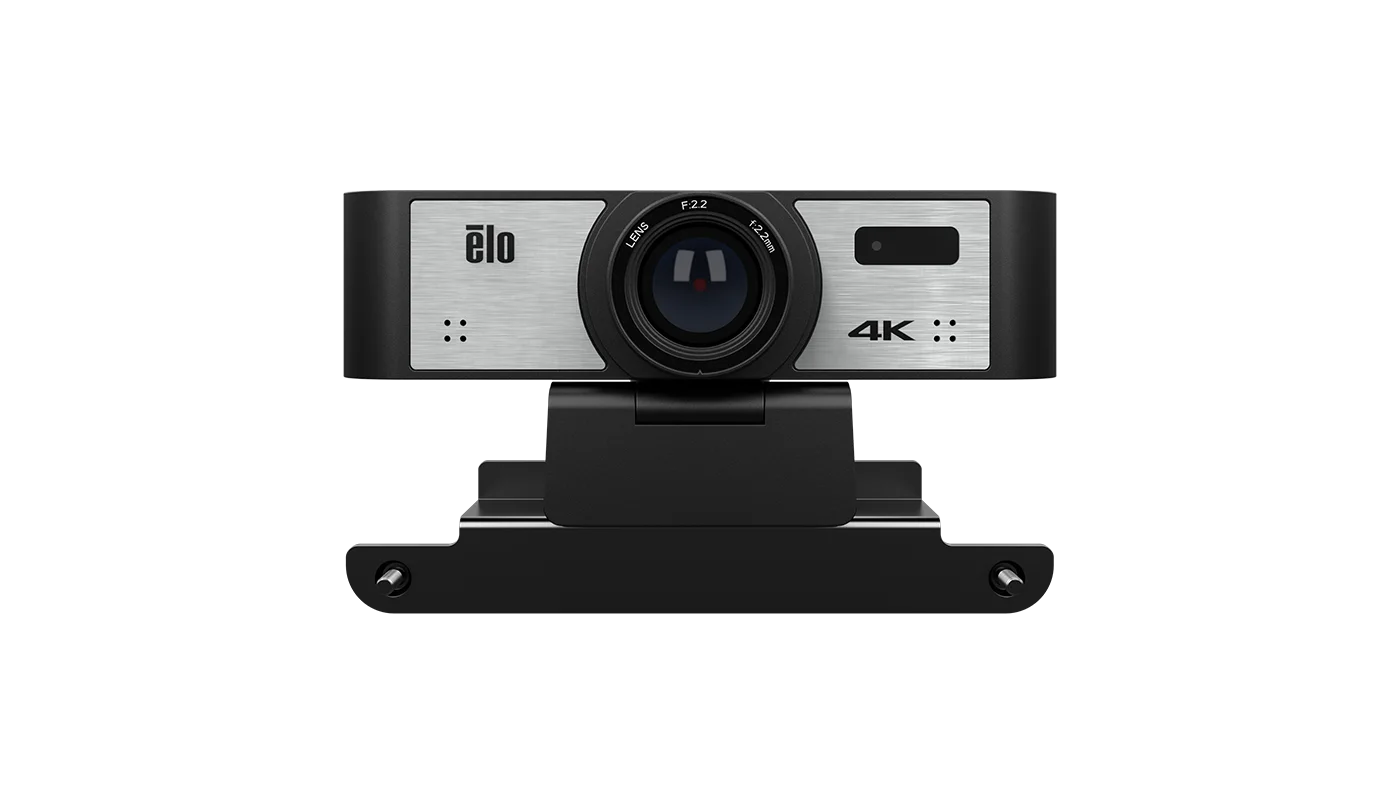

Elo Touch Elo Edge Connect 4K Conference Camera
Video conferencing made easy.
Overview

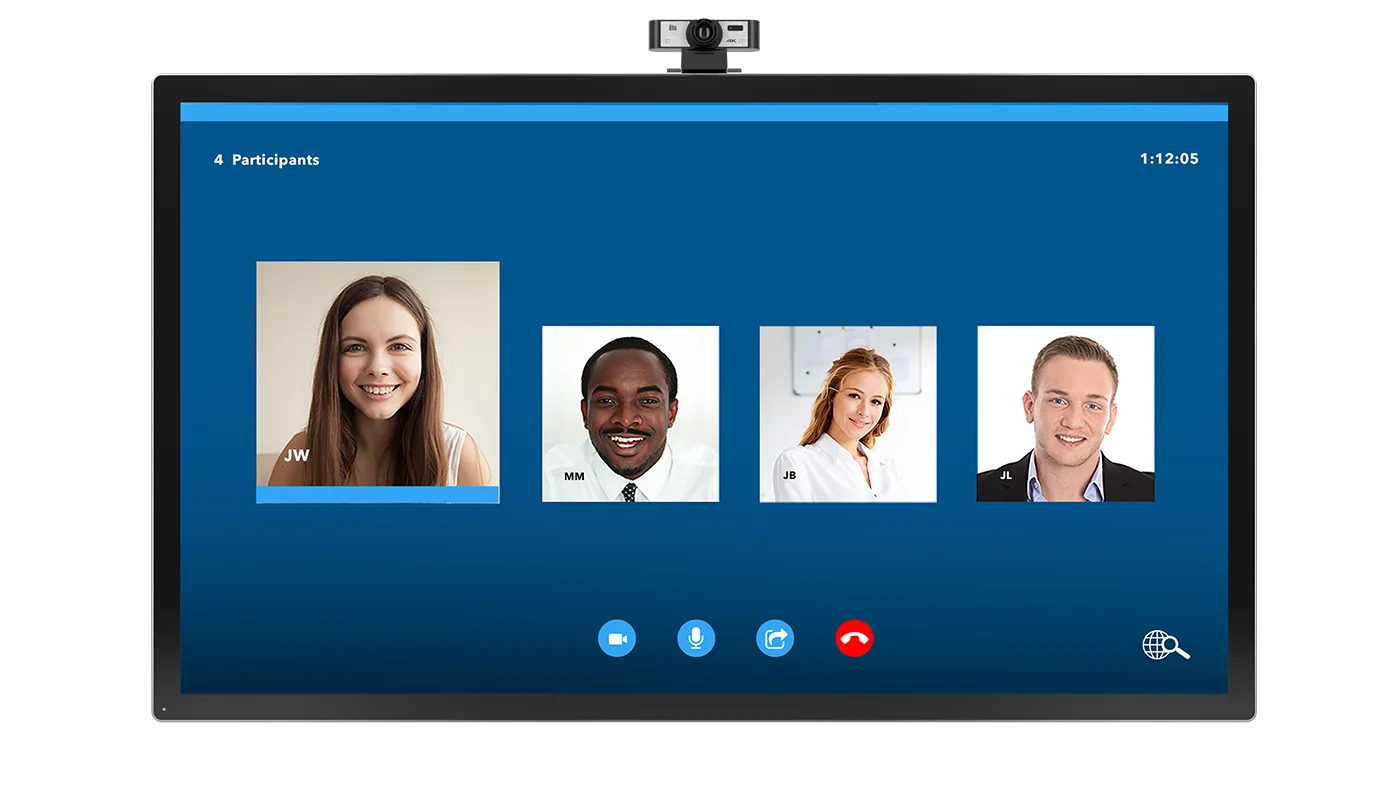

Designed for conference and huddle rooms, the Conference Camera delivers 4K video with wide viewing angles and adjustable positioning to cover any seating configuration. Simply attach the camera to your interactive display, connect to your compute device add your software and you're ready to start your meeting.

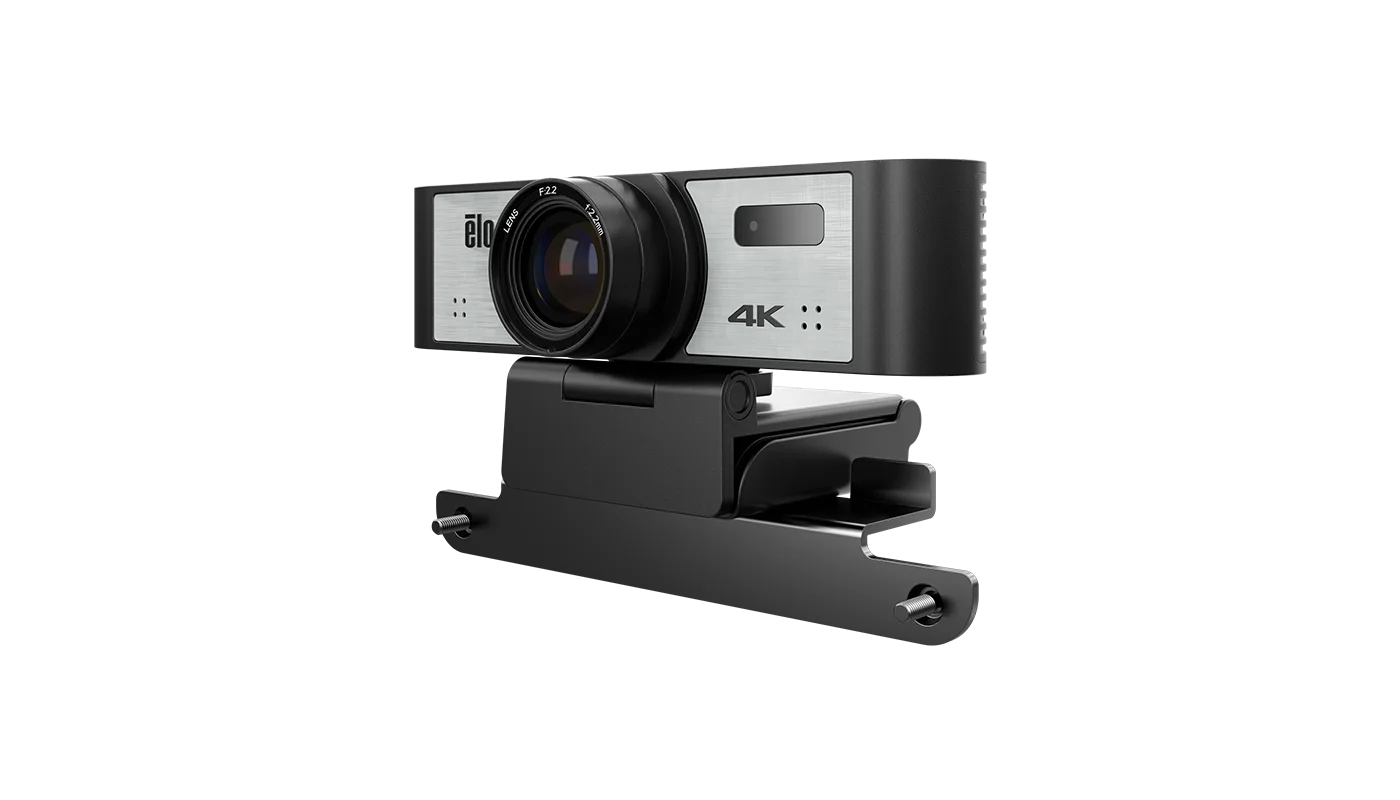

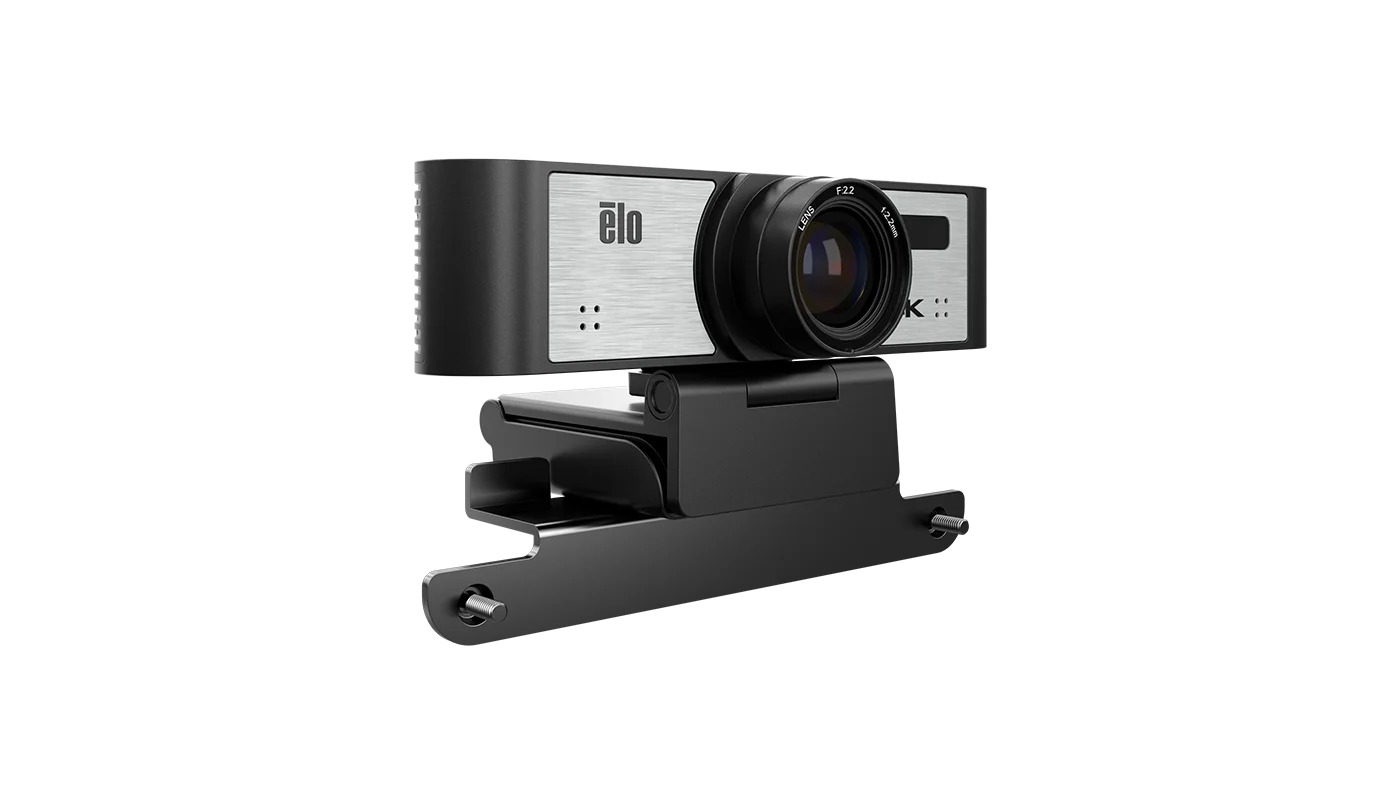

- With an adjustable 85° tilt, you can angle the conference camera to cover a variety of room configurations.
- Get up and move around during your meeting with our 110° wide angle field of view.
- The integrated microphone is designed to work with your collaboration apps to optimize room acoustics so attendees can hear you clearly.
- The Conference Camera is a UVC 1.1- compatible device supporting all major web conferencing applications, including Microsoft Teams, Zoom, Cisco Webex, GoToMeeting and BlueJeans.
- The Conference Camera is compatible with video conferencing applications on select Windows, Android, Linux and Mac computers.
Best for: Conference Room Technology · Conference Room Accessories
Specifications
Technical
- Part Number(s)
- E988153
- Enclosure Color
- Black
- Supported Video Resolutions
- 640 x 360p @30fps/25fps; 720p @30fps/25fps; 960 x 540p @30fps/25fps; 1080p @30fps/25fps; 4k @30fps/25fps
- Video Format
- H.264; MJPEG; YUY2; NV12
- Frame Rate
- 30fps @ UHD (4K)
- Field of View
- Vertical: 65° ± 5%; Horizontal: 80° ± 5%; Diagonal: 110° ± 5%
- Focus Type
- Fixed Focus
- Microphone
- Beamforming Mic Array
- Other Features
- IR Remote control; ePTZ Feature; Auto Framing Feature; Automatic gain control; Automatic exposure control; Automatic white balance control; Automatic black level calibration
- Interface
- USB 3.0, Type-C
- UVC Compatible
- Yes - UVC 1.1
- Supported Operating Systems
- Windows 7 (1080p and under only) / 8.1, 10, 11 or higher; macOS 10.10 or higher; Google™ Chromebook™ Version 29.0.1547.70 or higher; Linux (support UVC)
- Dimensions
- 4.72" x 2.76" x 2.76" / 120 mm x 70 mm x 70 mm
- Shipping Box Dimensions
- Individual: 11.02" x 6.89" x 9.05" / 280 mm x 175 mm x 230 mm; 10 box/carton: 27.44" x 8.27" x 22.09" / 697 mm x 210 mm x 561 mm
- Weight (Unpackaged)
- 0.46 lbs / 0.22 kg
- Weight (Packaged)
- 1.65 lbs / 0.75 kg
- Warranty
- 1-year
- Optional Accessories
- Replacement Remote - E157834
- What's in the Box
- Elo Conference Camera; Remote Control; 2x M3 mounting screws; 1.8m Type-C to USB-A cable; Quick Install Guide
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
